Sensor & Connector Identification

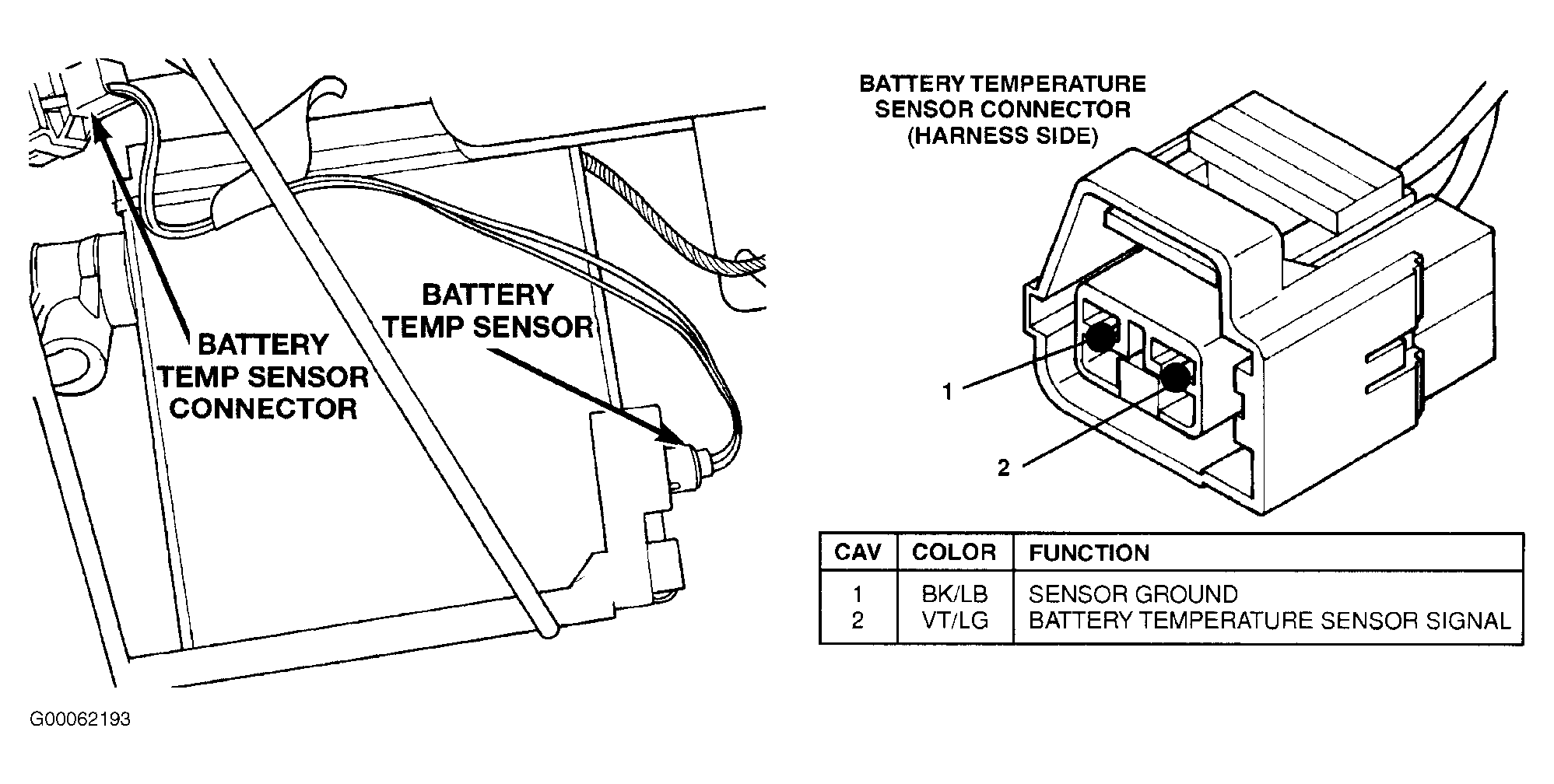

Fig 1: Sensor & Connector Identification (1 Of 4)
G00062193Courtesy of DAIMLERCHRYSLER CORPORATION

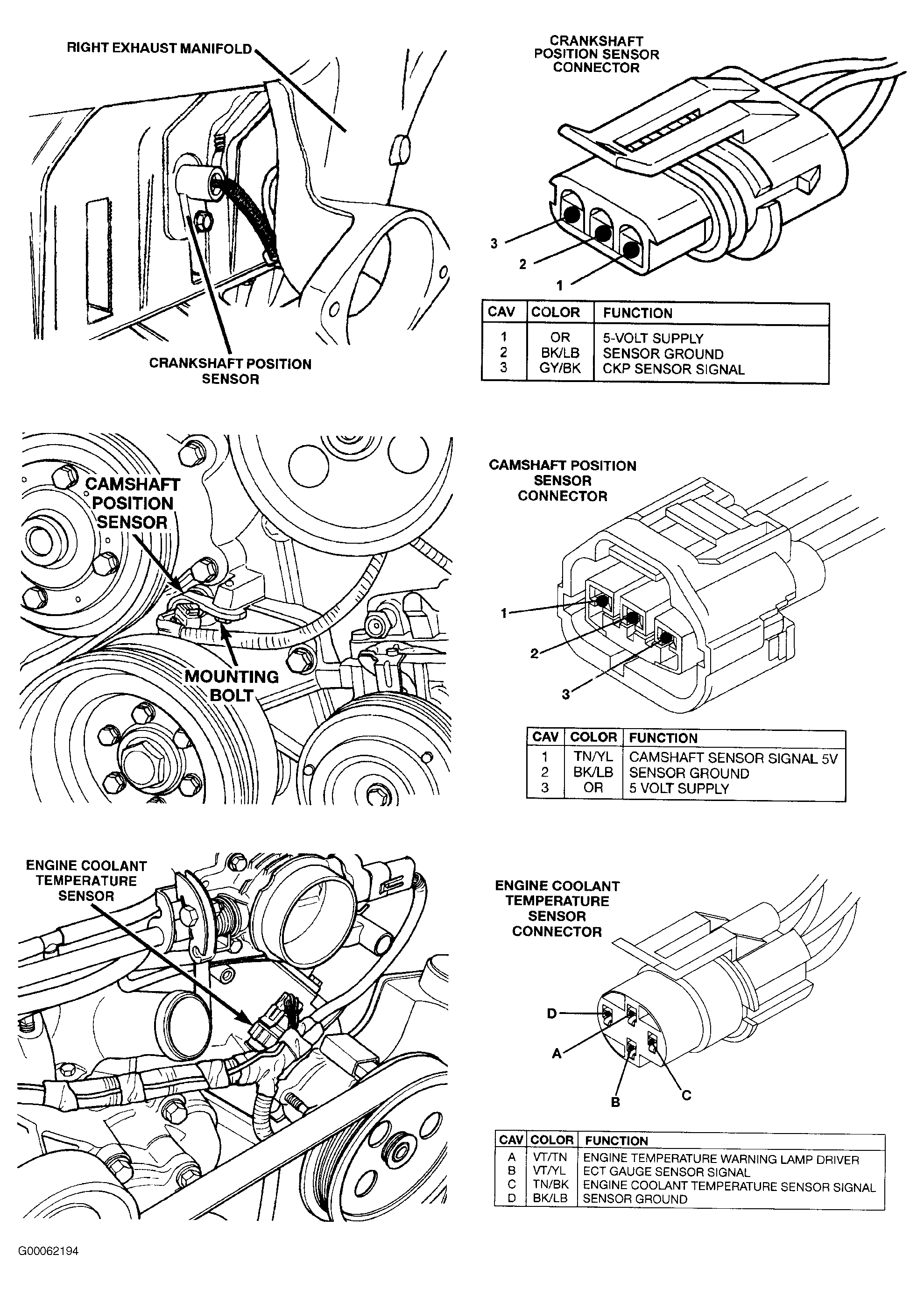

Fig 2: Sensor & Connector Identification (2 Of 4)
G00062194Courtesy of DAIMLERCHRYSLER CORPORATION

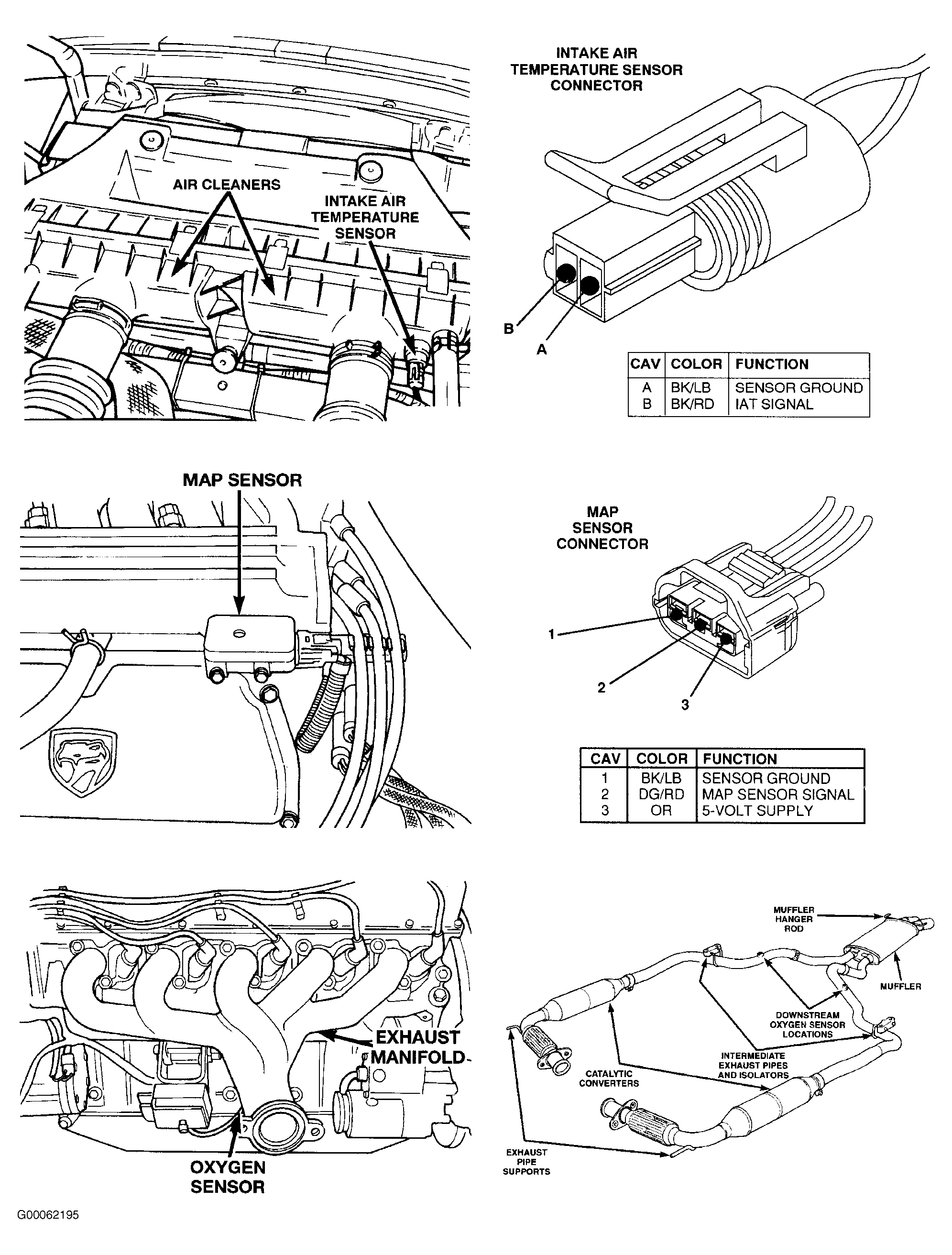

Fig 3: Sensor & Connector Identification (3 Of 4)
G00062195Courtesy of DAIMLERCHRYSLER CORPORATION

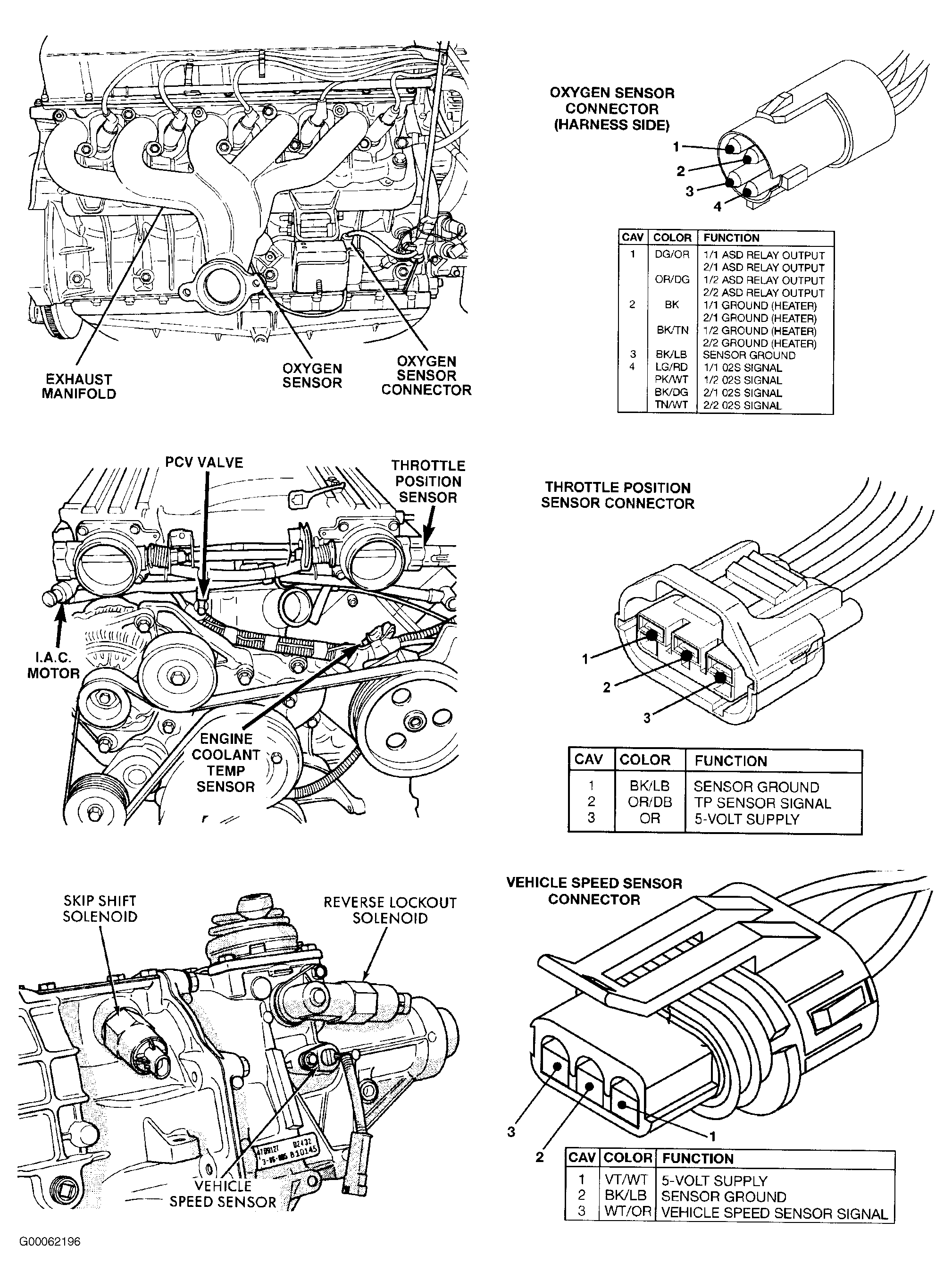

Fig 4: Sensor & Connector Identification (4 Of 4)
G00062196Courtesy of DAIMLERCHRYSLER CORPORATION
