DTC P0461-A: Fuel Level Unit No Change Over Time

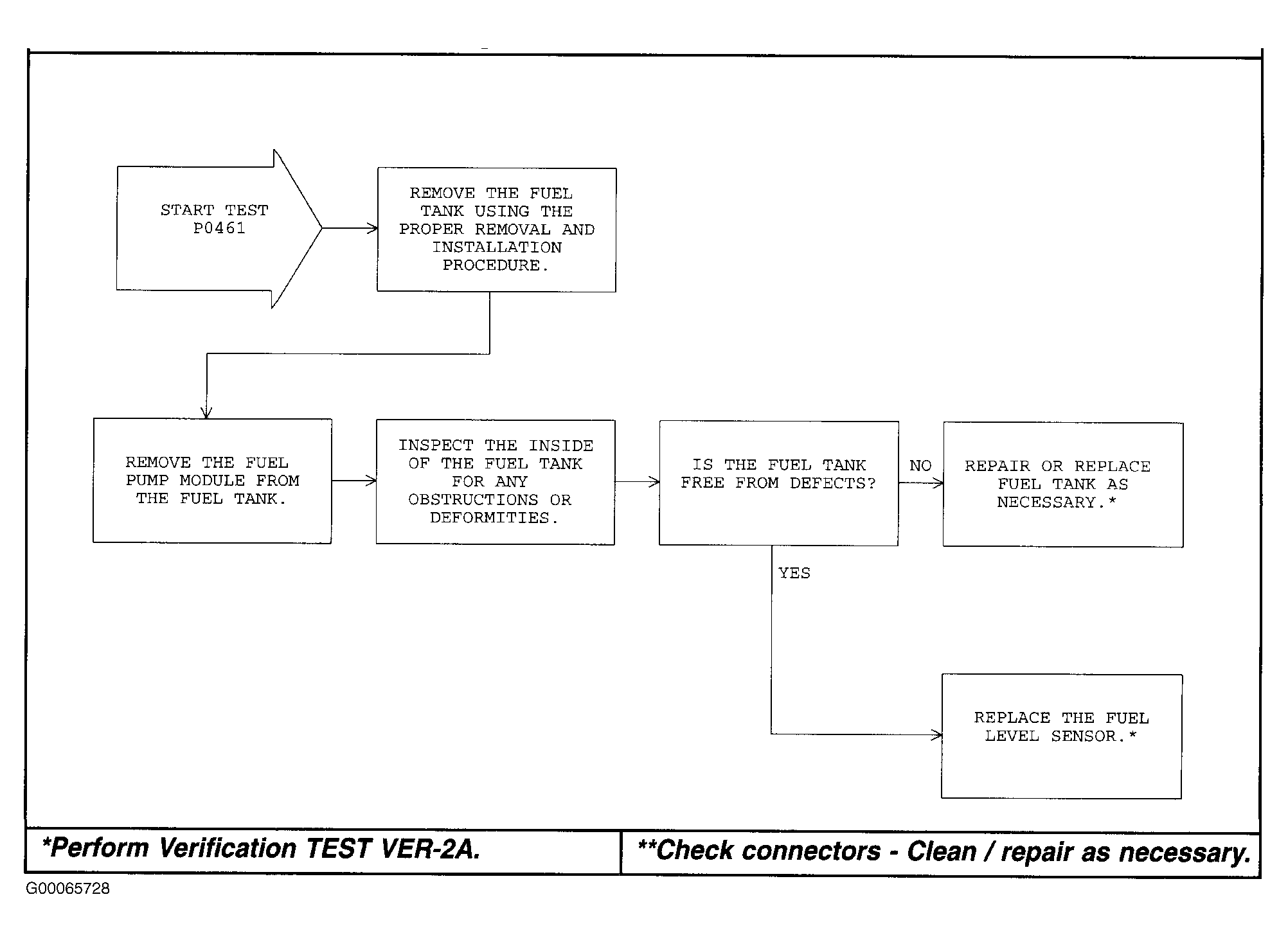

Fig 1: P0461-A: Fuel Level Unit No Change Over Time (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

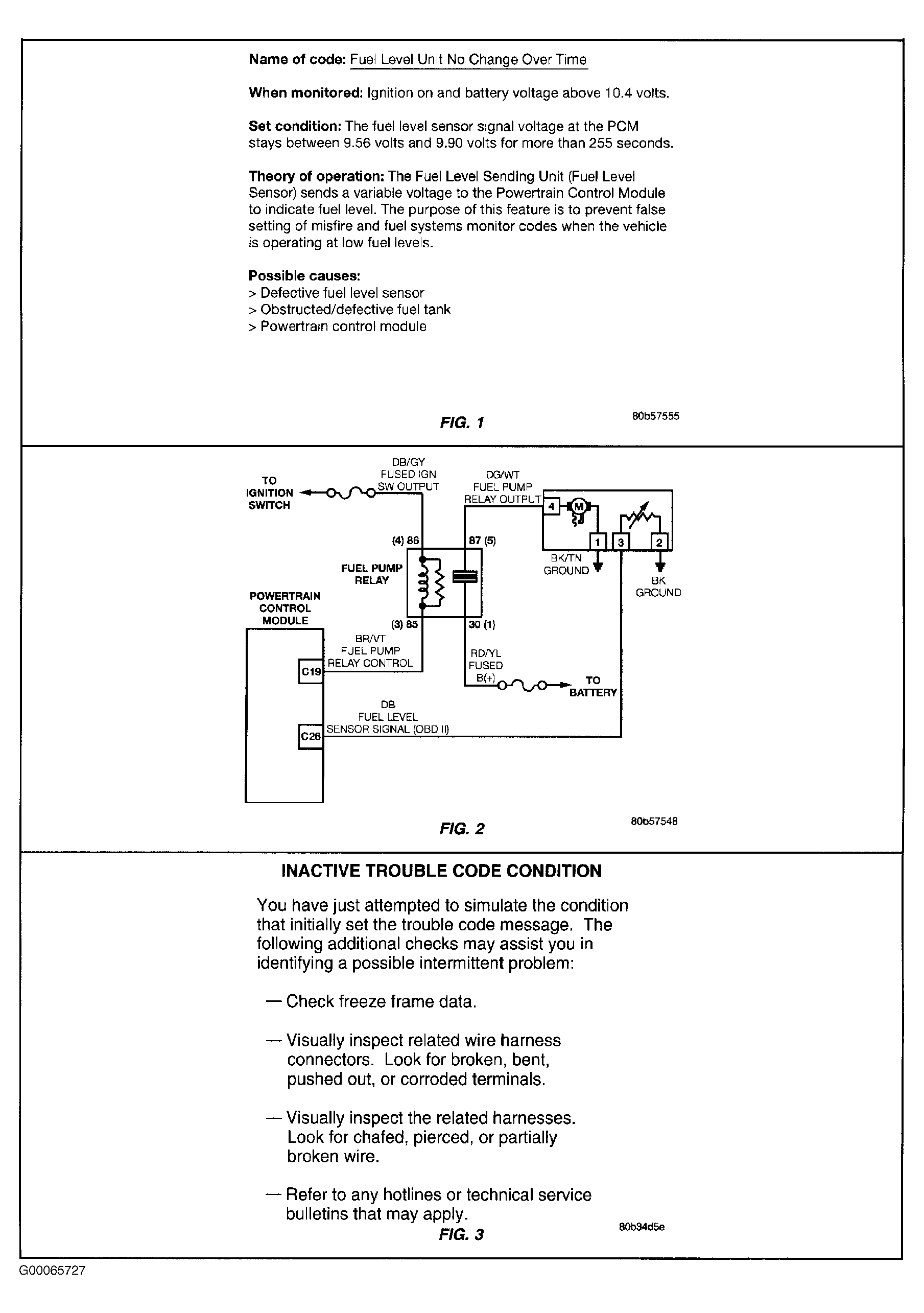

Fig 2: P0461-A: Fuel Level Unit No Change Over Time (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
