DTC P1196-A: Slow 2/1 O2 Sensor During Catalyst Monitor

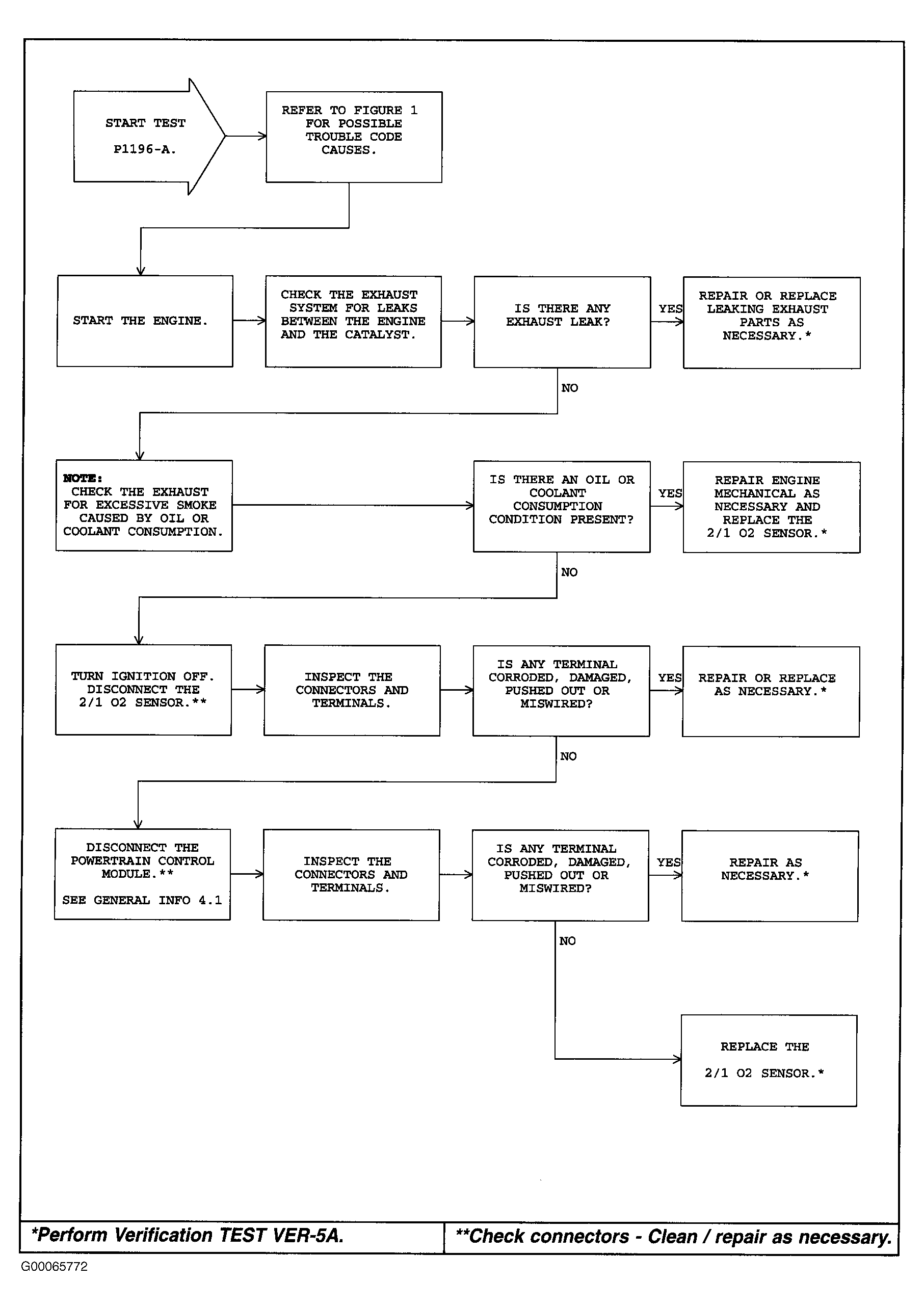

Fig 1: P1196-A: Slow 2/1 O2 Sensor During Catalyst Monitor (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: P1196-A: Slow 2/1 O2 Sensor During Catalyst Monitor (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
