Radiator Fan Control Relay

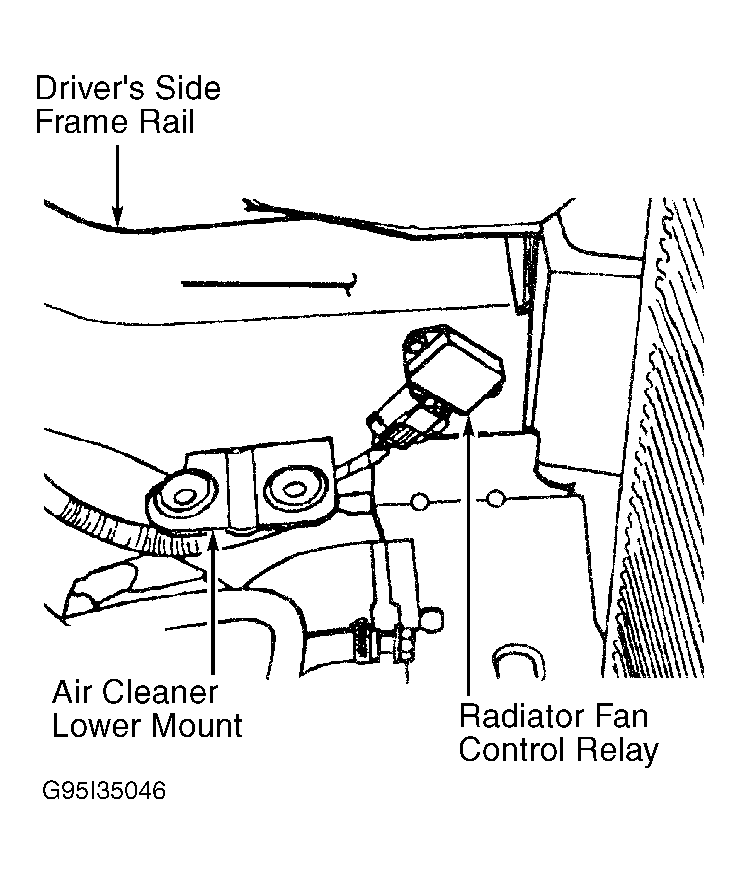

- Radiator fan control relay may be referred to as radiator fan relay. Radiator fan control relay is located near driver's side frame rail and air cleaner lower mount. See Fig 1
. Individual component testing not available from manufacturer.
- If radiator fan control relay or wiring circuit failure exists, a DTC will be stored in PCM. See DTC P1491: RADIATOR FAN CONTROL RELAY CIRCUIT
test under DIAGNOSTIC TESTS in SELF-DIAGNOSTICS - FWD VANS article.
Courtesy of CHRYSLER CORP.
