Memory Selector Switch
WARNING: This page is about a different car, the 2000 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
Remove memory selector switch. See under MEMORY SELECTOR SWITCH REMOVAL & INSTALLATION. Check continuity of switch when pressing buttons. See MEMORY SELECTOR SWITCH CONTINUITY table. If continuity is not as specified, replace switch.

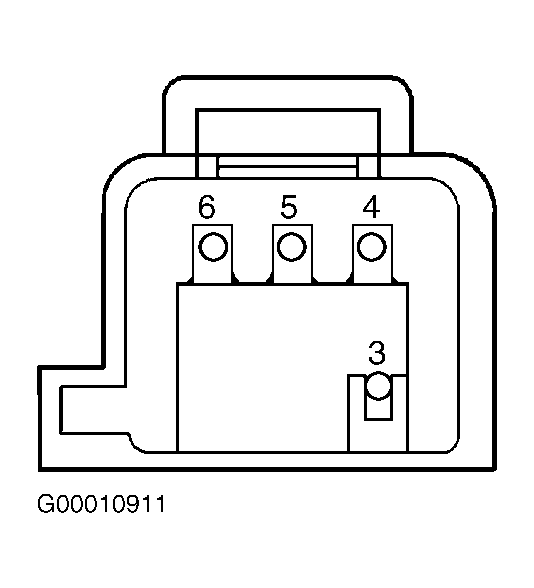

MEMORY SELECTOR SWITCH CONTINUITY
| Switch Position | Terminals No. |
|---|---|
| 1 | 3 & 6 |
| 2 | 3 & 4 |
| S | 3 & 5 |
| Released | None |
