Power Window Switch

Remove window switch from door trim panel. See POWER WINDOW SWITCH under REMOVAL & INSTALLATION. Using an ohmmeter, check switch continuity. See appropriate WINDOW SWITCH CONTINUITY table. See Fig 1 or Fig 2 . Replace power window switch as necessary.
Vehicles equipped with Auto Down feature have electronic components in switch to actuate Auto Down. To test, check switch continuity, reconnect switch, turn ignition on and test feature. If Auto Down does not work, replace switch.

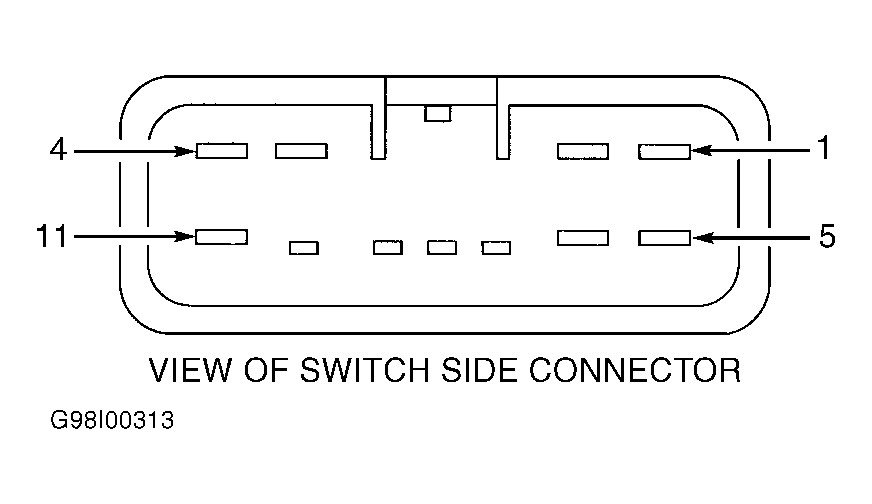

Fig 1: Identifying Driver's & Passenger's Power Window Switch Terminals (Dakota Except Quad Cab)

Courtesy of CHRYSLER CORP.

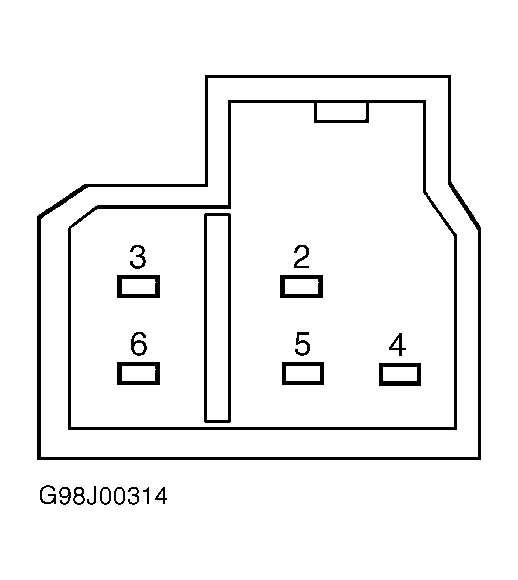

Fig 2: Identifying Passenger's Power Window Switch Terminals (Dakota Quad Cab & Durango)

Courtesy of CHRYSLER CORP.

DRIVER'S WINDOW SWITCH CONTINUITY (DAKOTA EXCEPT QUAD CAB)

Switch Position		Continuity Between Terminals No.
Off		1 & 3; 2 & 3; 3 & 4; 3 & 6
Up
Left		3 & 4; 5 & 6
Right		1 & 5; 2 & 3
Down
Left		3 & 6; 4 & 5
Right		1 & 3; 2 & 5
Light		3 & 5

DRIVER'S WINDOW SWITCH CONTINUITY (DAKOTA QUAD CAB & DURANGO)

Switch Position

Continuity Between Terminals No.

Off

2 & 5; 3 & 5; 5 & 6; 5 & 11; 5 & 12; 5 & 13; 5 & 14

Left Front ⁽¹⁾

4 & 6

Right Front

2 & 5; 3 & 4

Left Rear

4 & 14; 5 & 13

Right Rear

4 & 12; 5 & 11

Down

Left Front ⁽¹⁾

5 & 6

Right Front

2 & 4; 3 & 5

Left Rear

4 & 13; 5 & 14

Right Rear

4 & 11; 5 & 12

Auto Down

Left Front

⁽¹⁾

Power Window Lock-Out

4 & 7

⁽¹⁾	Vehicles equipped with Auto Down feature have electronic components in switch to actuate Auto Down. To test, check switch continuity, reconnect switch, turn ignition on and test feature. If Auto Down does not work, replace switch.

PASSENGER'S WINDOW SWITCH CONTINUITY (DAKOTA EXCEPT QUAD CAB)

Switch Position	Continuity Between Terminals No.
Off	1 & 4; 2 & 3
Up	2 & 3; 4 & 11
Down	1 & 4; 3 & 11
Light	8 & 11

PASSENGER'S WINDOW SWITCH CONTINUITY (DAKOTA QUAD CAB & DURANGO)

Switch Position	Continuity Between Terminals No.
Off	2 & 5; 3 & 6
Up	2 & 5; 3 & 4
Down	3 & 6; 4 & 5
