Component Locations
WARNING: This page is about a different car, the 2000 Dodge Ram Wagon and 2000 Dodge Ram Van. However, it is still accessible from the selected car via links, so may be relevant.

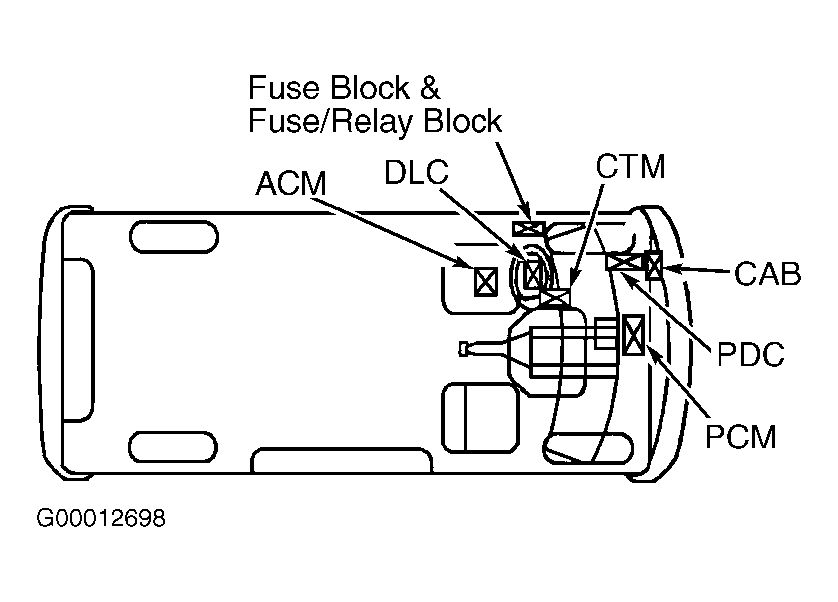

COMPONENT LOCATIONS
| Component | Location | ||
|---|---|---|---|
| Air Bag Control Module (ACM) | On Bracket, Under Driver's Seat | ||
| Central Timer Module (CTM) | Under Instrument Panel, On Instrument Panel Left Center Support | ||
| Controller Anti-lock Brake (CAB) Module | On Top Of Hydraulic Control Unit (HCU), Under Battery Tray | ||
| C201 Connector | (1) Behind Left Side Of Instrument Panel | ||
| Data Link Connector (DLC) | On Bottom Of Instrument Panel, To Left Of Steering Column. | ||
| Fuse Block | On Left Instrument Panel End Bracket | ||
| Fuse/Relay Block | On Left Instrument Panel End Bracket | ||
| Hydraulic Control Unit (HCU) | Under Battery Tray | ||
| Instrument Cluster C1 Green Connector | Behind Instrument Cluster | ||
| Instrument Cluster C2 Blue Connector | Behind Instrument Cluster | ||
| Key-In Ignition Switch Connector | On Right Side Of Steering Column, Next To Ignition Switch | ||
| Power Distribution Center (PDC) | Next To Battery | ||
| Powertrain Control Module (PCM) | On Firewall, Next To Wiper Motor | ||
| Wiper Motor Connector | On Bottom Of Wiper Motor, In Engine Compartment | ||
| Wiper Relay | Behind Top Of Glove Box | ||
|
|||
