Powertrain Control Module Location

WARNING: This page is about a different car, the 2000 Dodge Ram Wagon and 2000 Dodge Ram Van. However, it is still accessible from the selected car via links, so may be relevant.

Powertrain Control Module (PCM) is located on firewall, near brake booster. See Fig 1. If replacing PCM, PCM must be properly programmed. See POWERTRAIN CONTROL MODULE PROGRAMMING under PROGRAMMING.

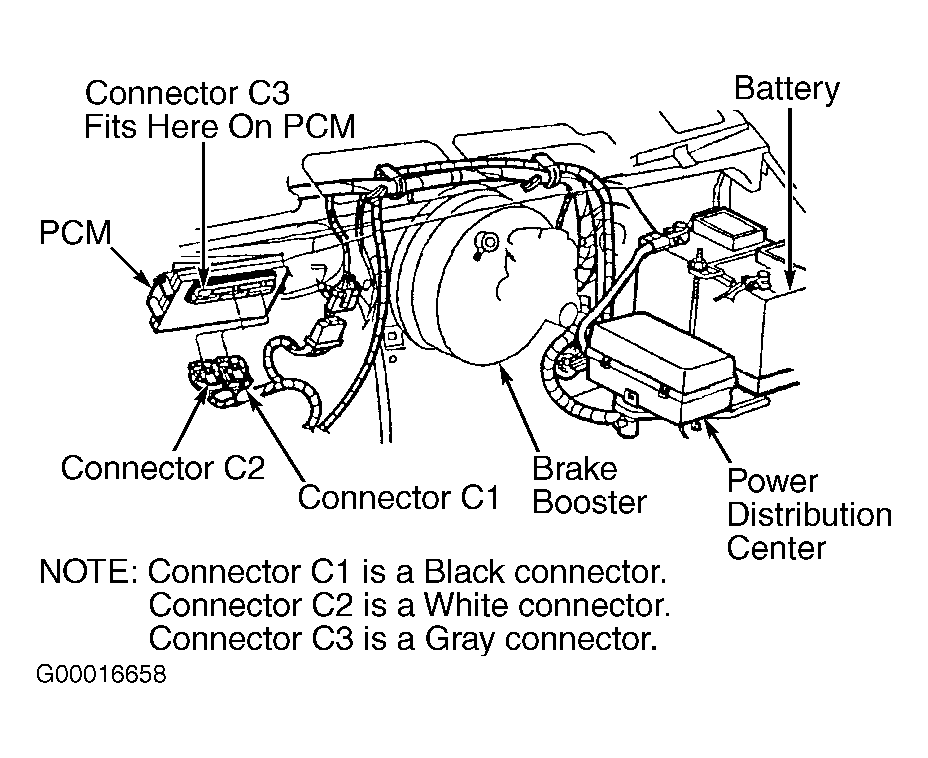

Fig 1: Locating Powertrain Control Module (PCM), Power Distribution Center & Identifying PCM Connectors

Courtesy of DAIMLERCHRYSLER CORPORATION
