Installation (Neon)

Install wires for fuel level sensor in bottom of fuel pump module. Place wires in groove on back side of fuel level sensor.
While feeding wires into guide grooves, slide fuel level sensor onto fuel pump module until fuel level sensor snaps into place. Ensure tab on fuel level sensor is fully engaged.
Install each wire for fuel level sensor up through electrical connector for fuel pump and fuel level sensor. Pull each wire backward until electrical terminal on the wire locks in place. Ensure wires are installed in original location.
Install Blue locking wedge inside electrical connector for fuel pump and fuel level sensor. Install electrical connector for fuel pump and fuel level sensor on electrical connector on bottom side of electrical connector mounted on top of fuel pump module. Reinstall fuel pump module using proper procedure.

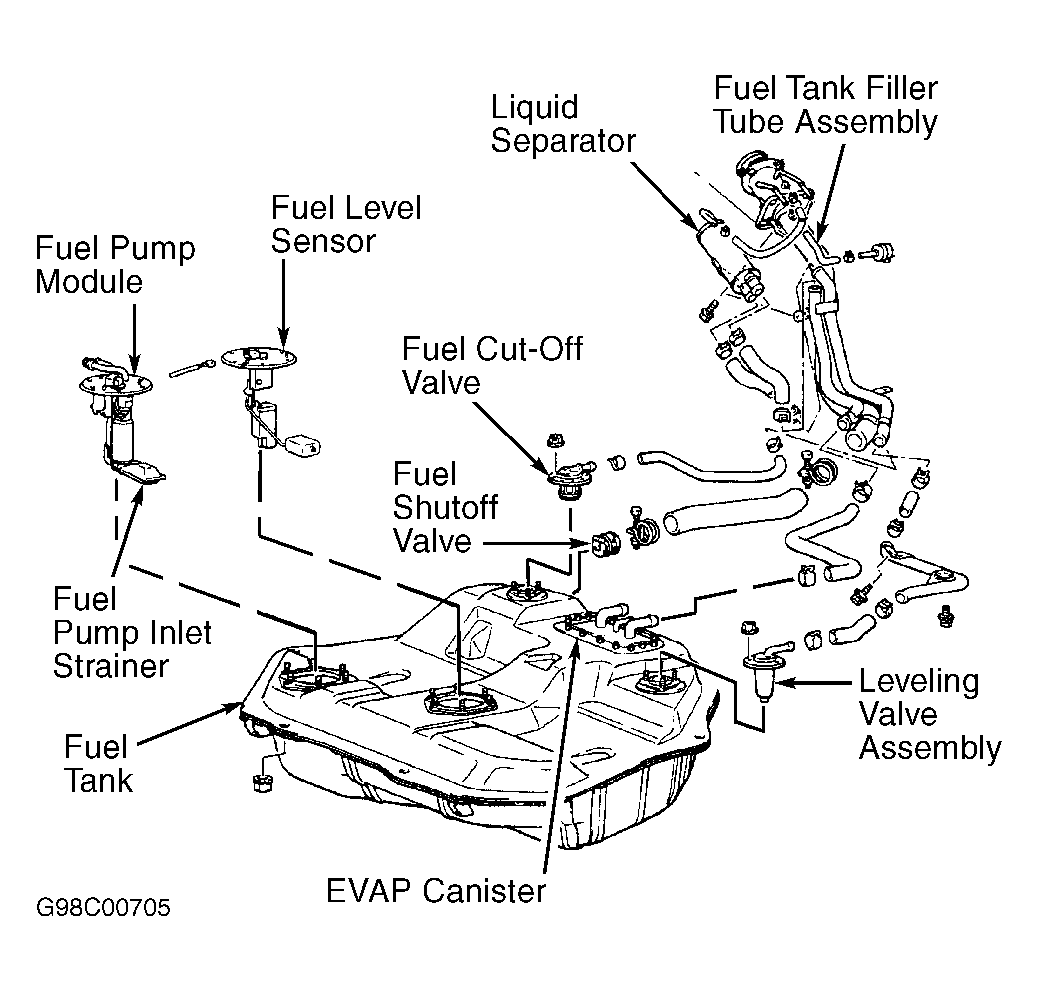

Fig 1: Locating Fuel Level Sensor, Fuel Pump Module & Fuel System Components (Avenger & Sebring Coupe)

Courtesy of CHRYSLER CORP.

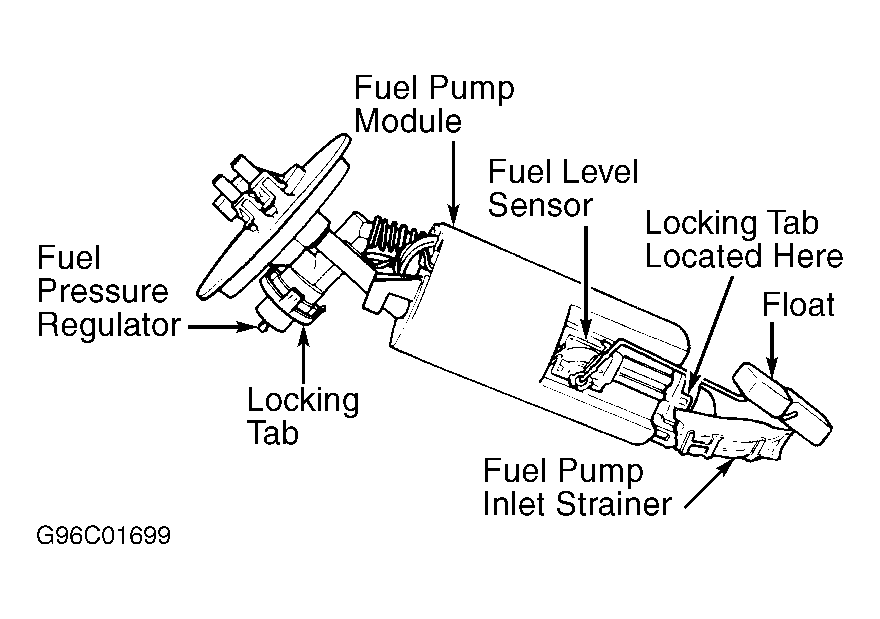

Fig 2: Locating Fuel Level Sensor, Fuel Pressure Regulator & Fuel Pump Inlet Strainer On Fuel Pump Module (Breeze, Cirrus, Sebring Convertible & Stratus)

Courtesy of CHRYSLER CORP.

Fig 3: Locating Fuel Level Sensor & Fuel Pump Inlet Strainer On Fuel Pump Module (Concorde, Intrepid, LHS & 300M)

Courtesy of CHRYSLER CORP.

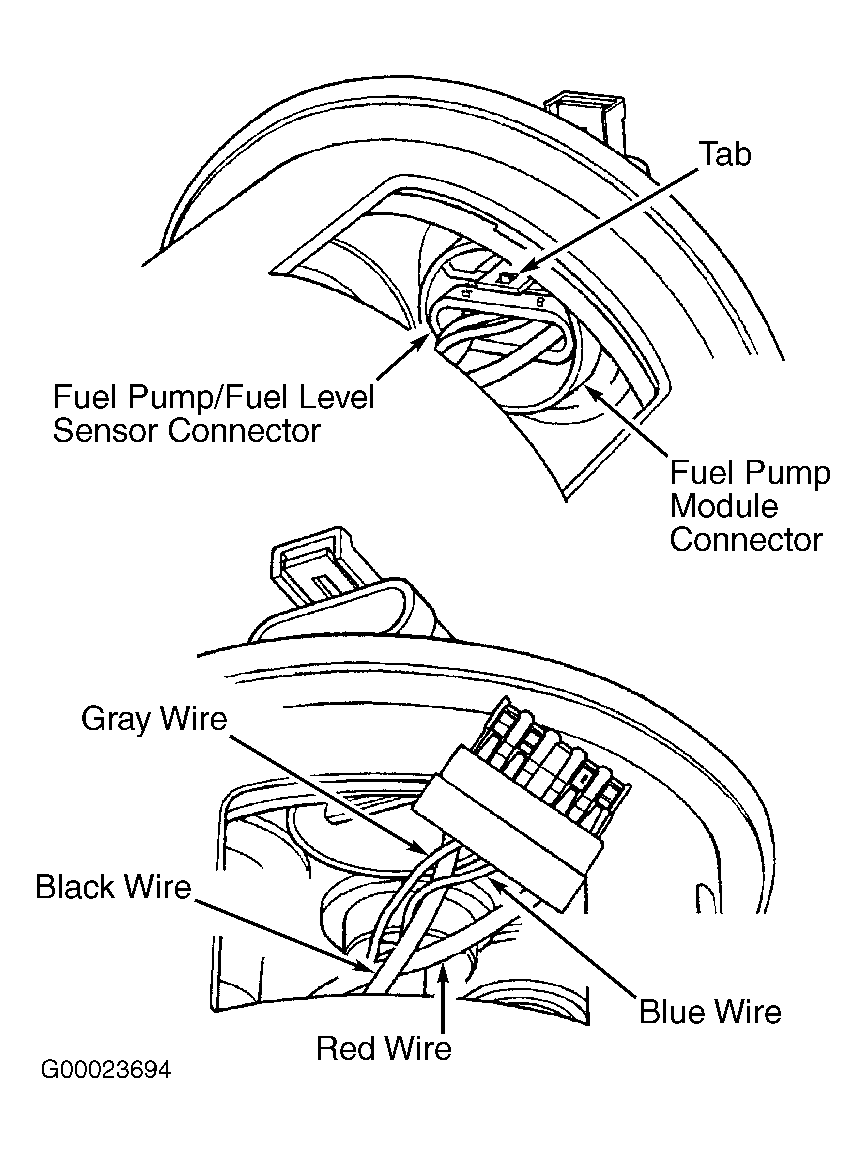

Fig 4: Removing Fuel Level Sensor Connector & Terminals (Concorde, Intrepid, LHS & 300M)

Courtesy of DAIMLERCHRYSLER CORPORATION

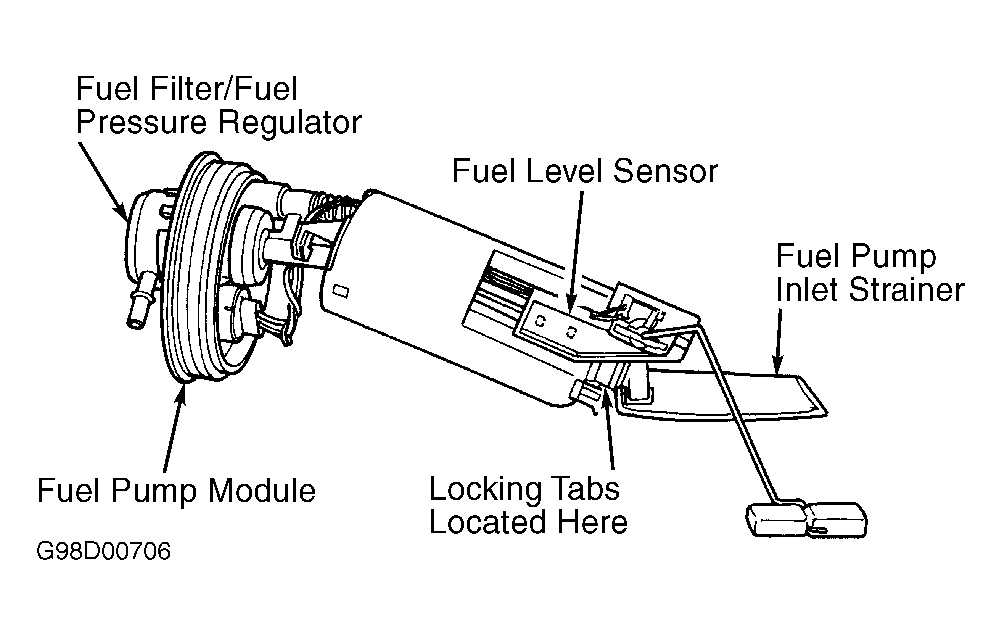

Fig 5: Locating Fuel Level Sensor, Fuel Filter/Fuel Pressure Regulator & Fuel Pump Inlet Strainer On Fuel Pump Module (Neon)

Courtesy of CHRYSLER CORP.

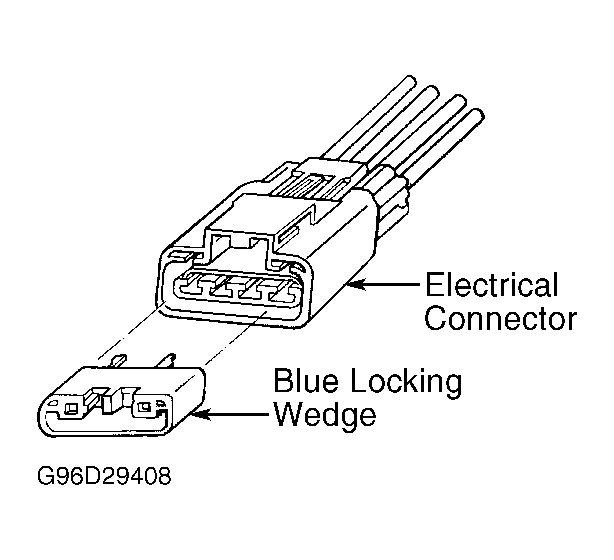

Fig 6: Locating Blue Locking Wedge (Neon)

Courtesy of CHRYSLER CORP.
