Final Assembly Of Input Clutch Assembly

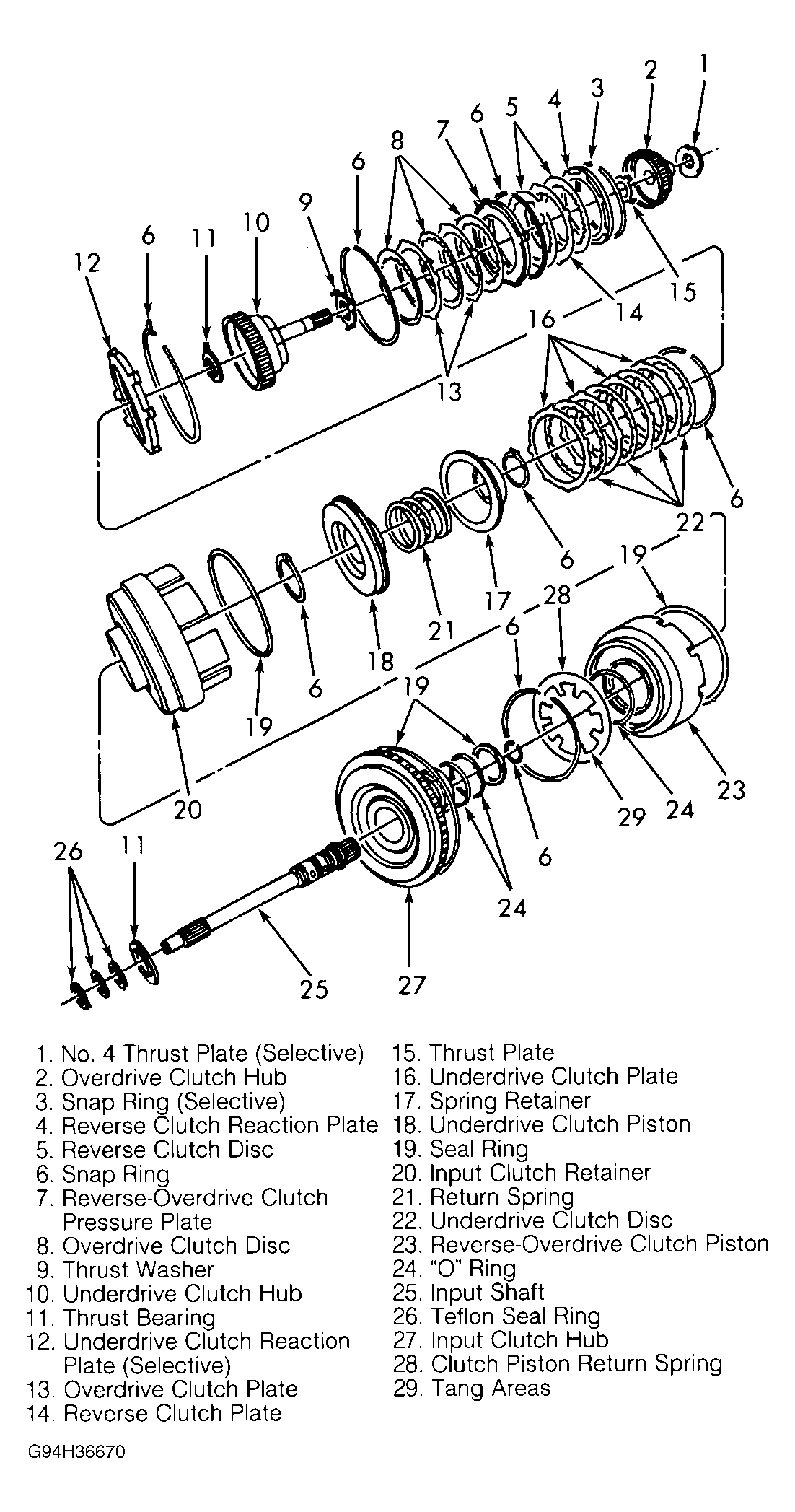

  1. Remove reverse and overdrive clutch assemblies. Install thrust bearing located below underdrive clutch hub. See Figure . Thrust bearing must be installed with 3 small tabs facing upward, away from torque converter end of input shaft.
  2. Install underdrive clutch hub. Install 5-tab thrust washer on shaft end of underdrive clutch hub.
  3. Install 3-tab thrust plate on front (opposite shaft end) of overdrive clutch hub. Install overdrive clutch hub on input clutch assembly. Ensure tabs on thrust plate remain fully engaged.
  4. To complete final assembly, reinstall overdrive and reverse clutch components. Ensure all clutch components are installed in original location as when clutch clearances were checked. Install No. 4 thrust plate on overdrive clutch hub. See Figure .
