Memory Heated Seat& Mirror Module
WARNING: This page is about a different car, the 2000 Chrysler LHS and 2000 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

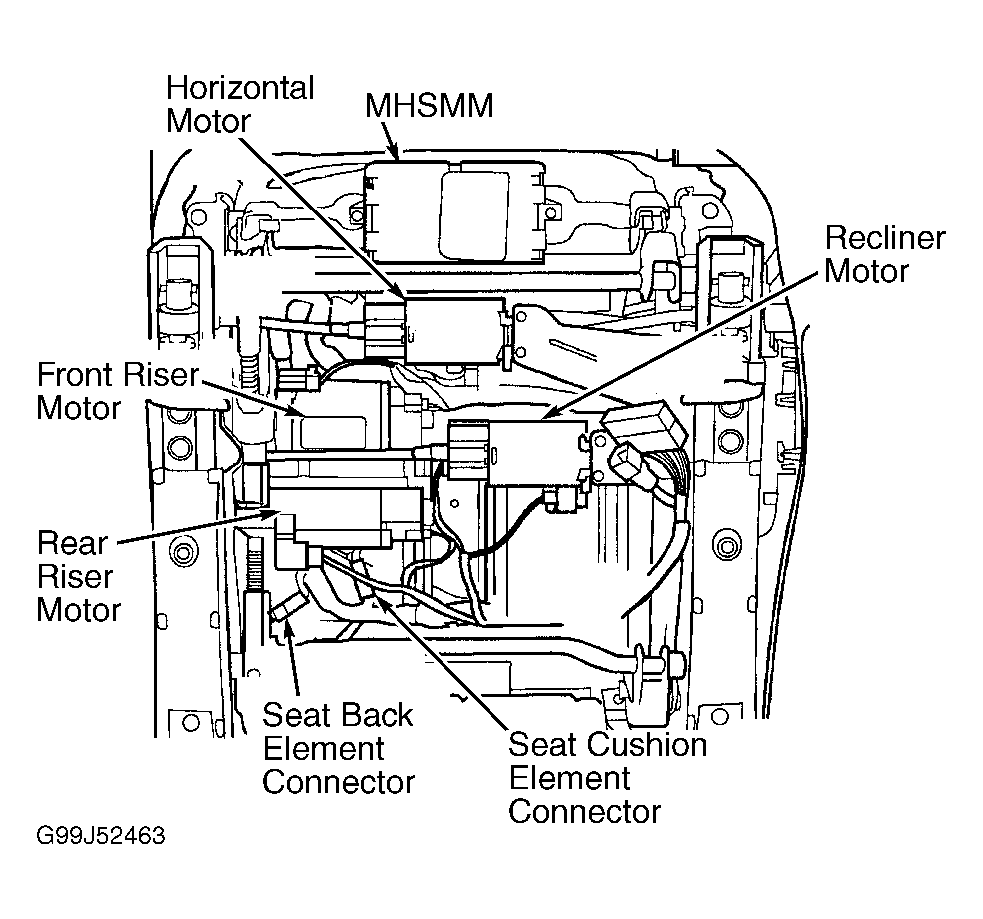

Memory Heated Seat and Mirror Module (MHSMM) is located under front of driver's seat. Disconnect negative battery cable. If necessary, remove seat from vehicle. See SEAT ASSEMBLY under REMOVAL & INSTALLATION in POWER SEATS - CONCORDE, INTREPID, LHS & 300M article. Remove 2 screws attaching MHSMM to seat frame. Disconnect electrical connectors from MHSMM and remove from seat. To install, reverse removal procedure.
