Toe-In Adjustment (Rear)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2004 Dodge Intrepid, 2004 Chrysler Concorde, 2004 Chrysler 300M, 2003 Dodge Intrepid, and 2003 Chrysler Concorde. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
On vehicles with adjustable rear toe settings, rear adjustments should be set first, then adjust front settings.
Loosen lateral link jam nuts. Rotate adjustment link as required to set toe-in to specification. Ensure lateral link does not exceed maximum lengths. See LATERAL LINK MAXIMUM DIMENSIONS table. Tighten jam nuts to specification. See TORQUE SPECIFICATIONS .

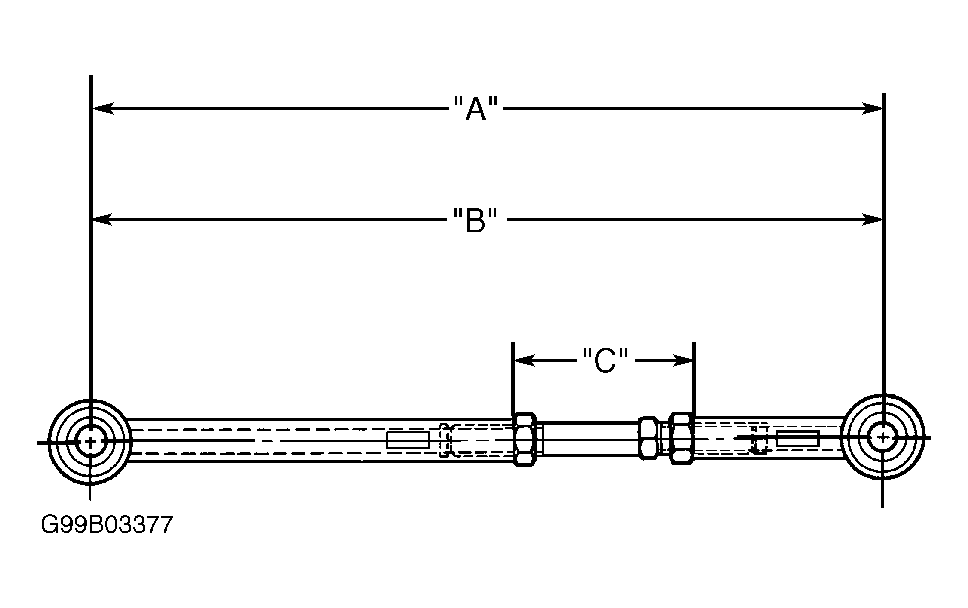

LATERAL LINK MAXIMUM DIMENSIONS
| Application | Dimension "A" - In. (mm) | Dimension "B" - In. (mm) | Dimension "C" - In. (mm) | ||
|---|---|---|---|---|---|
| Concorde, Intrepid & 300M | (1) | 14.96 (380) | 3.5 (90) | ||
|
|||||
