Chime Inoperative With Drivers Seat Belt Unfastened

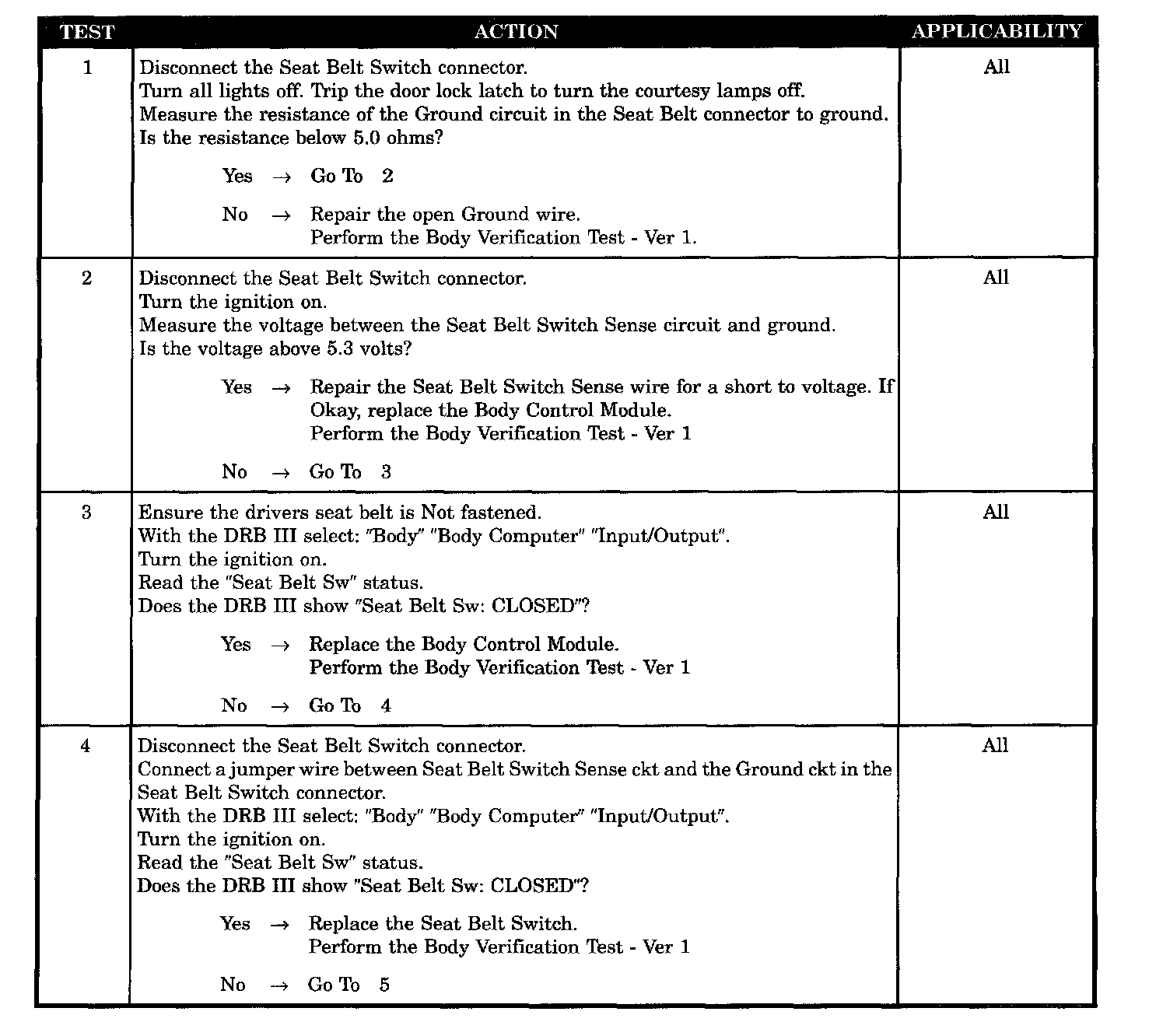

Test 1 - 4:

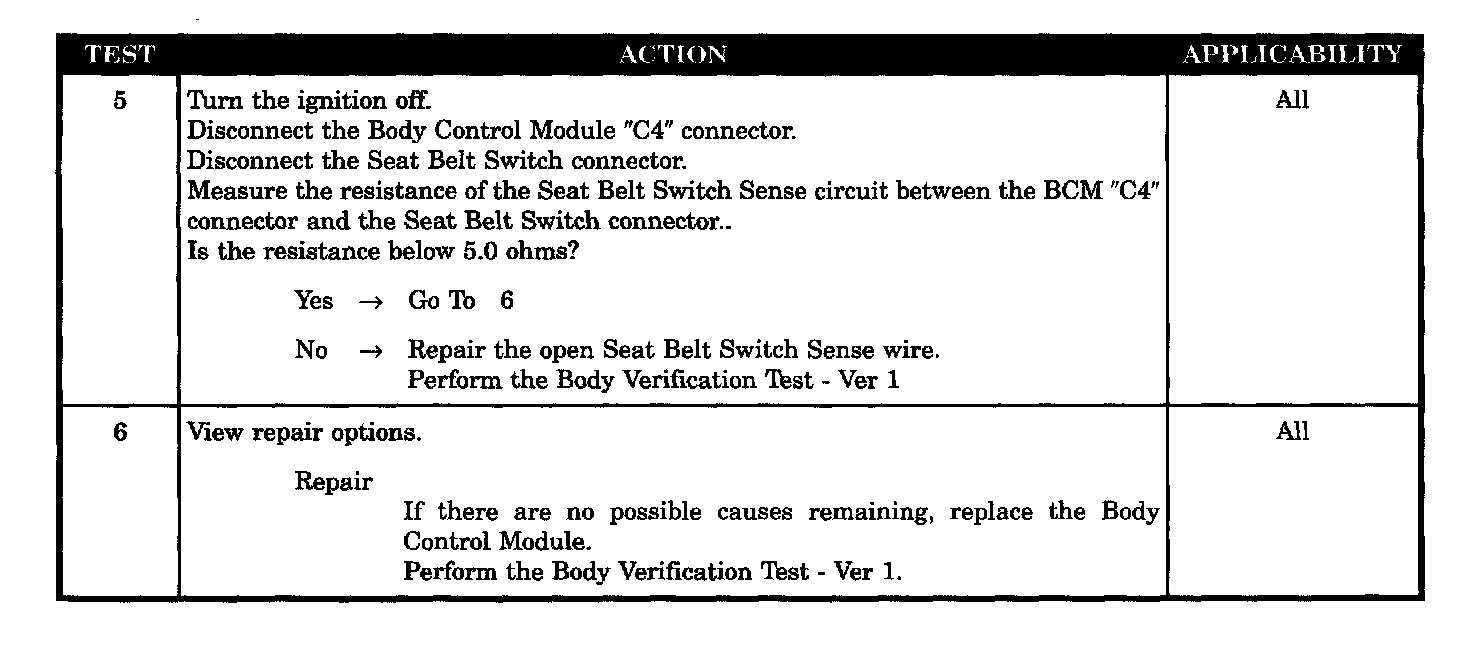

Test 5 - 6:




SYMPTOM
CHIME INOPERATIVE WITH DRIVERS SEAT BELT UNFASTENED

POSSIBLE CAUSES
- Seat belt switch status wrong
- Ground wire open
- Seat belt switch sense wire short to voltage
- Seat belt switch sense wire open
- Seat belt switch open
- Body control module seat belt sense open
