Chime Sounds With Driver Seat Belt Fastened

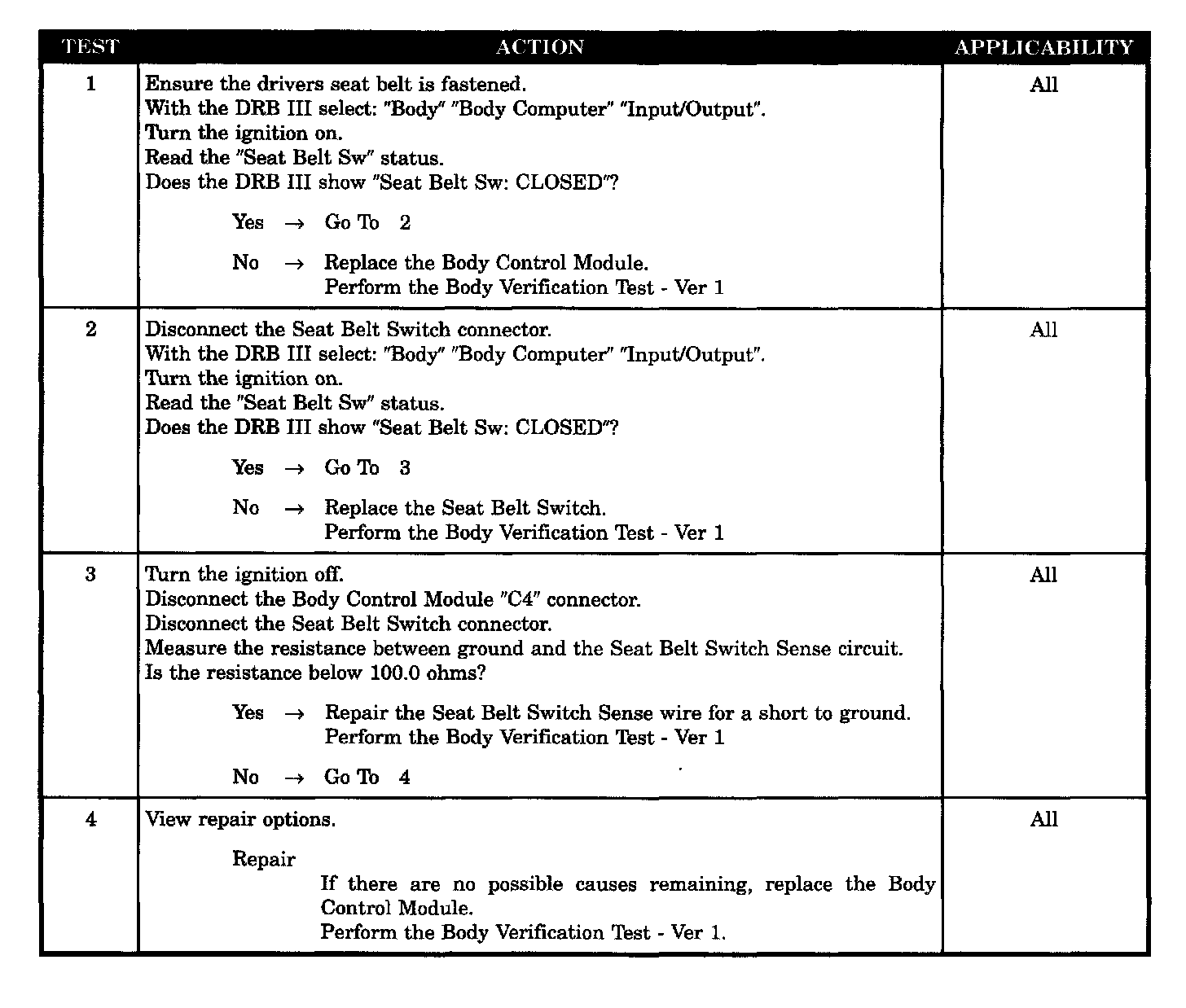

Test 1 - 4:




SYMPTOM
CHIME SOUNDS WITH DRIVER SEAT BELT FASTENED

POSSIBLE CAUSES
- Seat belt switch status wrong
- Seat belt switch shorted
- Seat belt switch sense wire short to ground
- Body control module - seat belt switch shorted
