Control Switch/Timer Relay Module: Installation

Feed base wires through base ring. Position base ring index tab at 9 o'clock position and install base ring. Connect wires to base. Position base alignment rib at 11 o'clock position to mate groove in base ring. Push base into control panel until it clicks. To complete installation, reverse removal procedure.

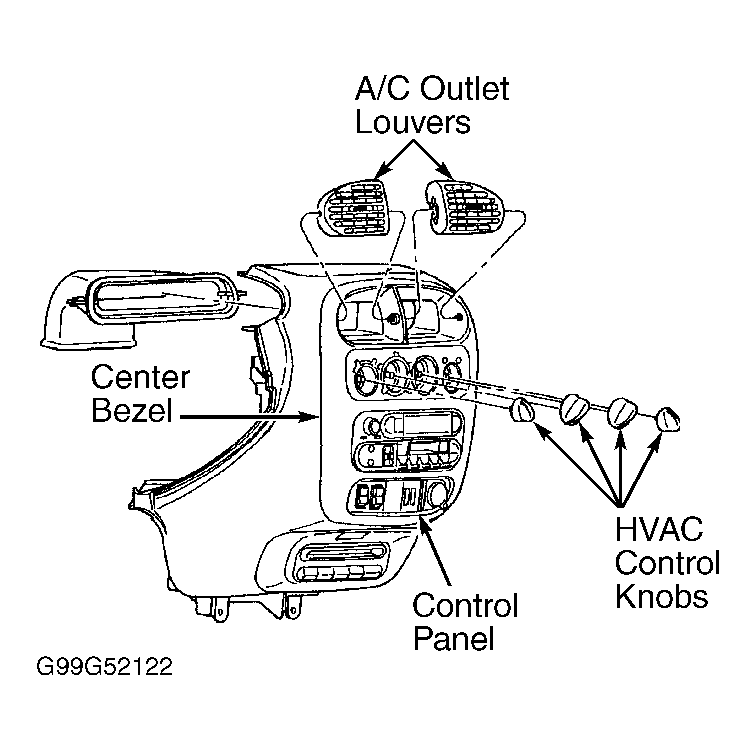

Fig 1: Removing Center Bezel

Courtesy of DAIMLERCHRYSLER CORP.

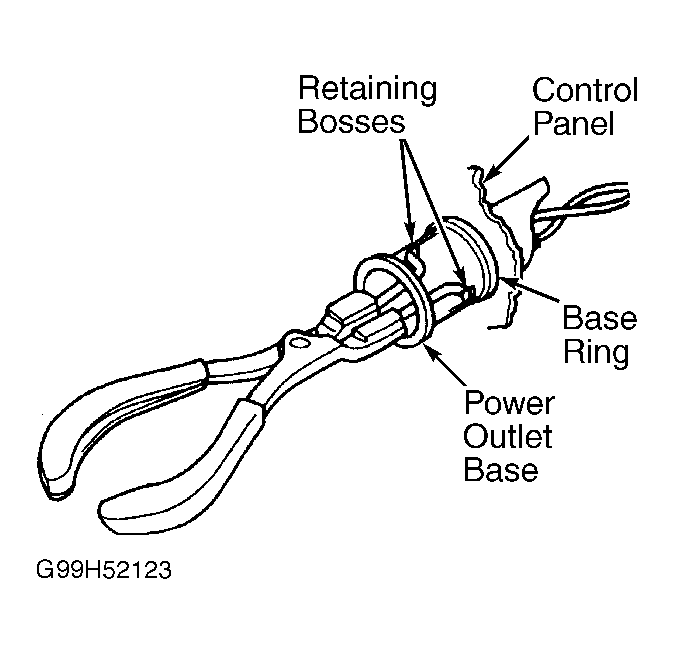

Fig 2: Removing Power Outlet Base

Courtesy of DAIMLERCHRYSLER CORP.
