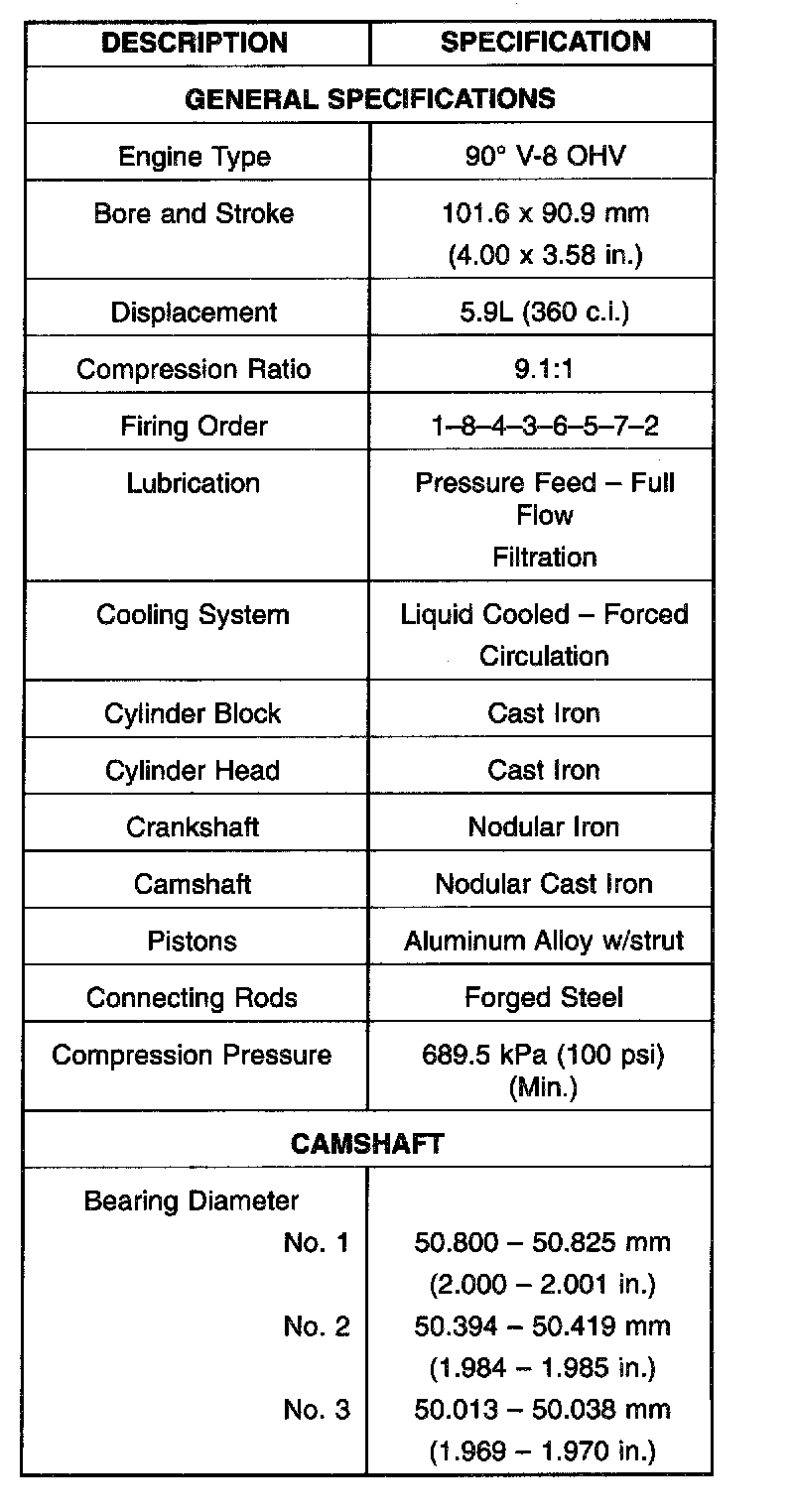

Complete Engine Specifications





���(:

















���(:

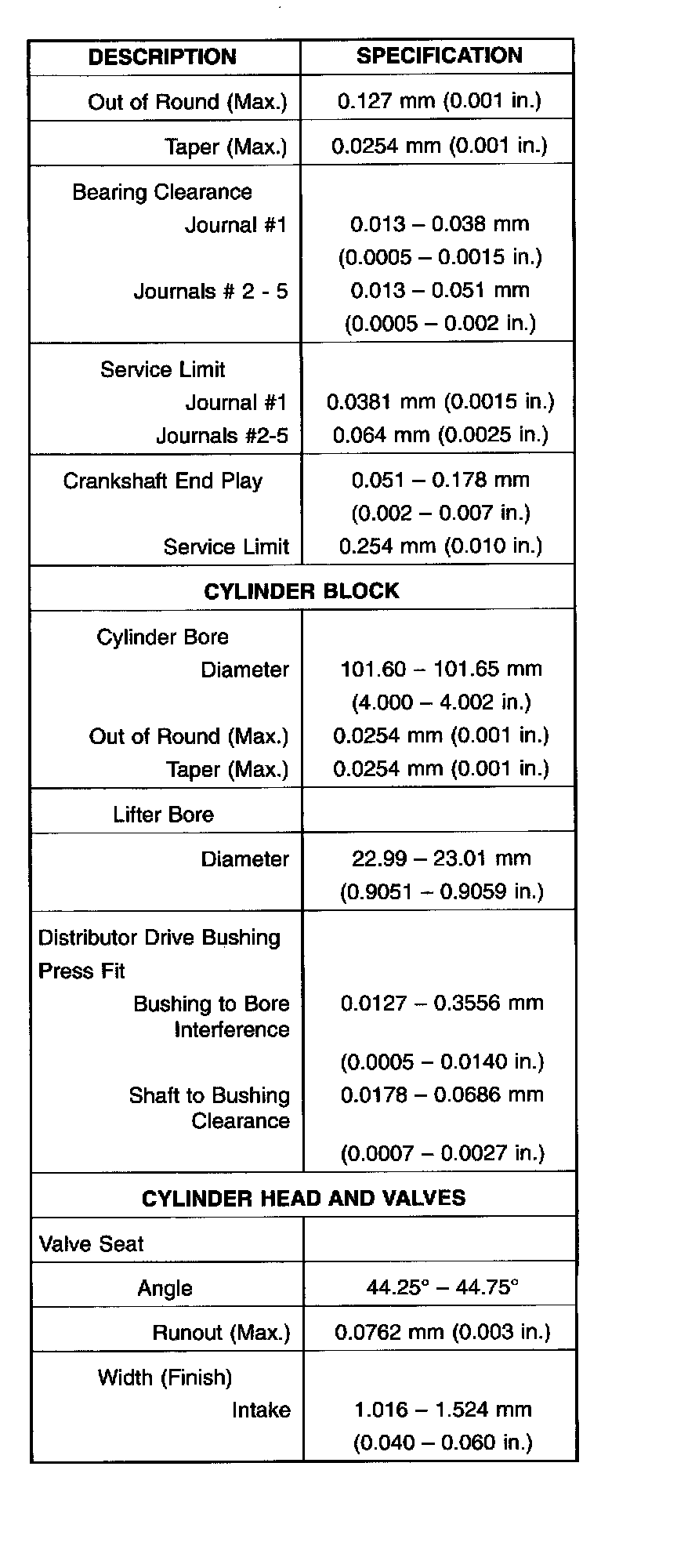

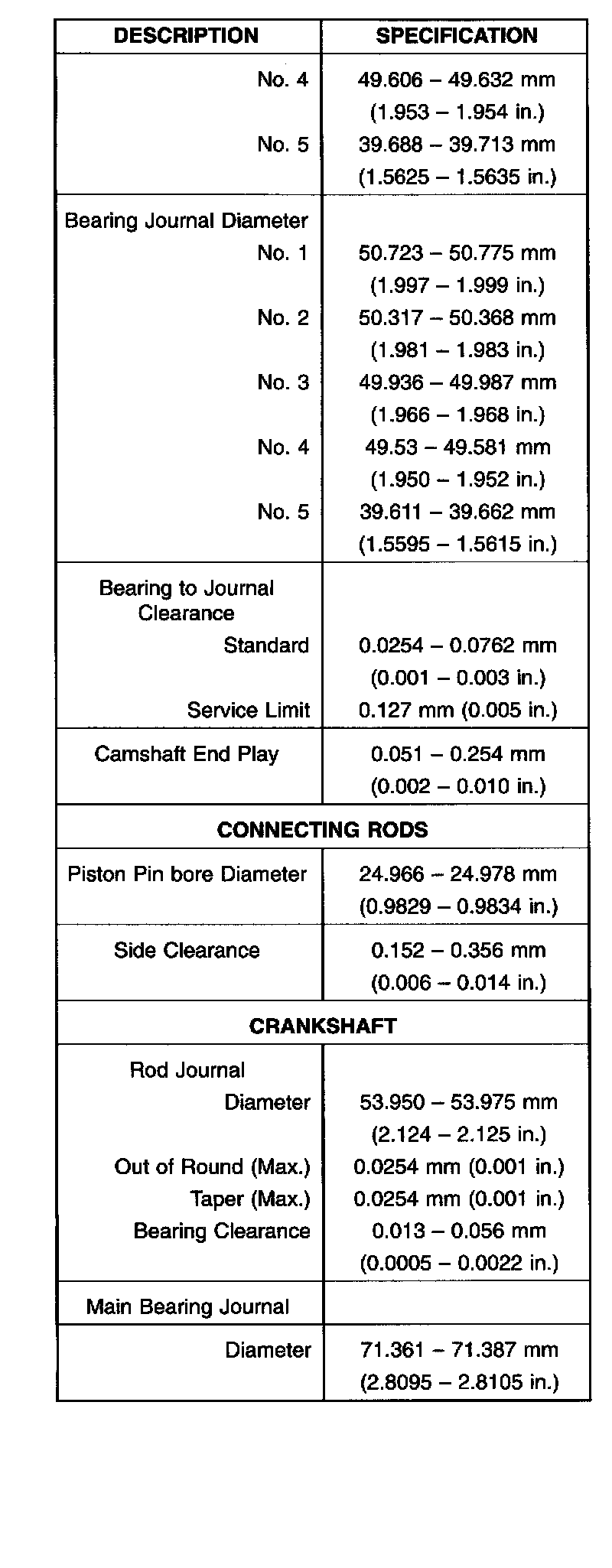

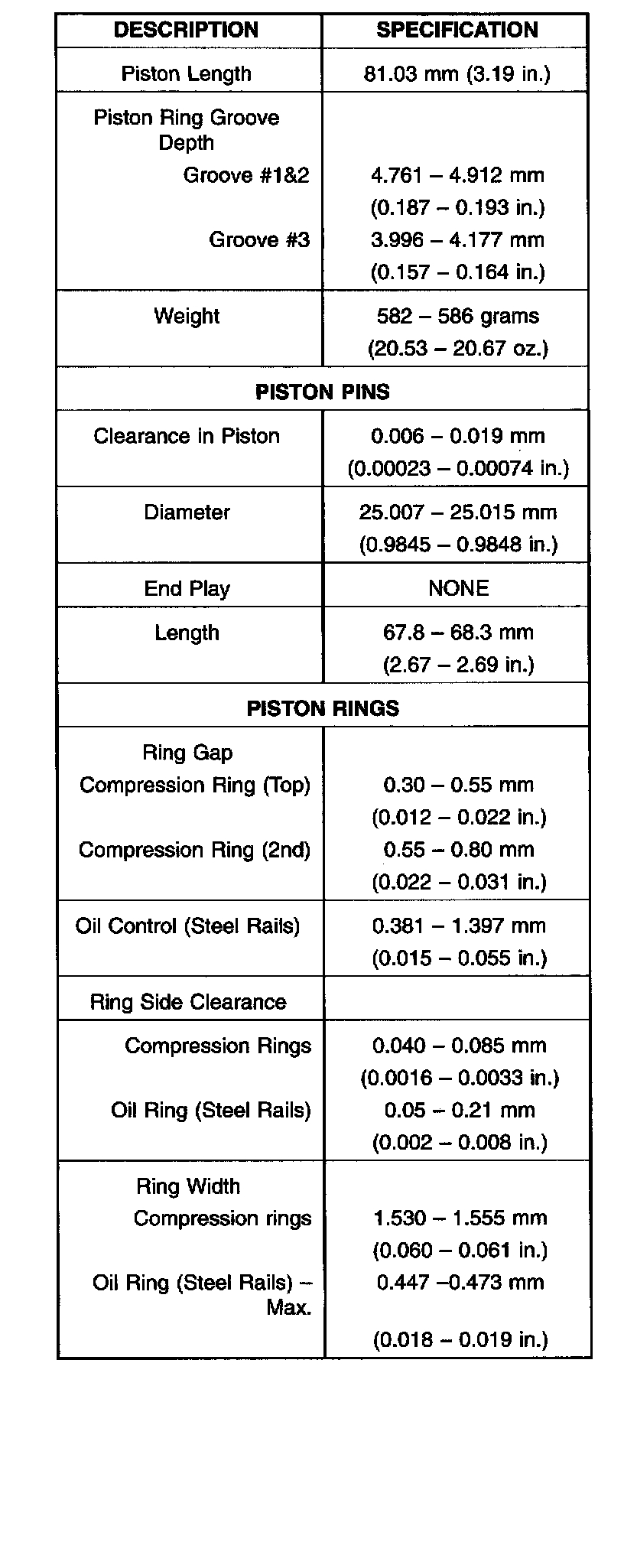

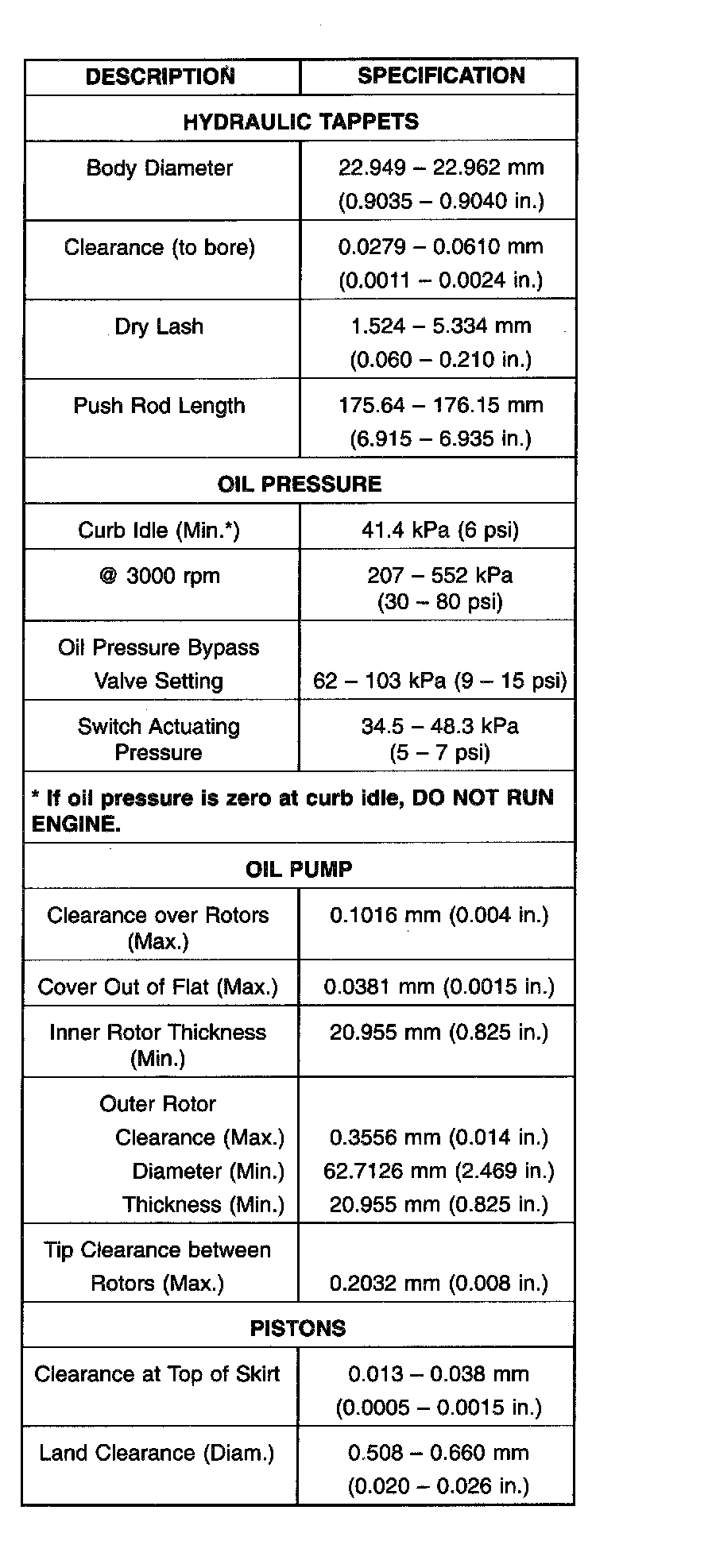

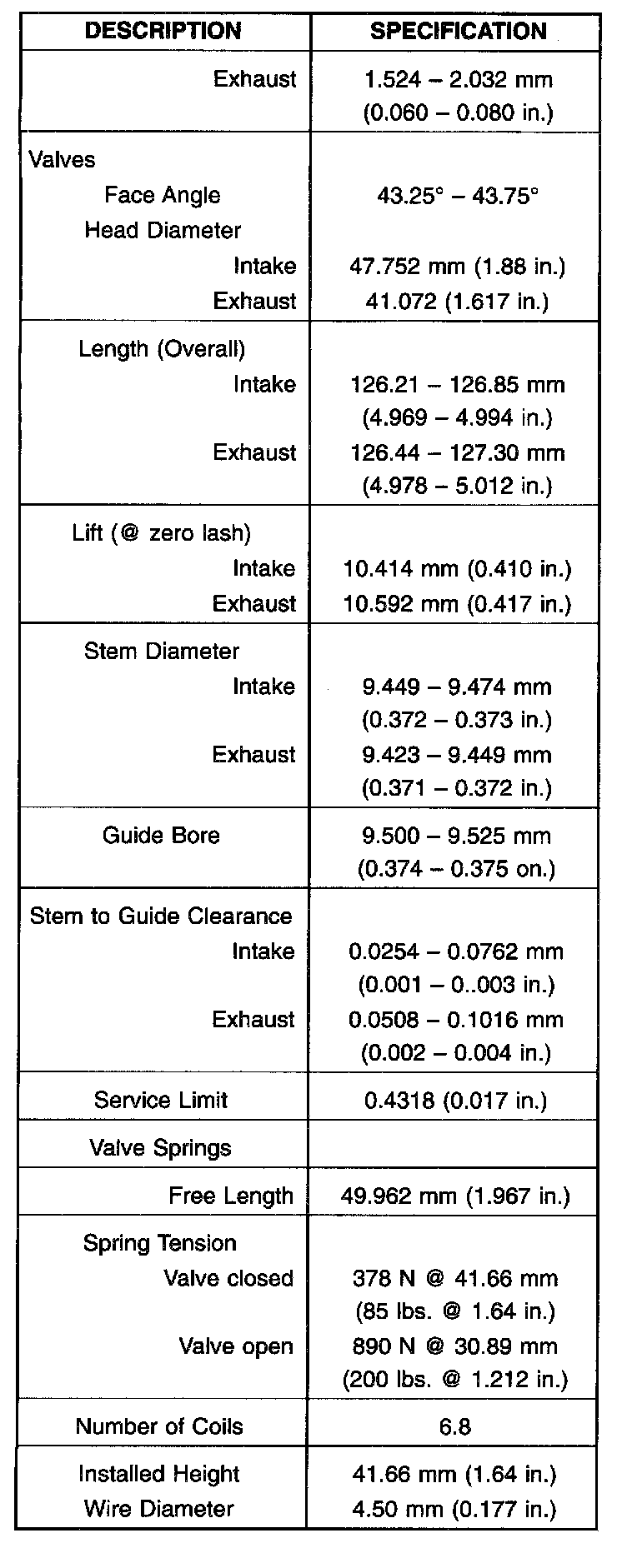

Dimensional Specifications









Oversize and Undersize Engine Component Marking Chart

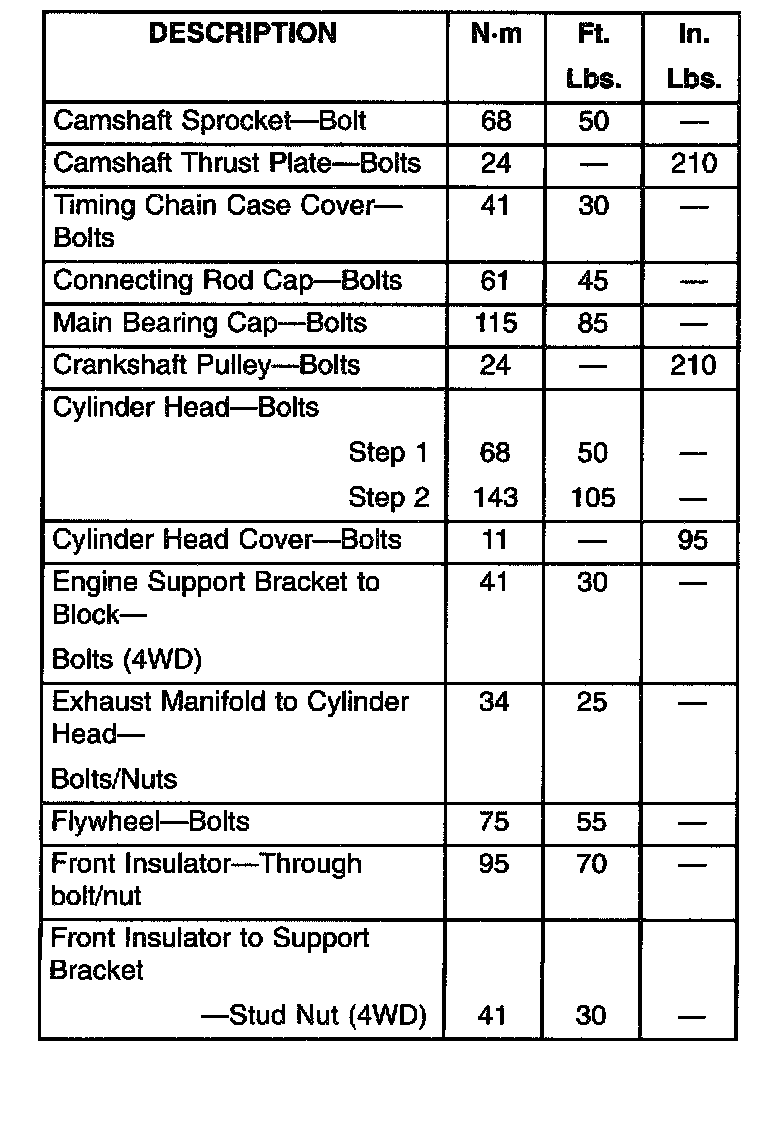

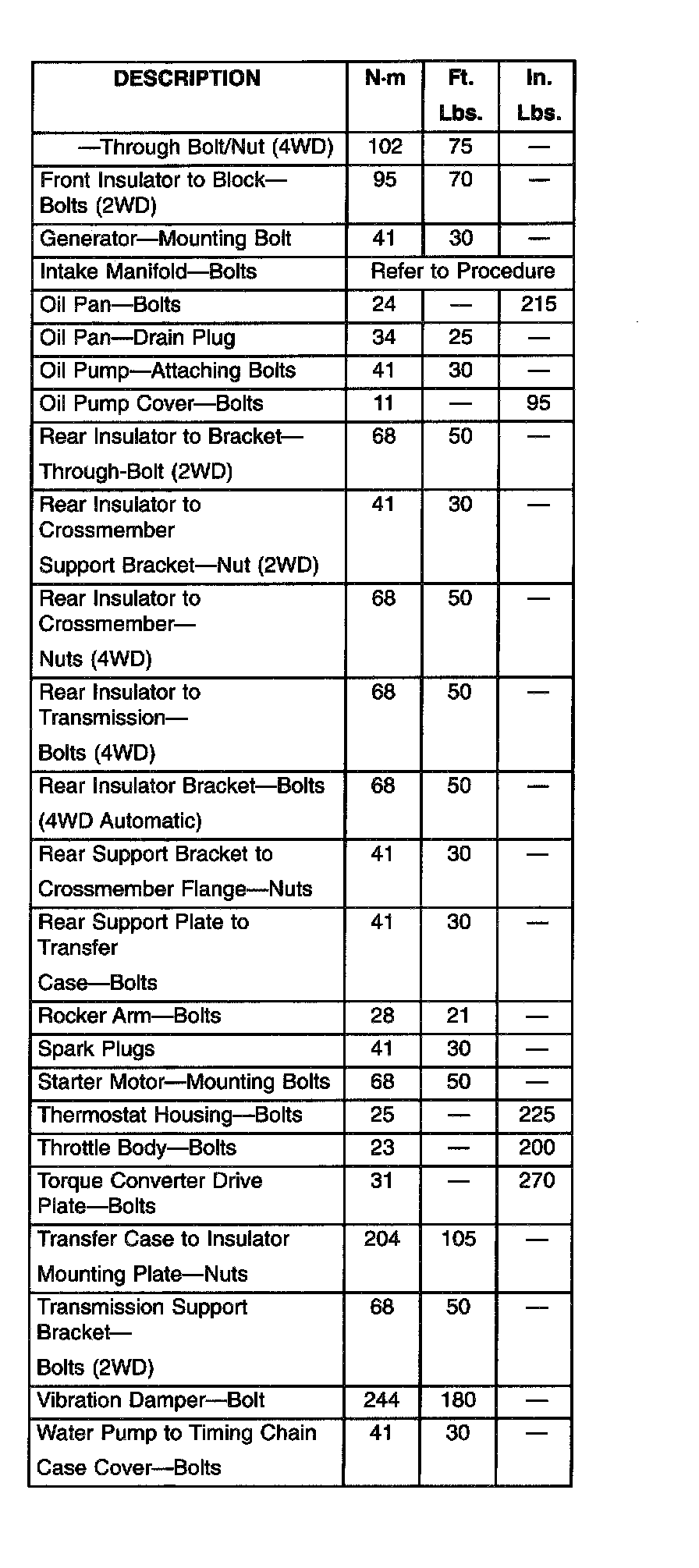

Torque Specifications
