Diagnostic Trouble Codes

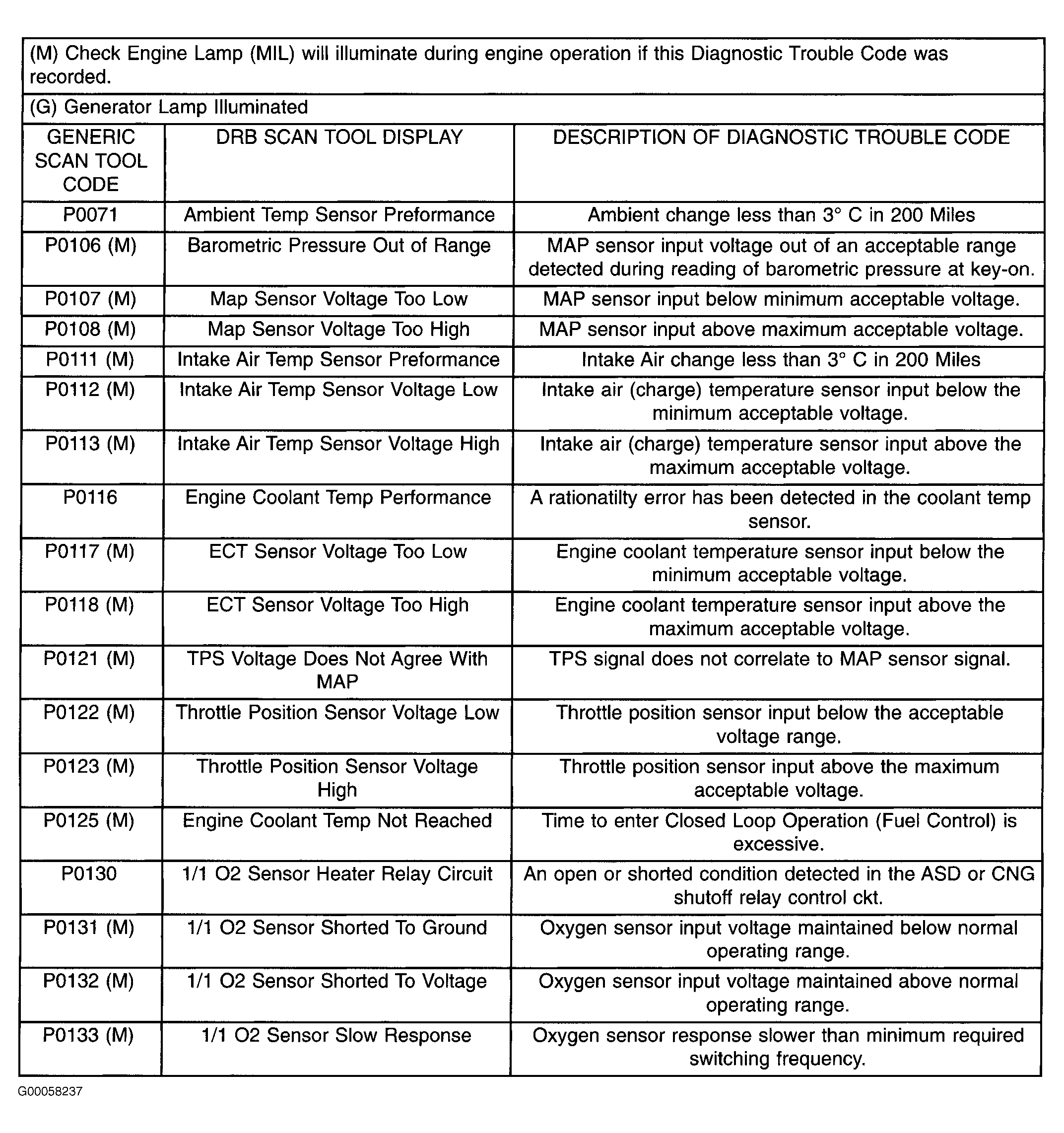

Fig 1: Diagnostic Trouble Codes (1 Of 10)
G00058237Courtesy of DAIMLERCHRYSLER CORPORATION

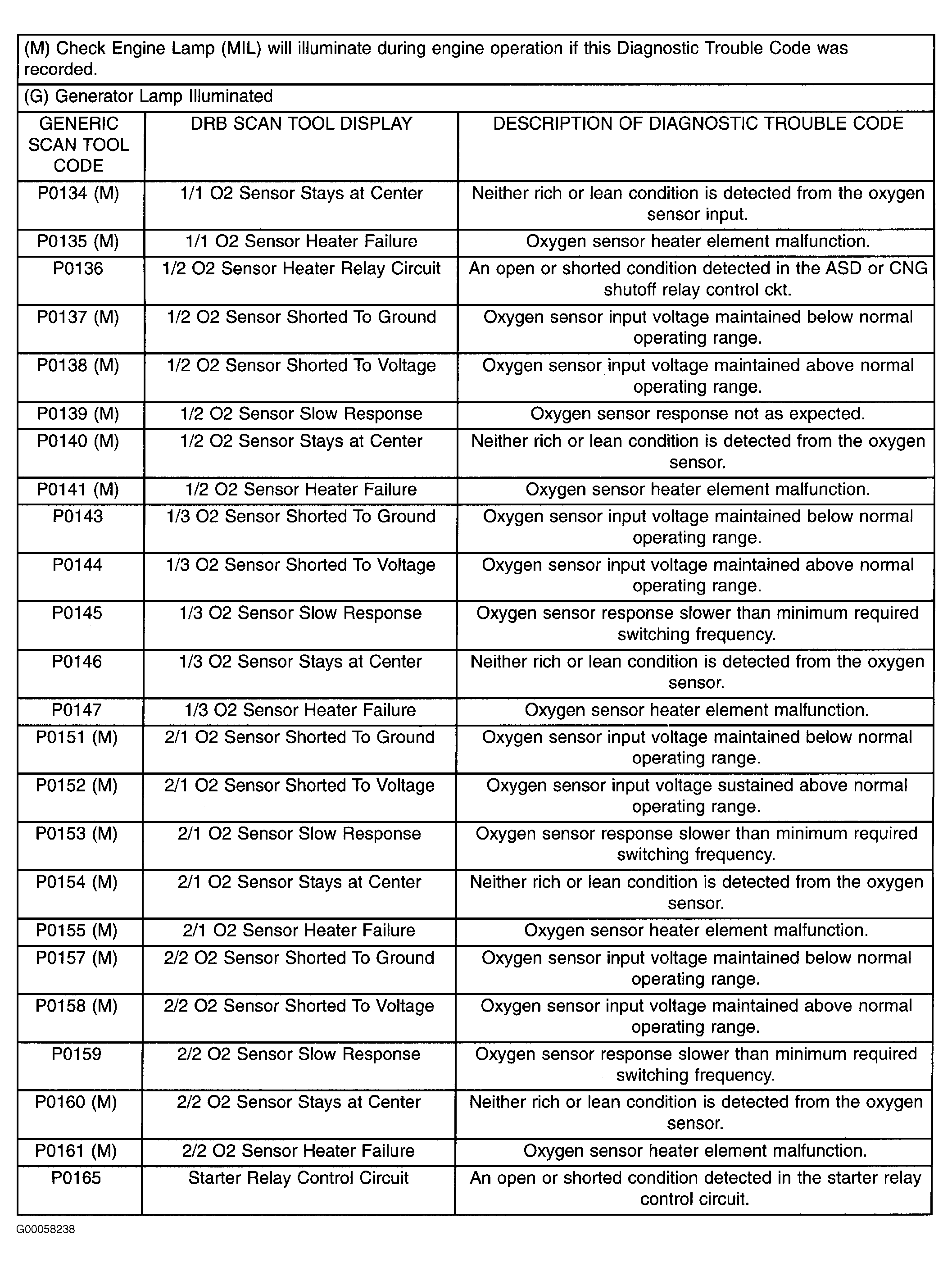

Fig 2: Diagnostic Trouble Codes (2 Of 10)
G00058238Courtesy of DAIMLERCHRYSLER CORPORATION

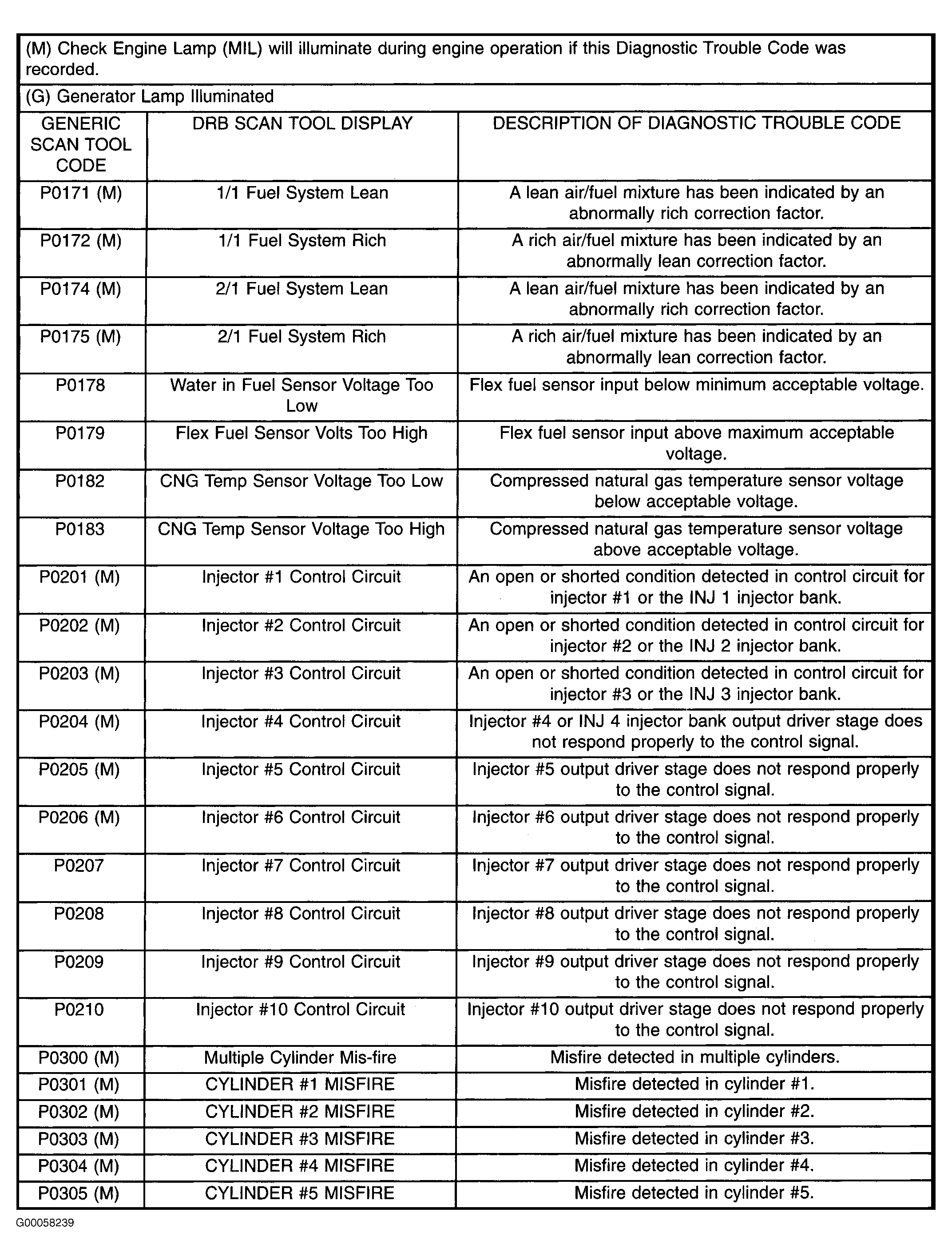

Fig 3: Diagnostic Trouble Codes (3 Of 10)
G00058239Courtesy of DAIMLERCHRYSLER CORPORATION

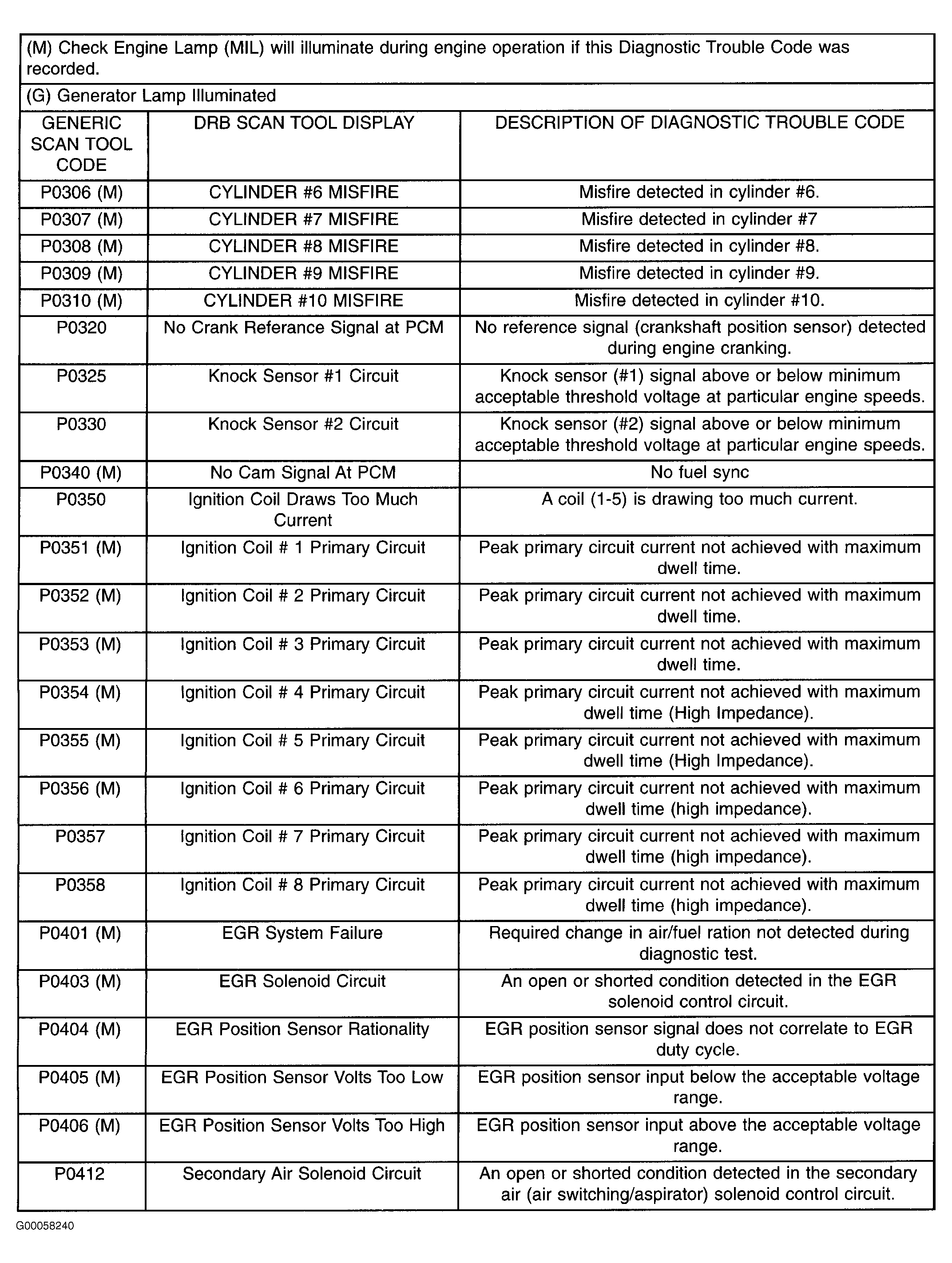

Fig 4: Diagnostic Trouble Codes (4 Of 10)
G00058240Courtesy of DAIMLERCHRYSLER CORPORATION

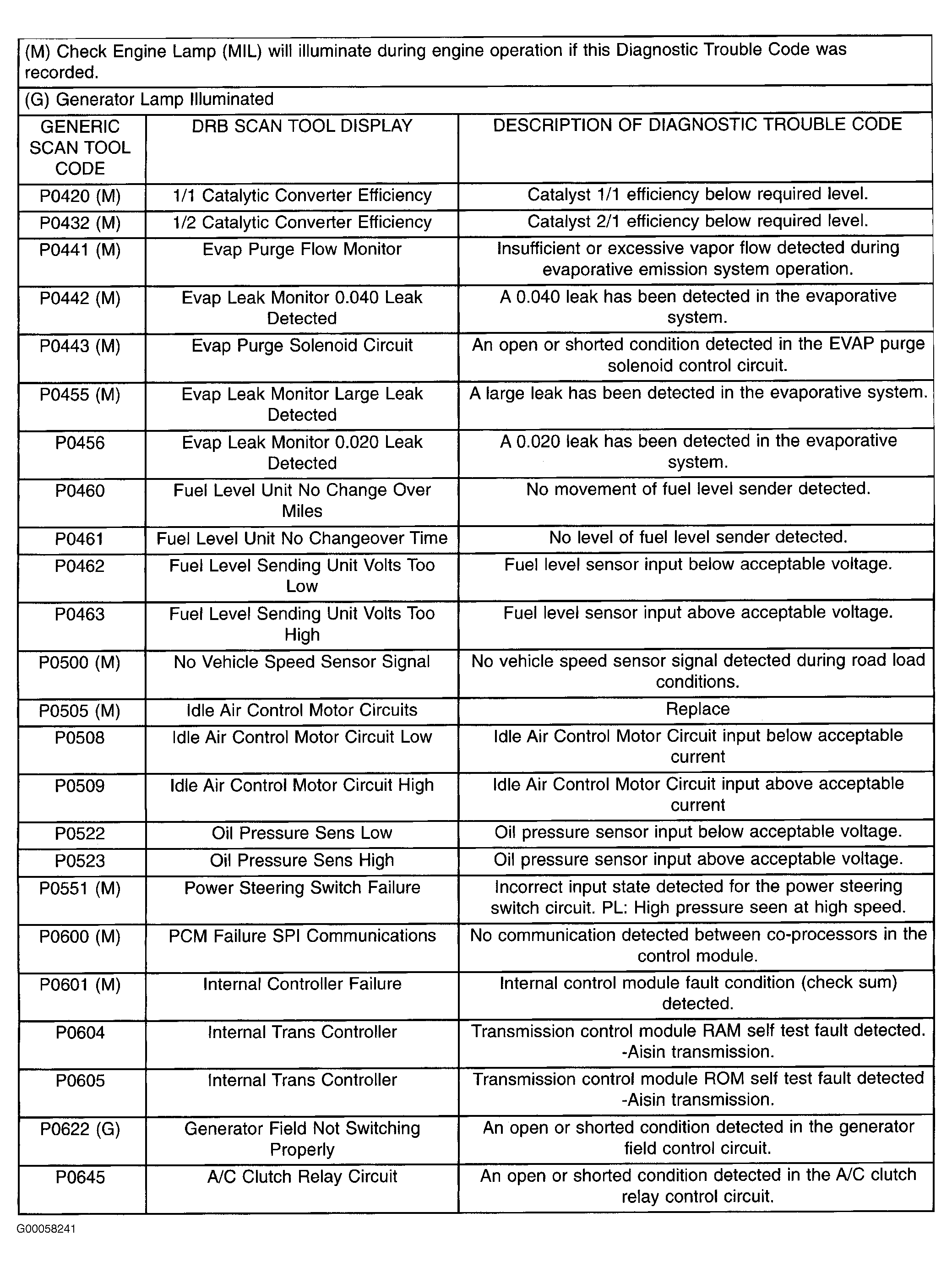

Fig 5: Diagnostic Trouble Codes (5 Of 10)
G00058241Courtesy of DAIMLERCHRYSLER CORPORATION

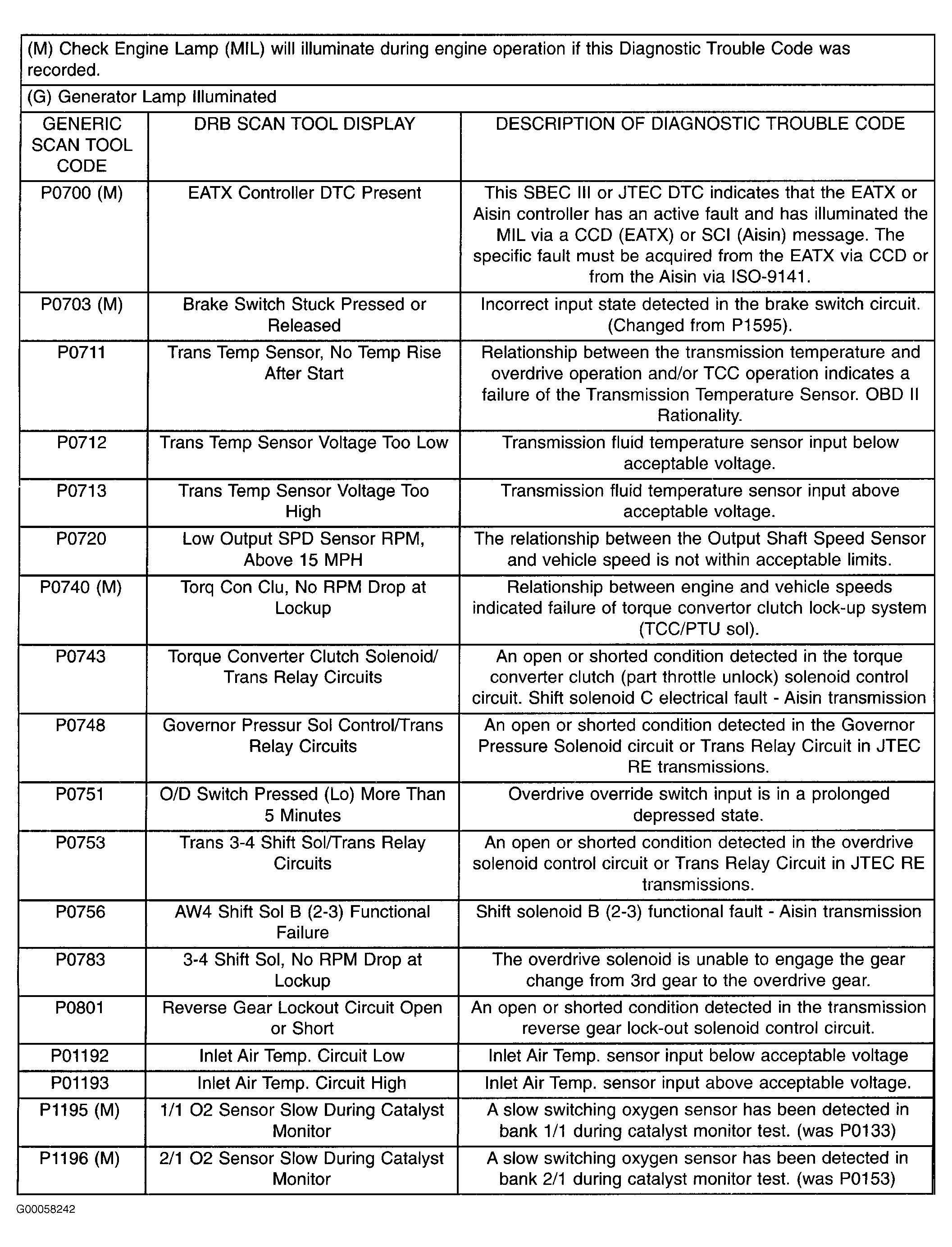

Fig 6: Diagnostic Trouble Codes (6 Of 10)
G00058242Courtesy of DAIMLERCHRYSLER CORPORATION

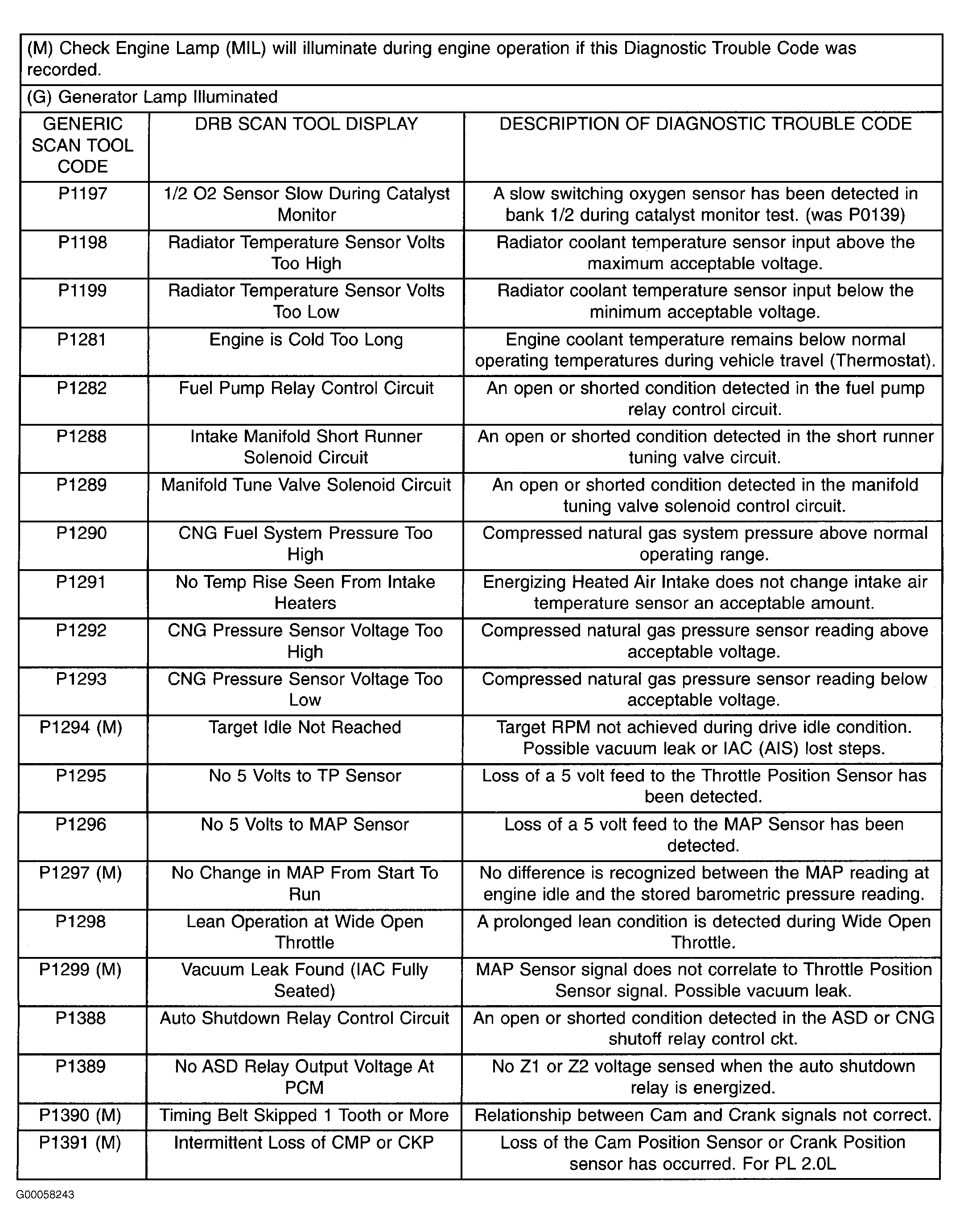

Fig 7: Diagnostic Trouble Codes (7 Of 10)
G00058243Courtesy of DAIMLERCHRYSLER CORPORATION

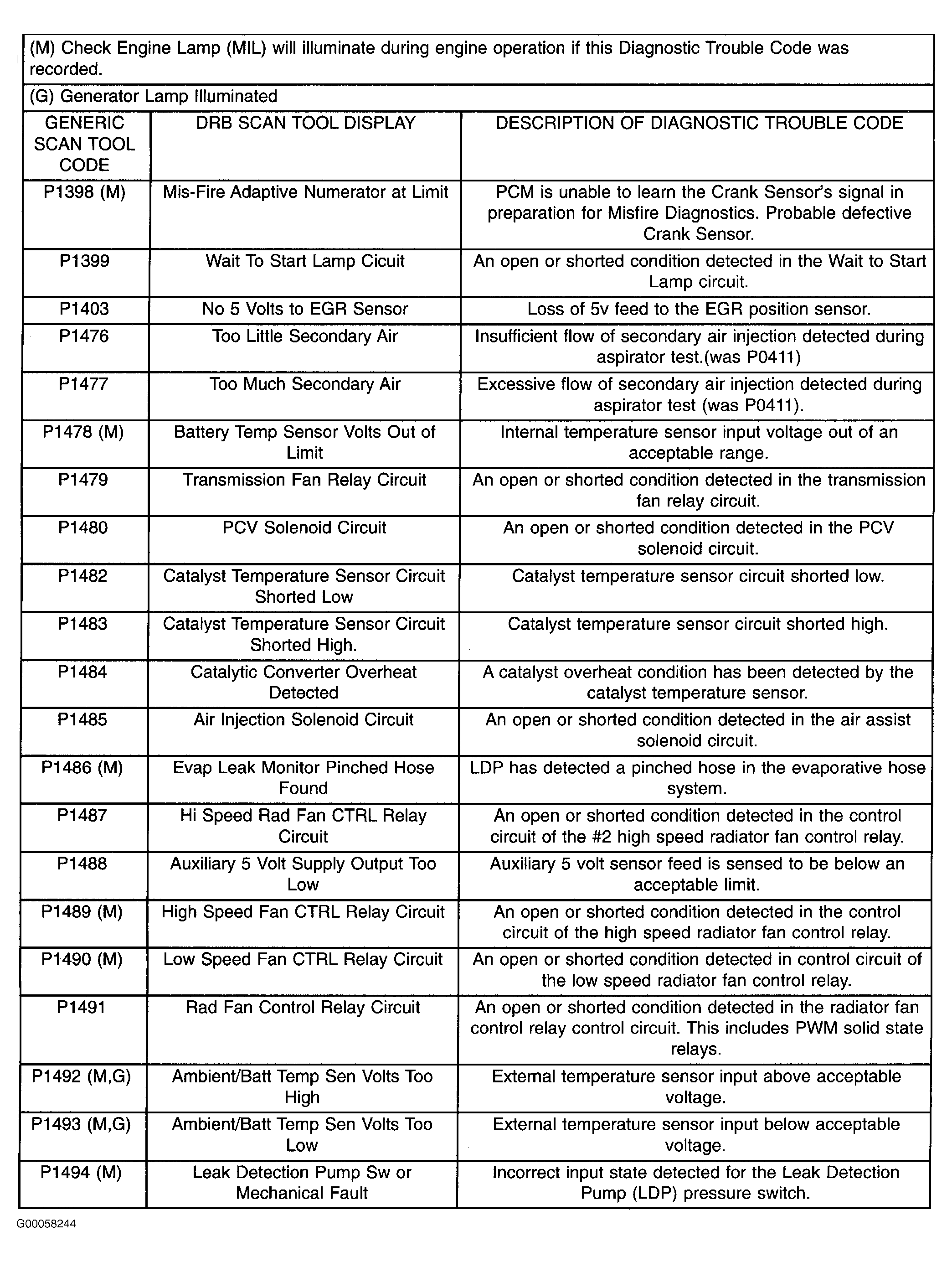

Fig 8: Diagnostic Trouble Codes (8 Of 10)
G00058244Courtesy of DAIMLERCHRYSLER CORPORATION

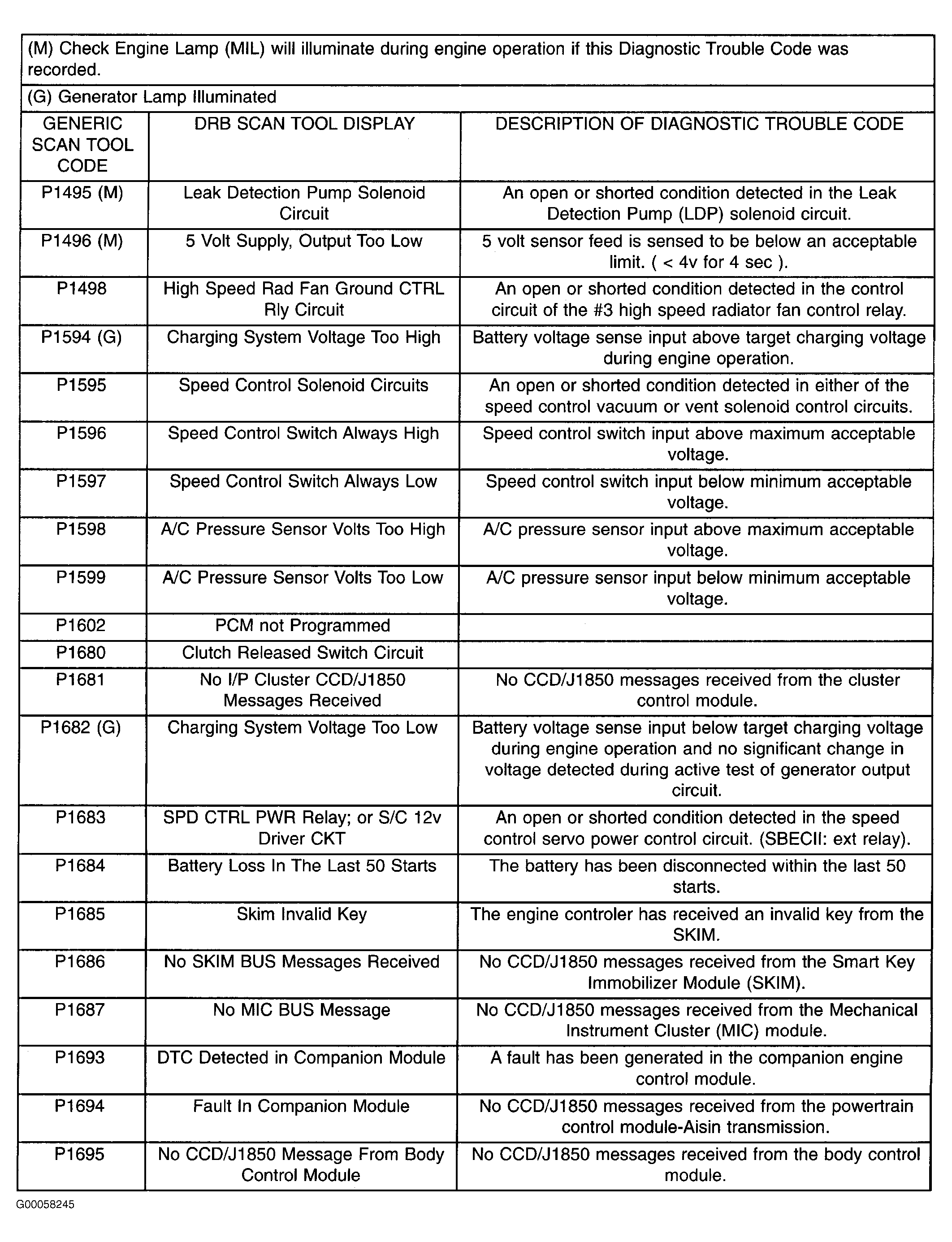

Fig 9: Diagnostic Trouble Codes (9 Of 10)
G00058245Courtesy of DAIMLERCHRYSLER CORPORATION

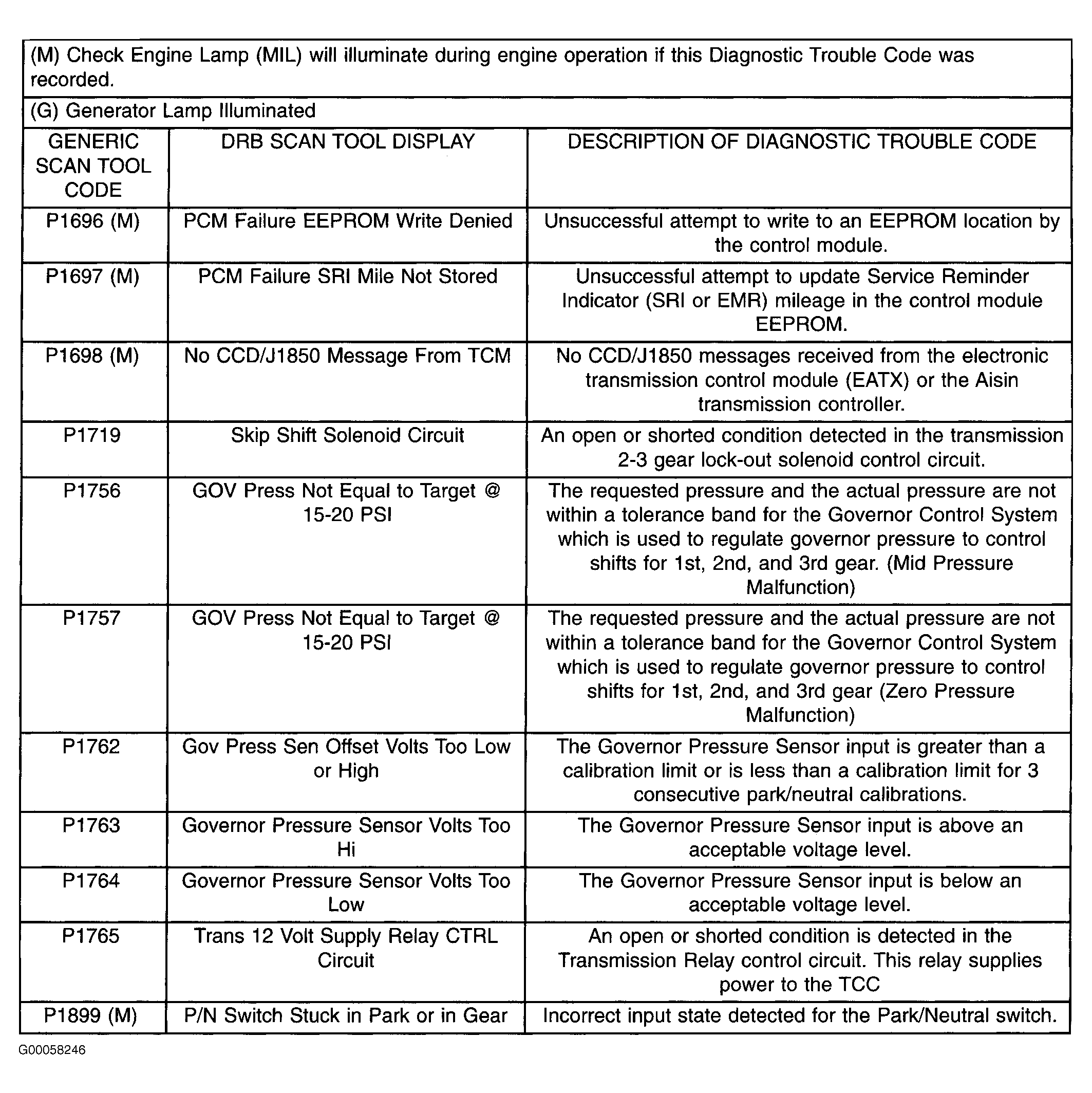

Fig 10: Diagnostic Trouble Codes (10 Of 10)
G00058246Courtesy of DAIMLERCHRYSLER CORPORATION
