No Response From Pcm With A No Start Condition

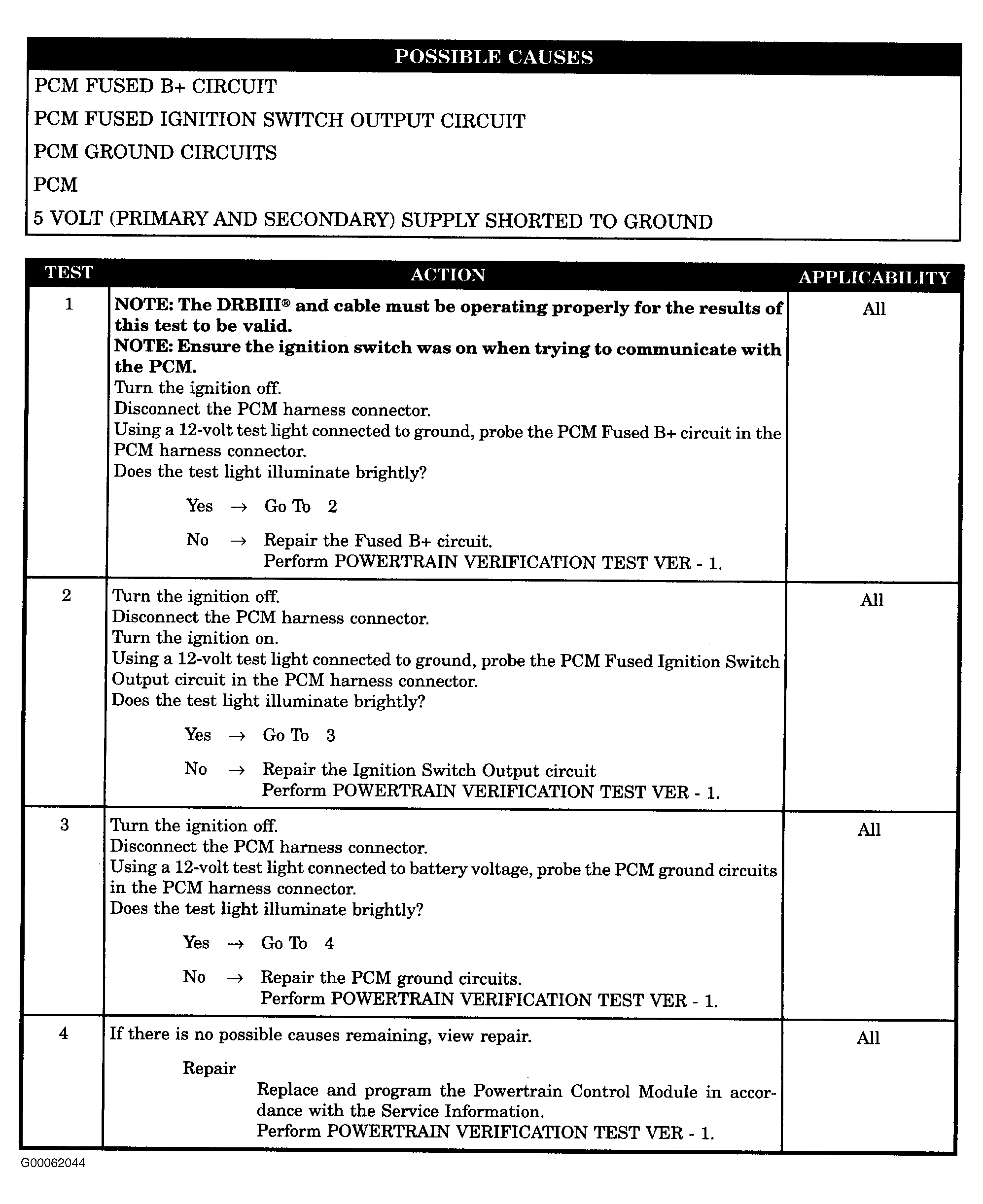

Fig 1: No Response From PCM - No Start Condition (1 Of 3)
G00062044Courtesy of DAIMLERCHRYSLER CORPORATION

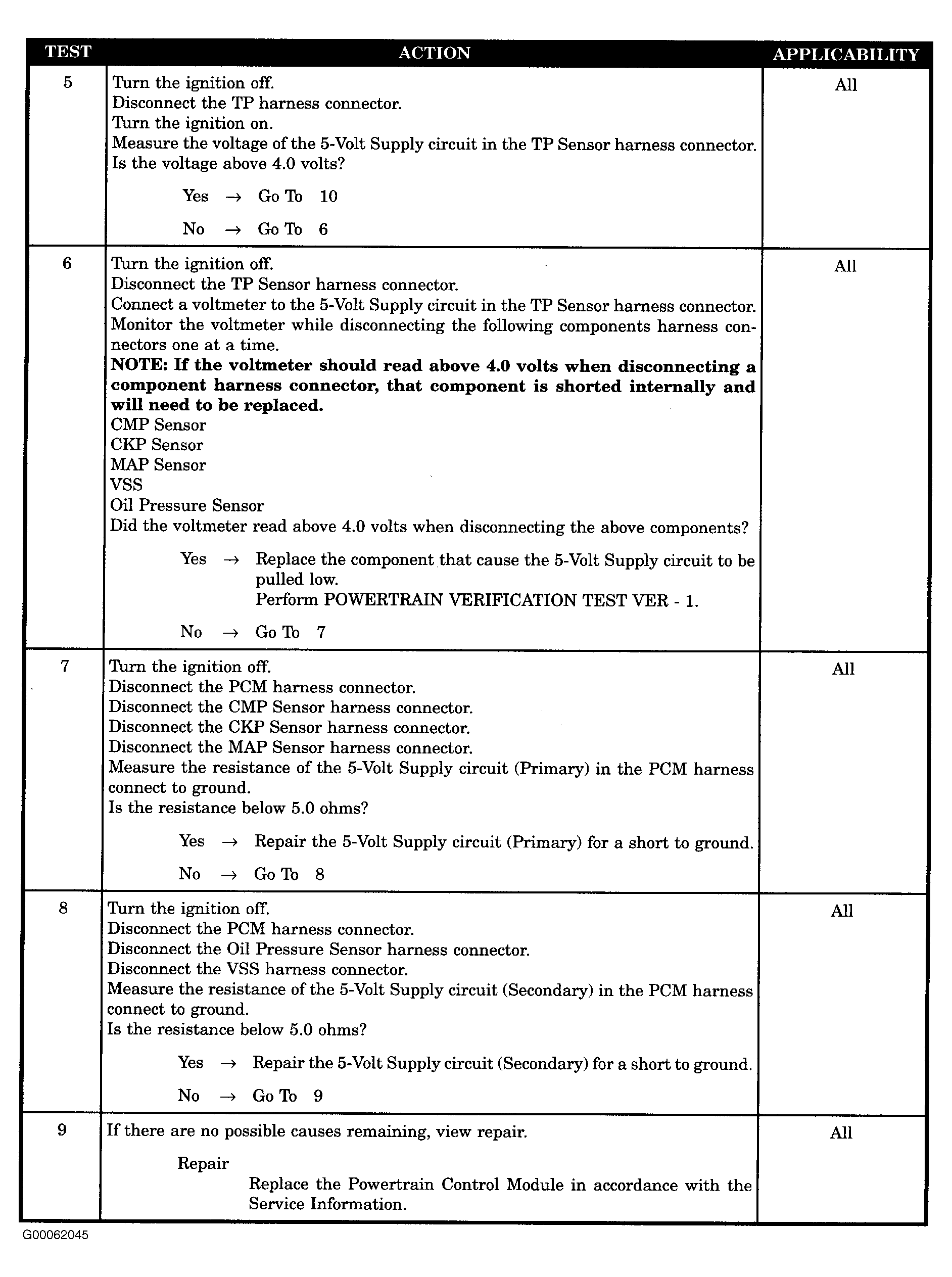

Fig 2: No Response From PCM - No Start Condition (2 Of 3)
G00062045Courtesy of DAIMLERCHRYSLER CORPORATION

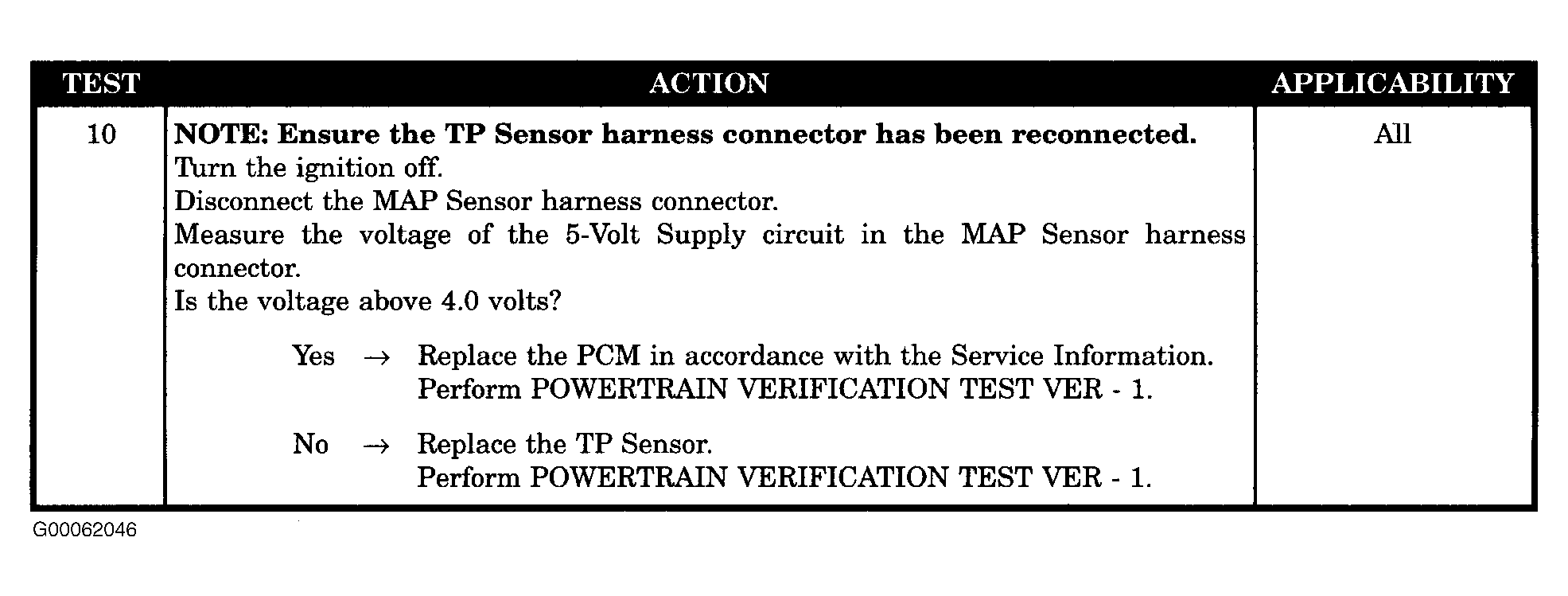

Fig 3: No Response From PCM - No Start Condition (3 Of 3)
G00062046Courtesy of DAIMLERCHRYSLER CORPORATION
