Controller Anti-Lock Brake: Installation

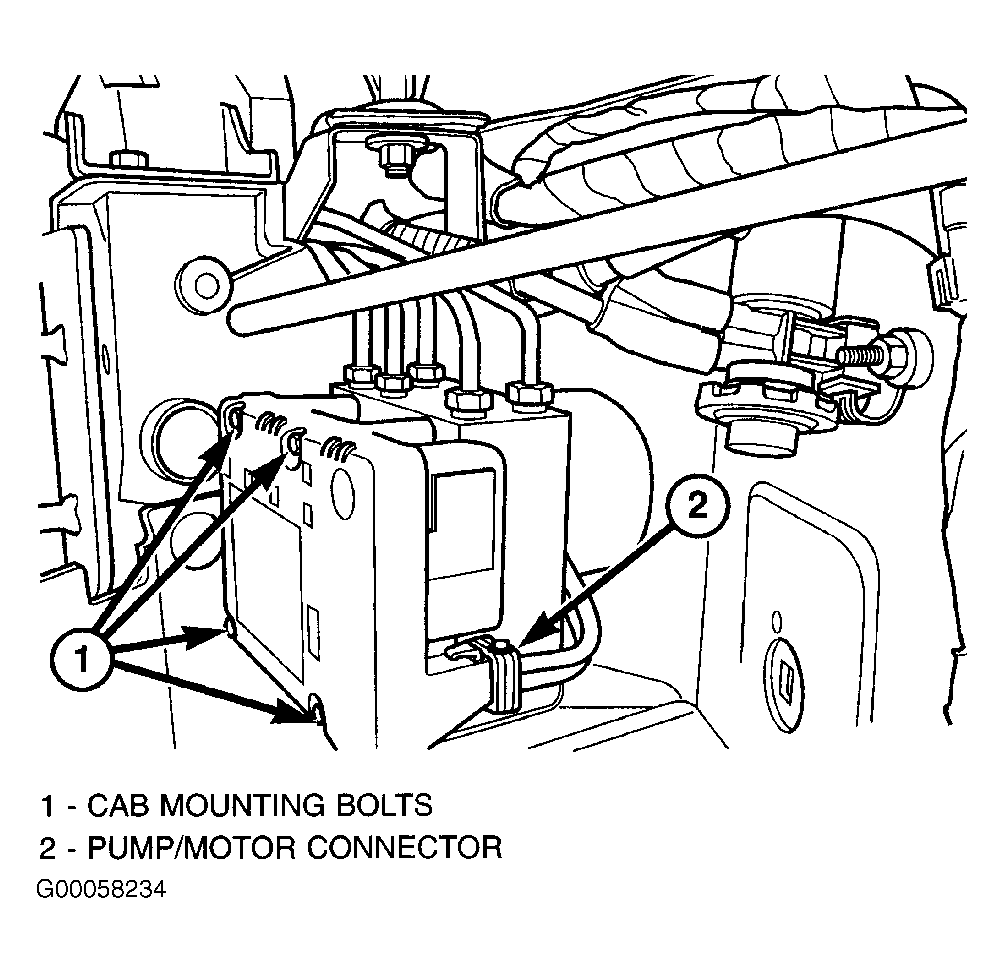

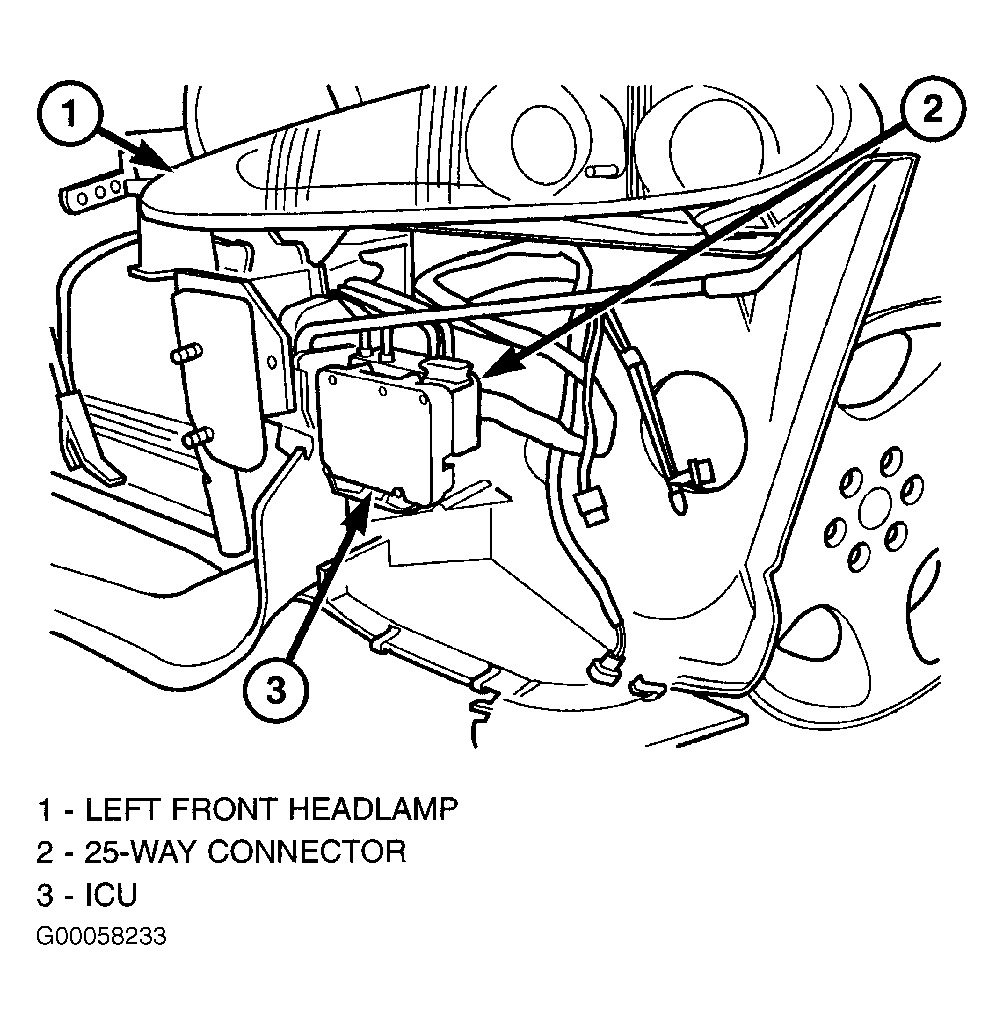

  1. Install CAB onto HCU. Install 4 CAB mounting bolts and tighten to 2 N.m (17 INCH lbs.). Connect pump/motor connector. See Figure . Connect 25-way connector to CAB. See Figure .
  2. Install front bumper and fascia, and hood. Reconnect battery terminal. Connect DRBIII(R) to data link connector to initialize new CAB. Road test vehicle to ensure proper operation of ABS.
