No Response From Electronic Entry Module: Testing

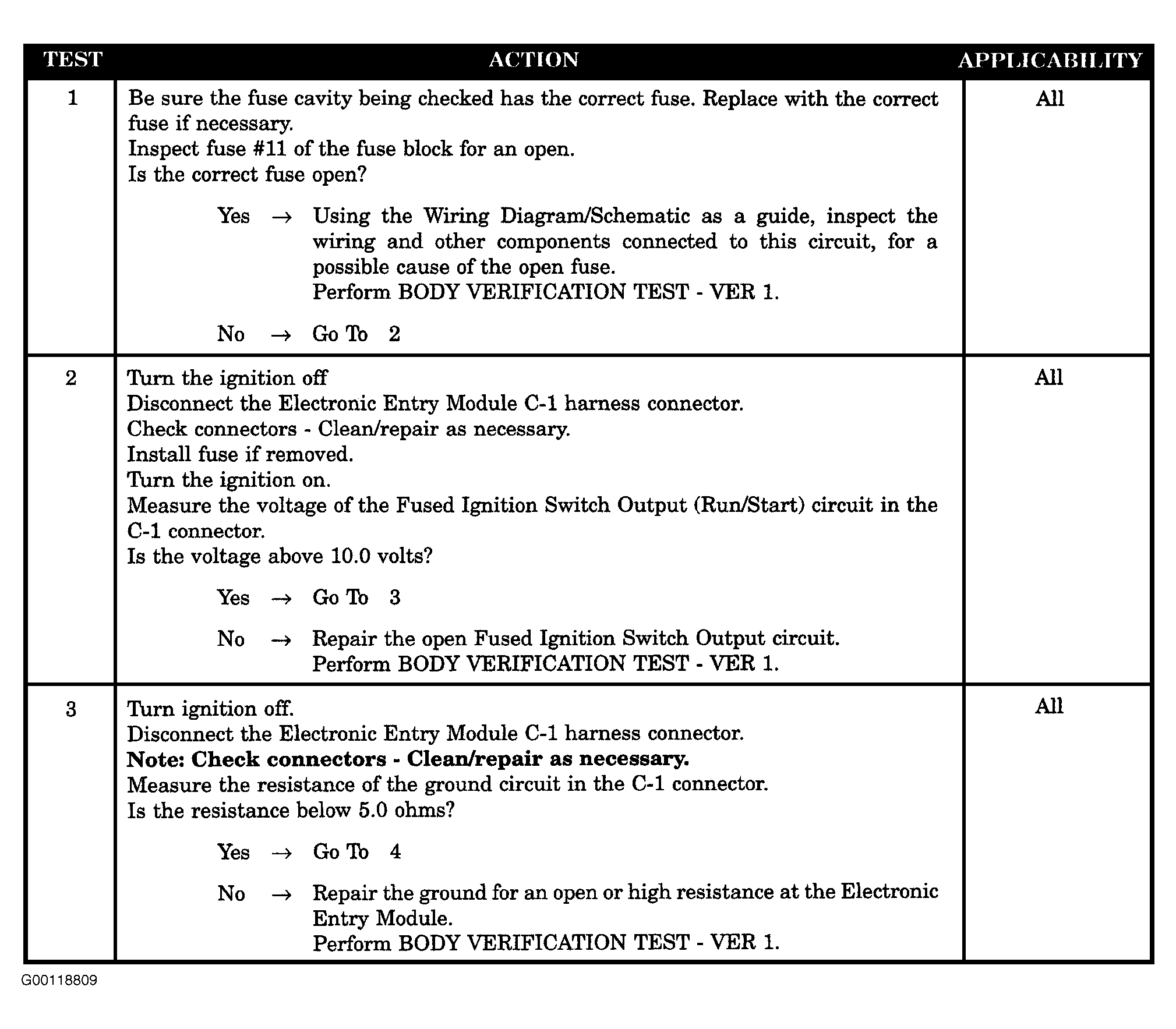

Fig 1: No Response From Electronic Entry Module Test (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

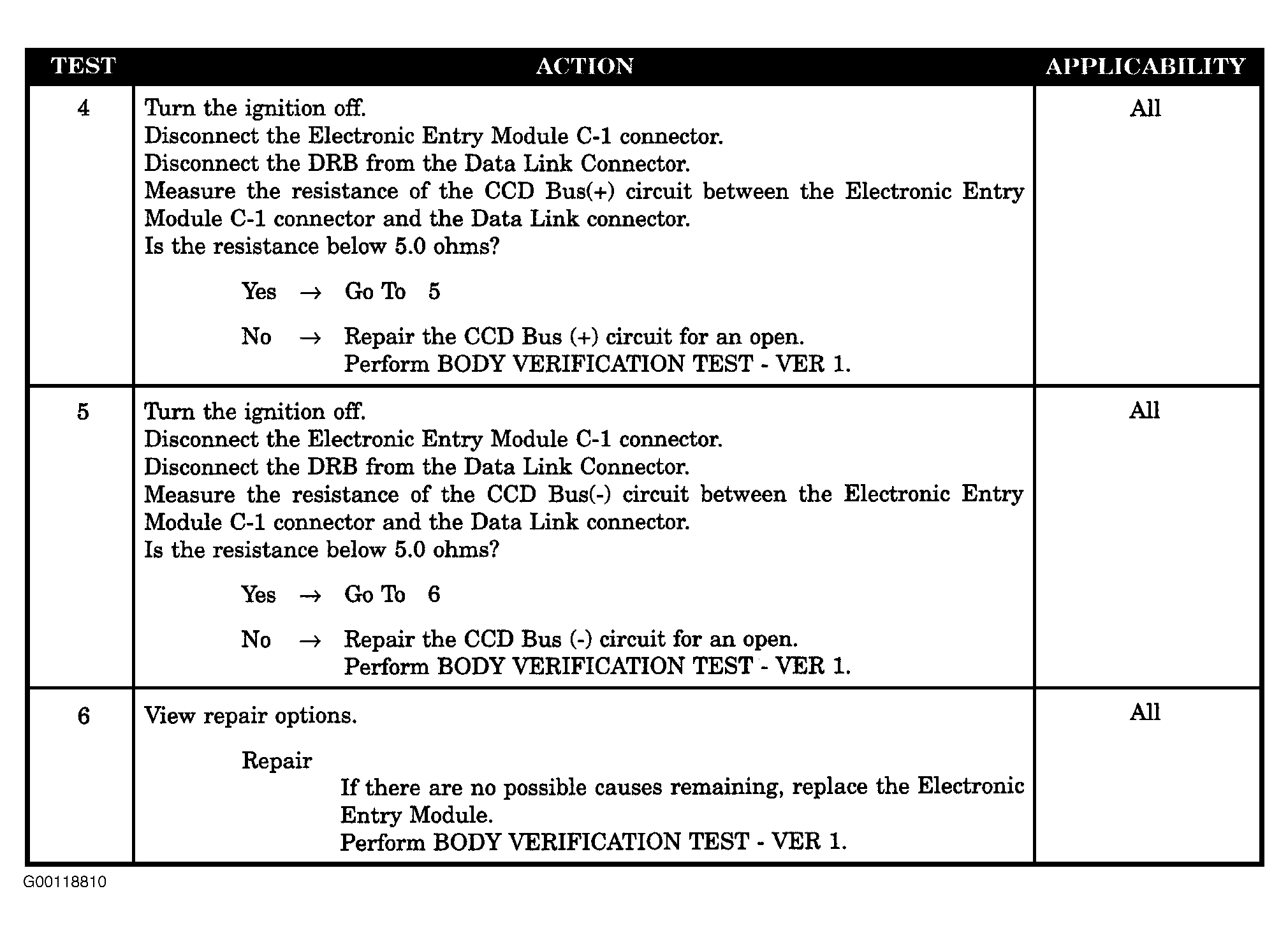

Fig 2: No Response From Electronic Entry Module Test (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
