Power Window Switch: Notes

Remove switch from its mounting. Using an ohmmeter, refer to Drivers and Passenger Side Window Switch Continuity Test tables to determine if continuity is correct. If results are not obtained, replace switch. See Fig 1 -Figure .

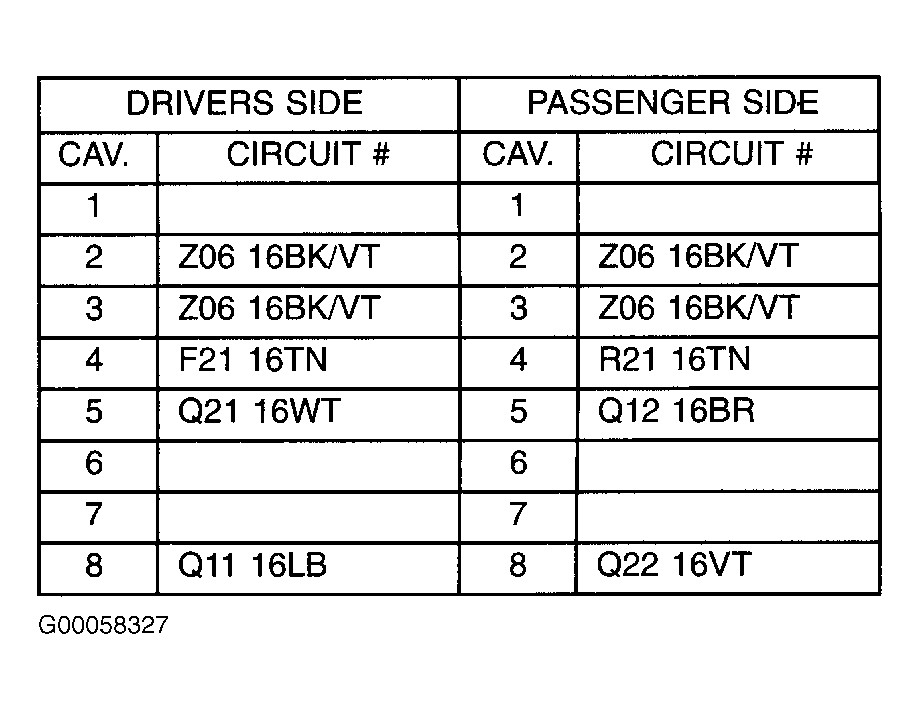

Fig 1: Identifying Power Window Switch Connector

Courtesy of DAIMLERCHRYSLER CORPORATION
