DTC P1490: Low Speed Fan Control Relay Circuit

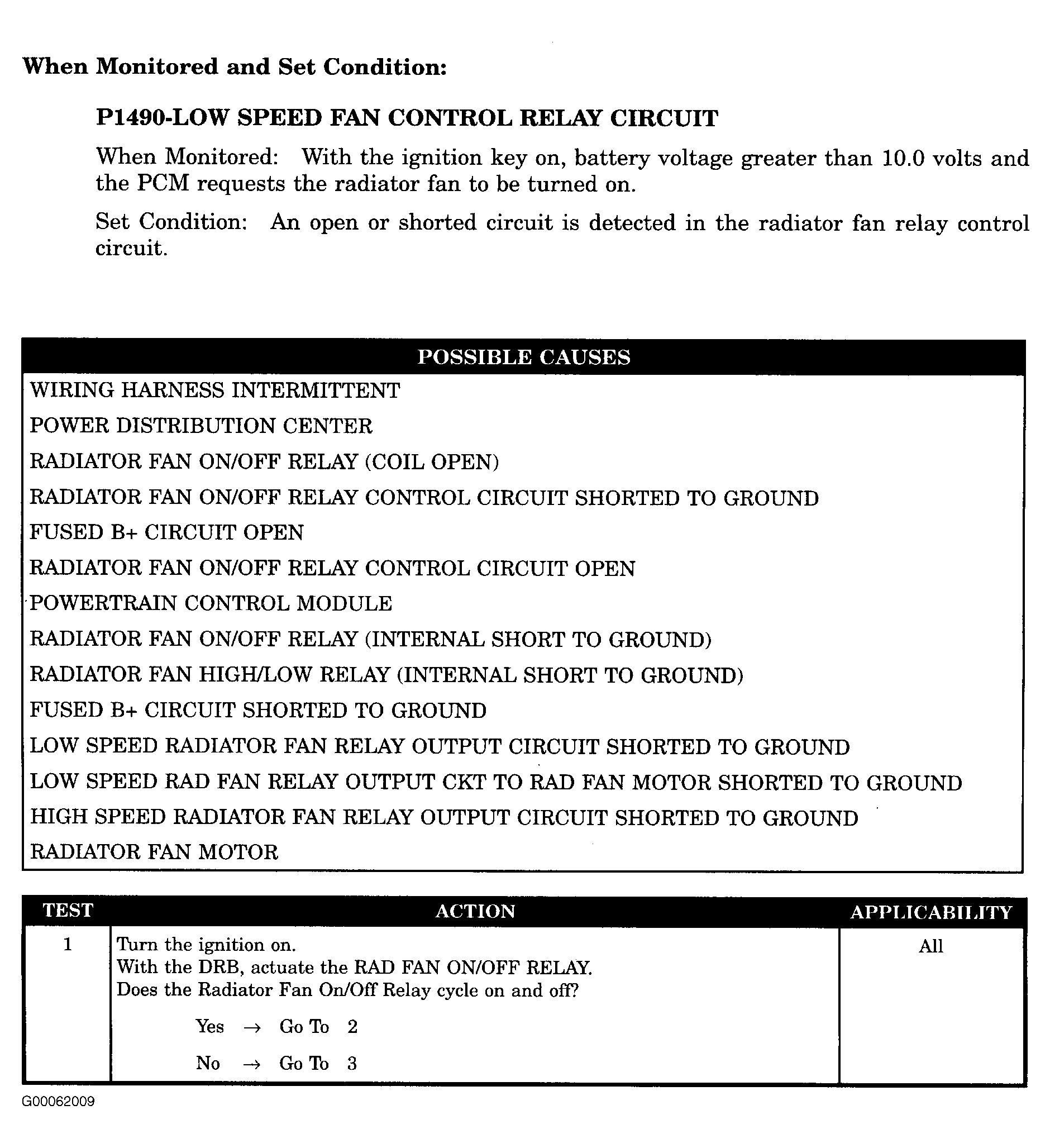

Fig 1: DTC P1490: Low Speed Fan Control Relay Circuit (1 Of 4)
Courtesy of DAIMLERCHRYSLER CORPORATION

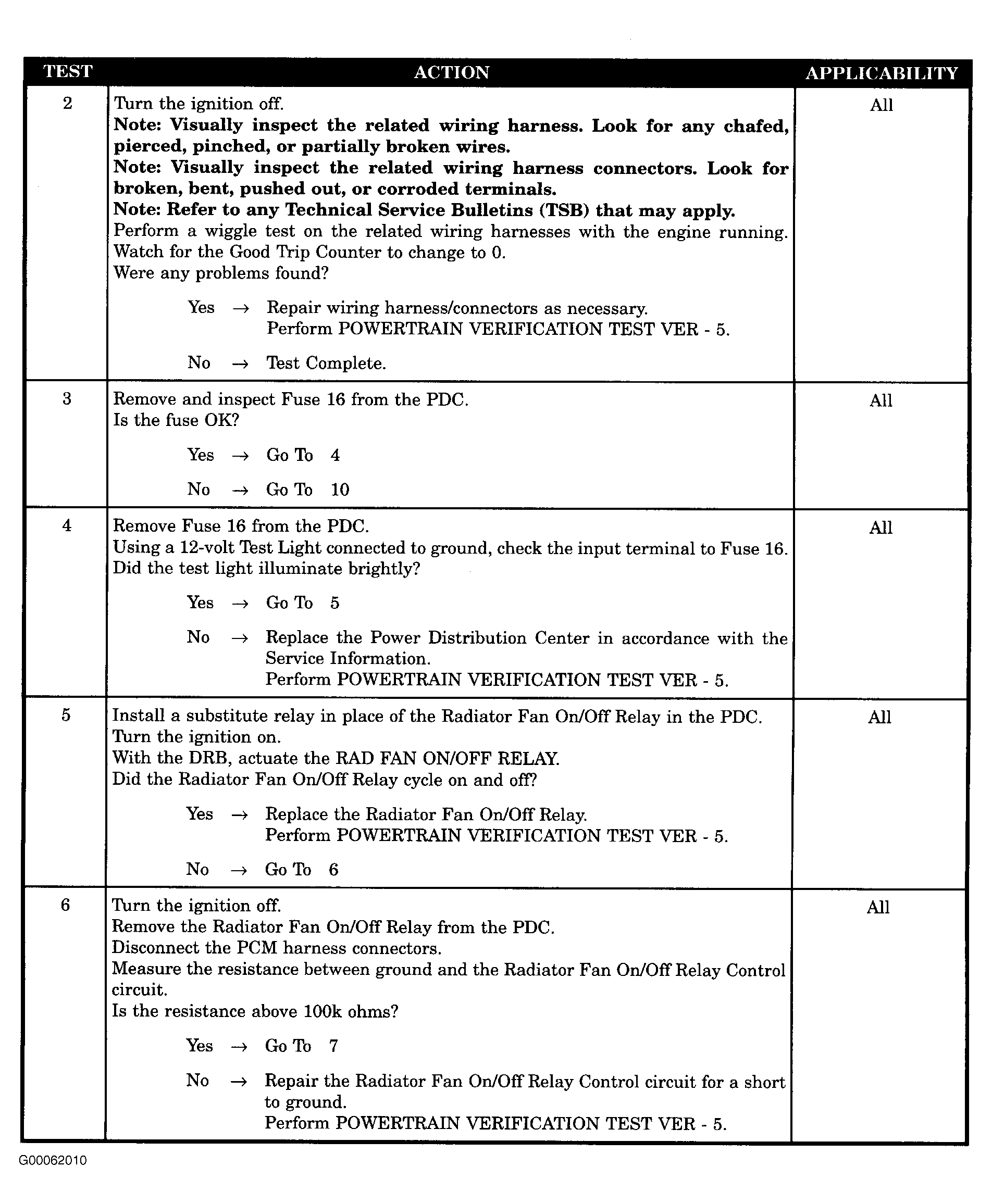

Fig 2: DTC P1490: Low Speed Fan Control Relay Circuit (2 Of 4)
Courtesy of DAIMLERCHRYSLER CORPORATION

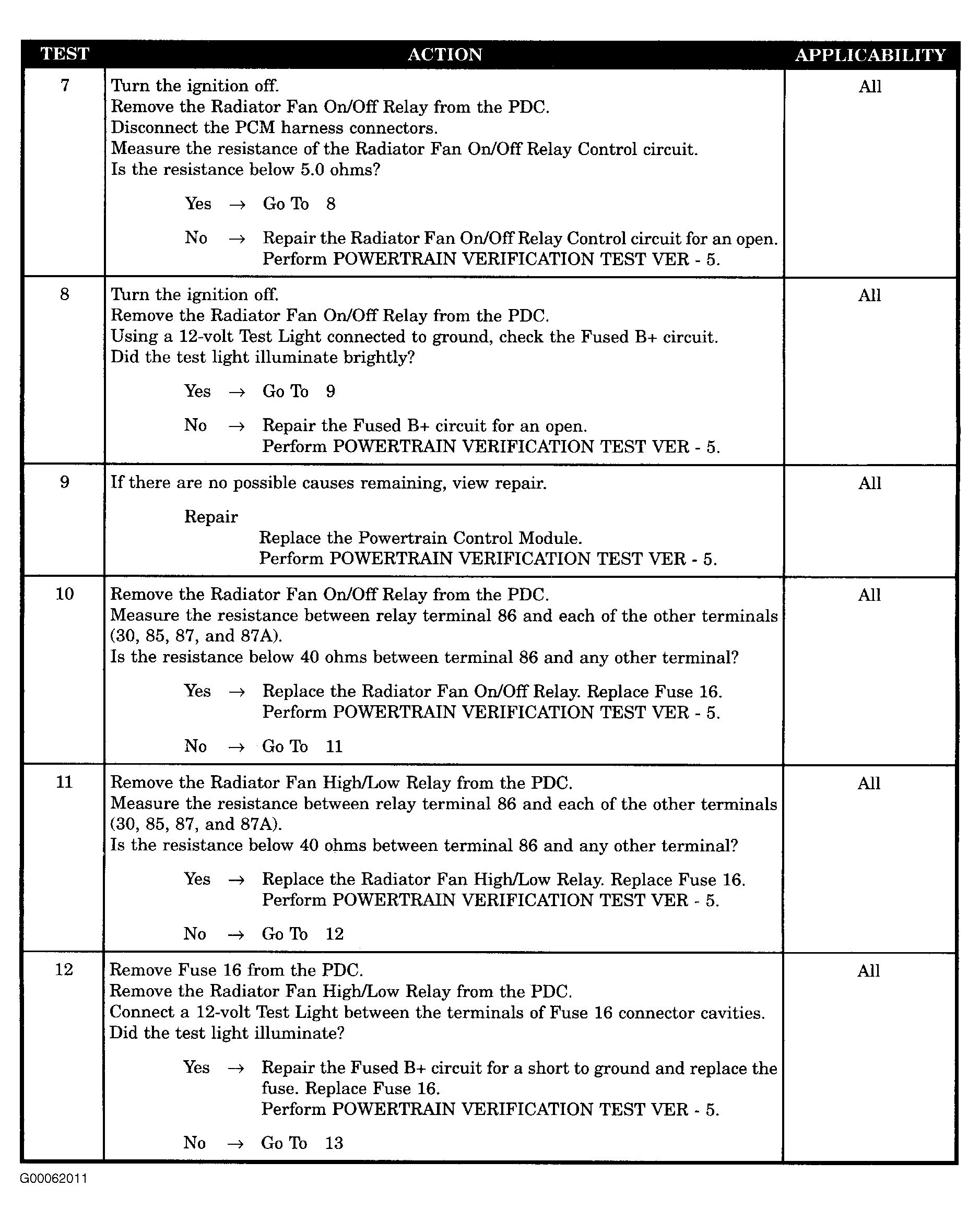

Fig 3: DTC P1490: Low Speed Fan Control Relay Circuit (3 Of 4)
Courtesy of DAIMLERCHRYSLER CORPORATION

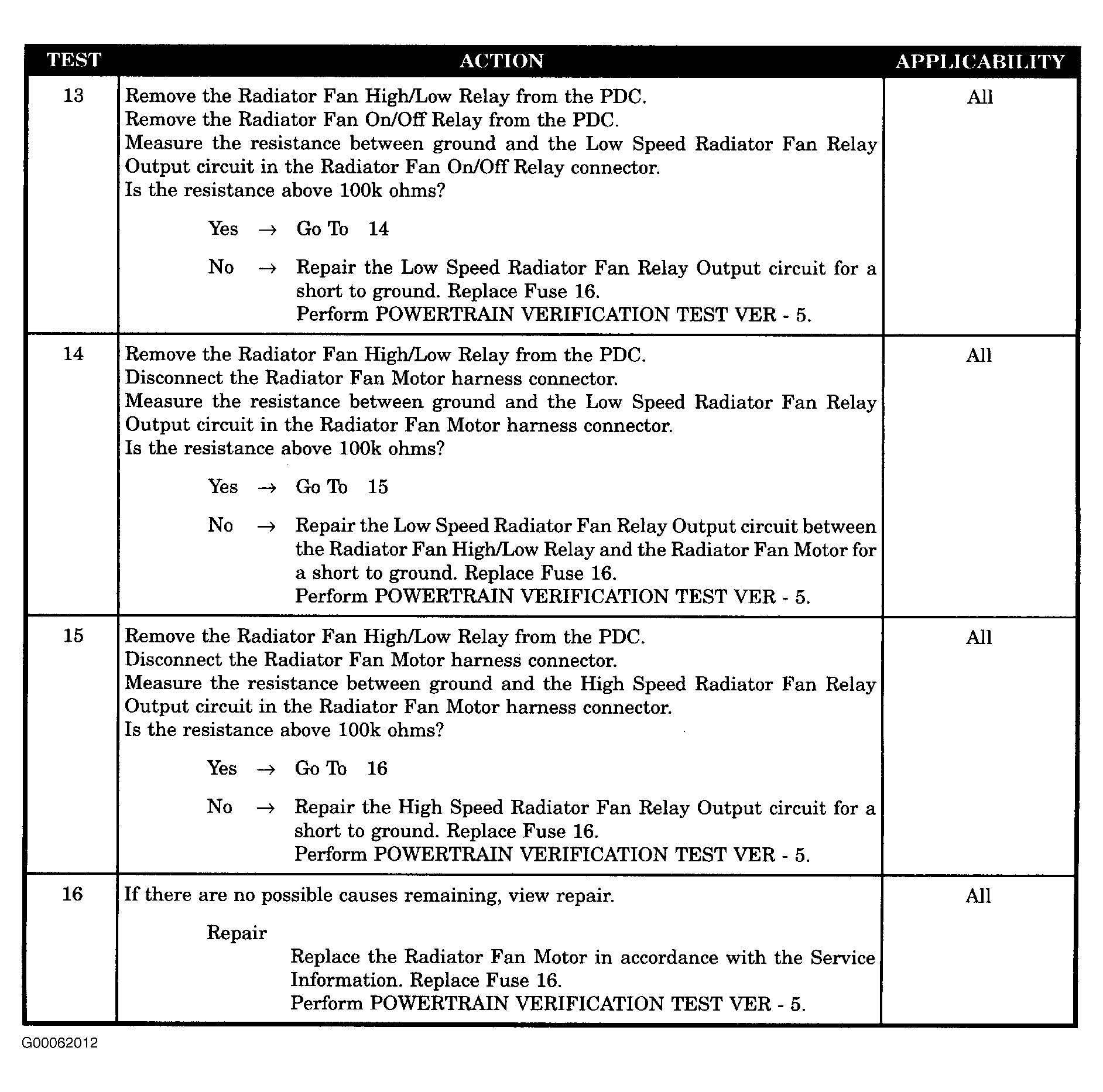

Fig 4: DTC P1490: Low Speed Fan Control Relay Circuit (4 Of 4)
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
