Checking Charging System Operation With No DTC'S Present

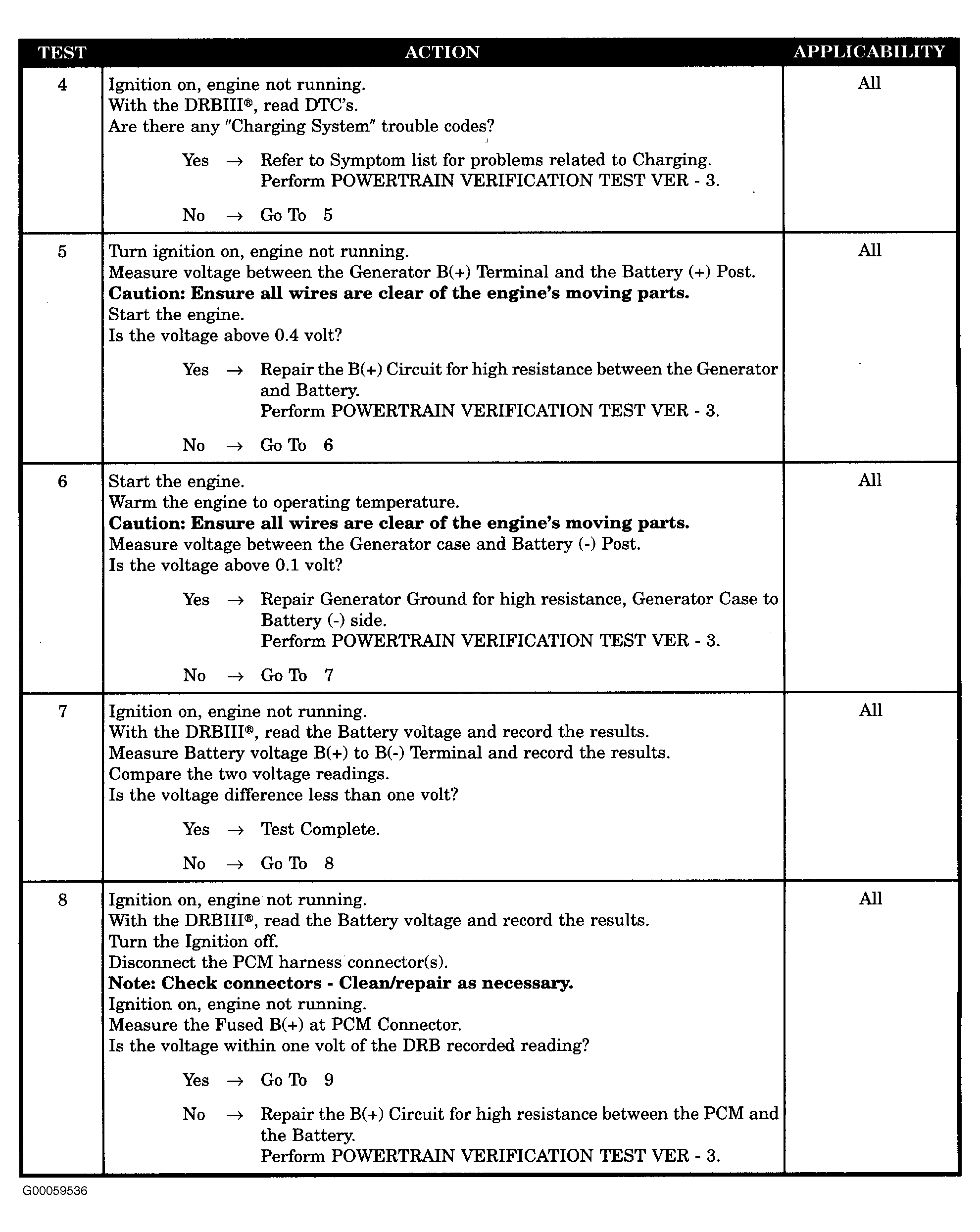

Fig 1: Checking Charging System - No DTC's (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION

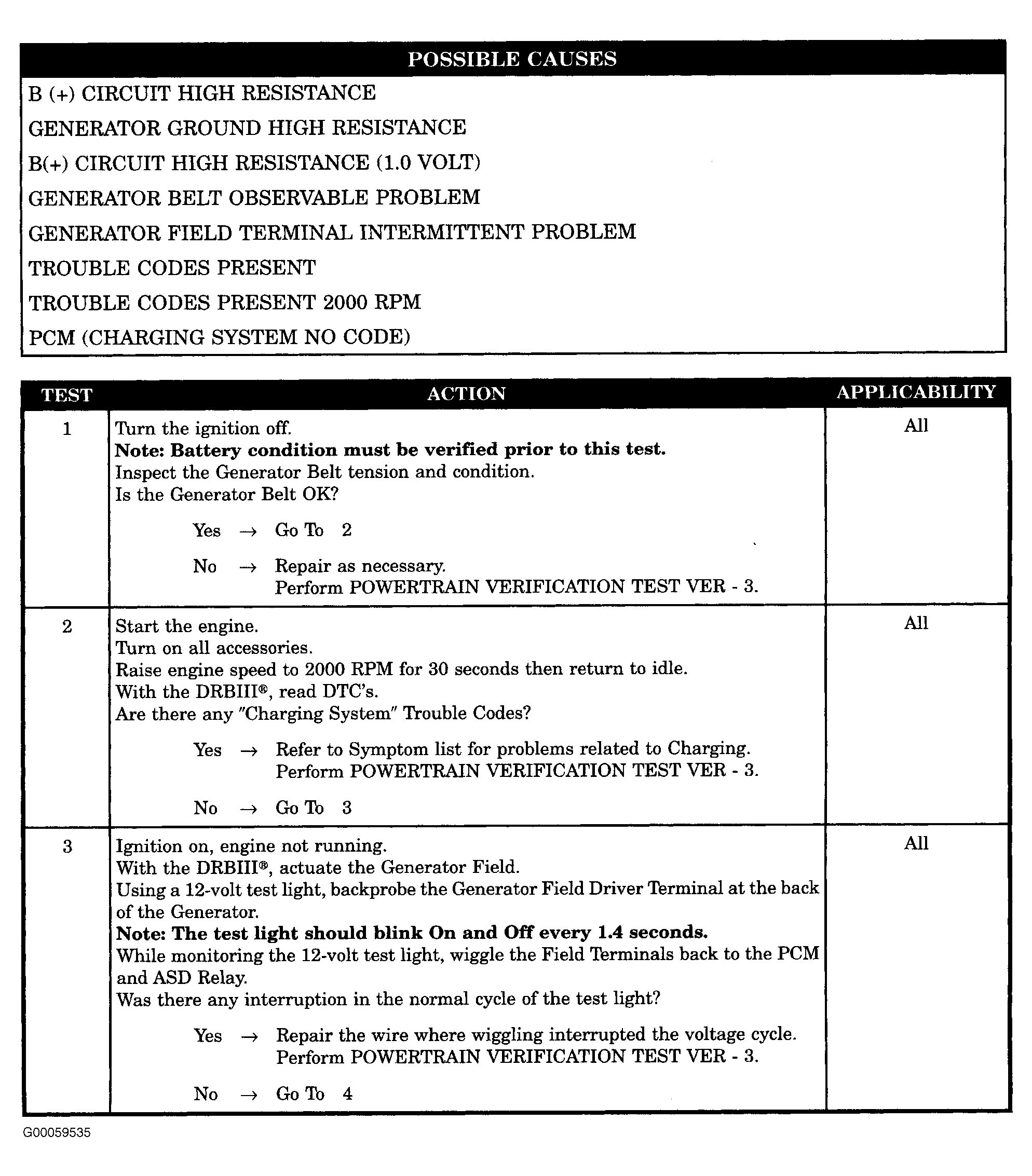

Fig 2: Checking Charging System - No DTC's (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION

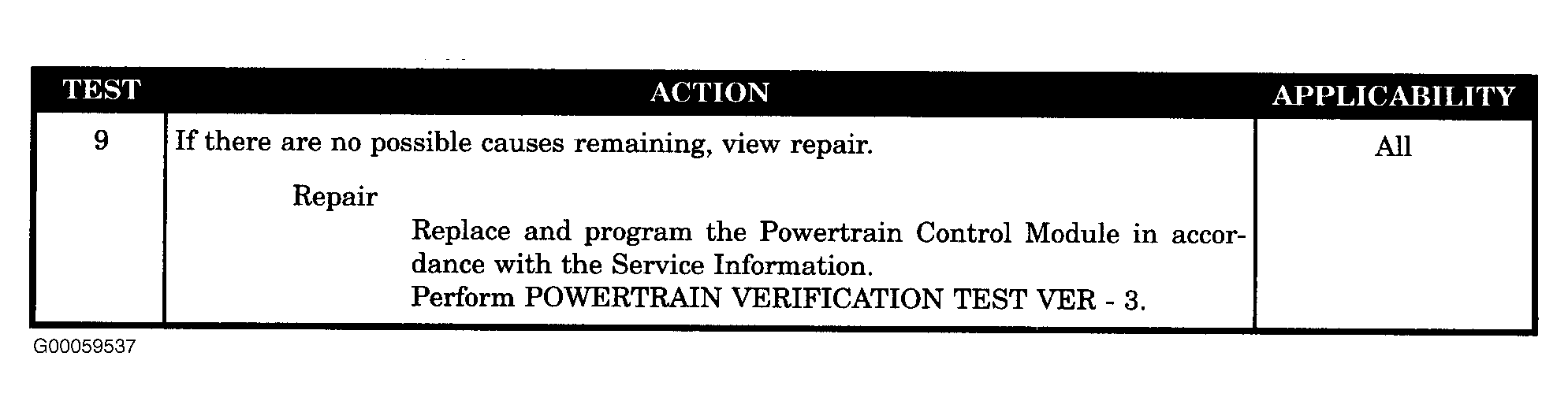

Fig 3: Checking Charging System - No DTC's (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION
