8.0L JTEC System

NOTE: For additional wiring diagrams, connector and terminal identification, and wiring information, see WIRING DIAGRAMS article.

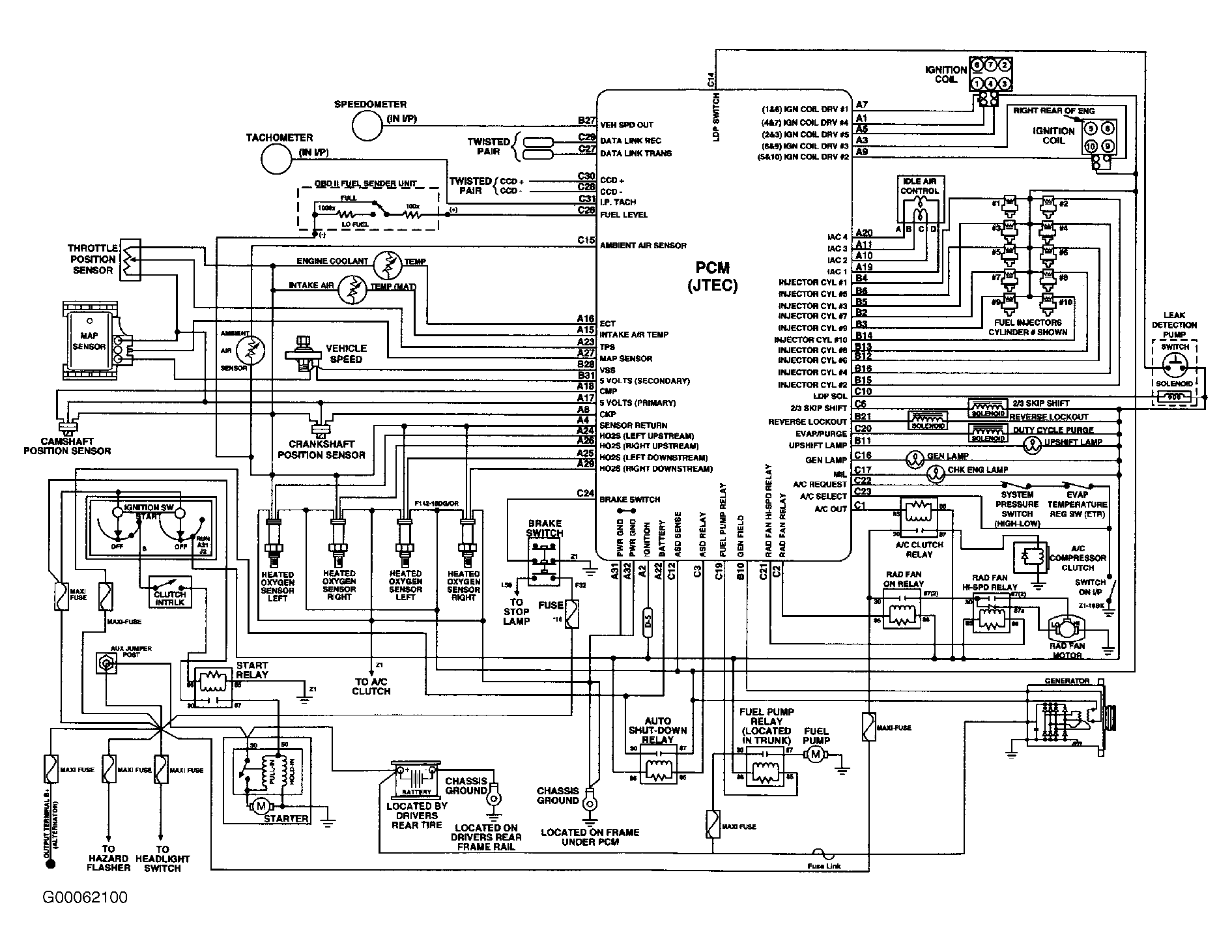

Fig 1: Engine Performance Wiring Diagram - 8.0L JTEC System
G00062100Courtesy of DAIMLERCHRYSLER CORPORATION
