Automatic Transmission/Transaxle
GENERAL SPECIFICATIONS
GEAR RATIOS
BAND ADJUSTMENT
BEARING SETTING (END PLAY & TURNING TORQUE)
CLUTCH CLEARANCES
END PLAY
OIL PUMP CLEARANCES

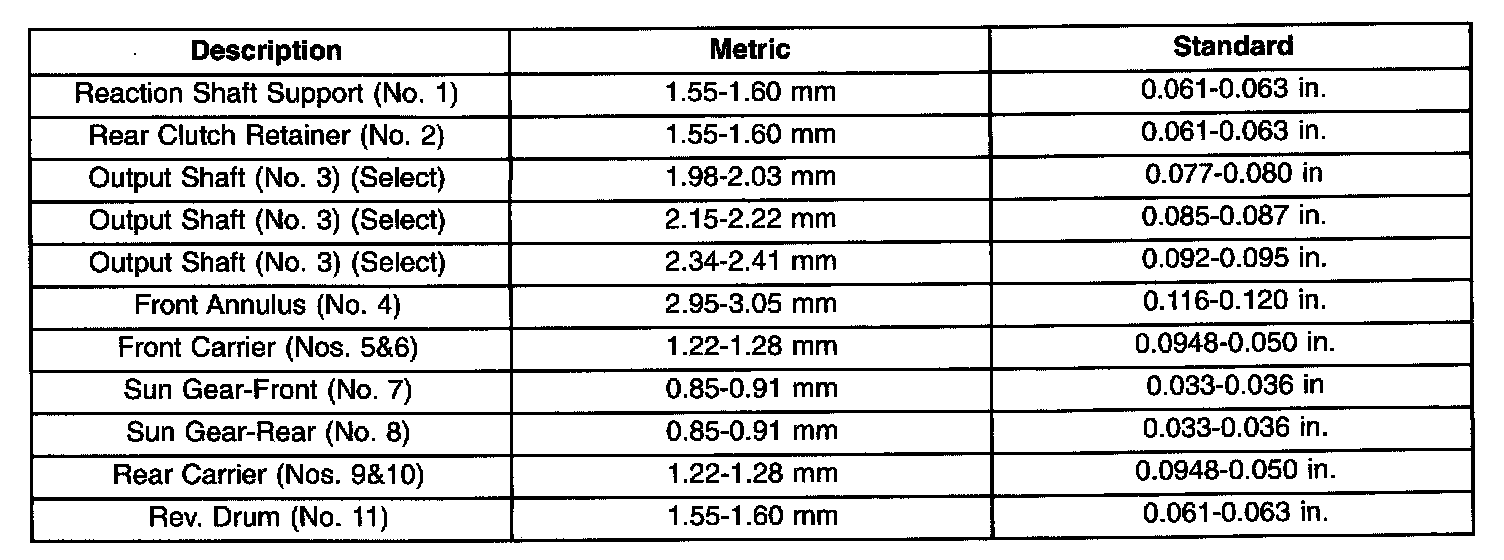

THRUST WASHERS

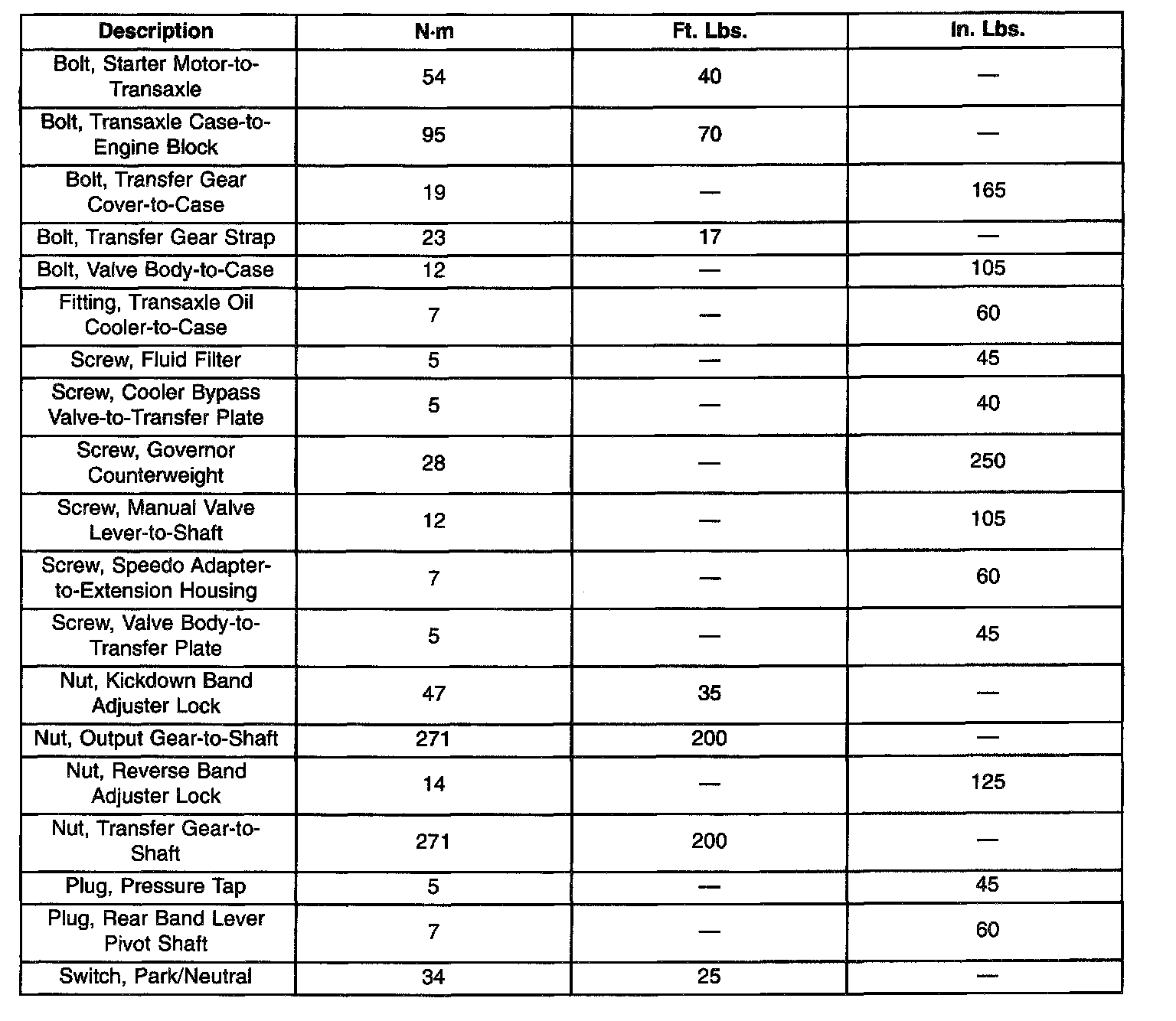

TORQUE SPECIFICATIONS PART 1 of 2

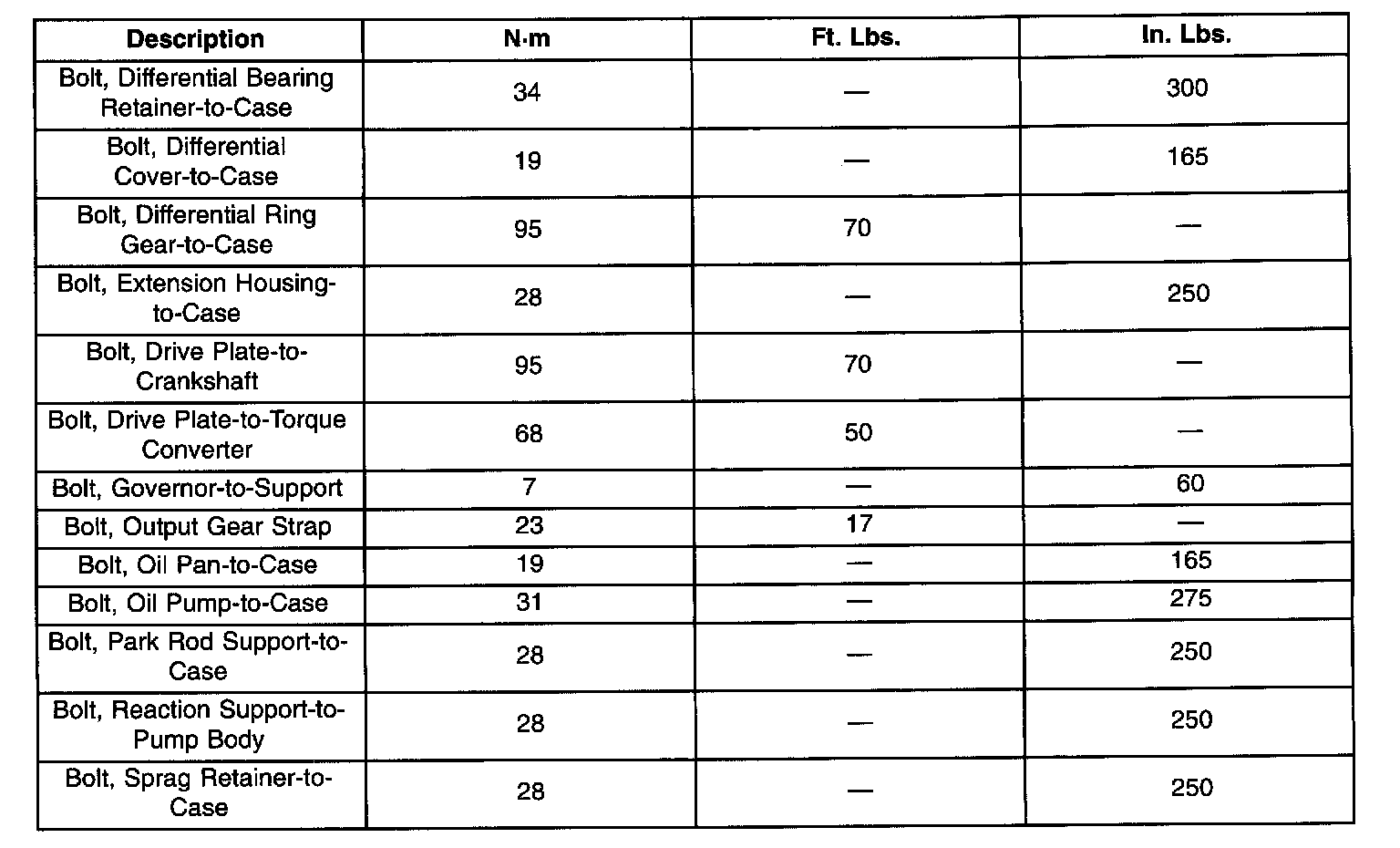

TORQUE SPECIFICATIONS PART 2 of 2
