Home
>>
Dodge and Ram
>>
2001
>>
RAM 2500 Van V8-5.2L Prop VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Audible Warning Device Control Module
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Audible Warning Device Control Module
Central Timer Module C1 (Highline):

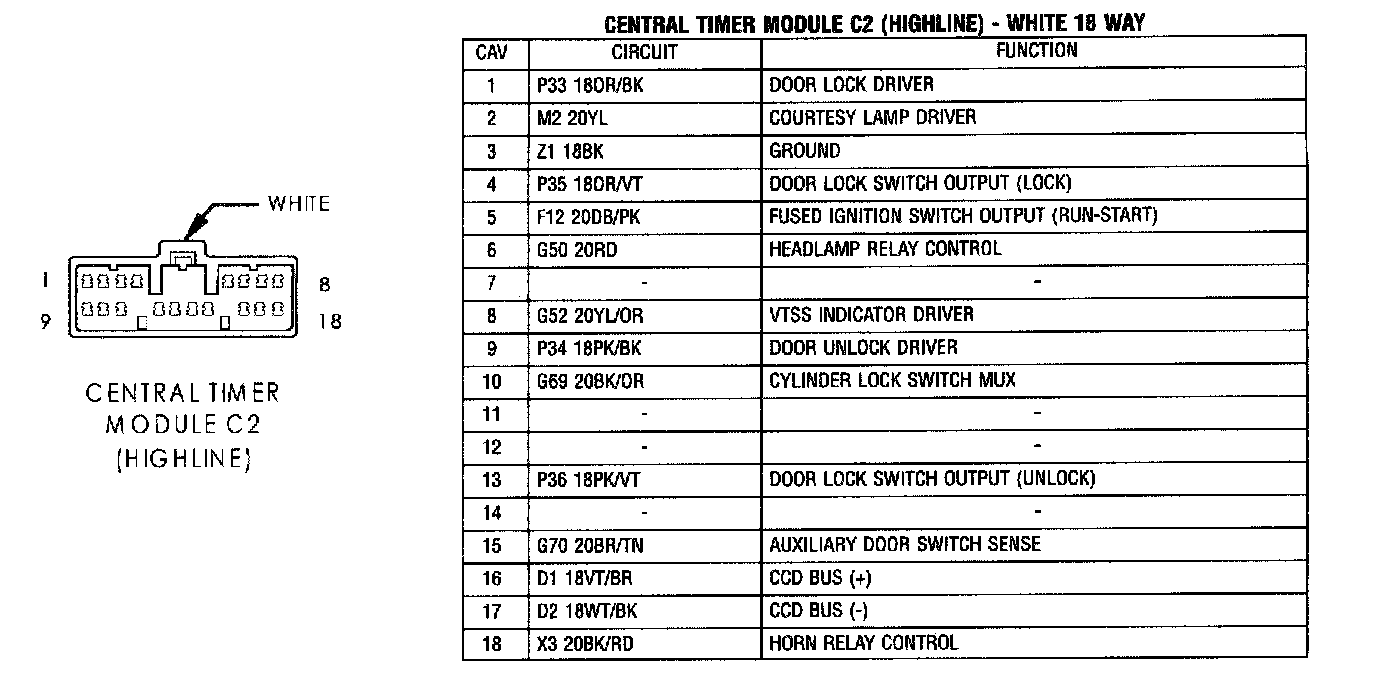

Central Timer Module C2 (Highline):
