System Specifications

Specifications





PUMP SPECIFICATIONS





TORQUE CHART - STEERING COLUMN

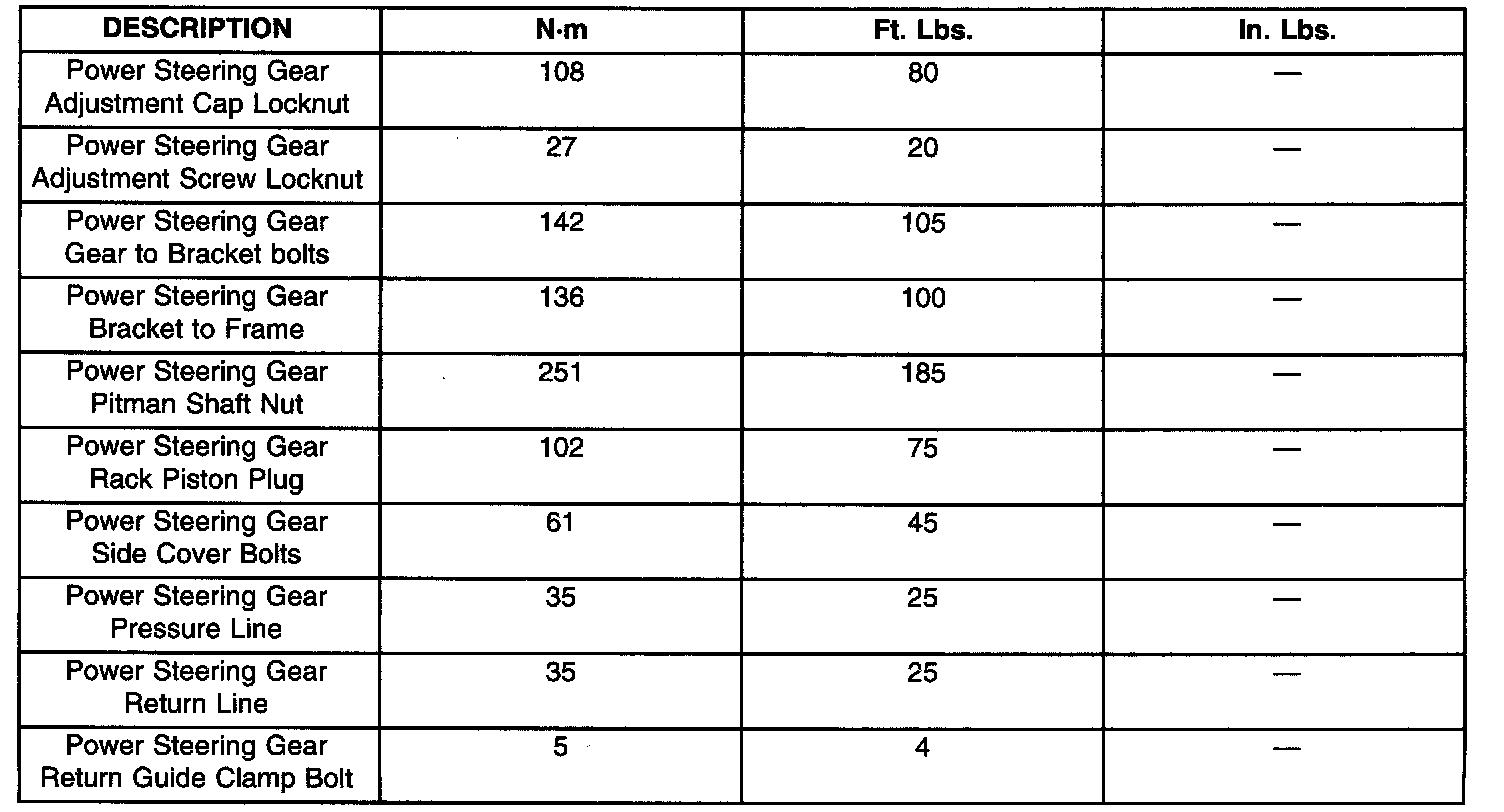

POWER STEERING GEAR





TORQUE CHART





TORQUE CHART - LINKAGE





TORQUE CHART - POWER STEERING PUMP





ALIGNMENT

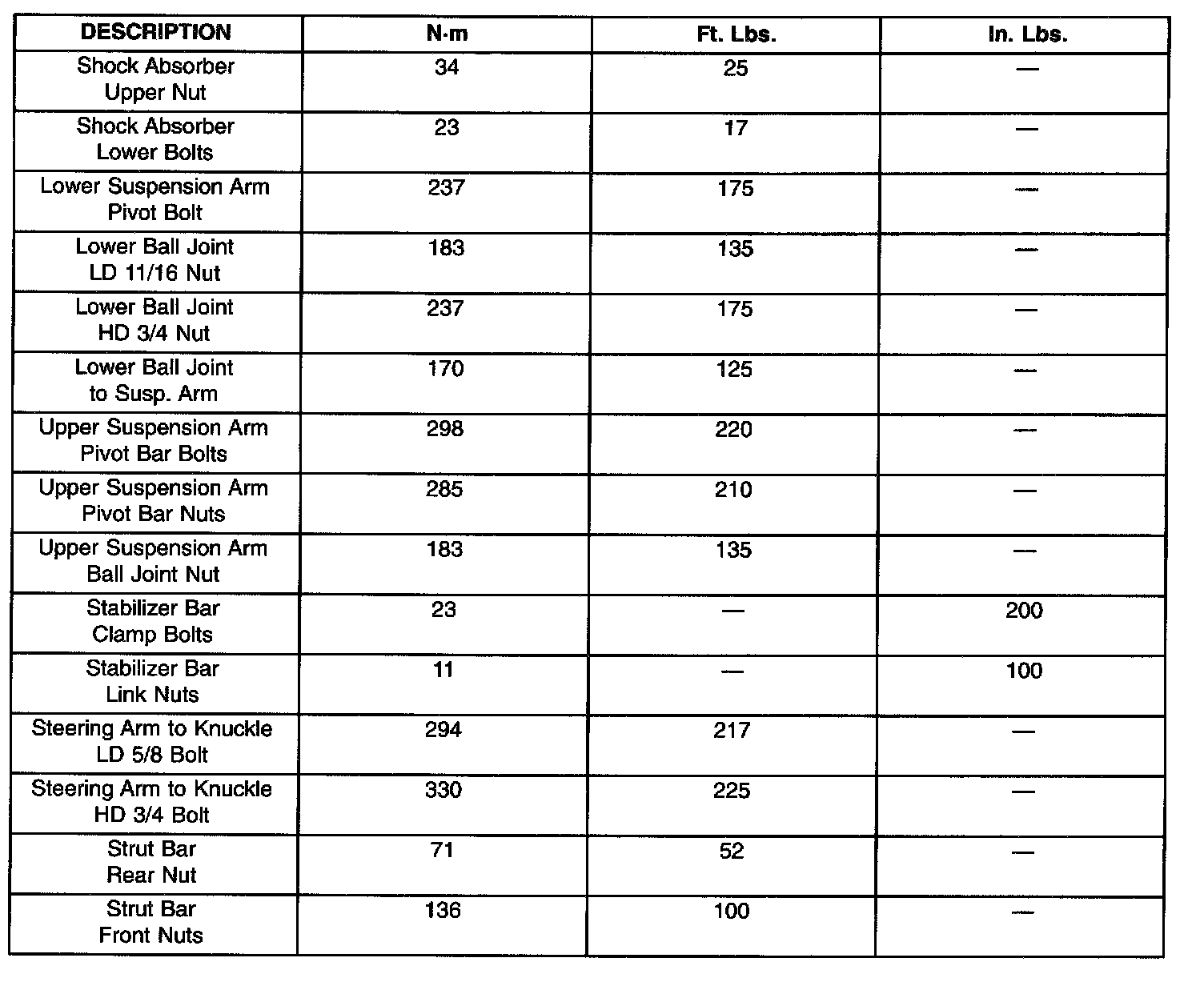

FRONT SUSPENSION TORQUE CHART





REAR SUSPENSION TORQUE CHART





TIRES REVOLUTIONS PER MILE





TORQUE CHART - TIRES AND WHEELS
