RWAL Sensor: Description

The rear Wheel Speed Sensor (WSS) is mounted in the rear differential housing. (Fig 1).

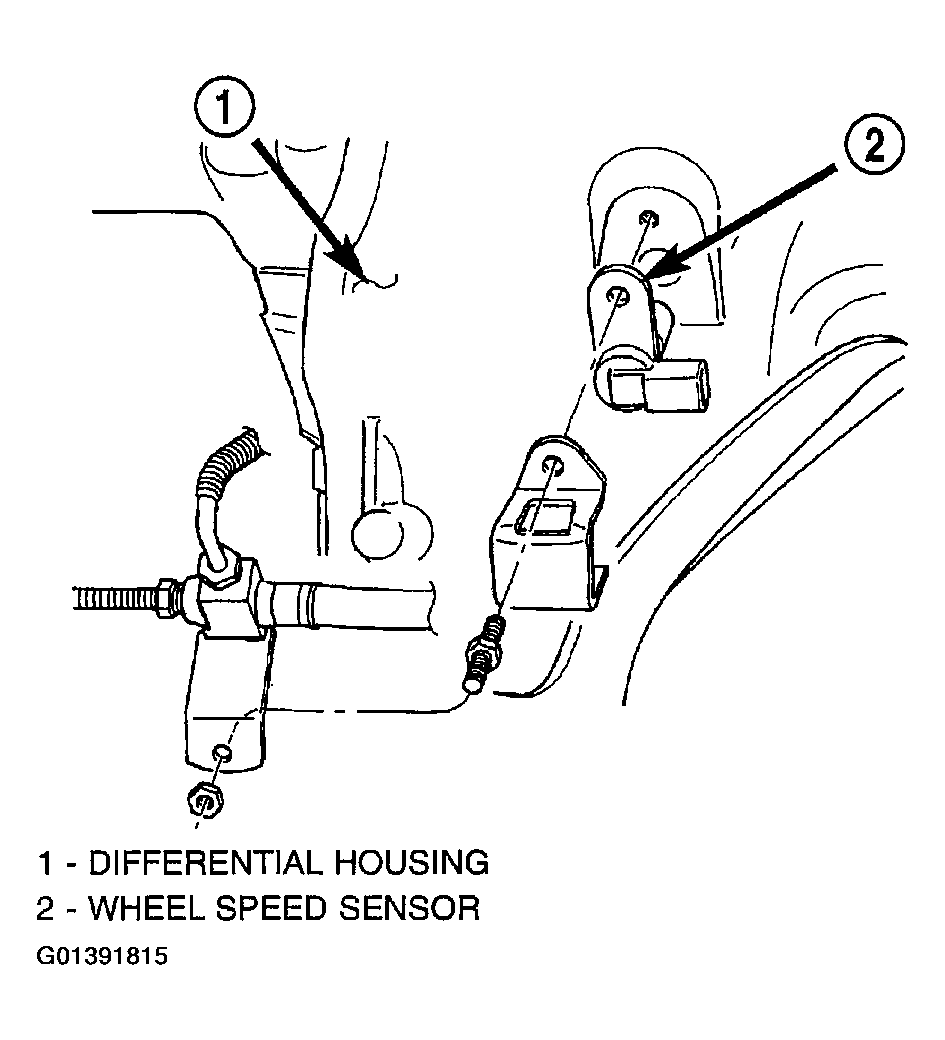

Fig 1: Identifying Rear Wheel Speed Sensor location

Courtesy of DAIMLERCHRYSLER CORP.

The exciter ring is press fitted onto the differential carrier next to the final drive ring gear. (Fig 2). For replacement procedure of the exciter ring. (Refer to REAR DRIVE AXLE - 8 1/4+ - DURANGO or REAR DRIVE AXLE - 9 1/4" - DURANGO ).

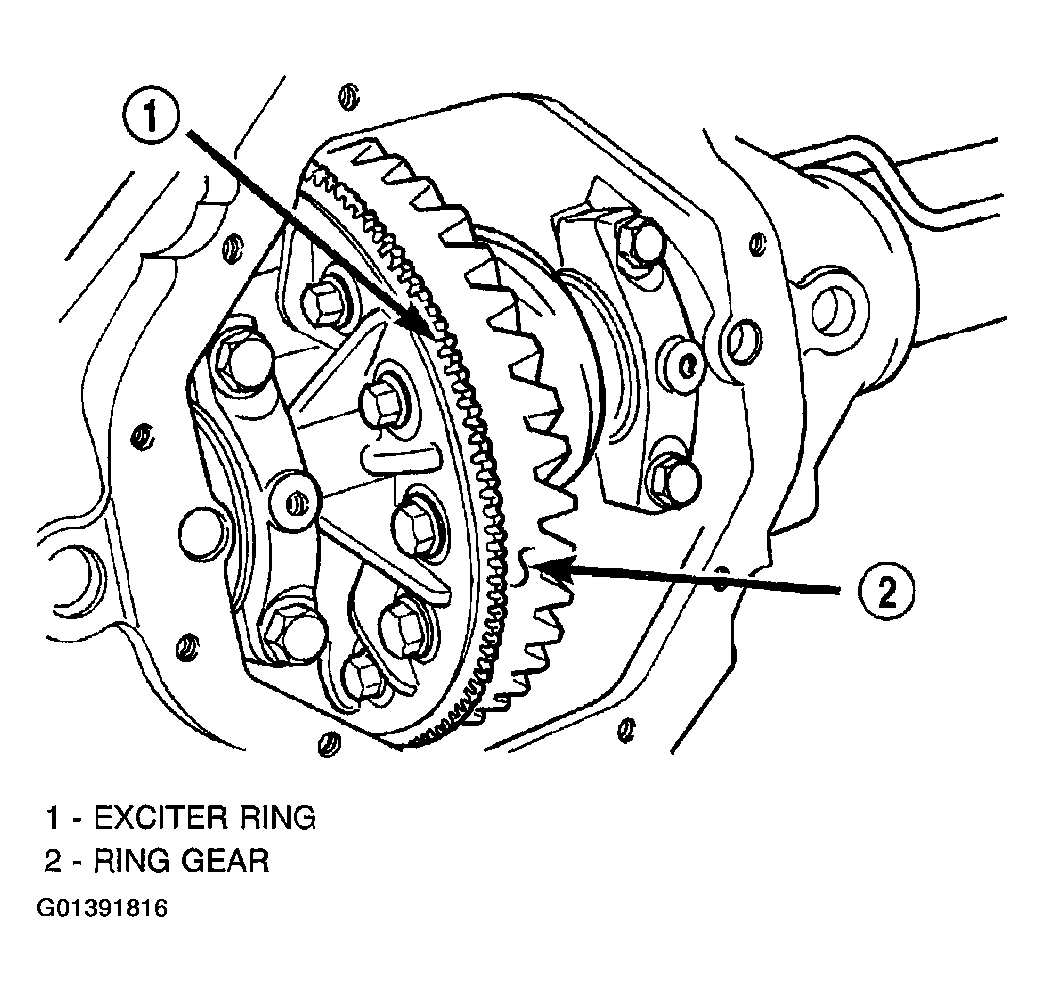

Fig 2: Identifying Exciter Ring Location

Courtesy of DAIMLERCHRYSLER CORP.
