Component Locations

WARNING: This page is about a different car, the 2002 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For component locations, refer to COMPONENT LOCATIONS  table and illustrations. See Fig 1 -Fig 19 .
COMPONENT LOCATIONS

Component Location
A/C-Heater Control Module To Right Of Instrument Cluster, In Instrument Panel
A/C On/Off Switch "Snowflake" Button In A/C-Heater Control Module
Air Bag Control Module On Bracket Fastened To Floor, At Bottom Of Instrument Panel, Forward Of Console
Ambient Temperature Sensor Right Of Condenser, On Radiator Support
Amplifier Mounted To Right Cowl Side Inner Panel, Under Right End Of Instrument Panel
Brake Transmission Shift Interlock Solenoid Mounted To Left Side Of Steering Column
Central Timer Module Behind Left Side Kick Panel
Compass Mini-Trip Computer In Overhead Console
Controller Anti-Lock Brake In Engine Compartment, Next To Power Distribution Center
Data Link Connector Lower Left Side Of Instrument Panel
Door Cylinder Lock Switches Fastened To Rear Of Door Cylinder Lock, In Corresponding Door
Door Lock Motor Integral With Individual Door Latches, In Rear Of Corresponding Door
Foglight Relay In Power Distribution Center
Horn Relay In Instrument Panel Junction Block
Instrument Panel Junction Block On Left End Of Instrument Panel
Park Light Relay In Instrument Panel Junction Block
Powertrain Control Module Right Side Of Engine Compartment
Power Distribution Center Left Side Of Engine Compartment, Near Battery
Radio Frequency Receiver Built Into Central Timer Module
Seat Belt Switch Built Into Driver Seat Belt Retractor Assembly
Sentry Key Immobilizer Module Under Steering Column Shrouds, Near Ignition Lock Cylinder
Transfer Case Control Module Behind Instrument Panel, Right Of Steering Column
Transmission Control Module (4.7L) In Right Front Corner Of Engine Compartment
Transmission Range Sensor (3.9L & 5.9L) Left Side Of Transmission
Transmission Range Sensor (4.7L) Part Of Solenoid Module, Mounted To Top Of Valve Body, Inside Transmission

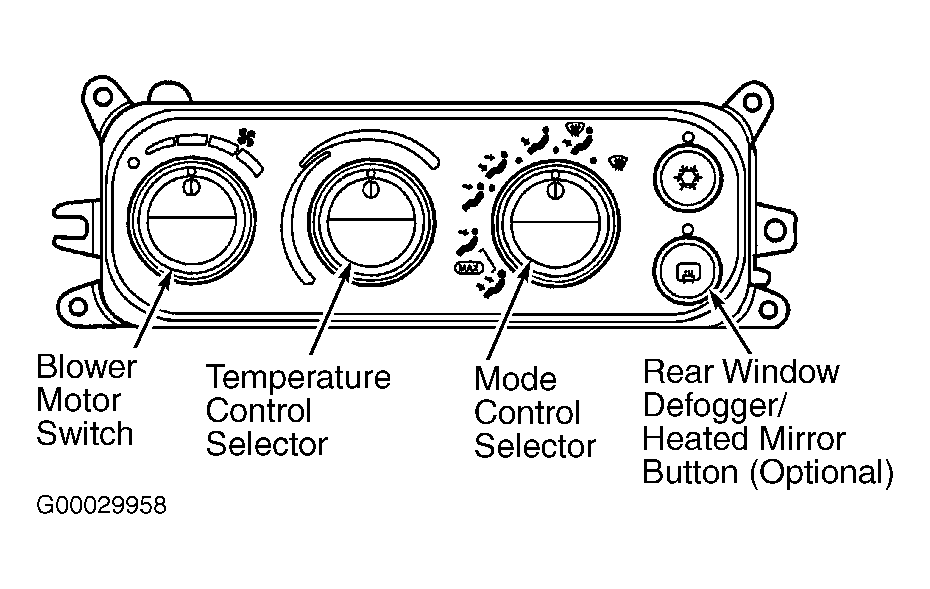

Fig 1: Locating A/C-Heater Control Module
G00029958Courtesy of CHRYSLER CORP.
Fig 2: Locating Air Bag Control Module, Central Timer Module, Compass/Mini-Trip Computer, Controller Anti-Lock Brake, Instrument Panel Junction Block, Powertrain Control Module & Power Distribution Center
G00088595Courtesy of DAIMLERCHRYSLER
Fig 3: Locating Air Bag Control Module
G00033923Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 4: Locating Ambient Temperature Sensor
G00176142Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 5: Locating Brake Transmission Shift Interlock Solenoid
G00182017Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 6: Locating Central Timer Module
G00176136Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 7: Locating Controller Anti-Lock Brake Module & Hydraulic Control Unit
G00015591Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 8: Locating Data Link Connector
G00176135Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 9: Locating Junction Block
G00176137Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 10: Locating Left Side Instrument Panel Connectors
G00182016Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 11: Locating Power Distribution Center
G00176138Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 12: Locating Power Distribution Center Components
G00176134Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 13: Locating Powertrain Control Module & Harness Connectors
G00088600Courtesy of DAIMLERCHRYSLER
Fig 14: Locating Seat Belt Switch Harness Connector
G00182020Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 15: Locating Sentry Key Immobilizer Module
G00176143Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 16: Locating Transfer Case Control Module
G00072485Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 17: Locating Transmission Control Module (4.7L)
G00015615Courtesy of DAIMLERCHRYSLER CORP.
Fig 18: Locating Transmission Range Sensor (3.9L & 5.9L)
G00182019Courtesy of DAIMLERCHRYSLER CORPORATION

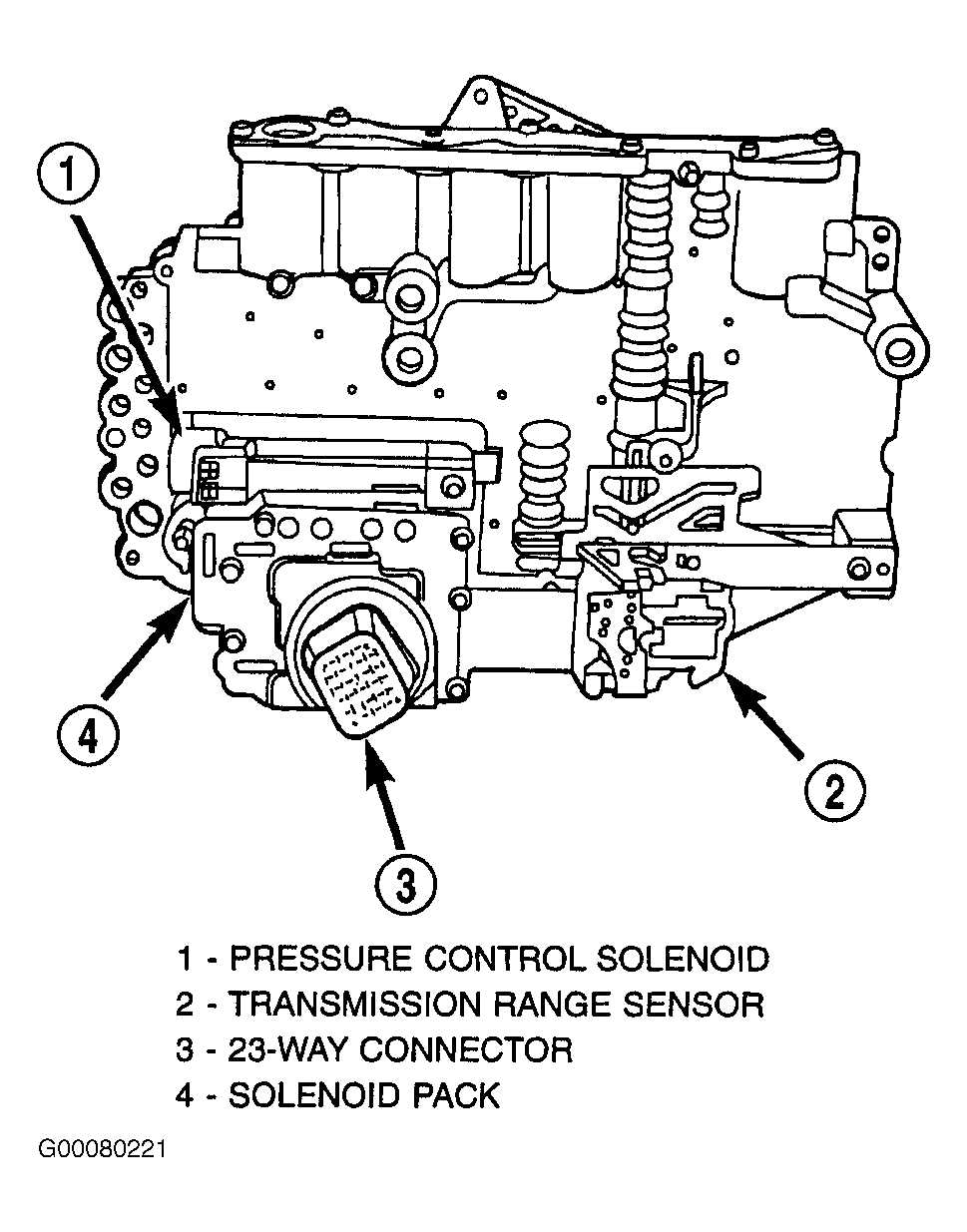

Fig 19: Locating Transmission Range Sensor (4.7L)
G00080221Courtesy of DAIMLERCHRYSLER CORPORATION
