Connector Identification
WARNING: This page is about a different car, the 2002 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
TERMINAL IDENTIFICATION DIRECTORY

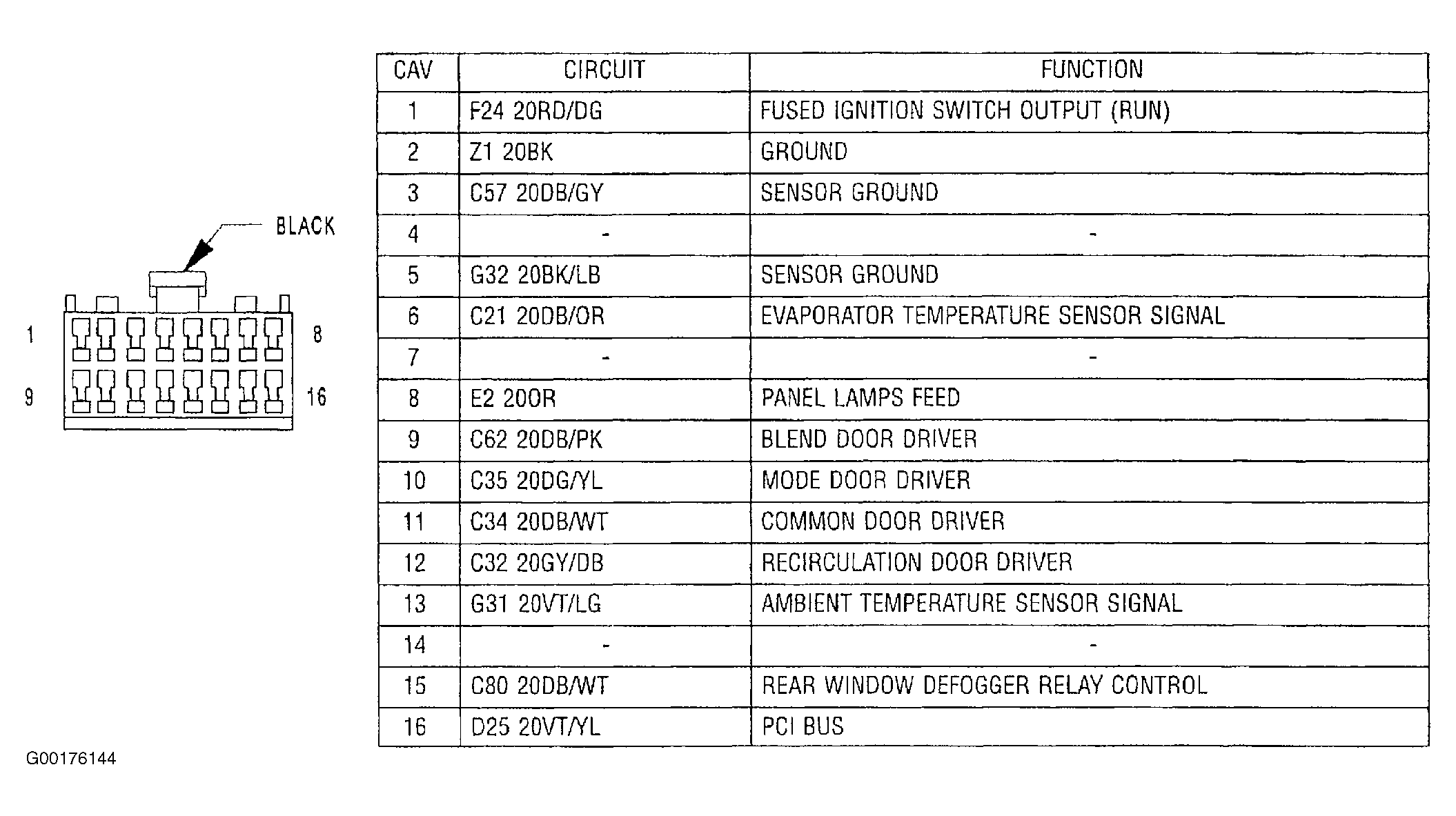

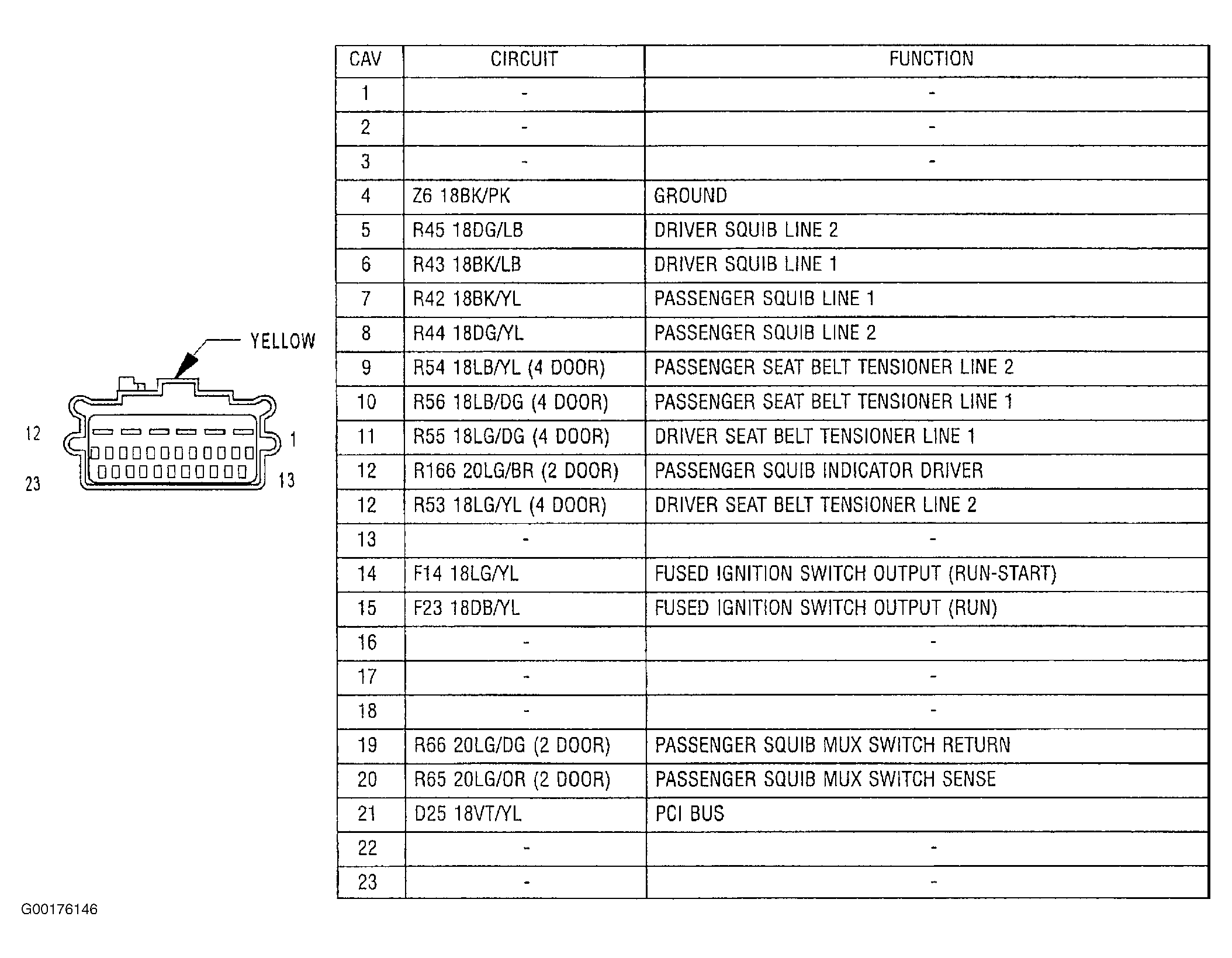

| Harness Connector | Illustration |
|---|---|
| A/C-Heater Control Module C1 | Fig 1 |
| A/C-Heater Control Module C2 | Fig 2 |
| Air Bag Control Module | Fig 3 |

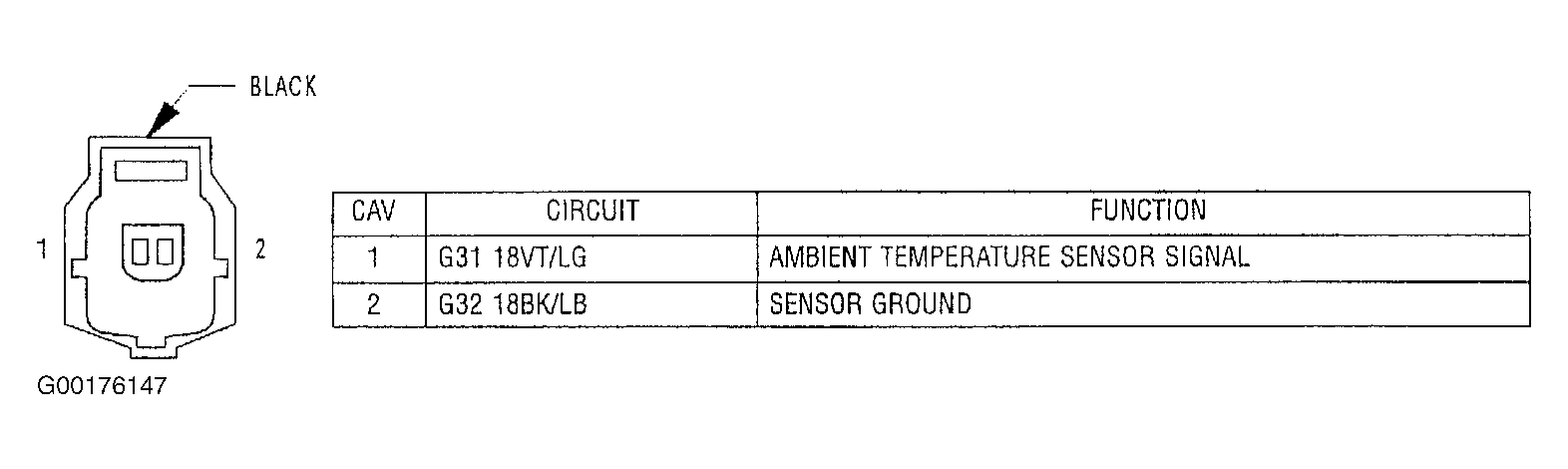

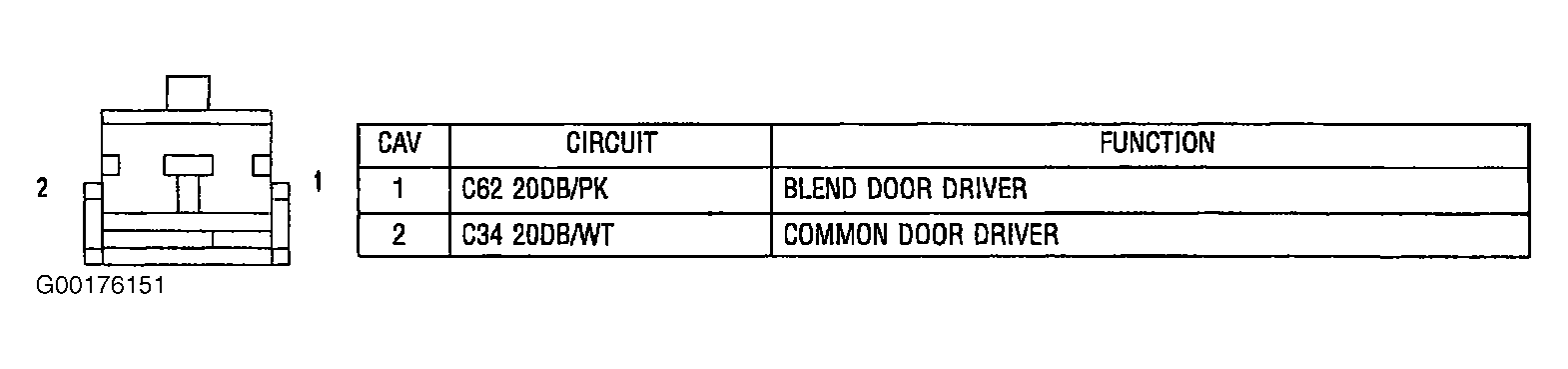

| Ambient Temperature Sensor | Fig 4 |
| Amplifier C1 (Premium) | Fig 5 |
| Amplifier C2 (Premium) | Fig 6 |
| Blend Door Actuator | Fig 7 |

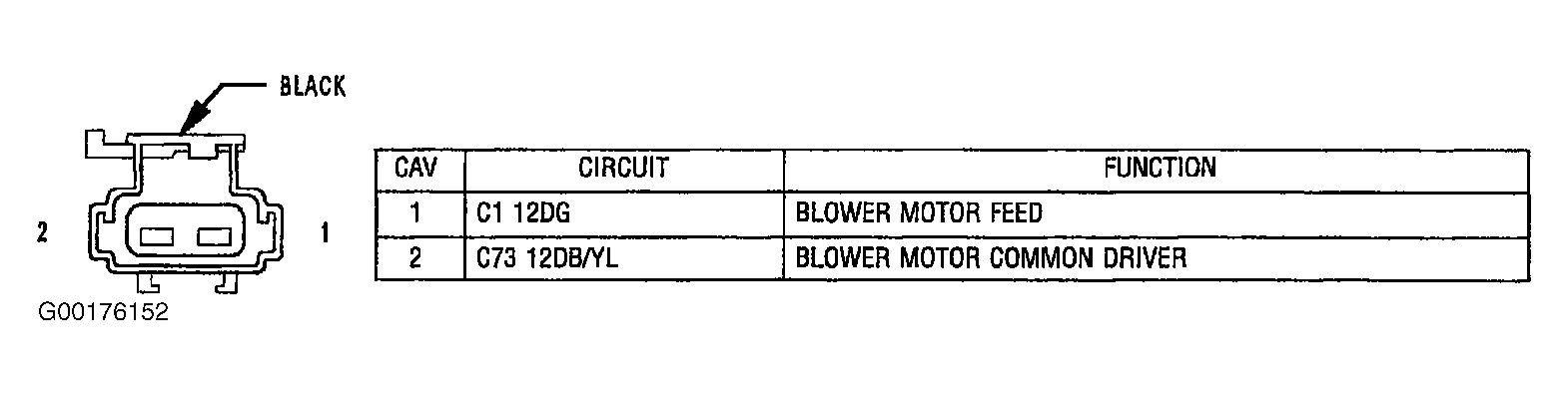

| Blower Motor | Fig 8 |

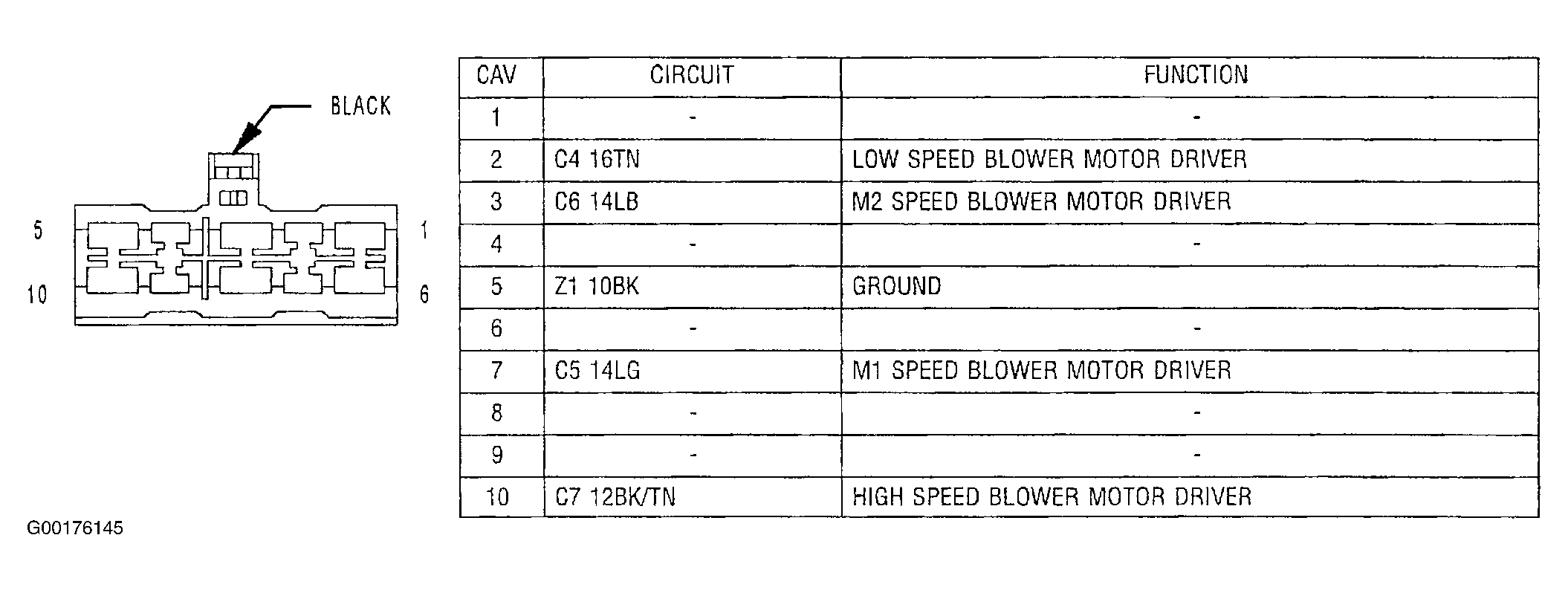

| Blower Motor Resistor Block | Fig 9 |

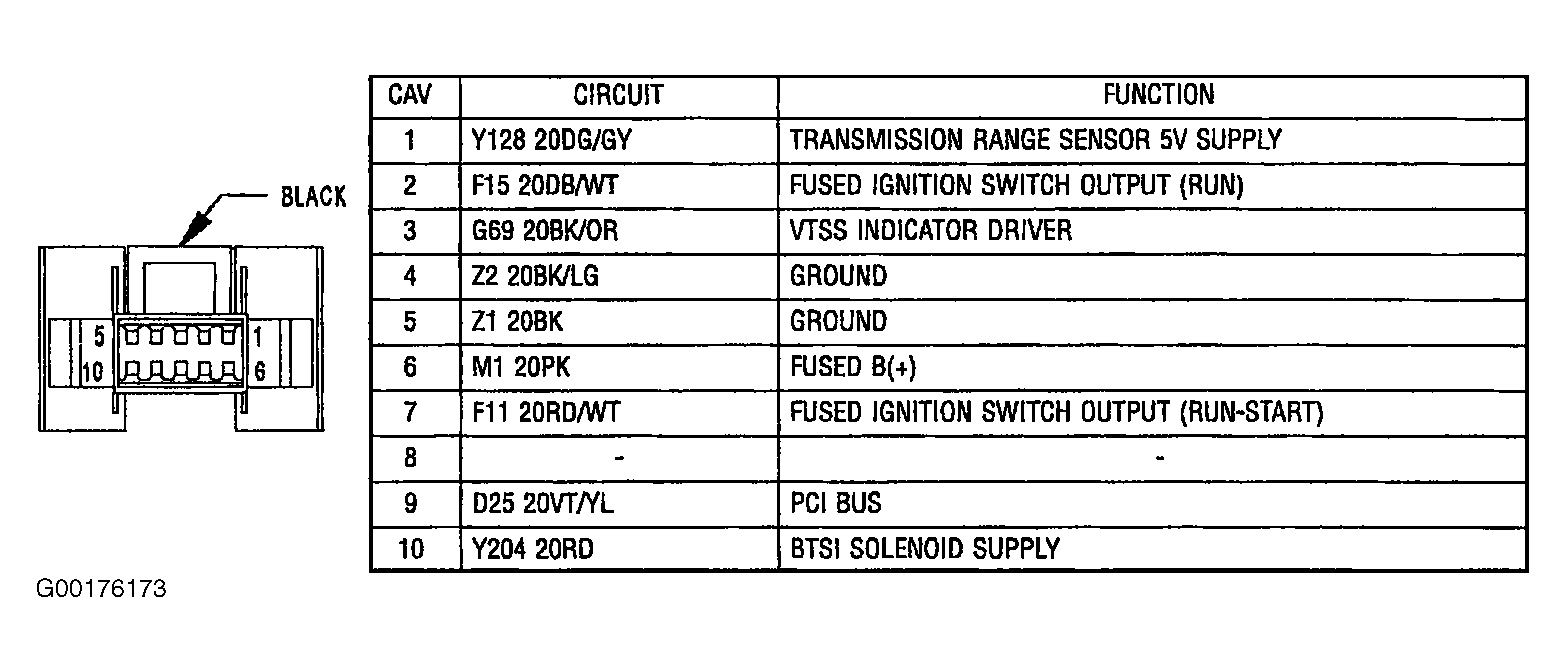

| Brake Transmission Shift Interlock Solenoid | Fig 10 |

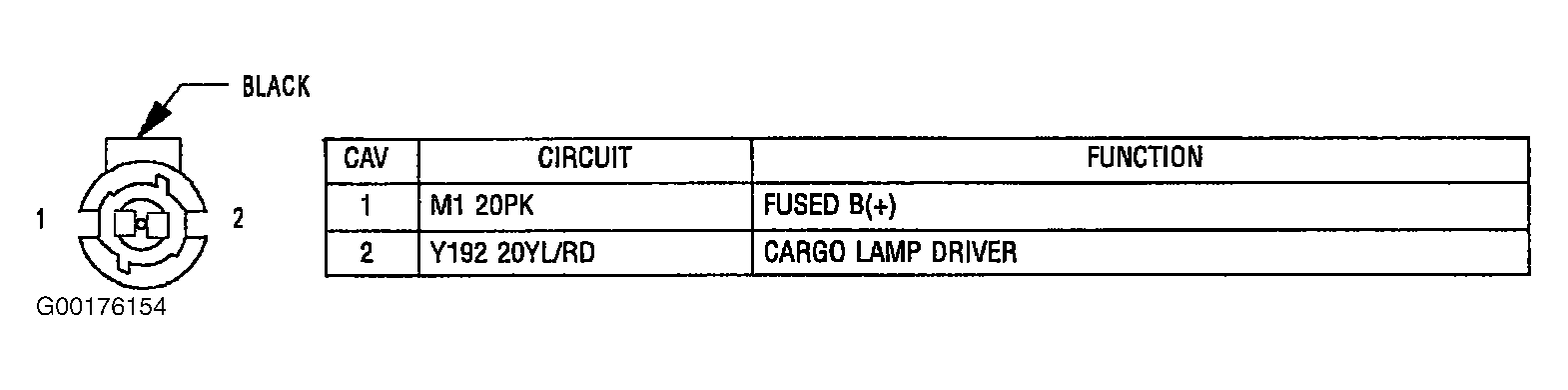

| Cargo Light | Fig 11 |

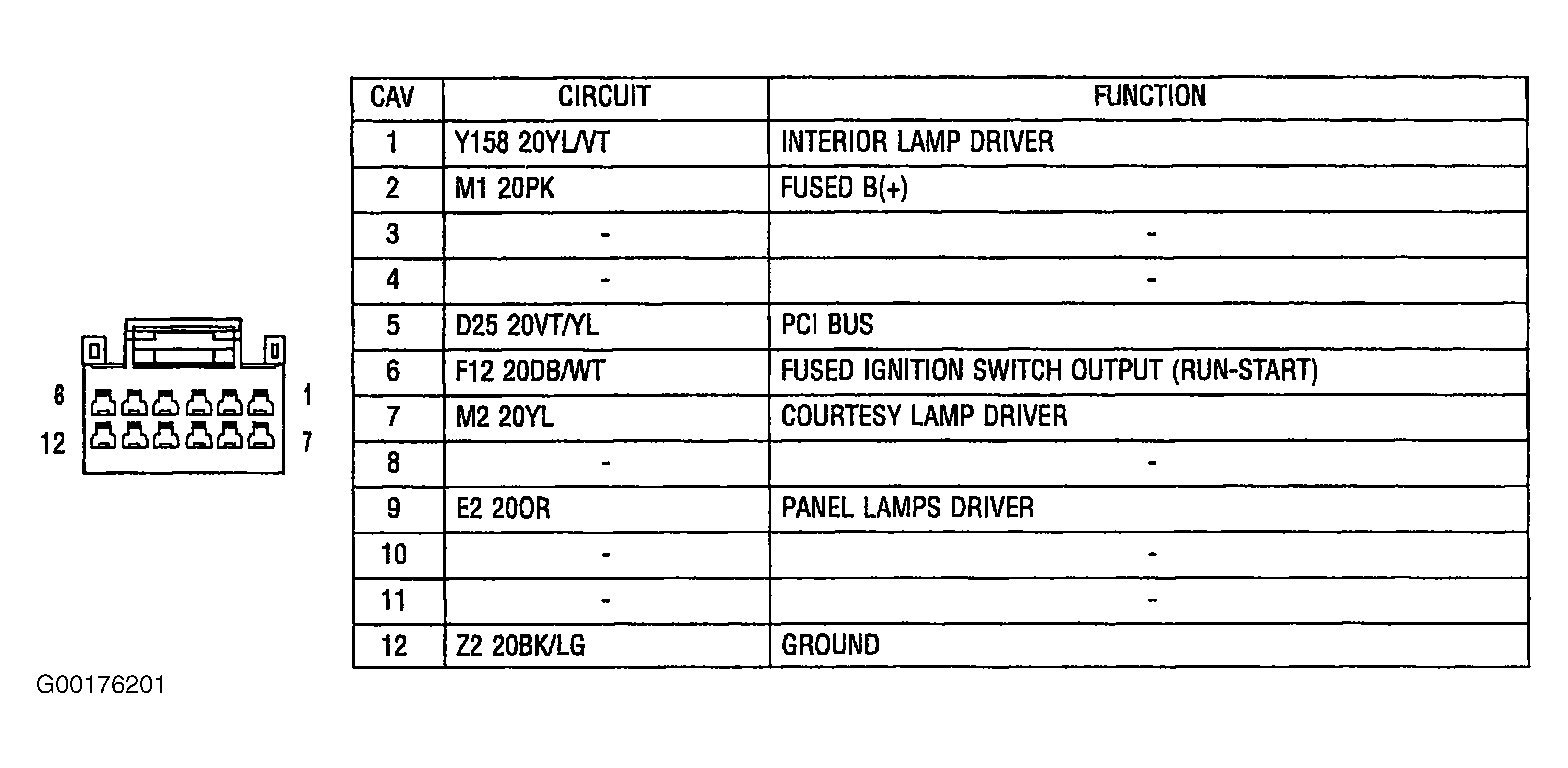

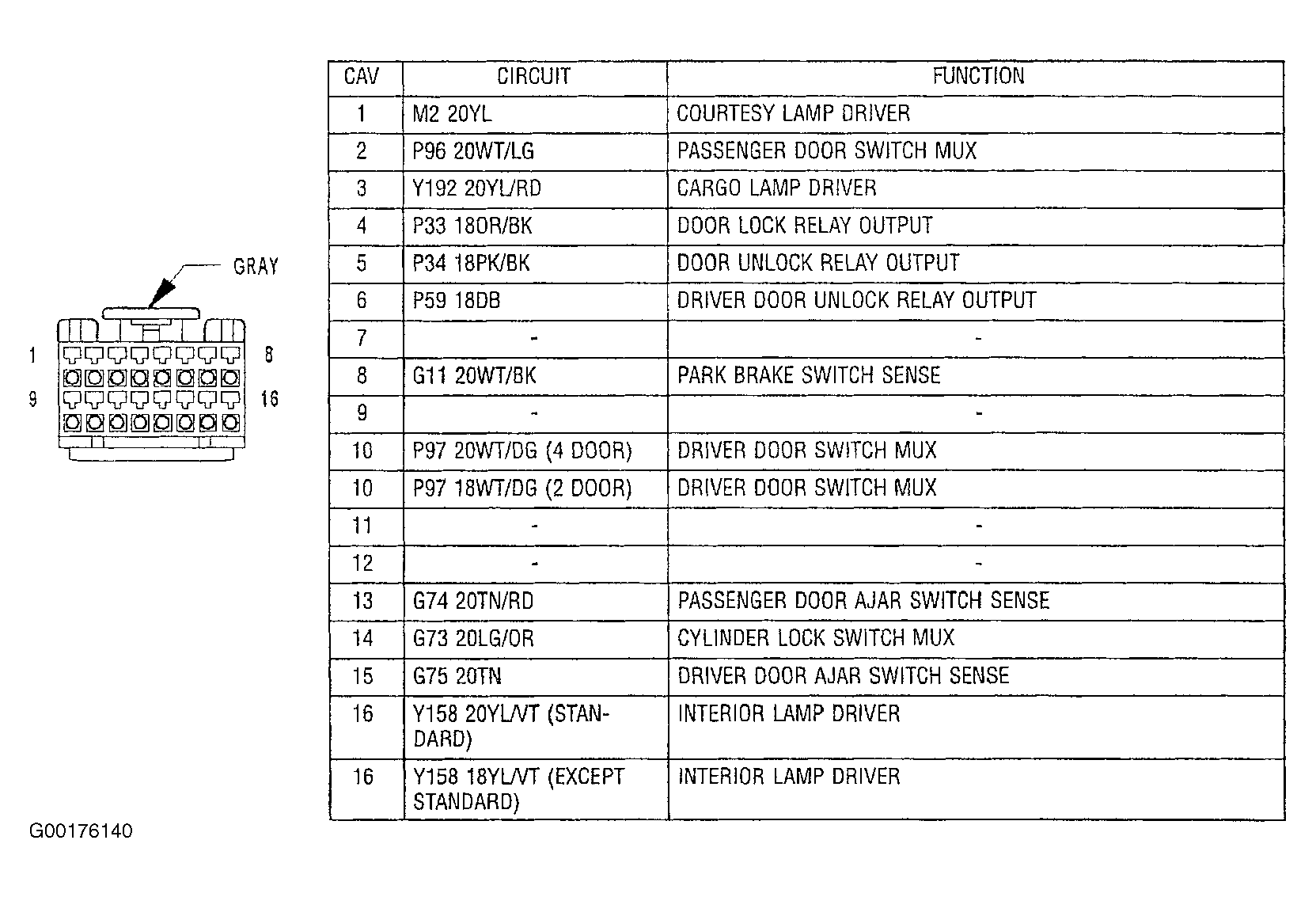

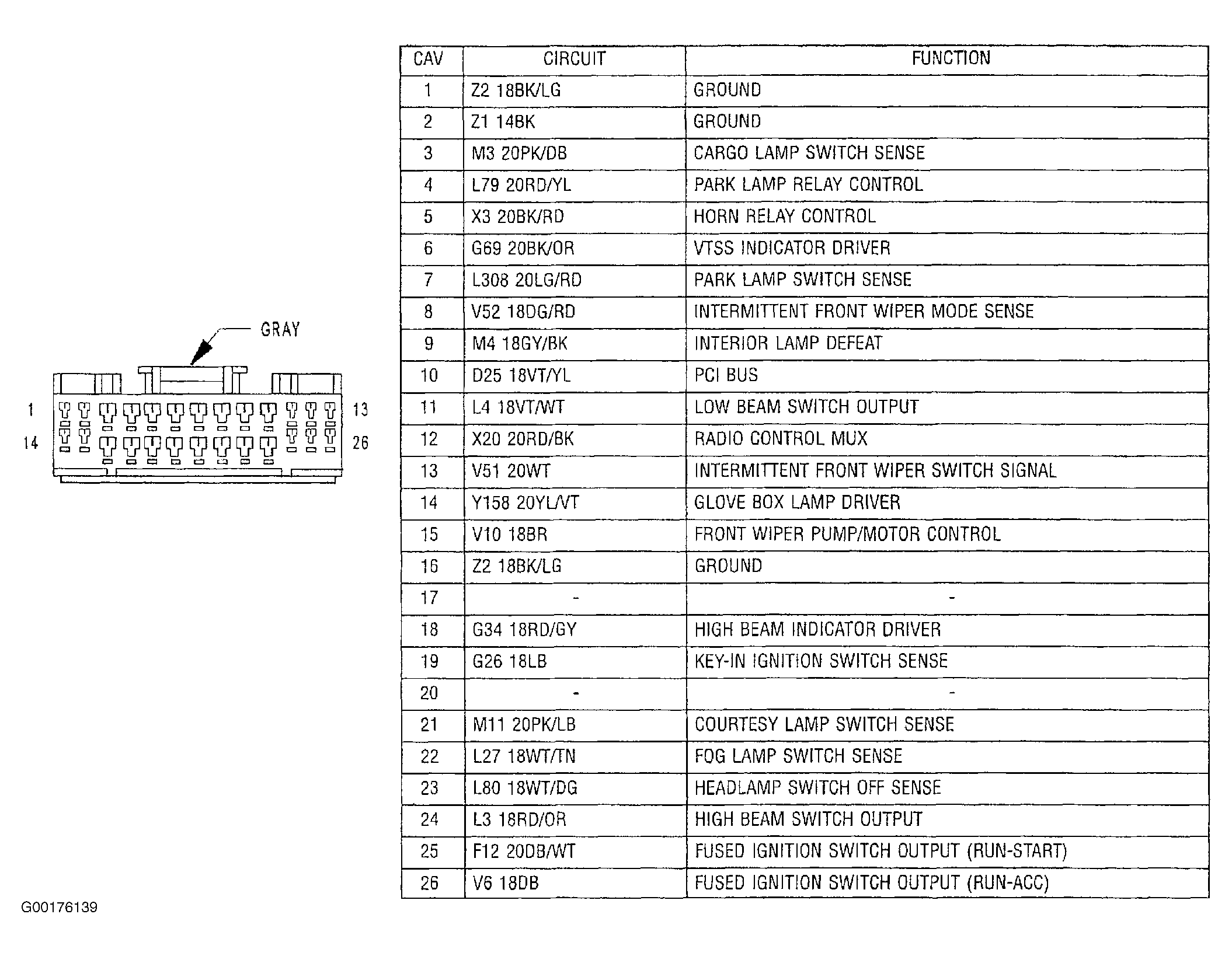

| Central Timer Module C1 | Fig 12 |
| Central Timer Module C2 | Fig 13 |
| Central Timer Module C3 | Fig 14 |
| Clockspring C4 (Premium) | Fig 15 |

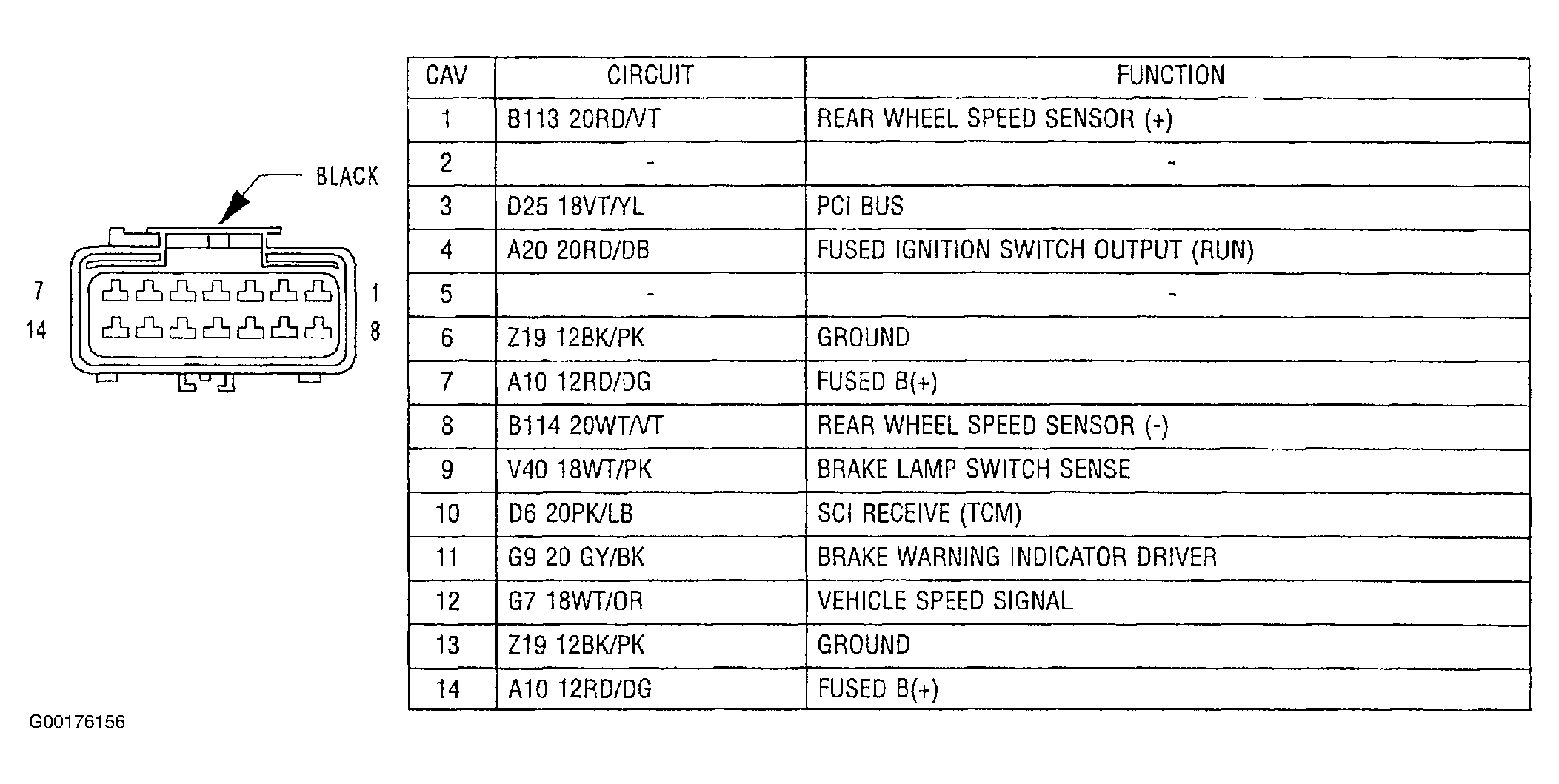

| Controller Anti-Lock Brake C1 | Fig 16 |

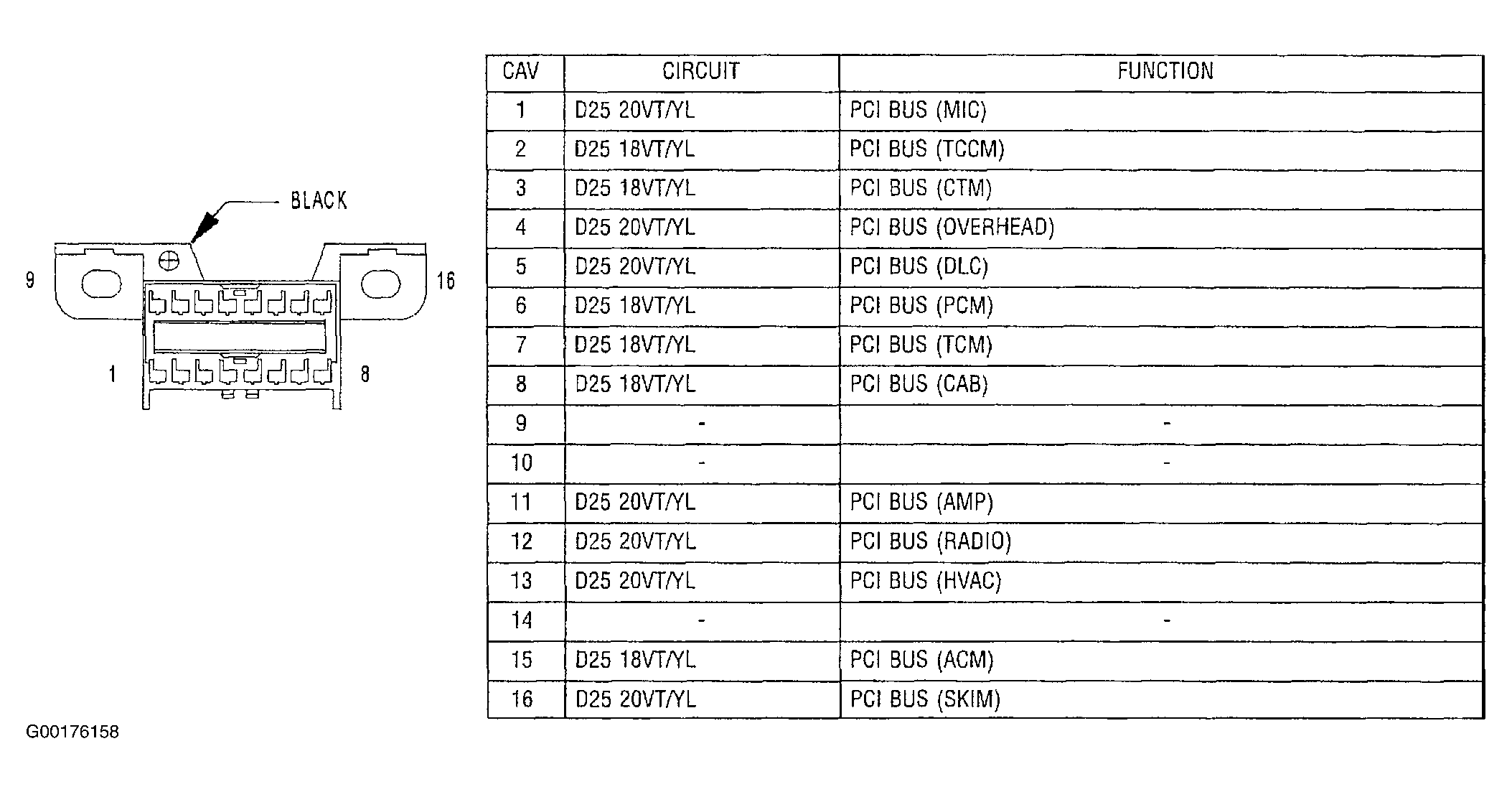

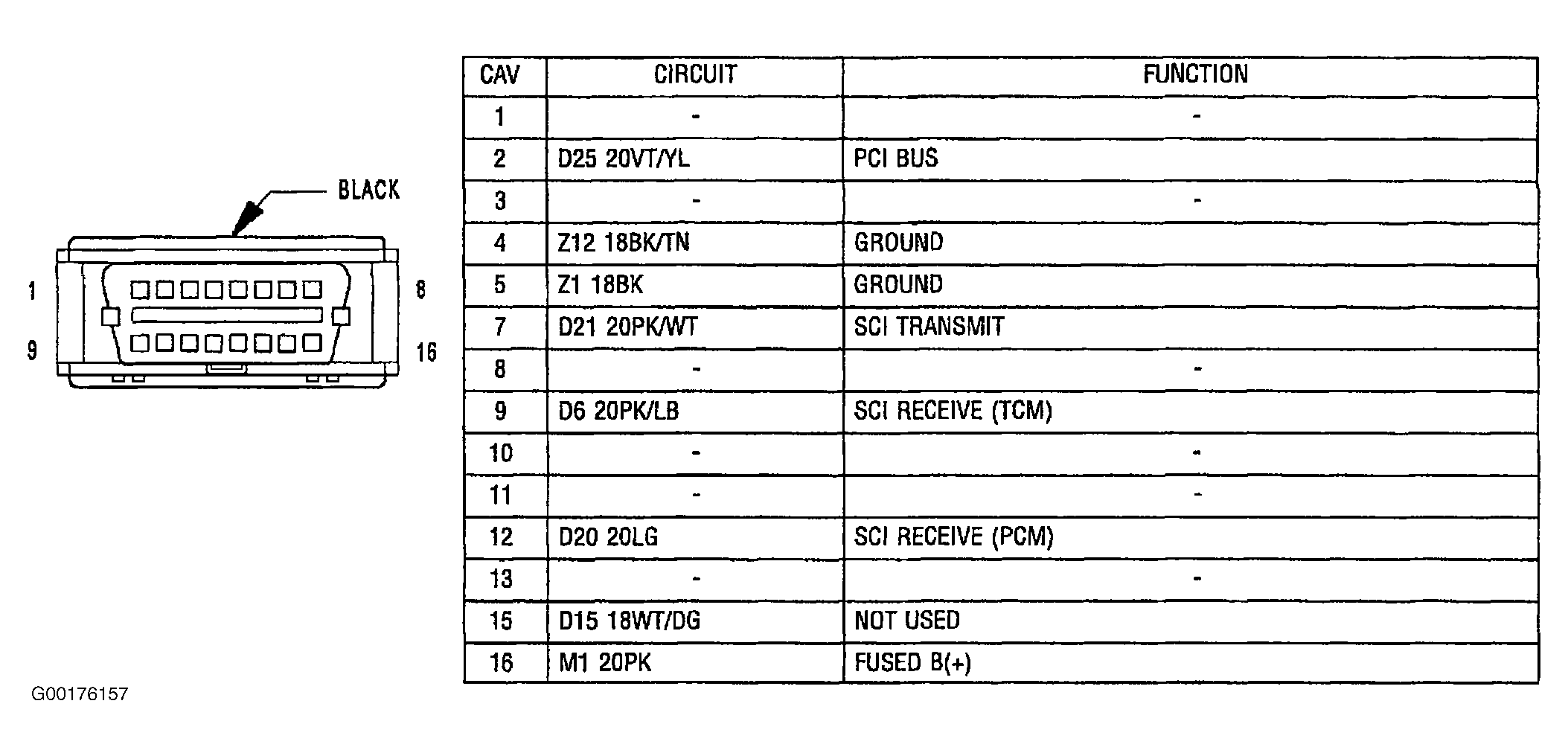

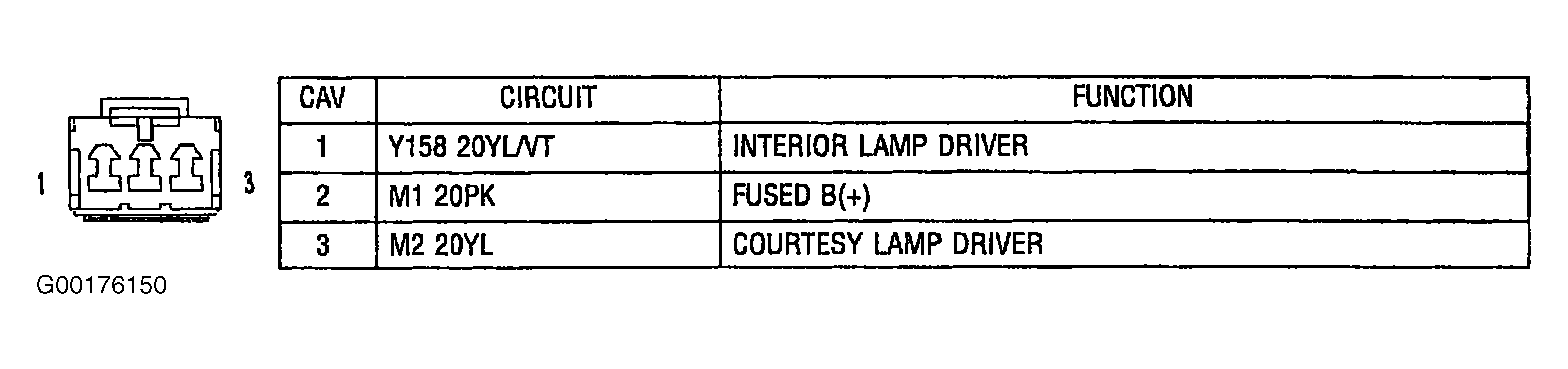

| Data Link Connector | Fig 17 |
| Diagnostic Junction Port | Fig 18 |
| Dome Light (2-Door) | Fig 19 |
| Driver Air Bag | Fig 20 |
| Driver Door Ajar Switch (Base) | Fig 21 |

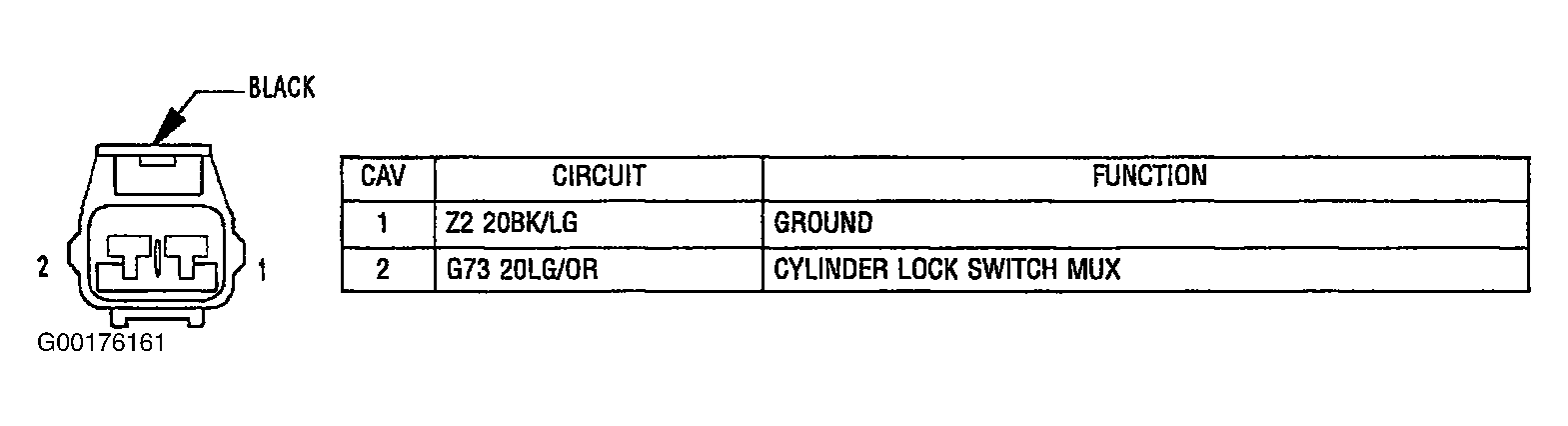

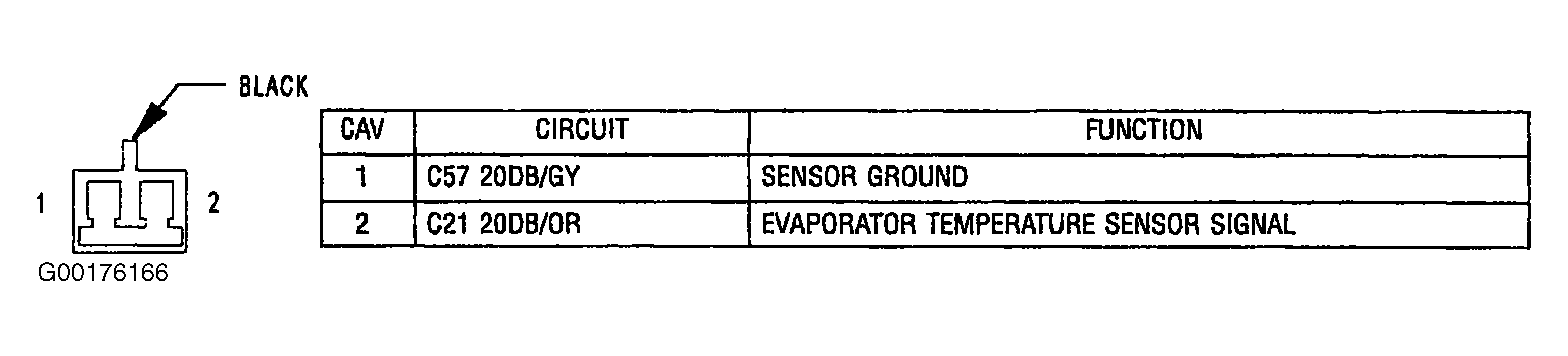

| Driver Door Cylinder Lock Switch (Premium) | Fig 22 |
| Driver Door Module C1 (Except Base) | Fig 23 |
| Driver Door Module C2 (Except Base) | Fig 24 |
| Driver Power Lock Motor/Ajar Switch (Except Base) | Fig 25 |
| Evaporator Temperature Sensor | Fig 26 |

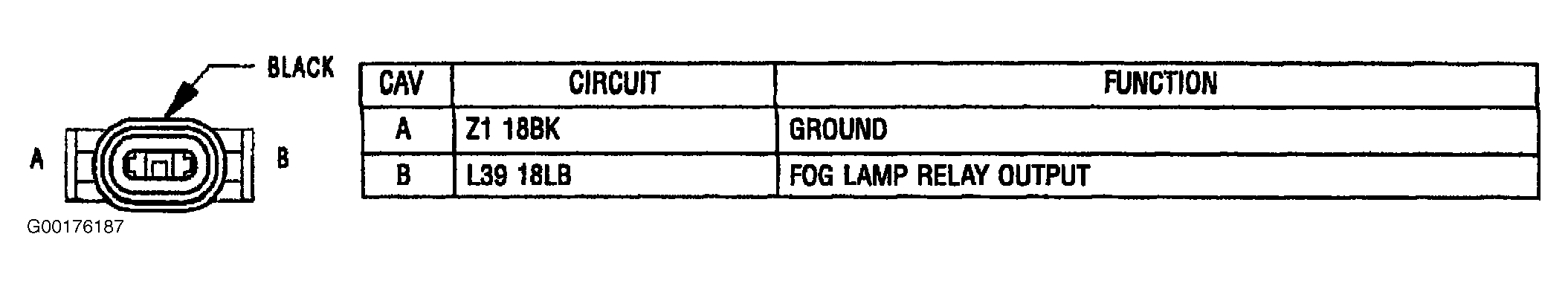

| Foglight | Fig 27 |
| Front Park/Turn Signal Light | Fig 28 |
| Front Washer Pump/Motor | Fig 29 |

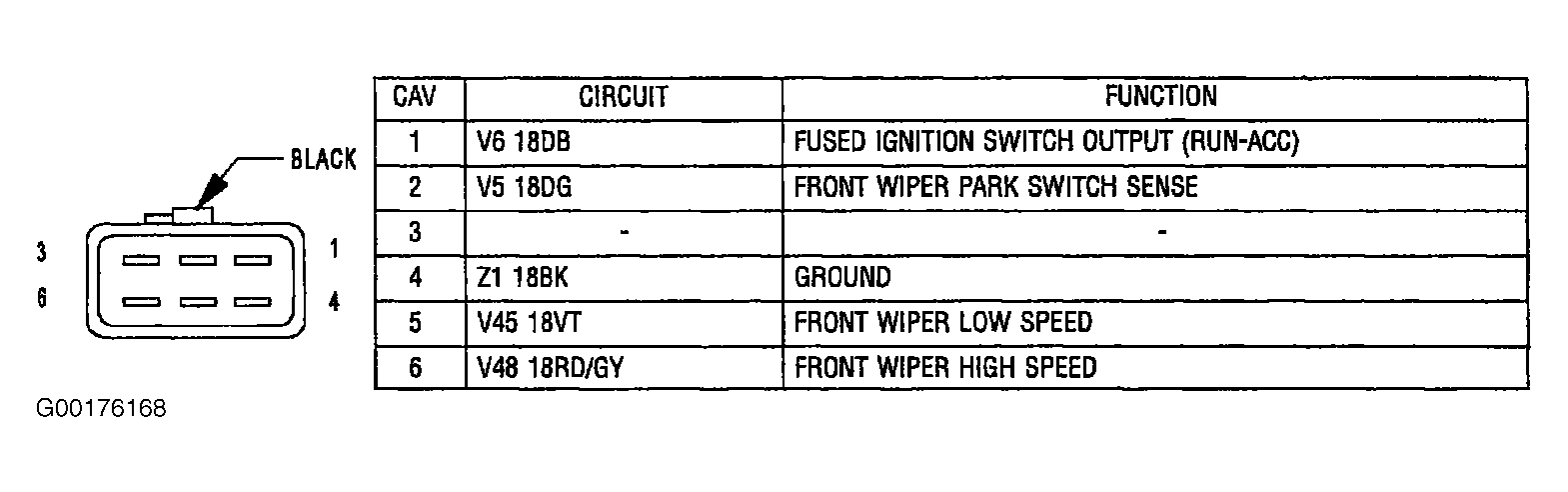

| Front Wiper Motor | Fig 30 |
| Glove Box Light & Switch | Fig 31 |

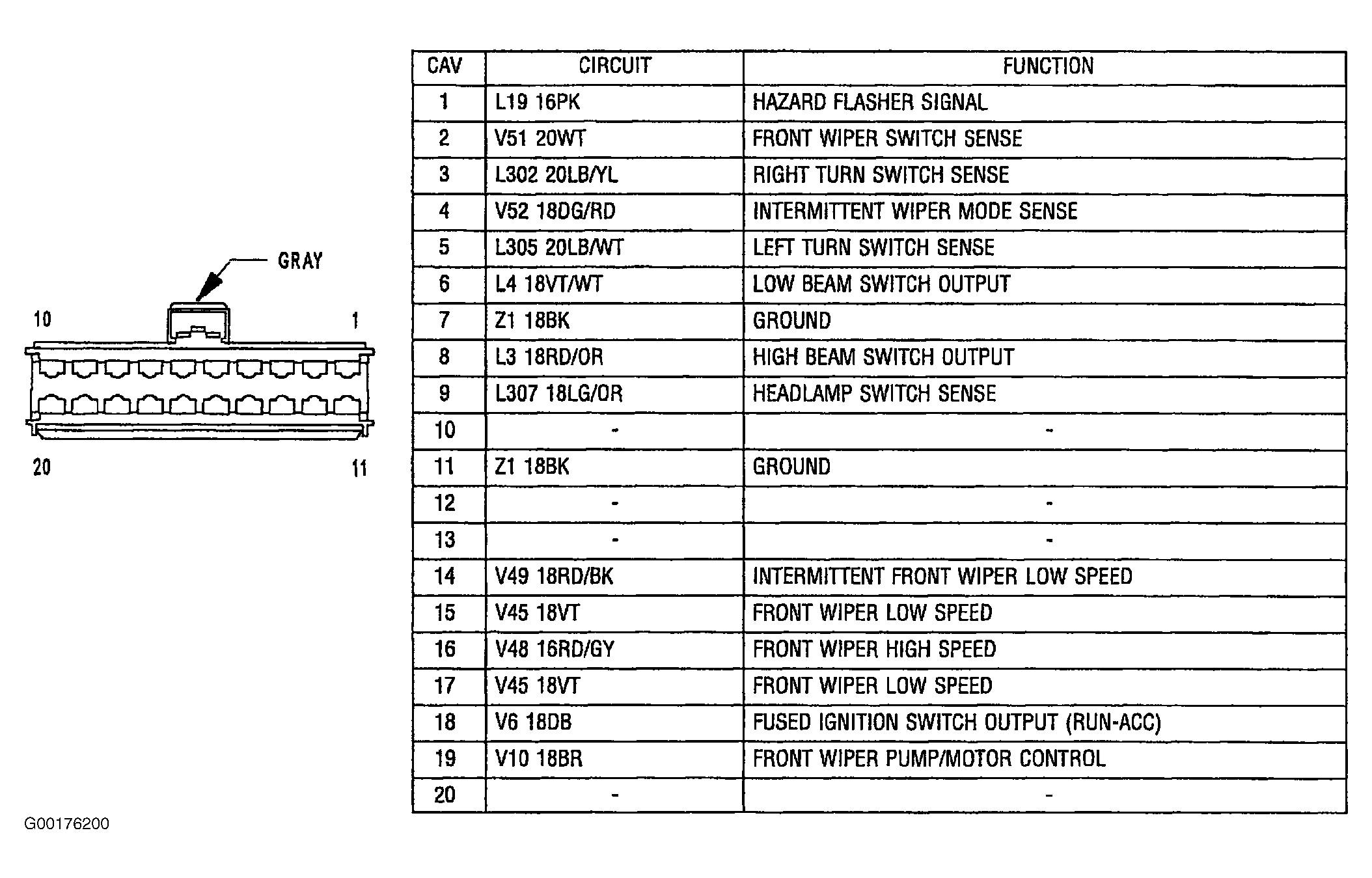

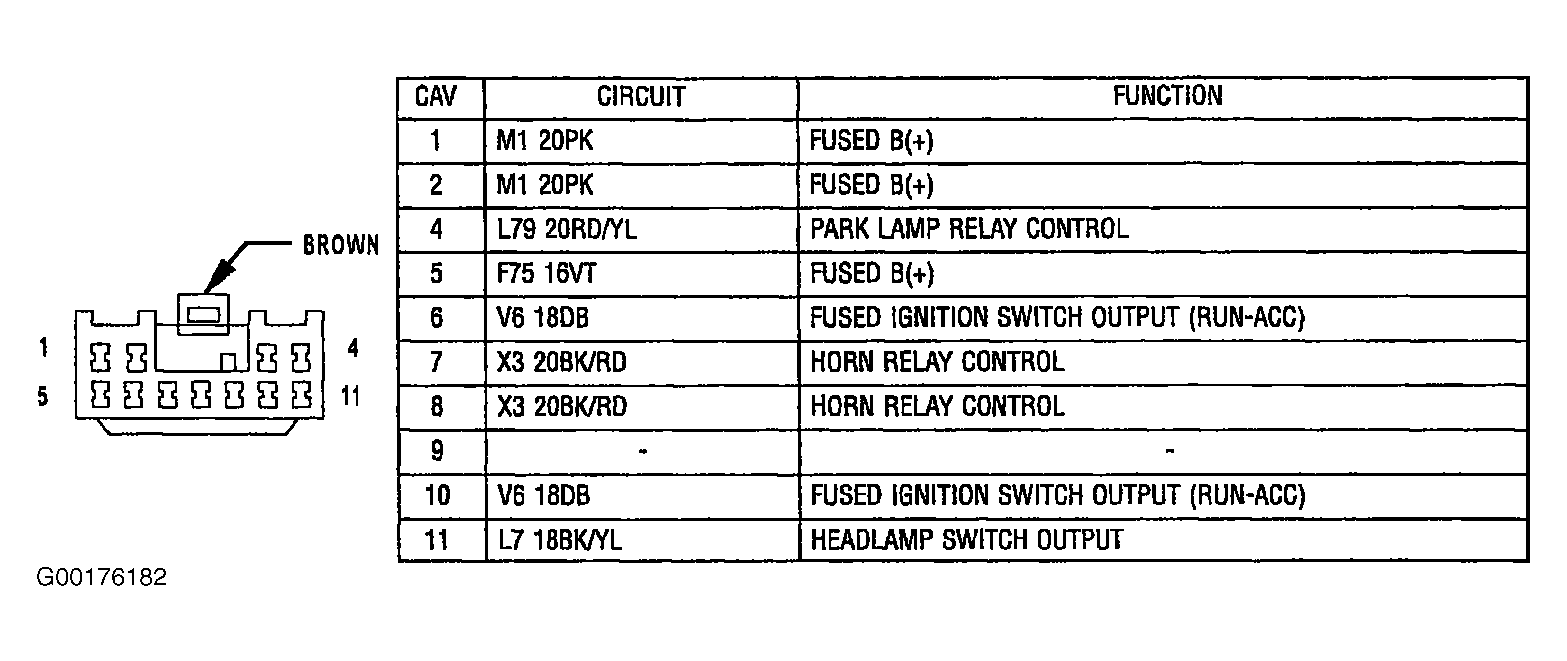

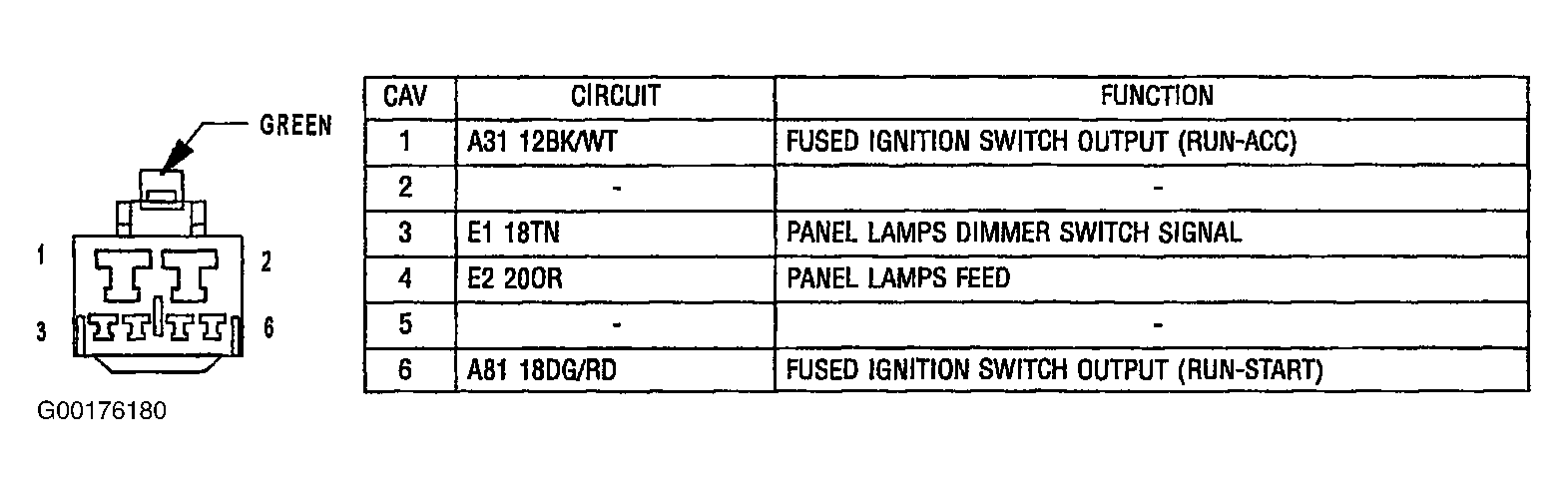

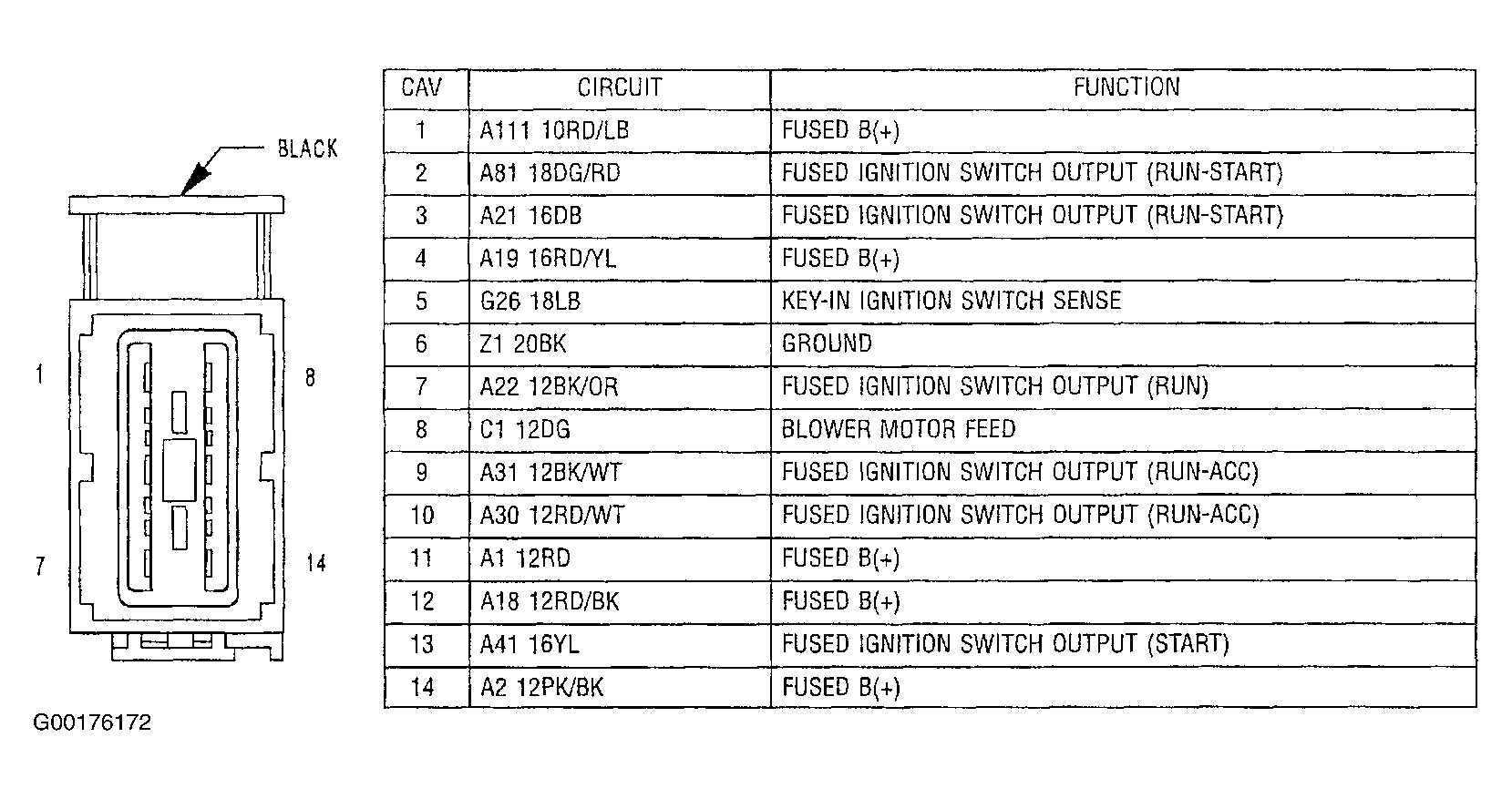

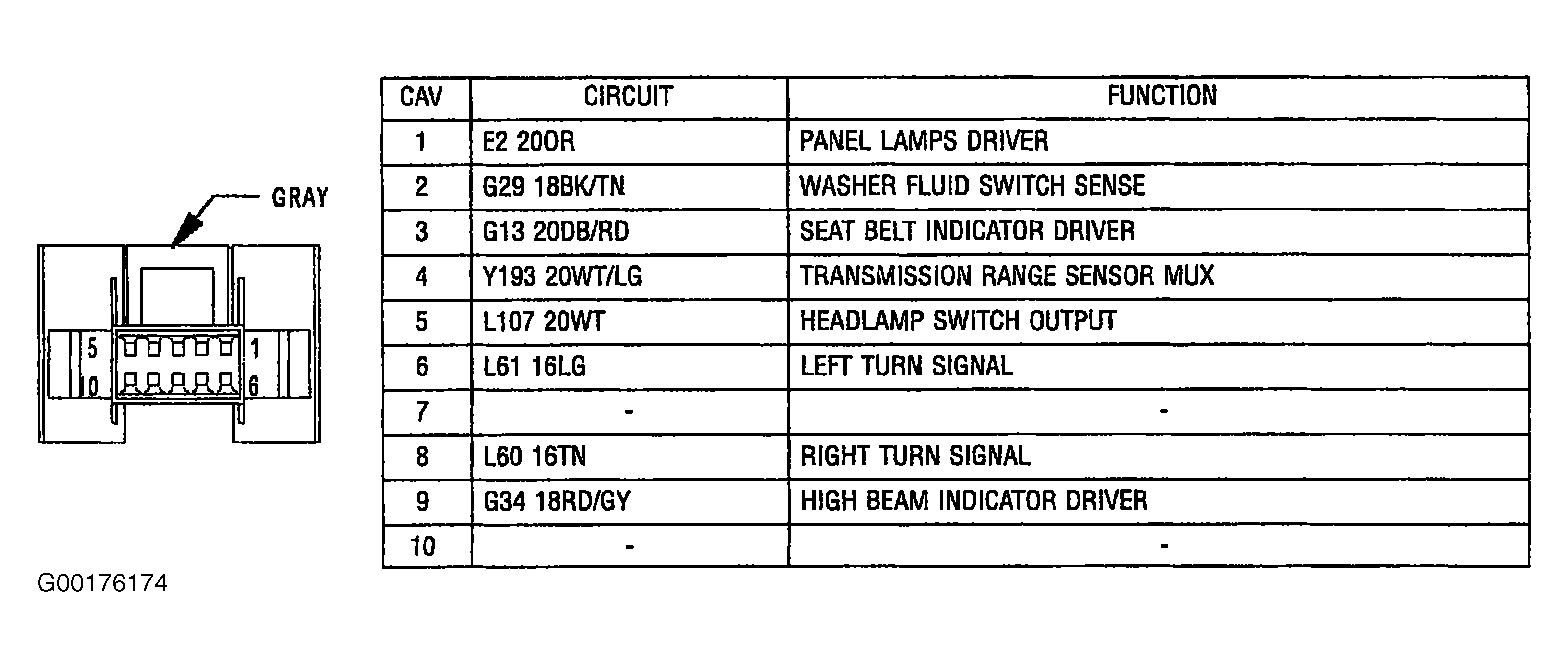

| Headlight Switch | Fig 32 |
| High Note Horn | Fig 33 |
| Ignition Switch | Fig 34 |
| Instrument Cluster C1 | Fig 35 |
| Instrument Cluster C2 | Fig 36 |

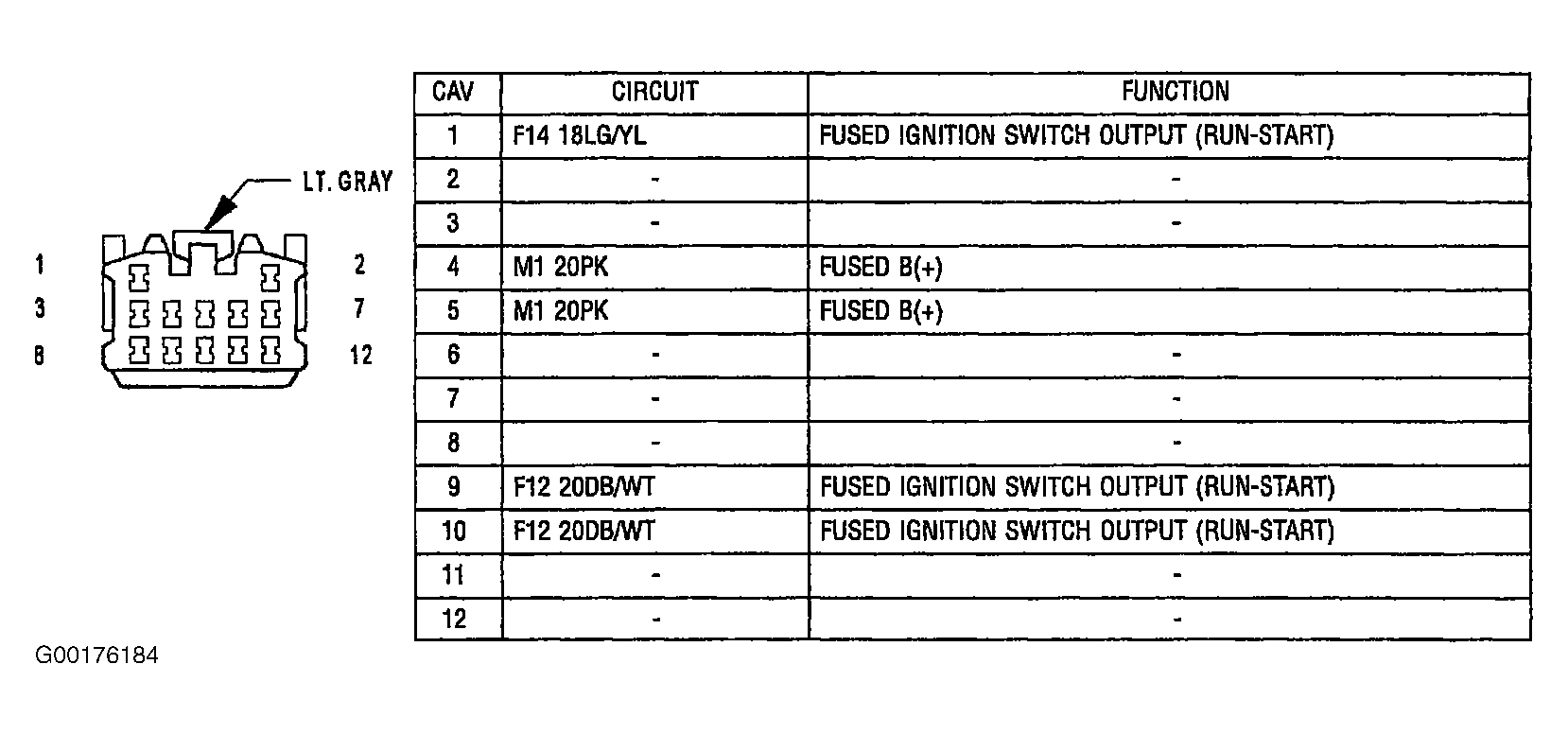

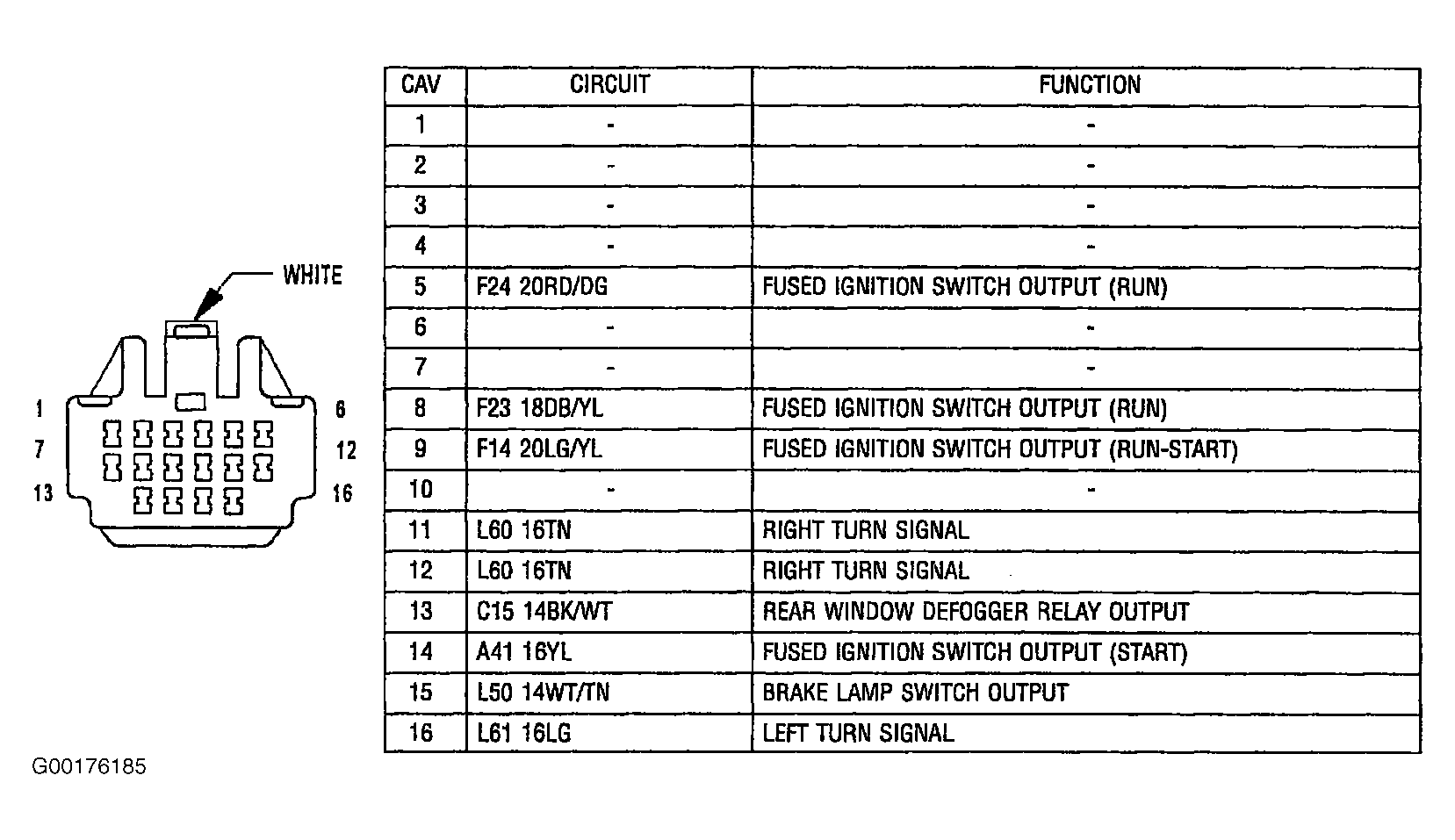

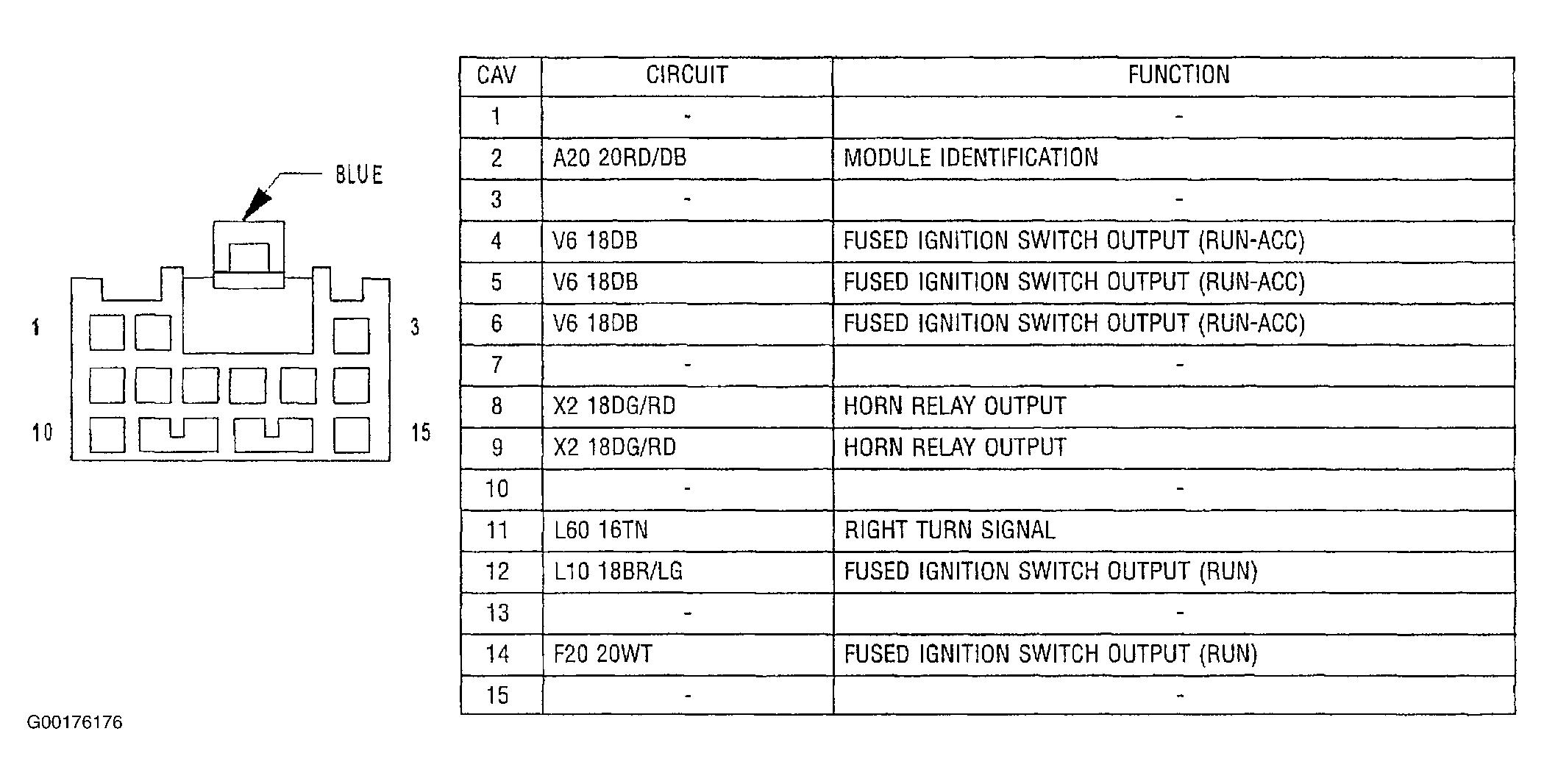

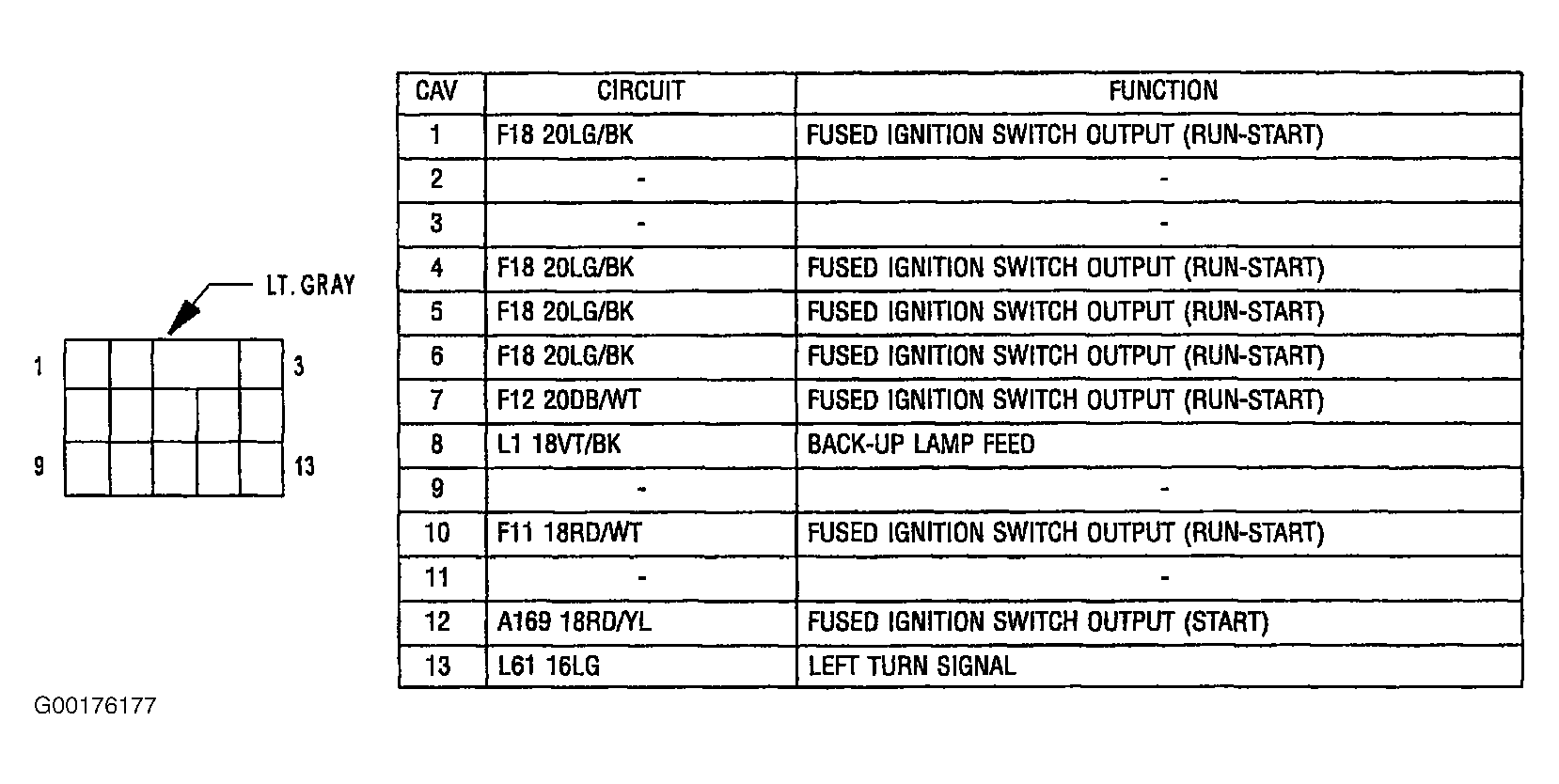

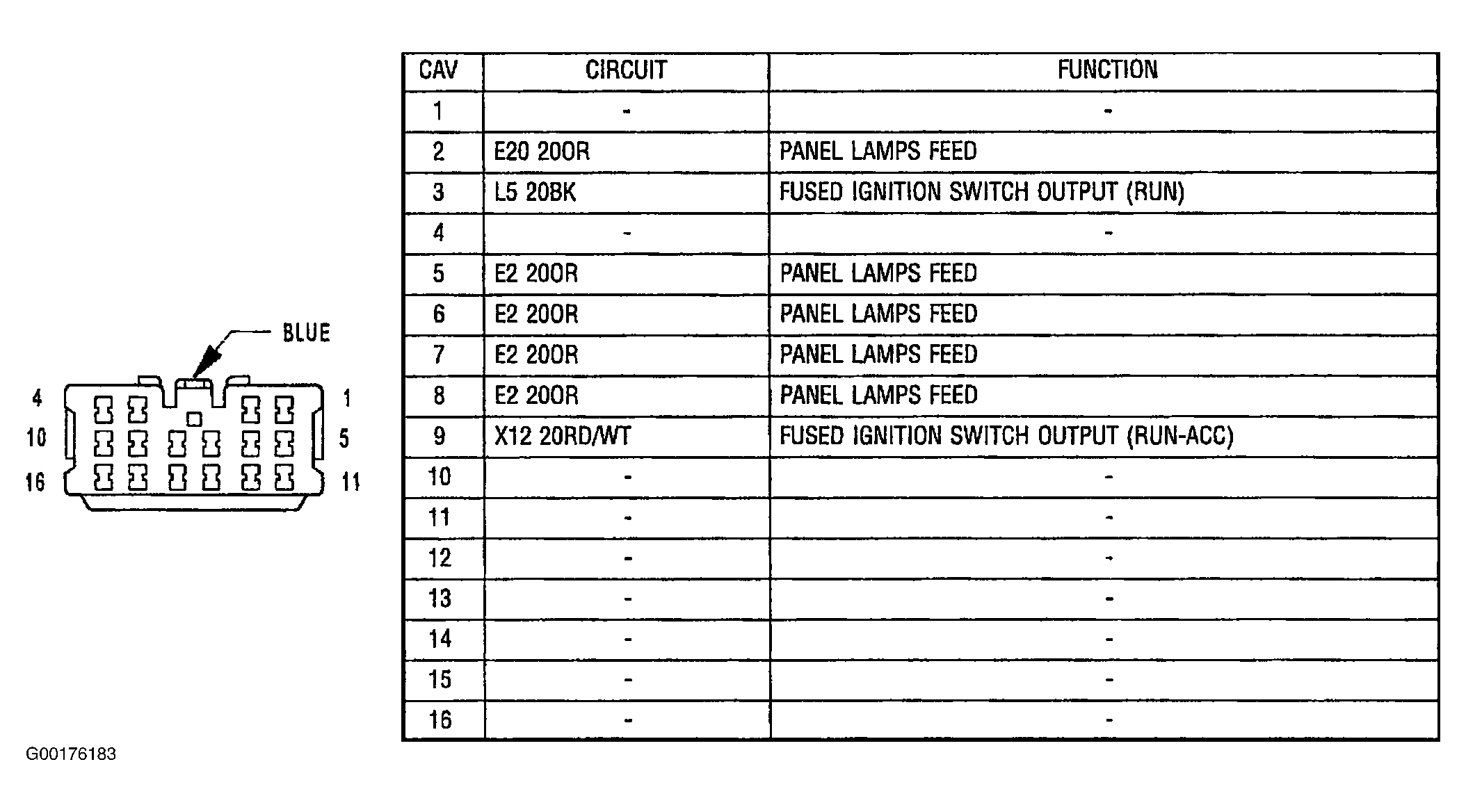

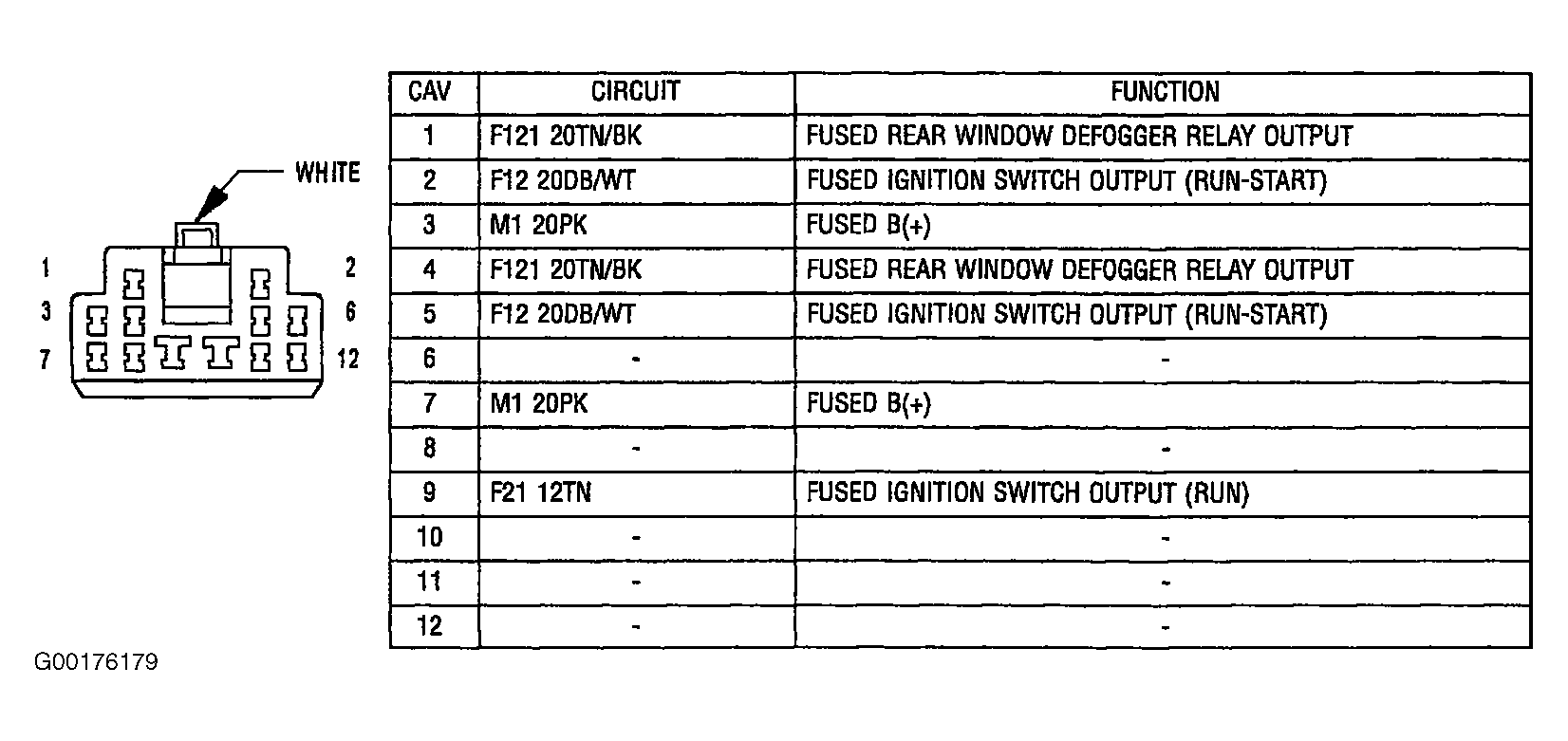

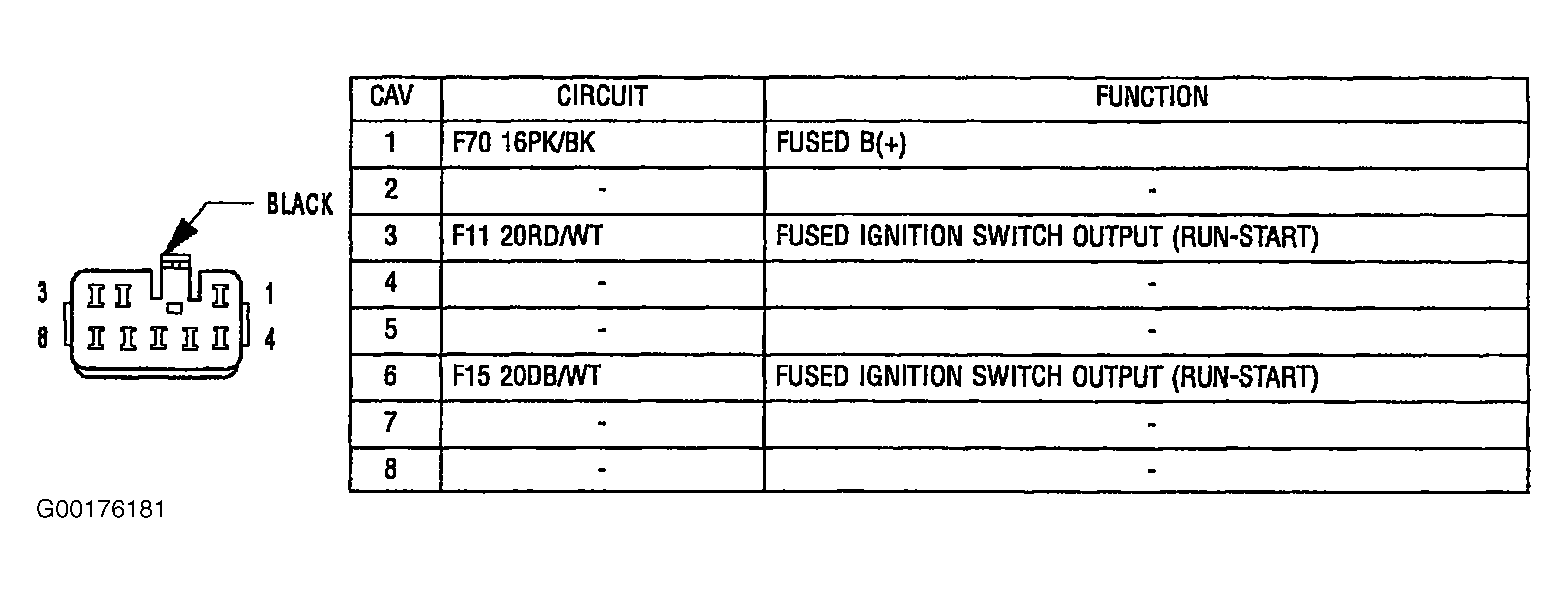

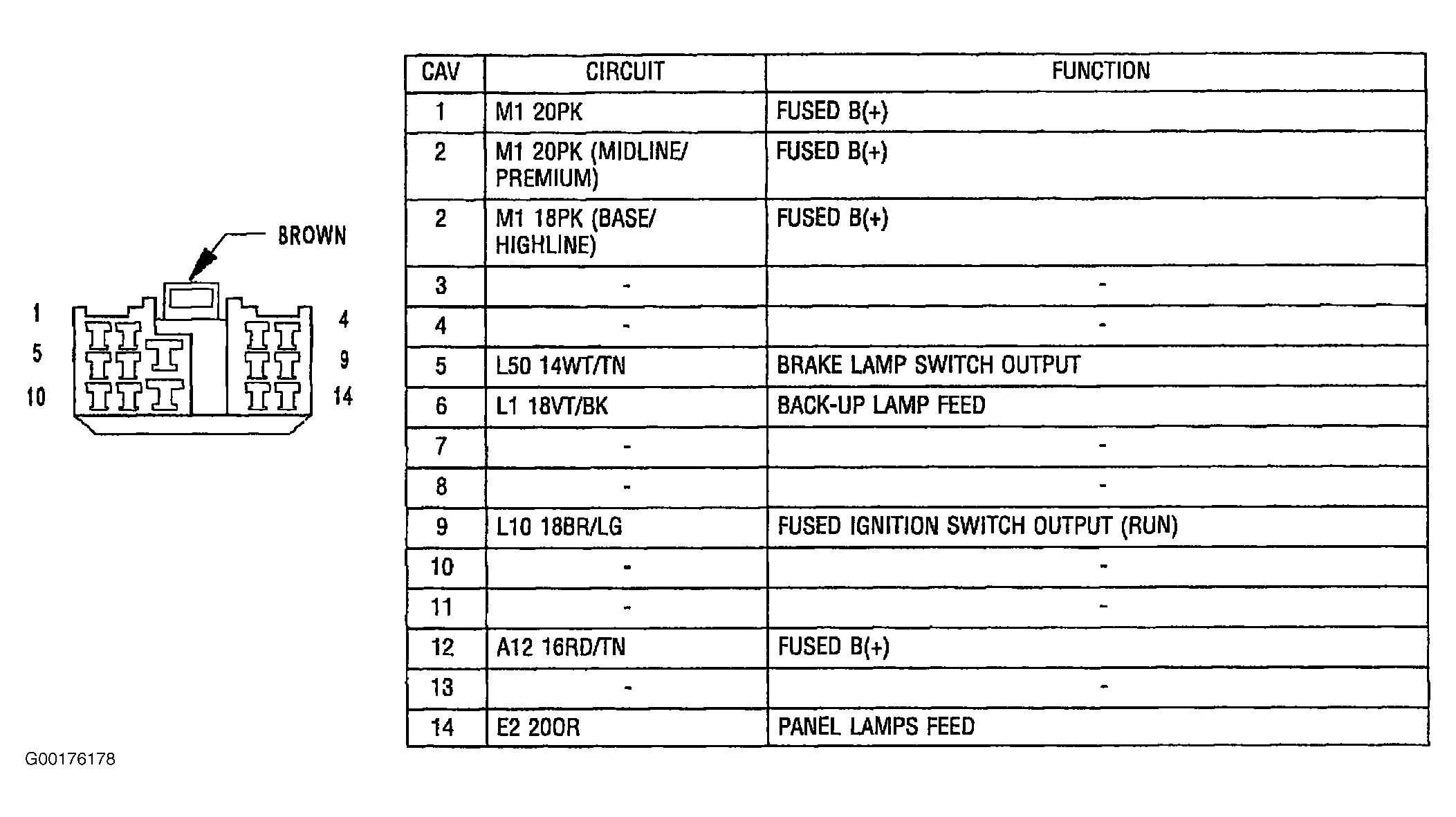

| Instrument Panel Junction Block C1 | Fig 37 |
| Instrument Panel Junction Block C2 | Fig 38 |
| Instrument Panel Junction Block C3 | Fig 39 |
| Instrument Panel Junction Block C4 | Fig 40 |
| Instrument Panel Junction Block C5 | Fig 41 |
| Instrument Panel Junction Block C6 | Fig 42 |
| Instrument Panel Junction Block C7 | Fig 43 |
| Instrument Panel Junction Block C8 | Fig 44 |
| Instrument Panel Junction Block C9 | Fig 45 |
| Instrument Panel Junction Block C10 | Fig 46 |
| Instrument Panel Junction Block C11 | Fig 47 |
| Instrument Panel Junction Block C12 | Fig 48 |

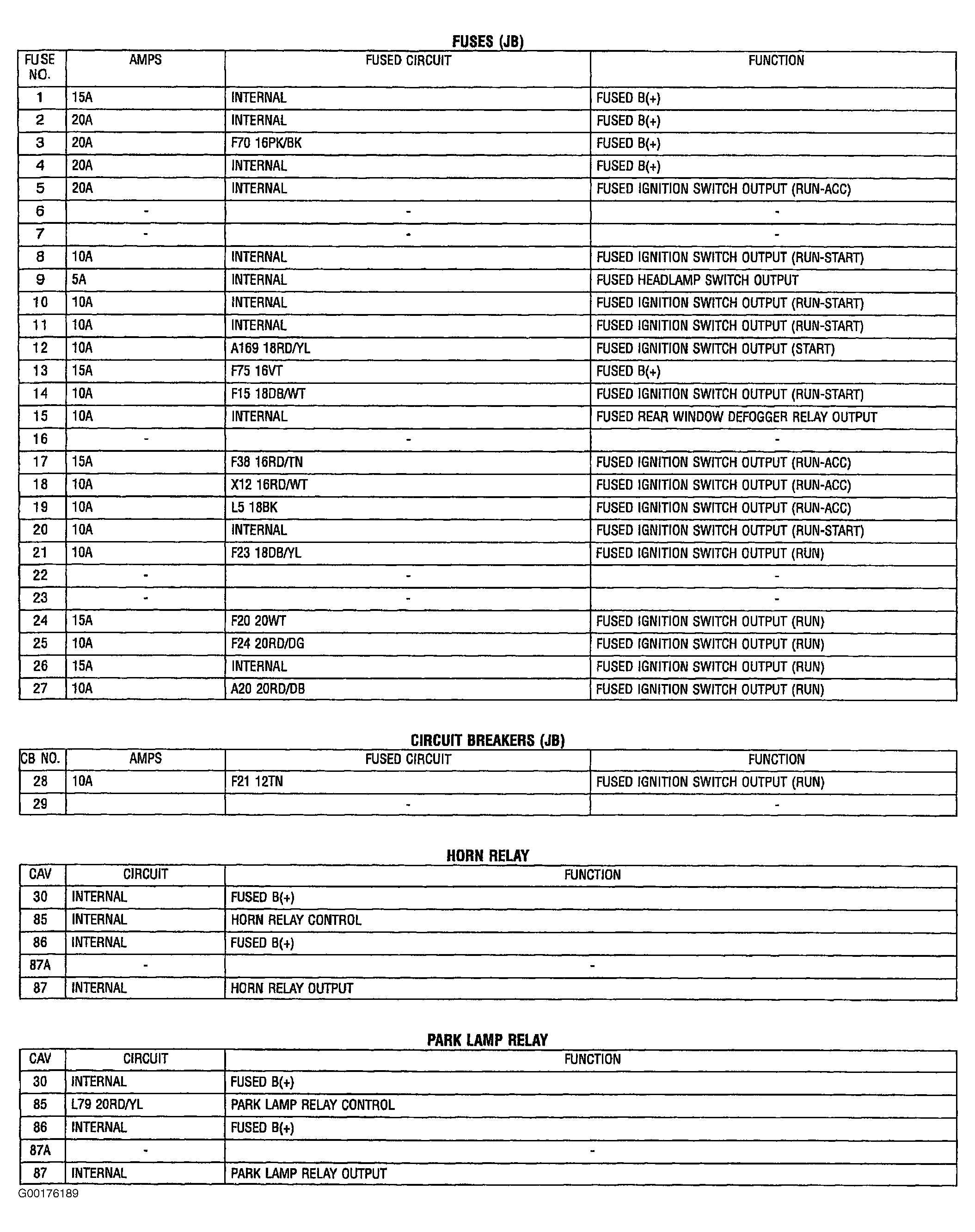

| Junction Block (1 Of 2) | Fig 49 |
| Junction Block (2 Of 2) | Fig 50 |
| Left Front Door Speaker (Base) | Fig 51 |
| Left Front Door Tweeter (Midlevel/Premium) | Fig 52 |

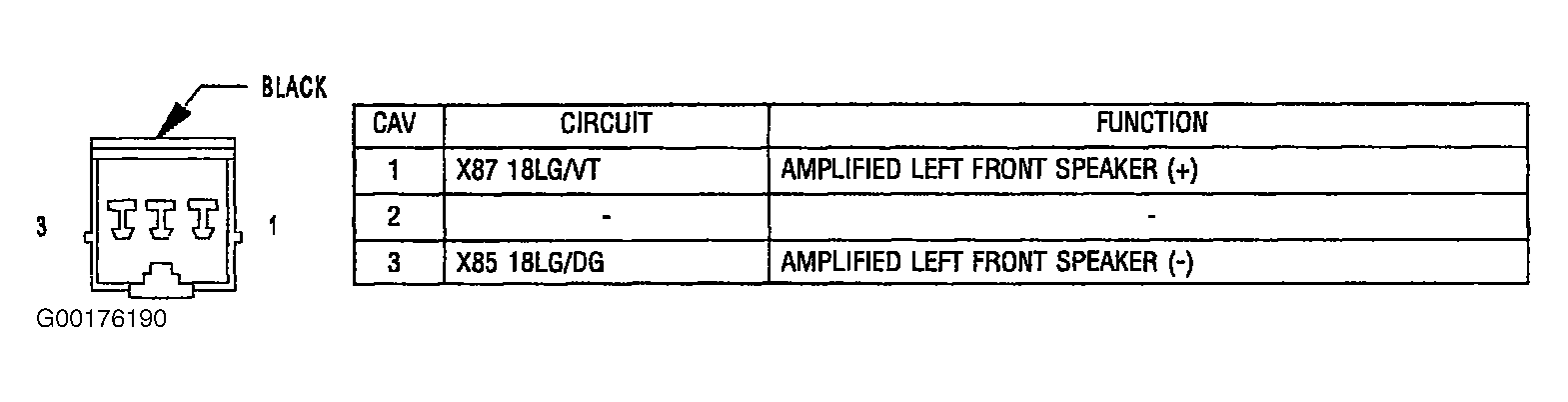

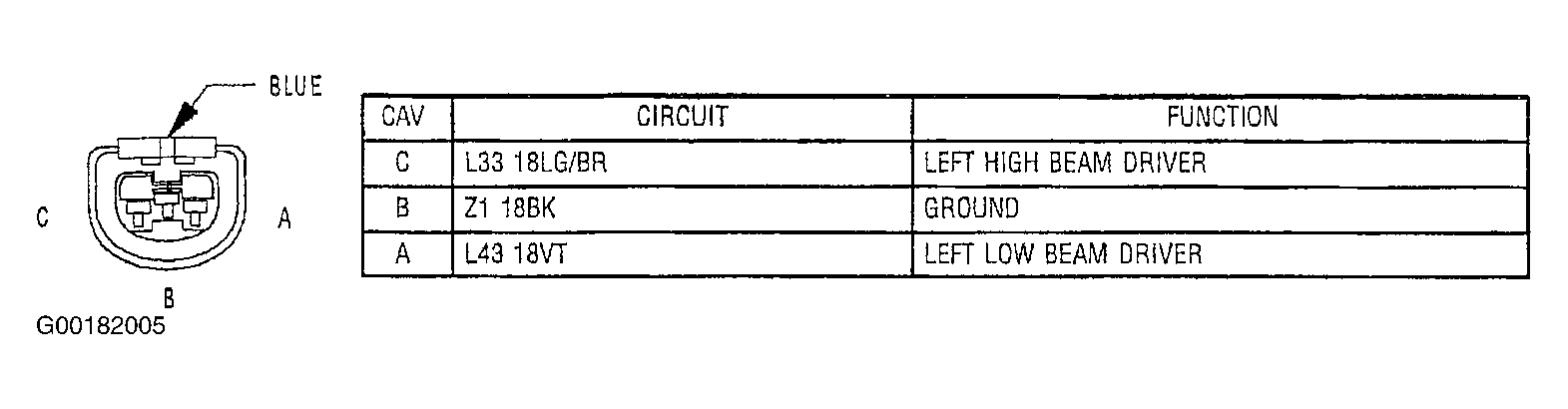

| Left Front Door Woofer (Midlevel/Premium) | Fig 53 |
| Left Headlight | Fig 54 |
| Low Note Horn | Fig 55 |
| Mode Door Actuator | Fig 56 |

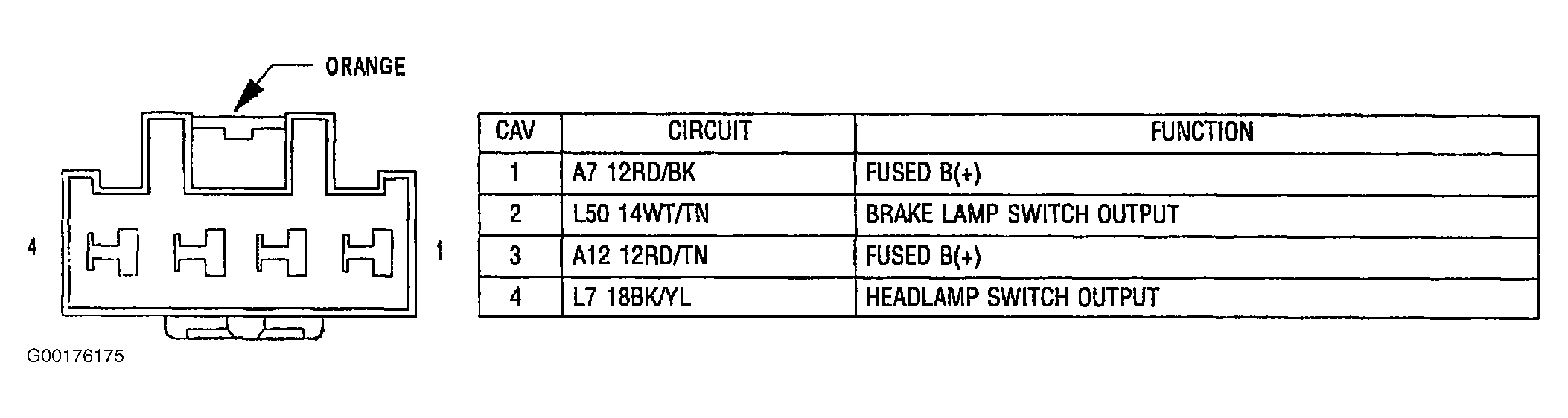

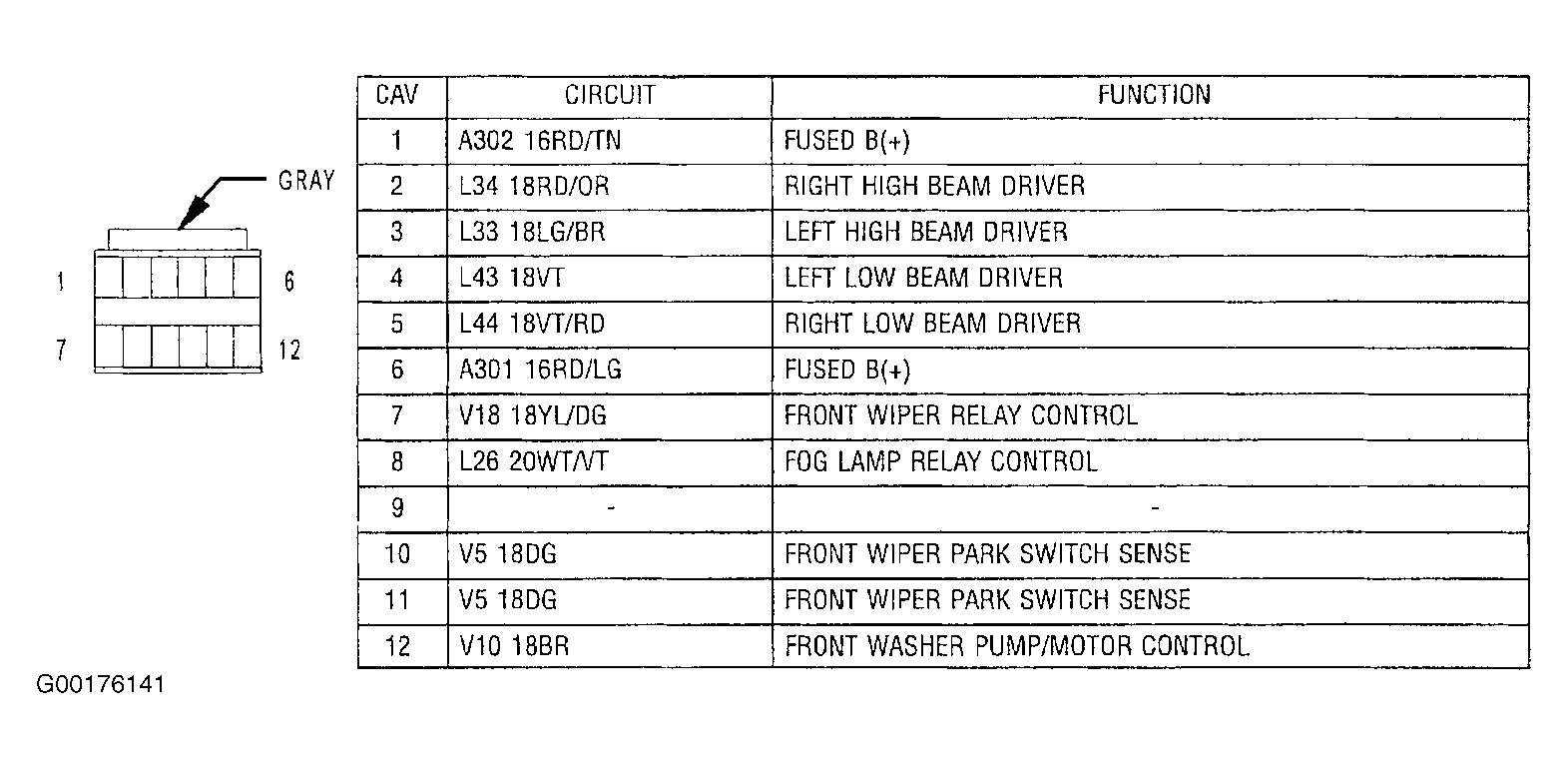

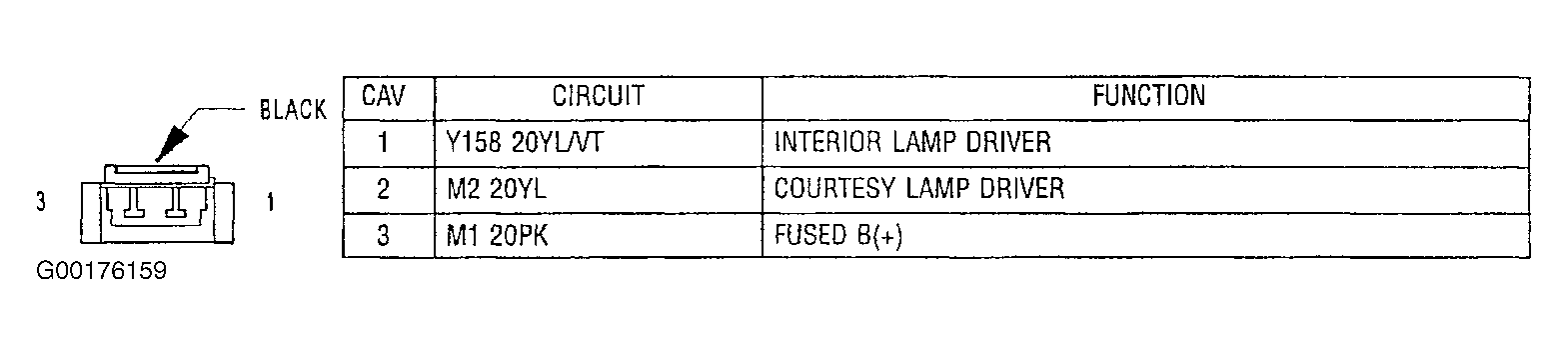

| Multifunction Switch | Fig 57 |
| Overhead Console (Base) | Fig 58 |
| Overhead Console (Except Base) | Fig 59 |

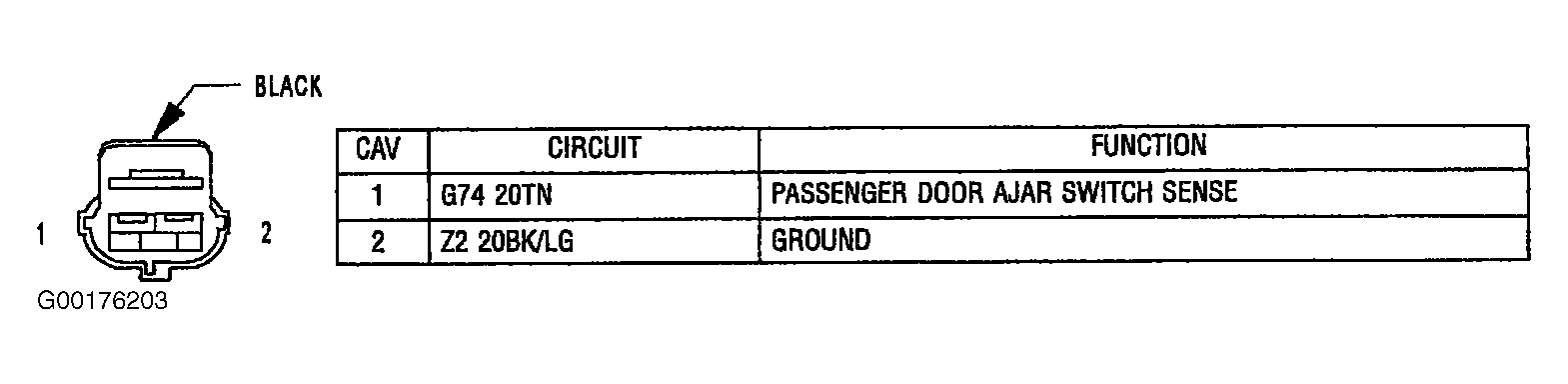

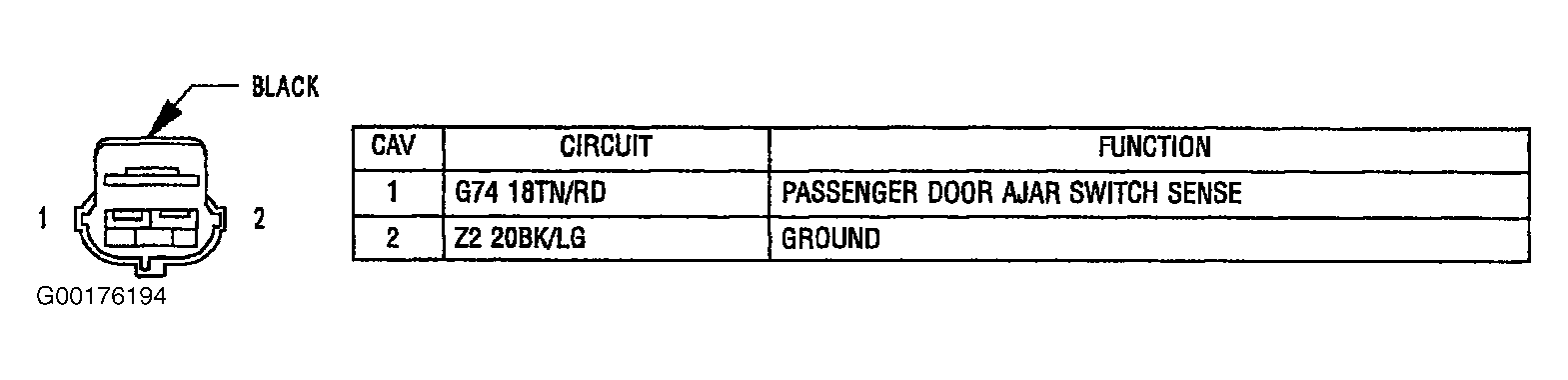

| Passenger Door Ajar Switch (Base) | Fig 60 |
| Passenger Door Cylinder Lock Switch (Premium) | Fig 61 |
| Passenger Door Power Lock Motor/Ajar Switch (Except Base) | Fig 62 |
| Passenger Door Power Lock Switch (Except Base) | Fig 63 |

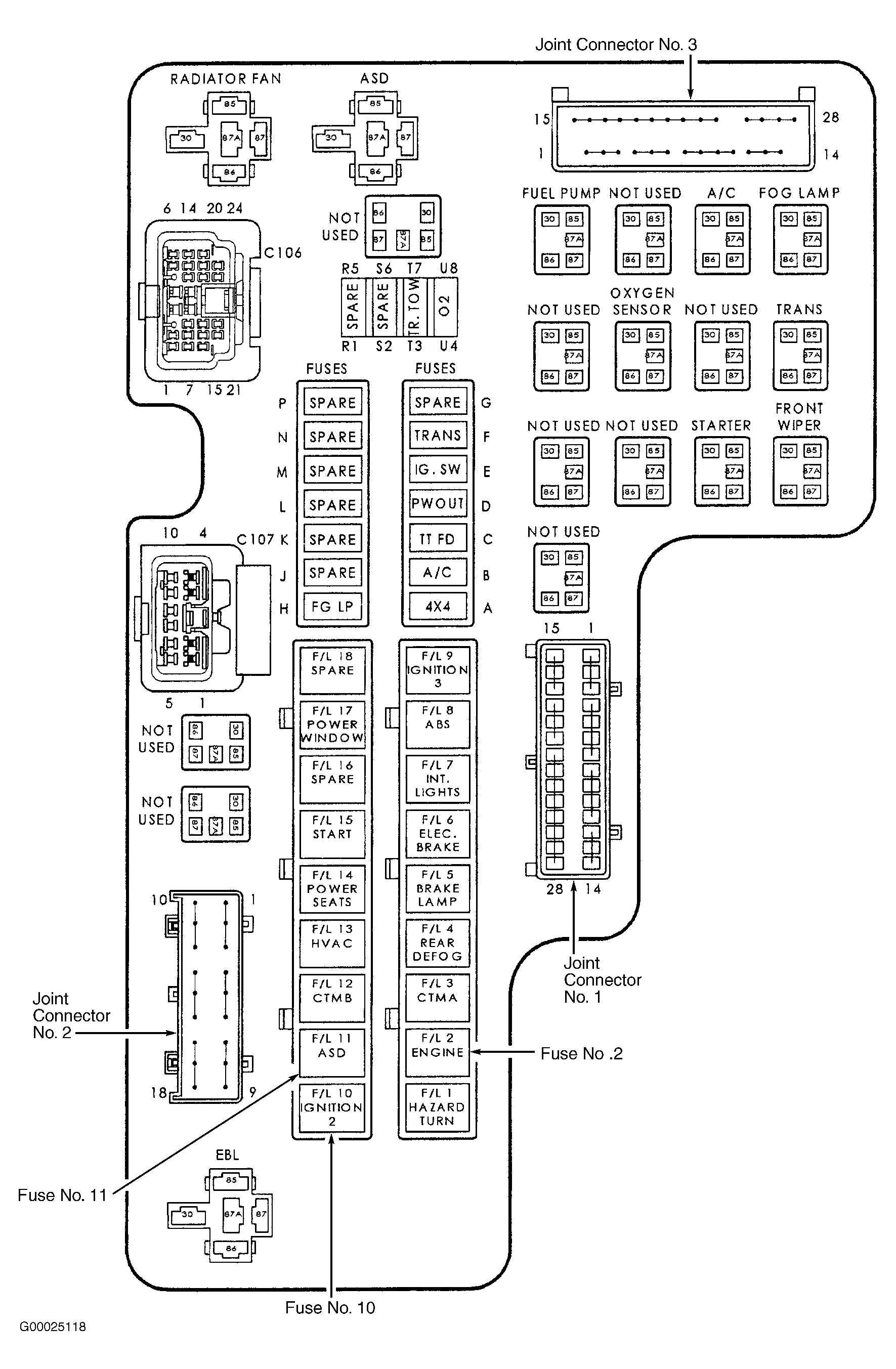

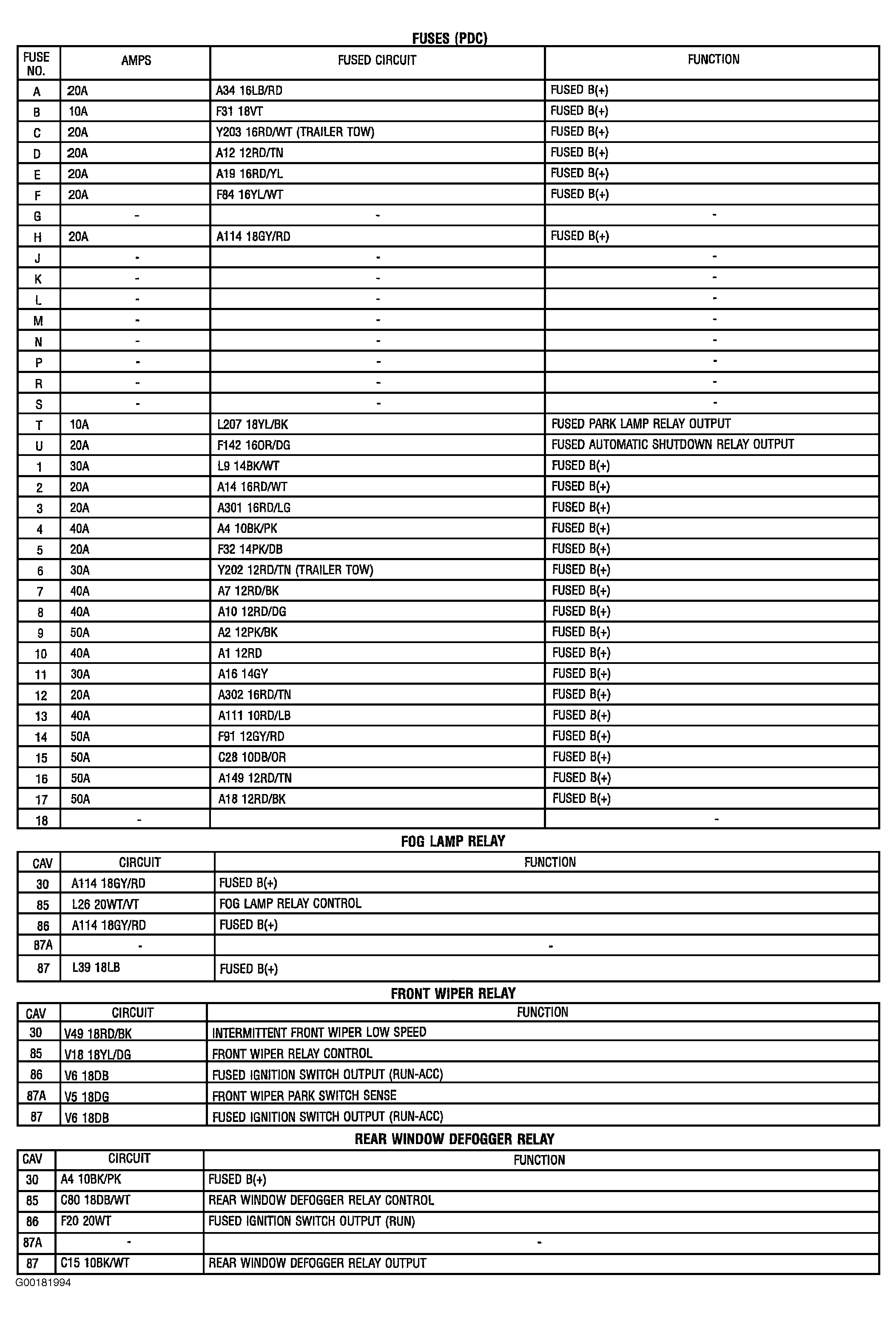

| Power Distribution Center | Fig 64 & Fig 65 |

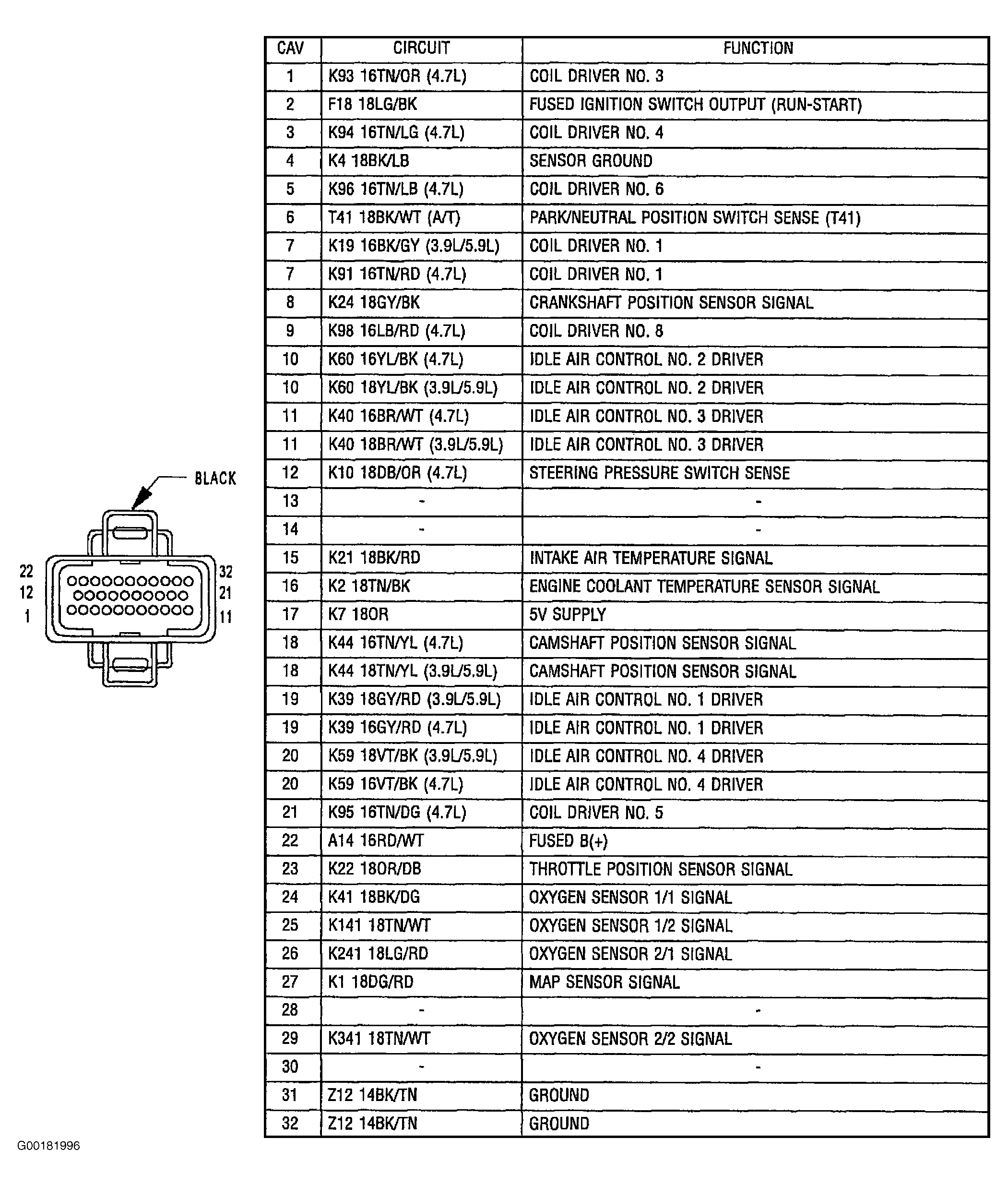

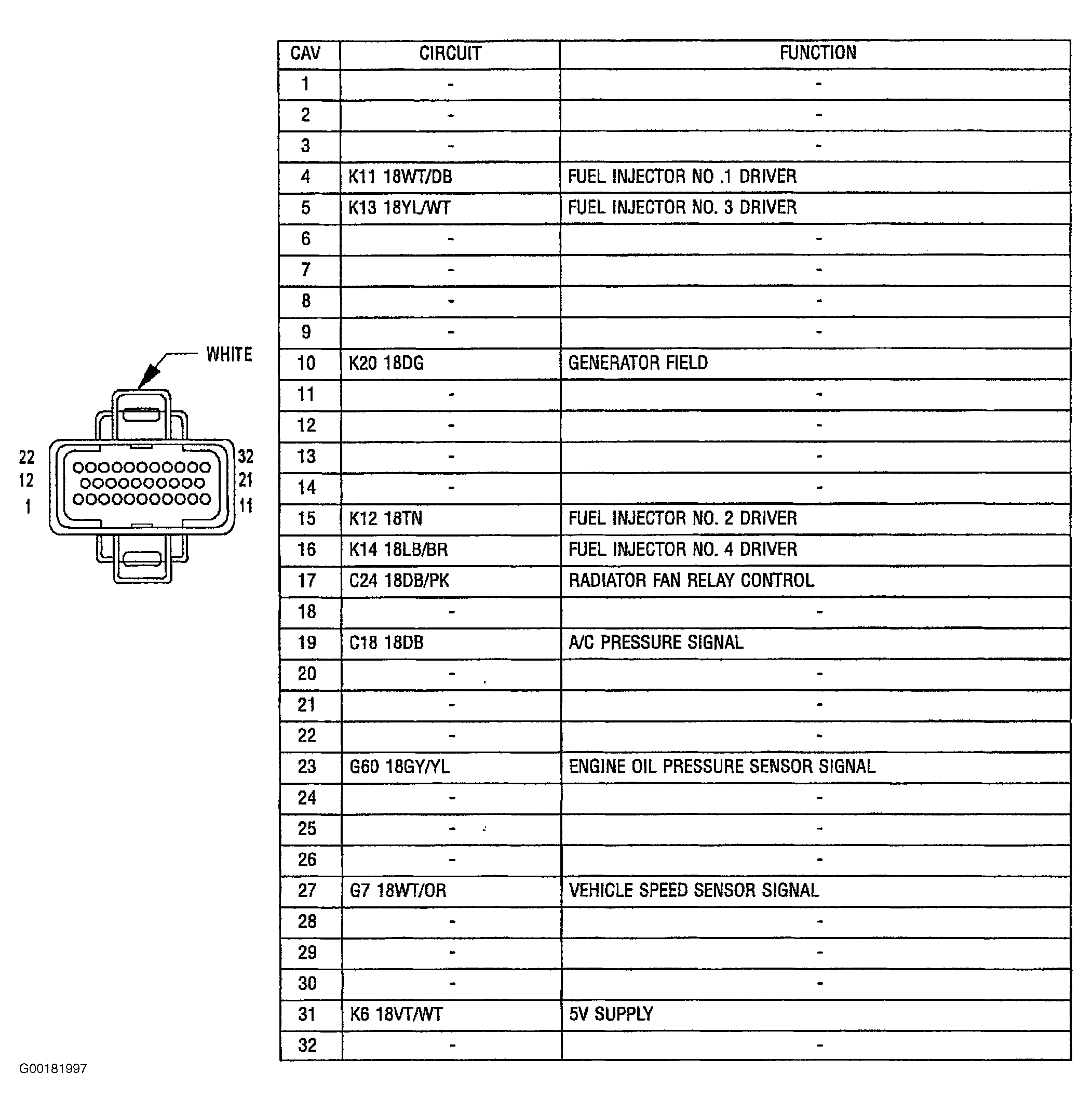

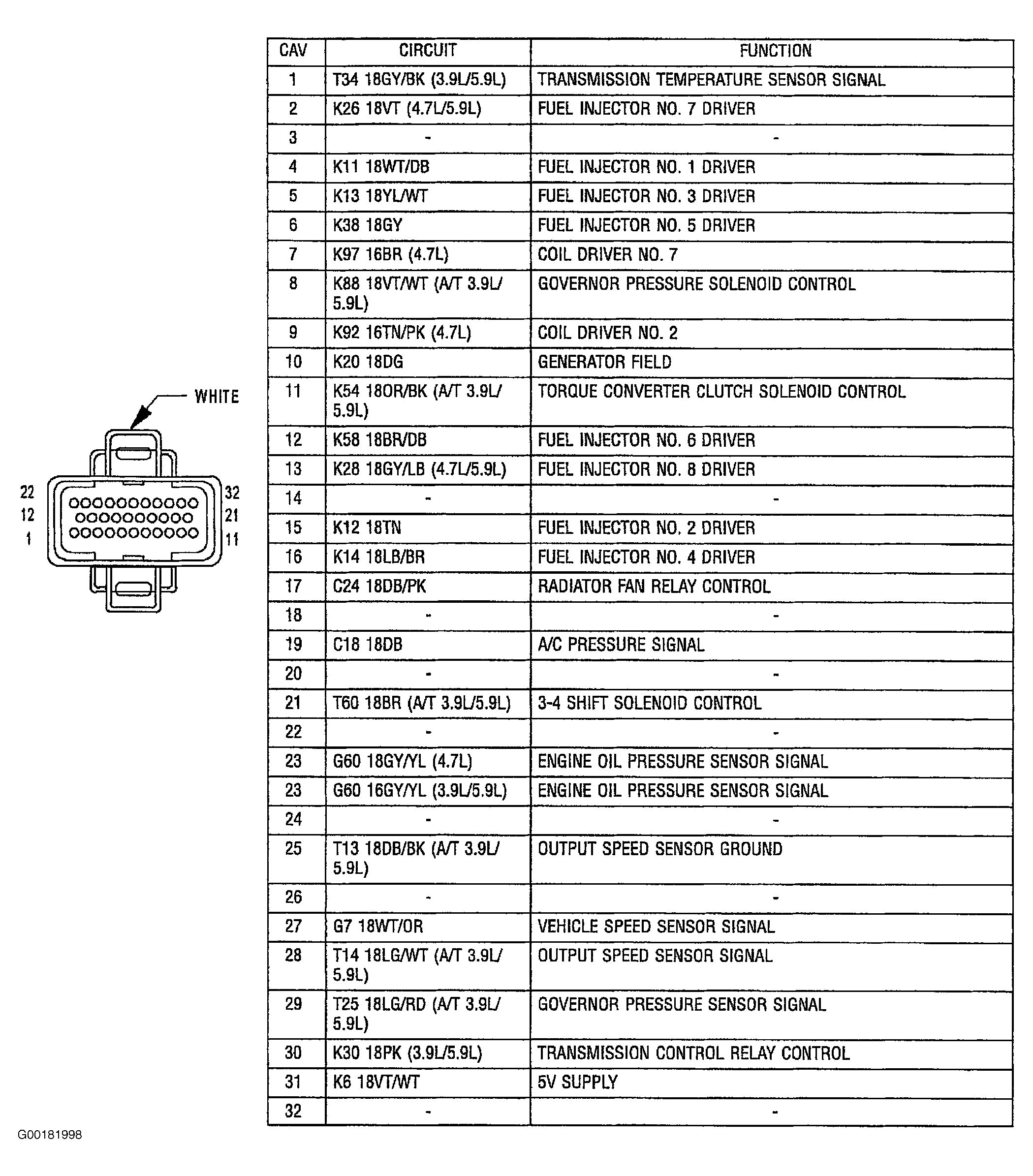

| Powertrain Control Module C1 (2.5L) | Fig 66 |
| Powertrain Control C1 (3.9L, 4.7L & 5.9L) | Fig 67 |

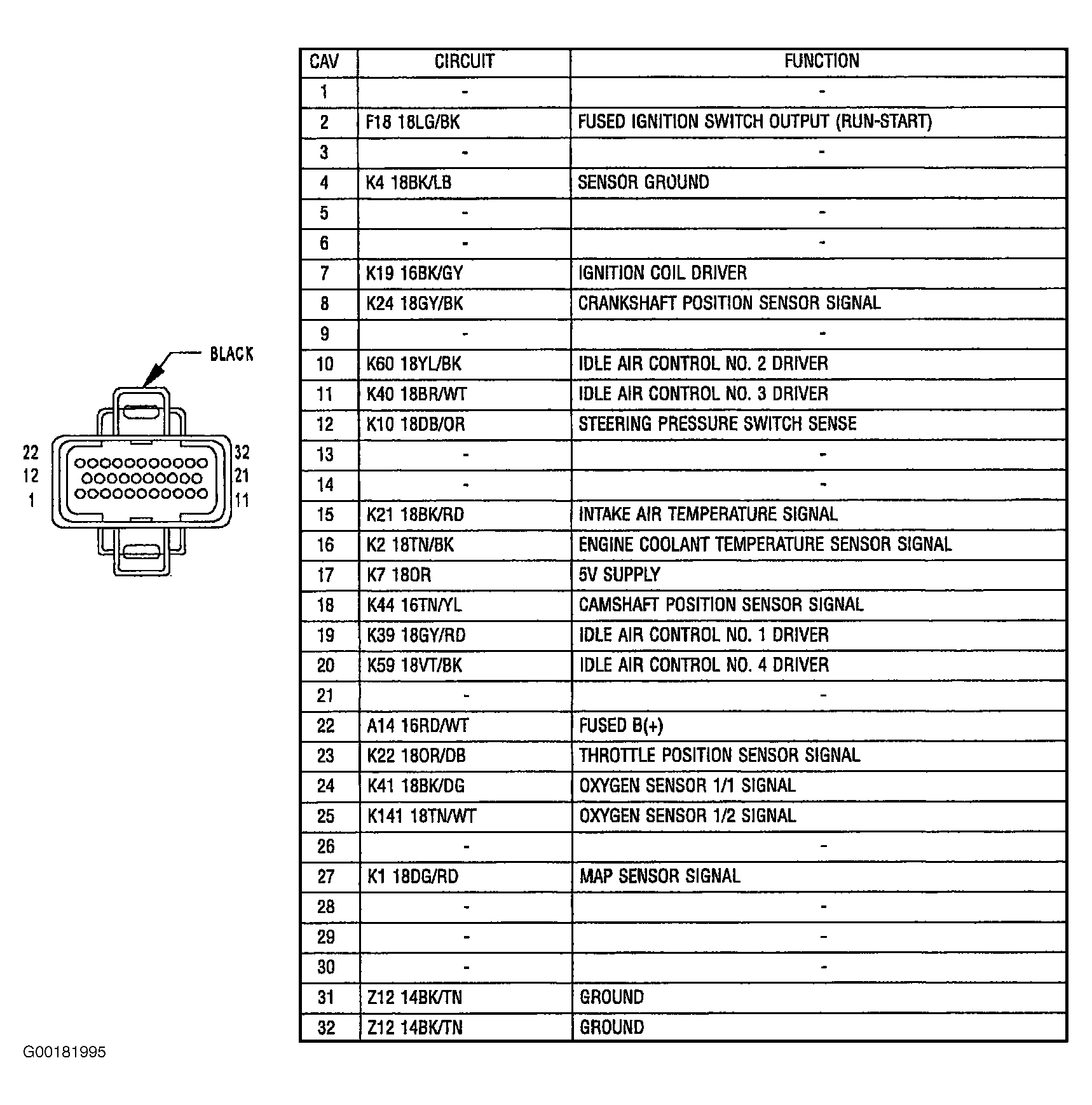

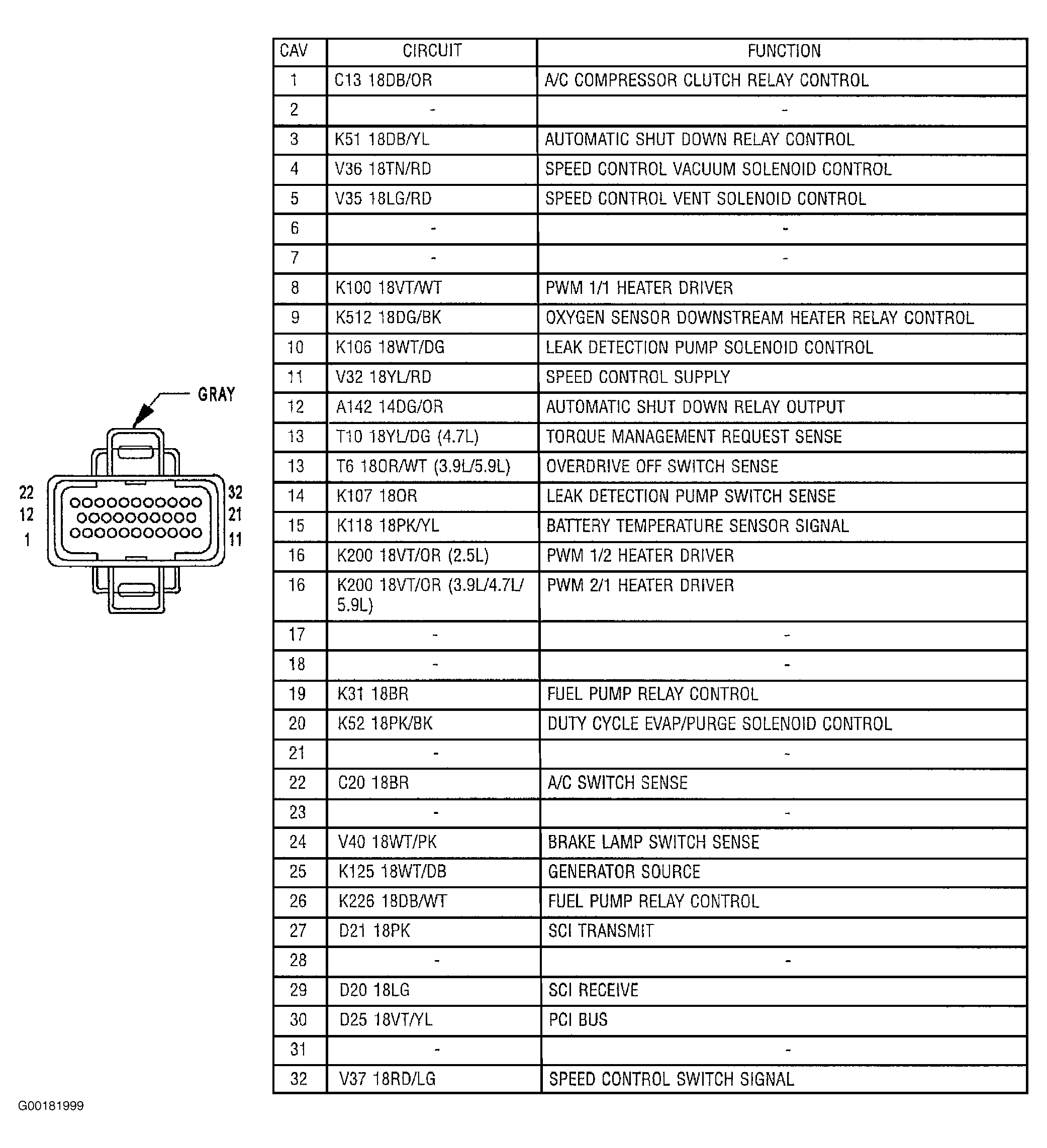

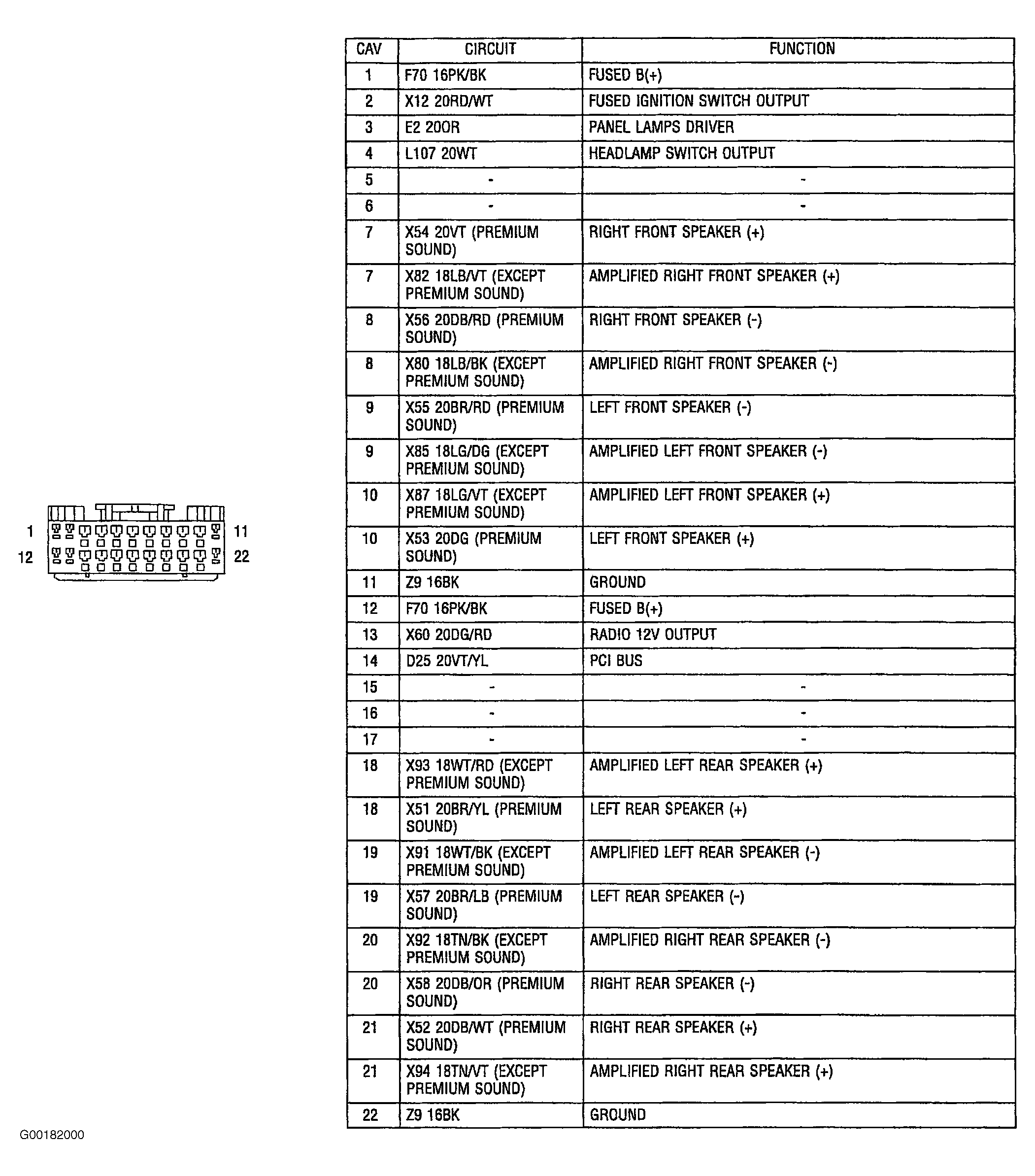

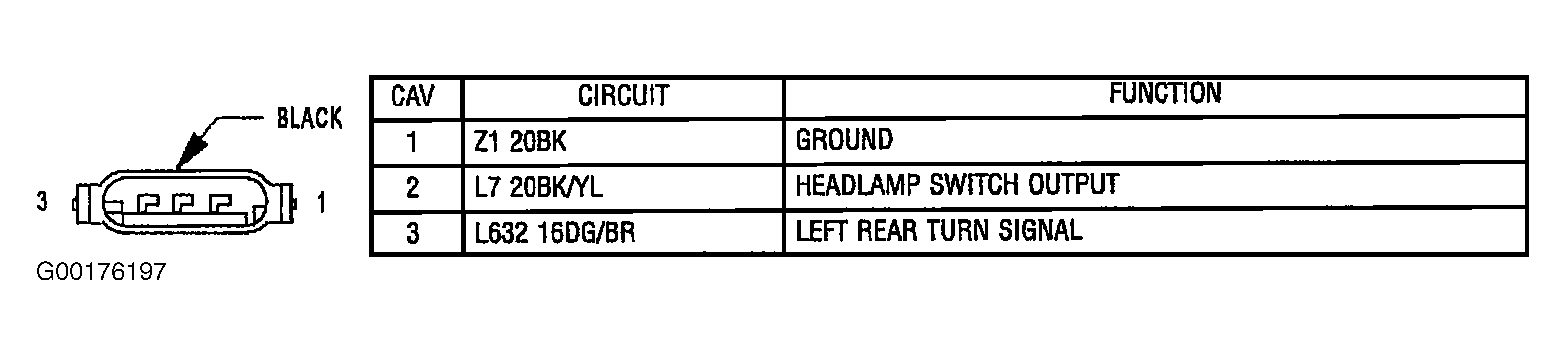

| Powertrain Control Module C2 (2.5L) | Fig 68 |
| Powertrain Control C2 (3.9L, 4.7L & 5.9L) | Fig 69 |
| Powertrain Control Module C3 (All Engines) | Fig 70 |
| Radio | Fig 71 |
| Rear Door Ajar Switch (Base) | Fig 72 |
| Rear Door Power Lock Motor/Ajar Switch (Except Base) | Fig 73 |
| Rear Signal/Stop/Tail Light | Fig 74 |

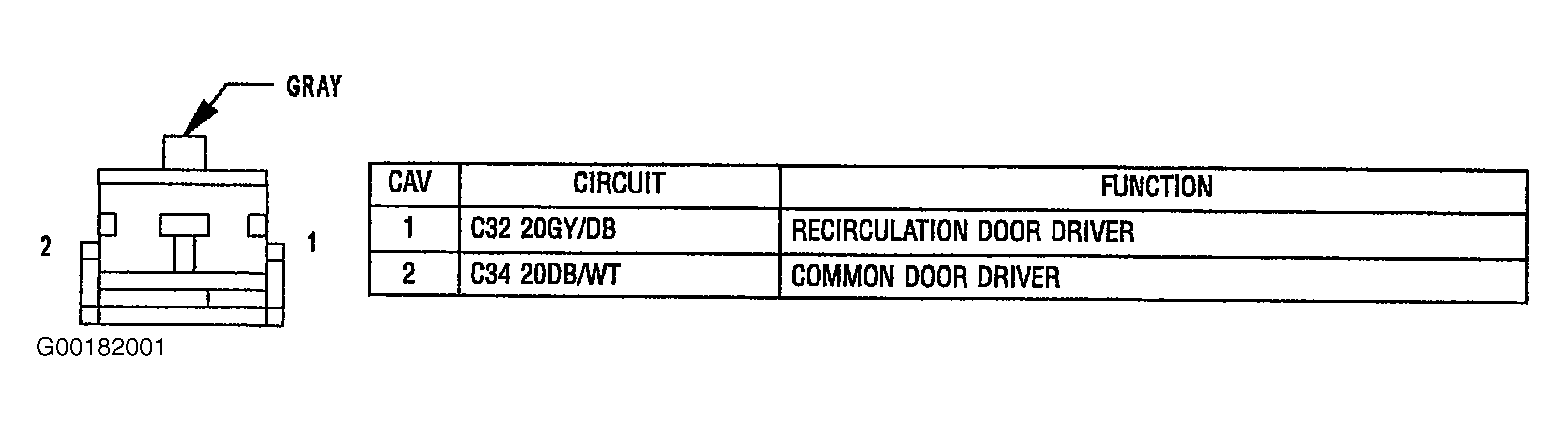

| Recirculation Door Actuator | Fig 75 |
| Remote Radio Switch (Premium) | Fig 76 |

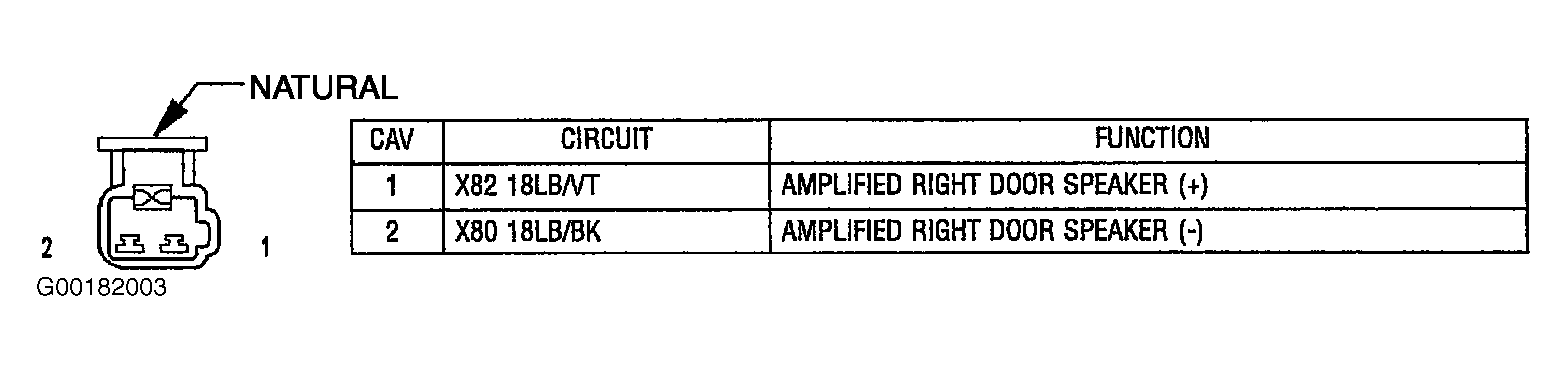

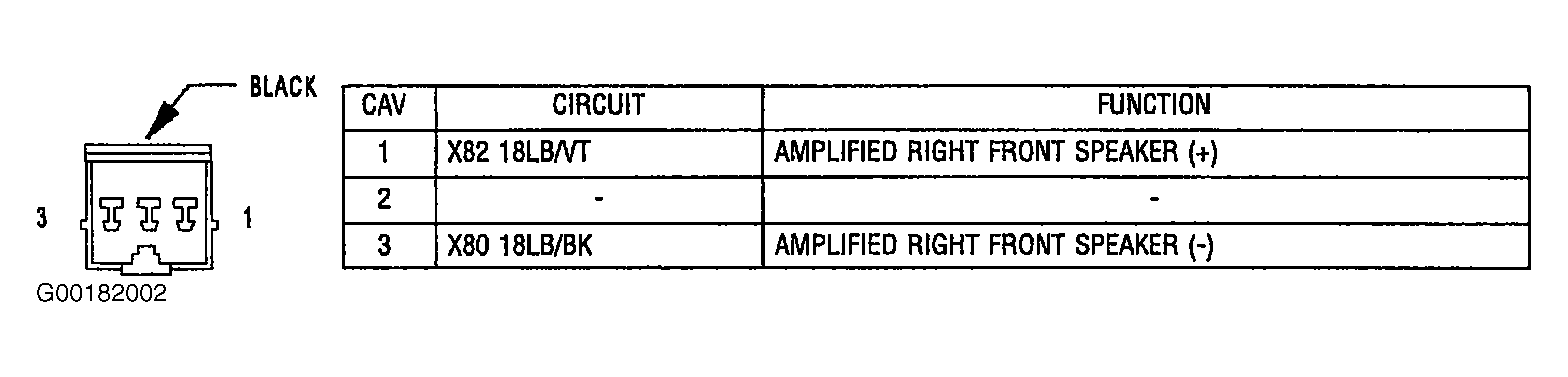

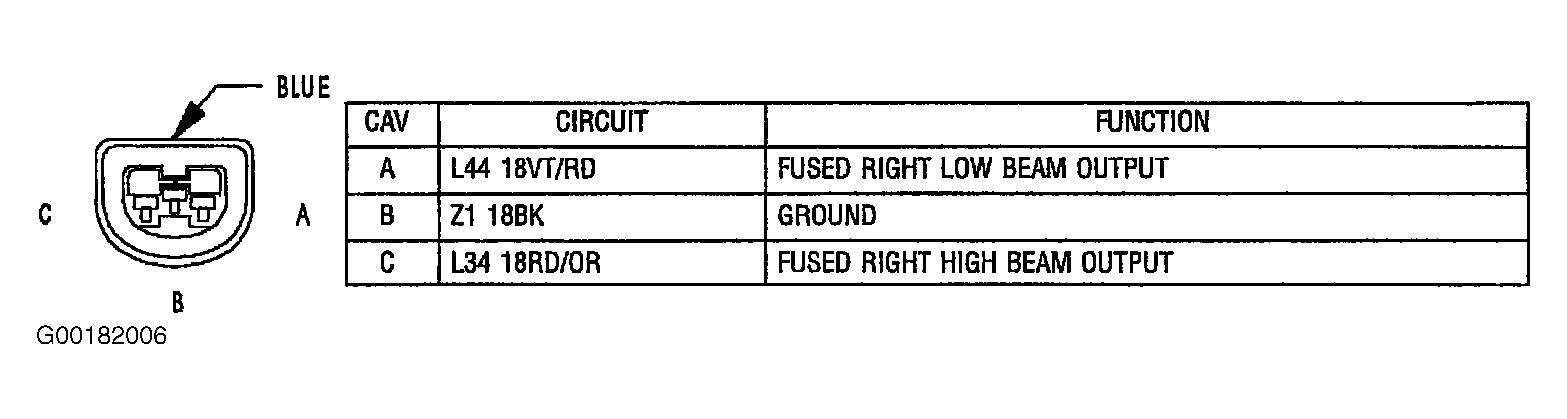

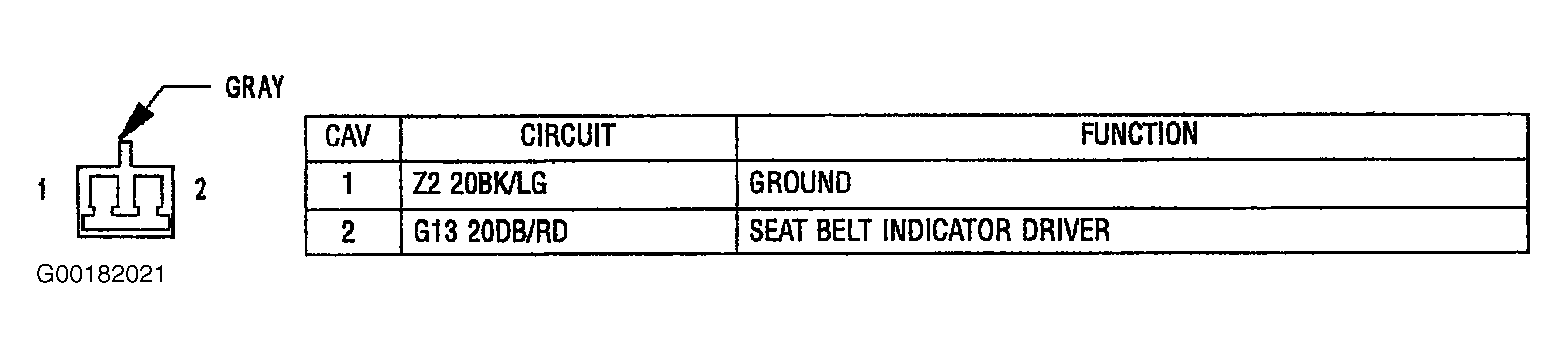

| Right Front Door Speaker | Fig 77 |
| Right Front Door Tweeter (Midlevel/Premium) | Fig 78 |
| Right Front Door Woofer (Midlevel/Premium) | Fig 79 |
| Right Headlight | Fig 80 |
| Right Rear Speaker | Fig 81 |
| Seat Belt Switch | Fig 82 |
| Sentry Key Immobilizer Module | Fig 83 |
| Transfer Case Control Module C1 | Fig 84 |
| Transfer Case Control Module C2 | Fig 85 |
| Transfer Case Control Module C3 | Fig 86 |

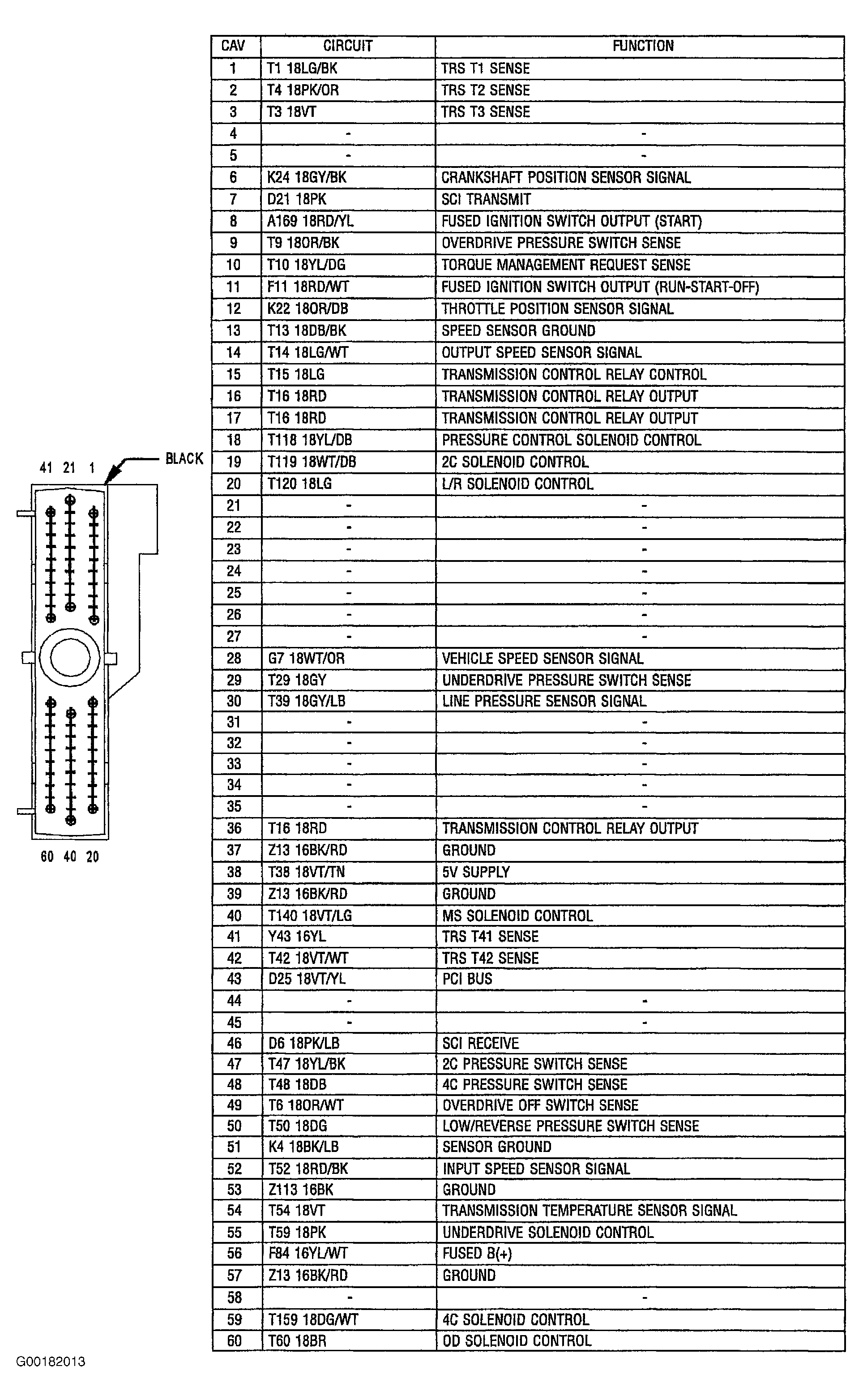

| Transmission Control Module | Fig 87 |

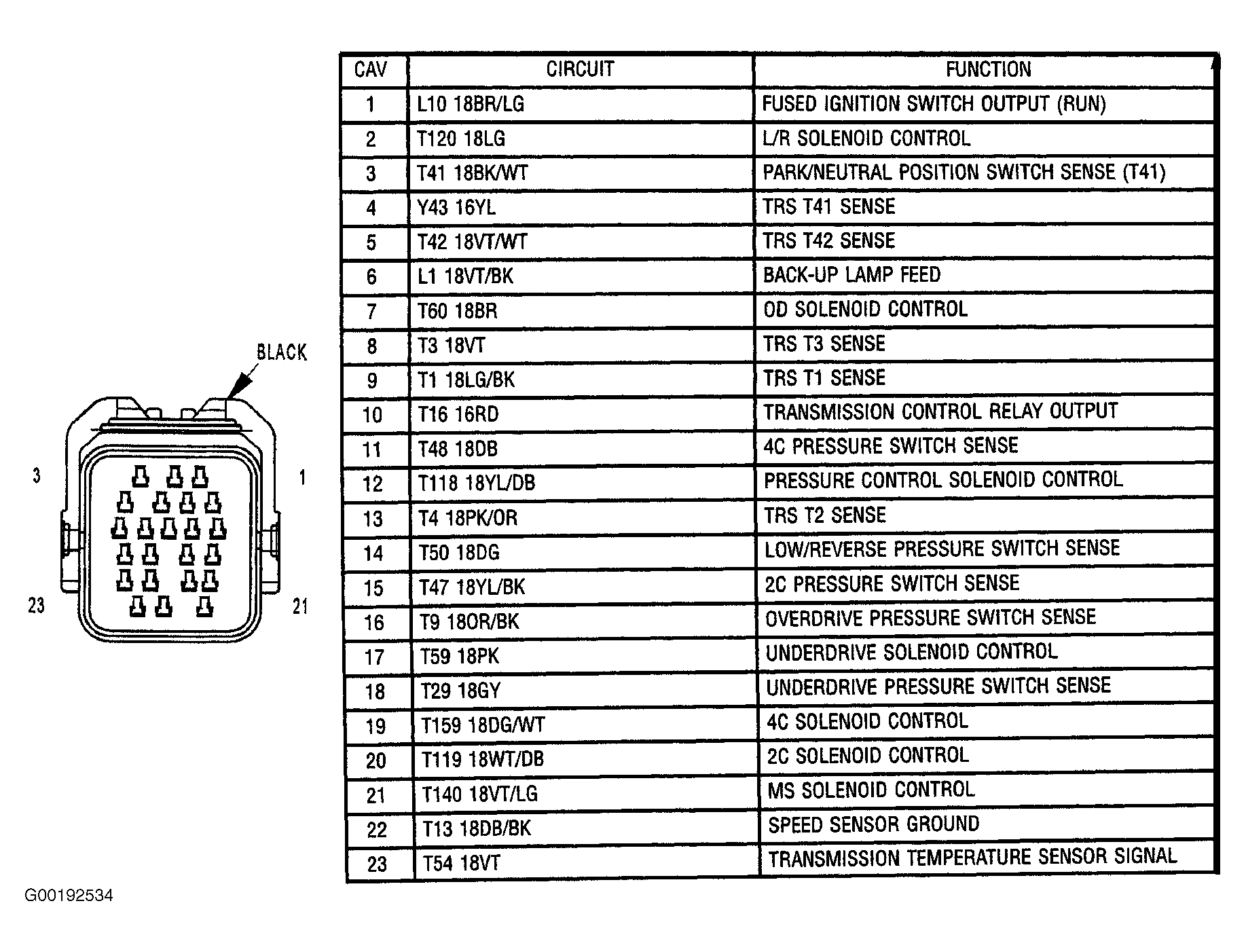

| Transmission Range Sensor (3.9L & 5.9L) | Fig 88 |
| Transmission Range Sensor (4.7L) | Fig 89 |
| Washer Fluid Level Switch | Fig 90 |

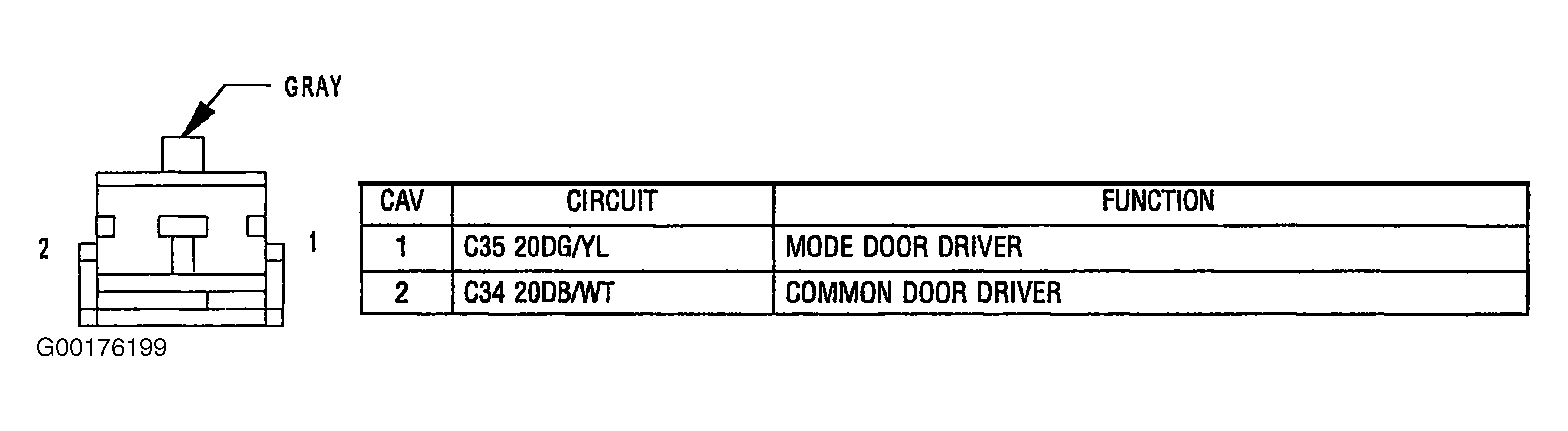

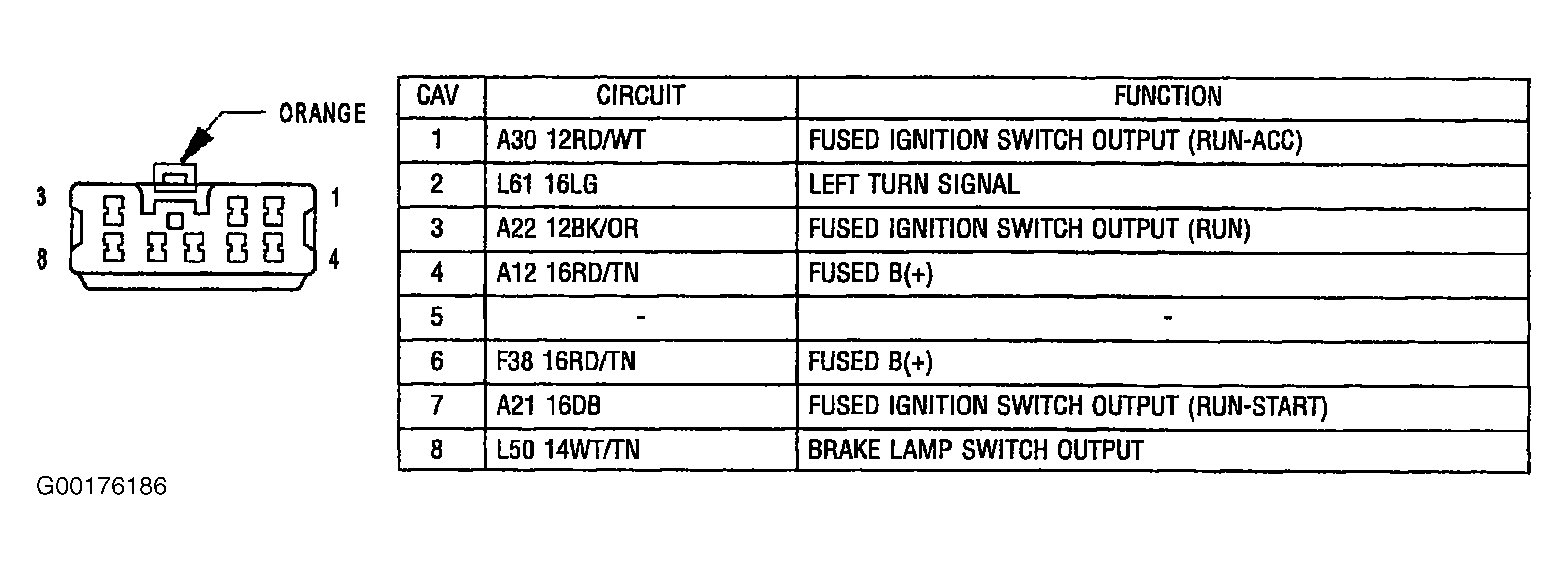

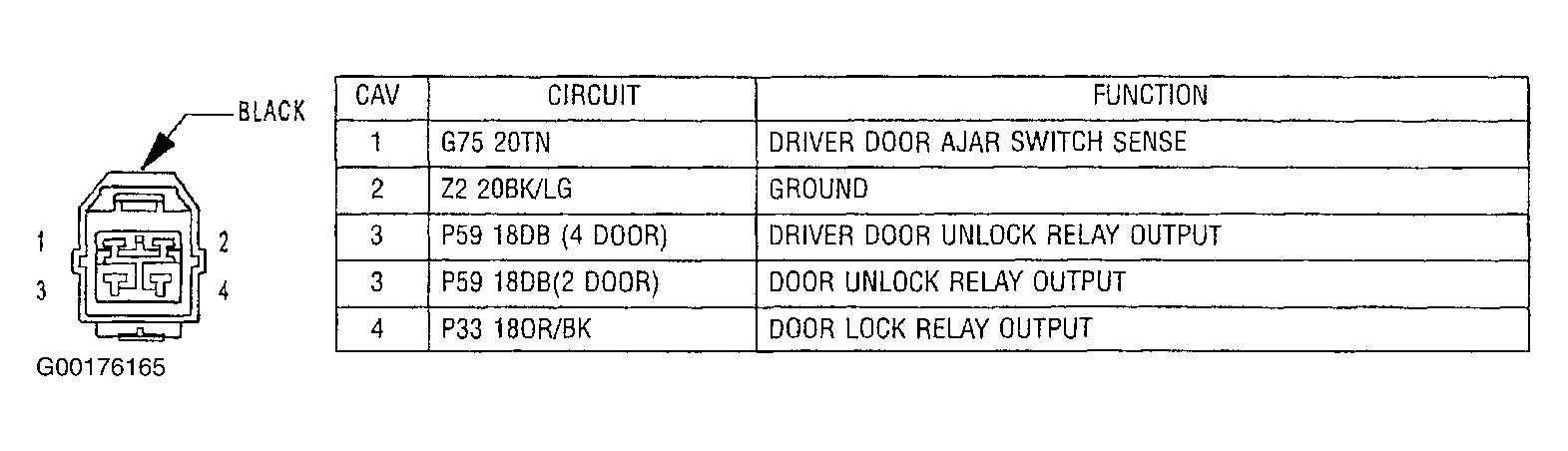

Fig 25: Identifying Driver Door Power Lock Motor/Ajar Switch Harness Connector Terminals (Except Base)
Fig 62: Identifying Passenger Door Power Lock Motor/Ajar Switch Harness Connector Terminals (Except Base)
Fig 73: Identifying Rear Door Power Lock Motor/Ajar Switch Harness Connector Terminals (Except Base)
