Satellite Receiver Module C1 (Premium) Connector End View

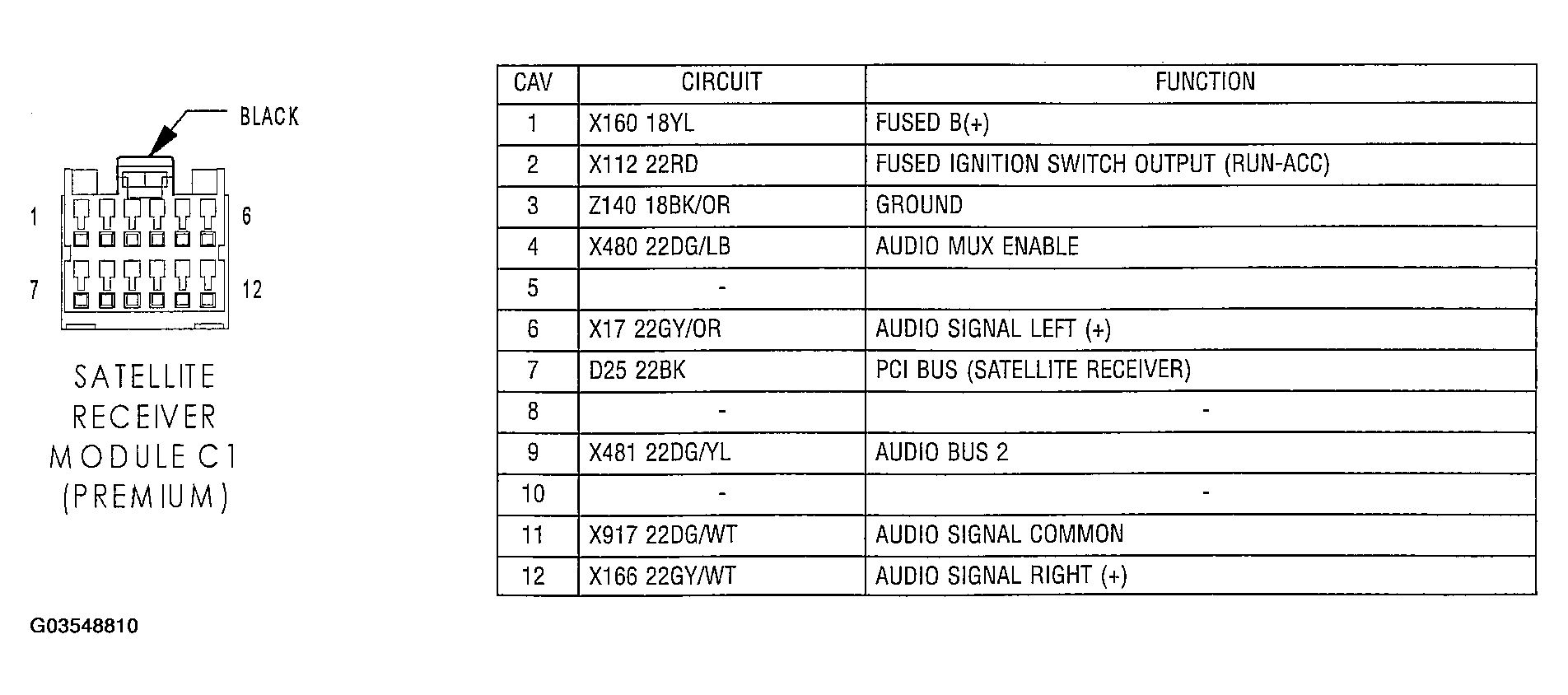

Fig 1: Satellite Receiver Module C1 (Premium)
G03548810Courtesy of CHRYSLER GROUP, LLC
