Airbag Control Module Connector End View

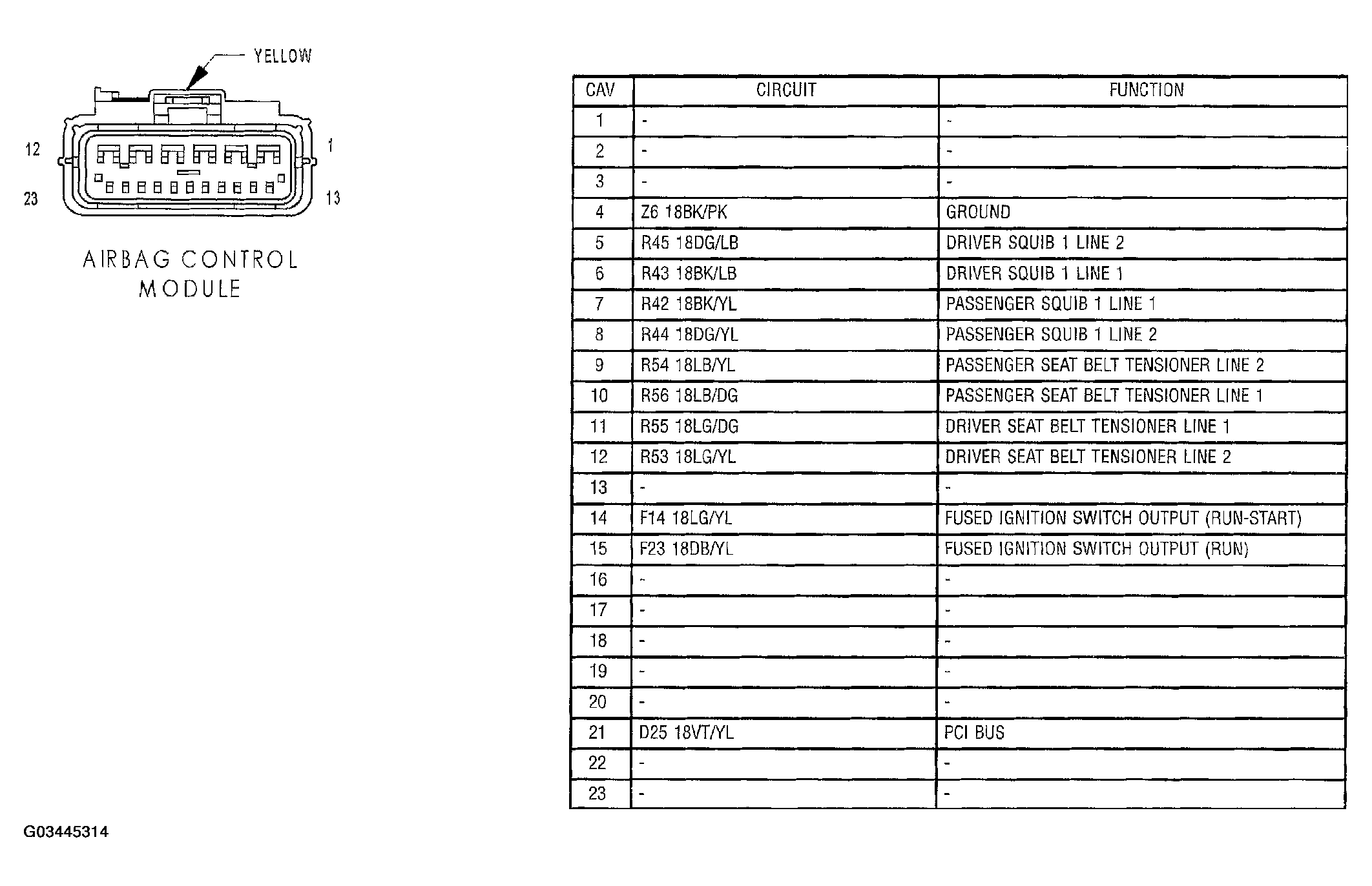

Fig 1: Airbag Control Module Connector End View
G03445314Courtesy of DAIMLERCHRYSLER CORP.
