Component Locations

WARNING: This page is about a different car, the 2002 Dodge Durango and 2002 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For component locations not given in this article, see COMPONENT LOCATIONS in appropriate SELF-DIAGNOSTICS article. See SELF-DIAGNOSTICS - DAKOTA , SELF-DIAGNOSTICS - DURANGO - JTEC or SELF-DIAGNOSTICS - DURANGO - NGC article. For location of components not listed in COMPONENT LOCATIONS table, see Fig 1 -Fig 35 .

COMPONENT LOCATIONS

Component	Location
A/C Pressure Sensor	In Fitting On Liquid Line, Between Condenser And High-Side Refrigerant Service Port
Ambient Temperature Sensor	Mounted To Bracket On Right Side Of Radiator Yoke, Behind Right Side Of Radiator Grille
Sentry Key Immobilizer Module	Under Steering Column Shrouds, SKIM Antenna Ring Surrounds Ignition Lock Cylinder Housing

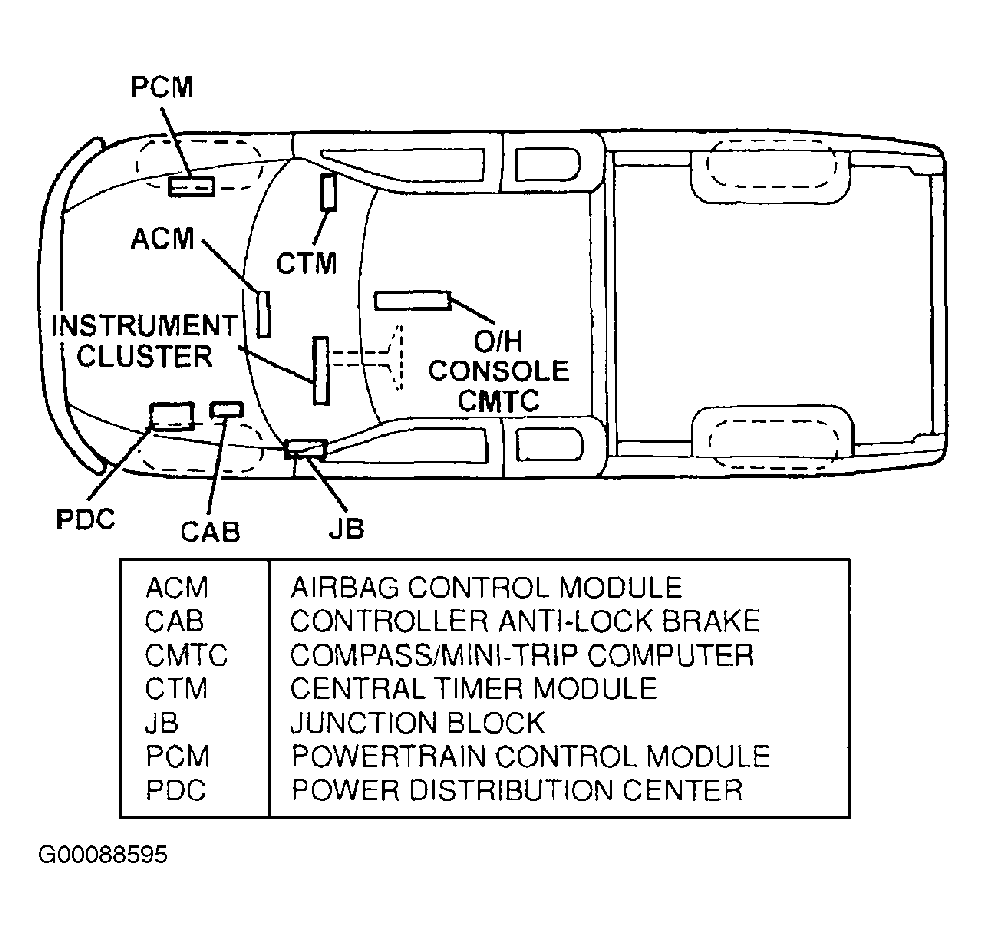

Fig 1: Locating Air Bag Control Module, Central Timer Module, Compass/Mini-Trip Module, Controller Anti-Lock Brake, Junction Block, Powertrain Control Module & Power Distribution Center

Courtesy of DAIMLERCHRYSLER

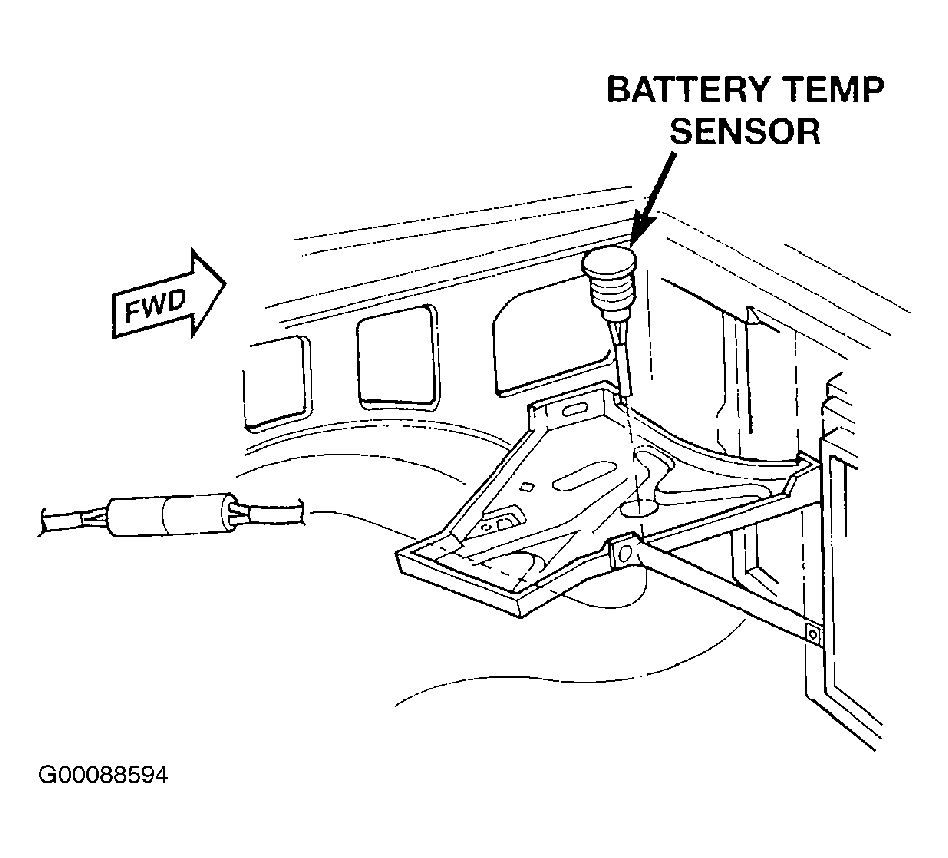

Fig 2: Locating Battery Temperature Sensor

Courtesy of DAIMLERCHRYSLER

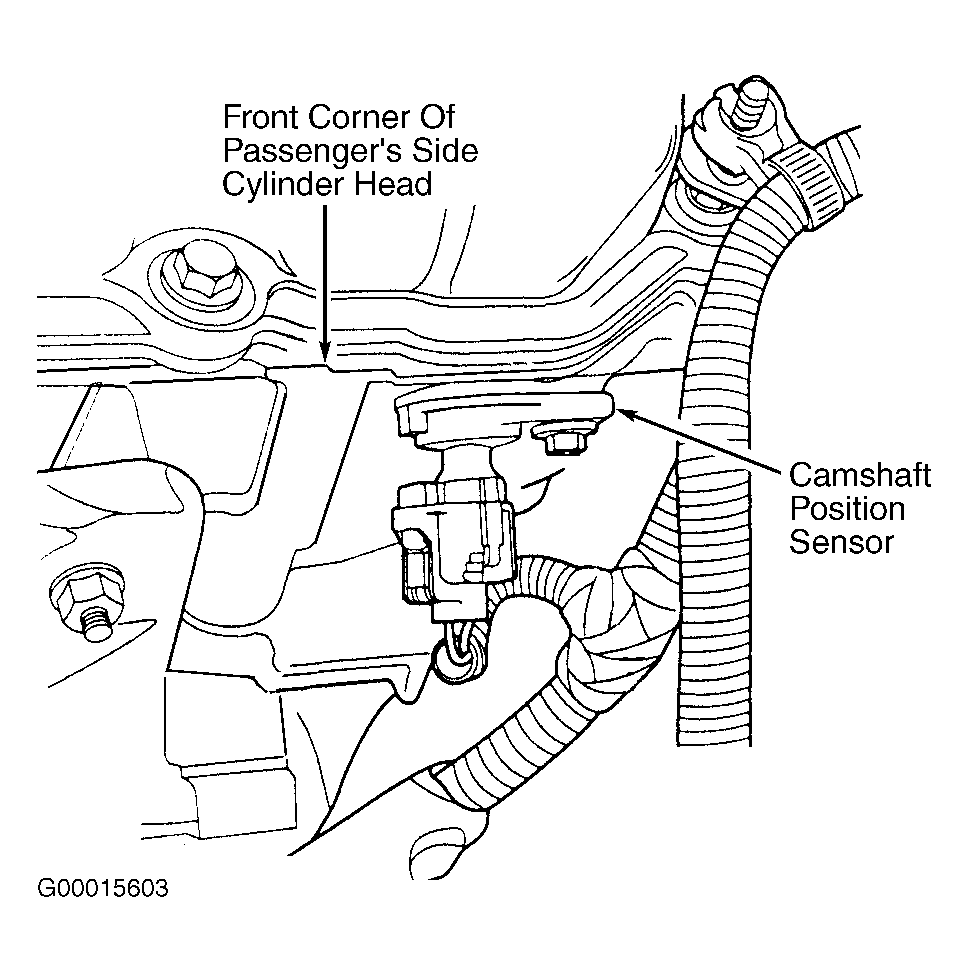

Fig 3: Locating Camshaft Position Sensor (4.7L)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 4: Locating Camshaft Position Sensor Harness Connector (2.5L)

Courtesy of DAIMLERCHRYSLER

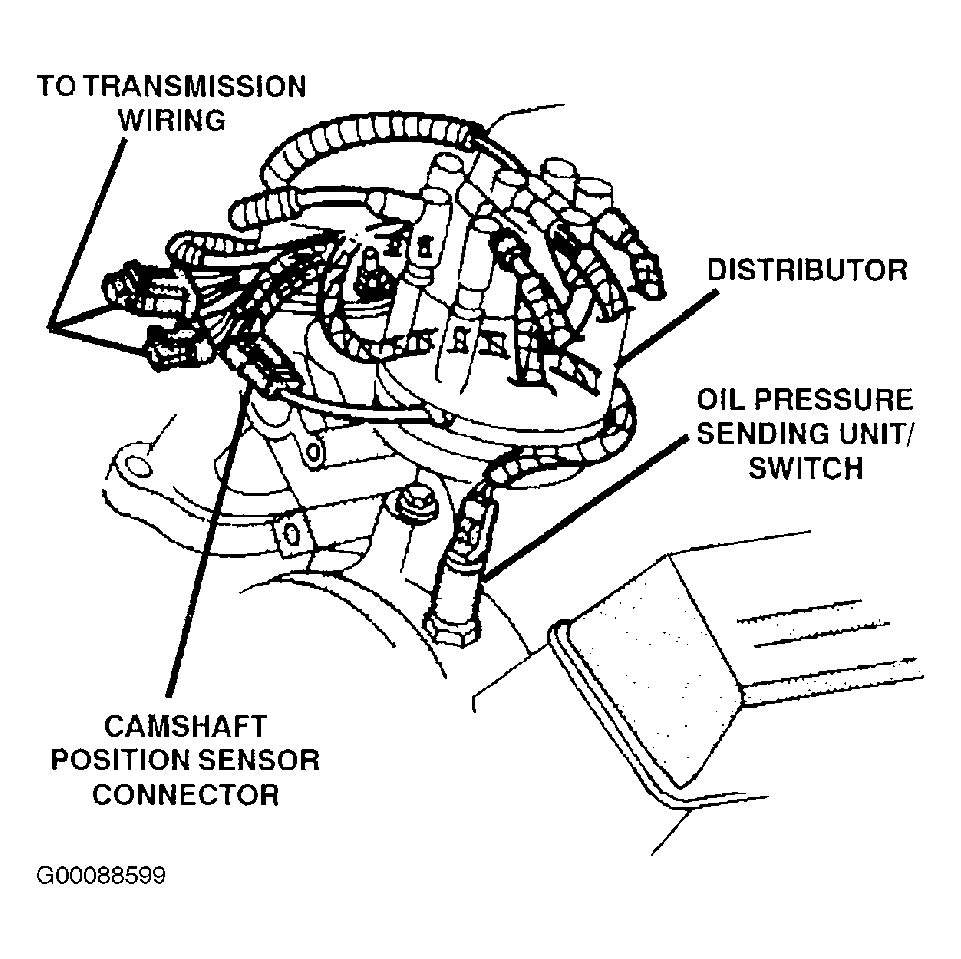

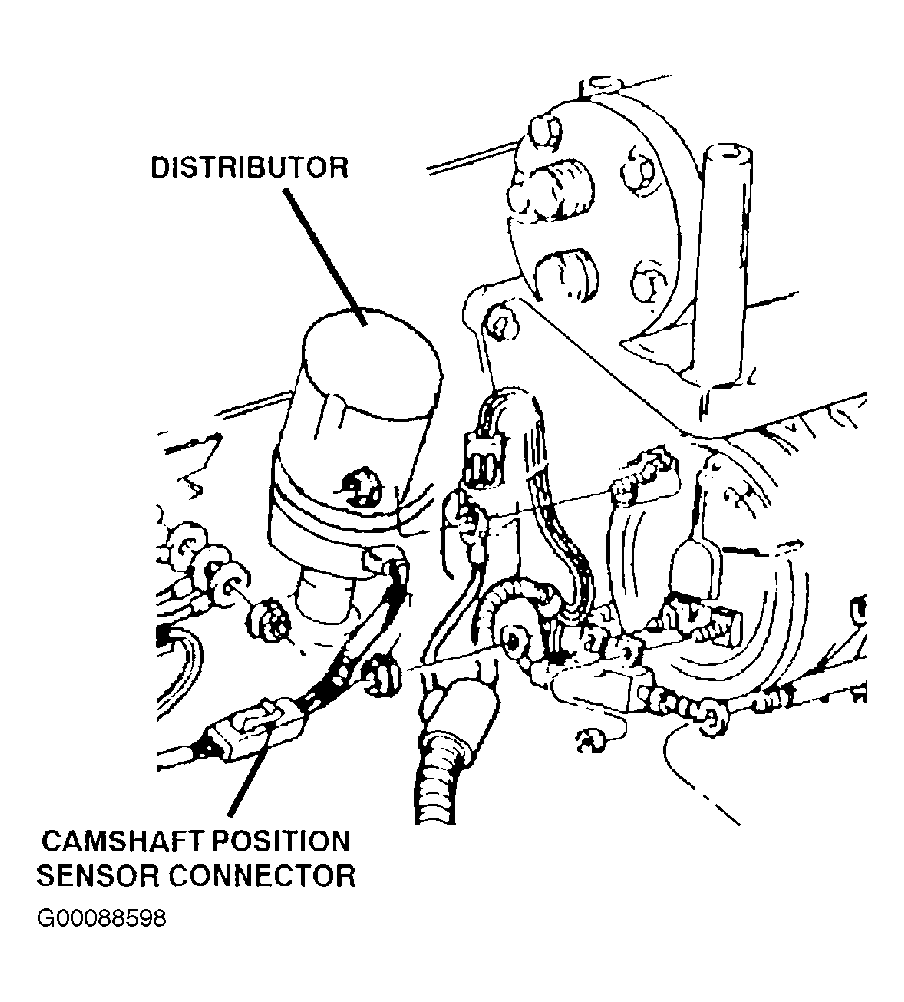

Fig 5: Locating Camshaft Position Sensor Harness Connector (3.9L & 5.9L)

Courtesy of DAIMLERCHRYSLER

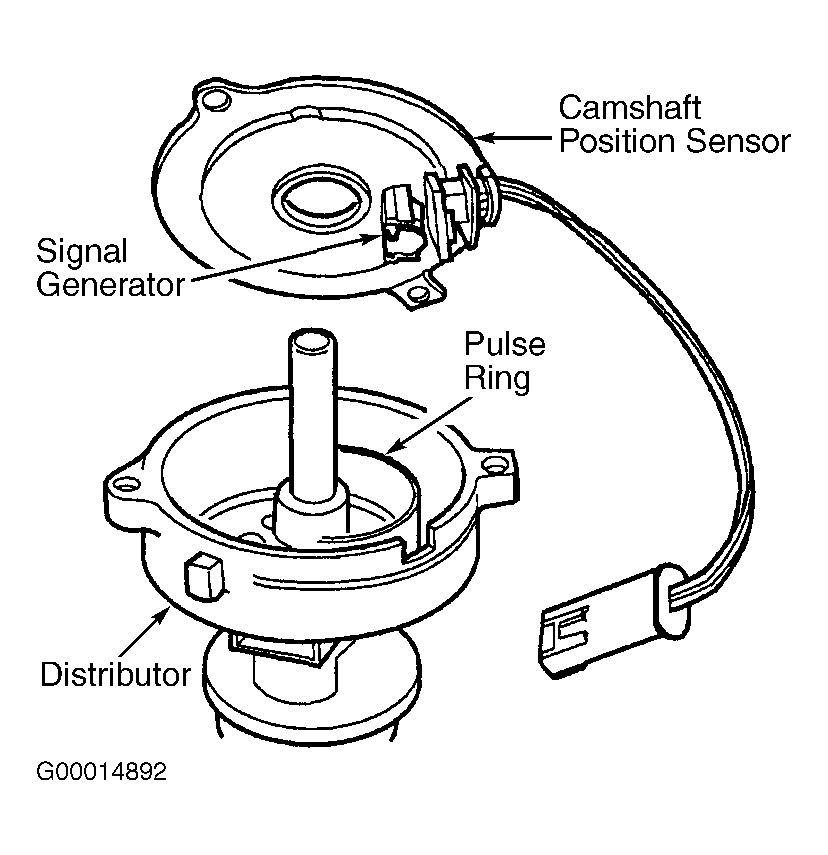

Fig 6: Locating Camshaft Position Sensor & Pulse Ring (2.5L, 3.9L & 5.9L)

Courtesy of DAIMLERCHRYSLER CORPORATION

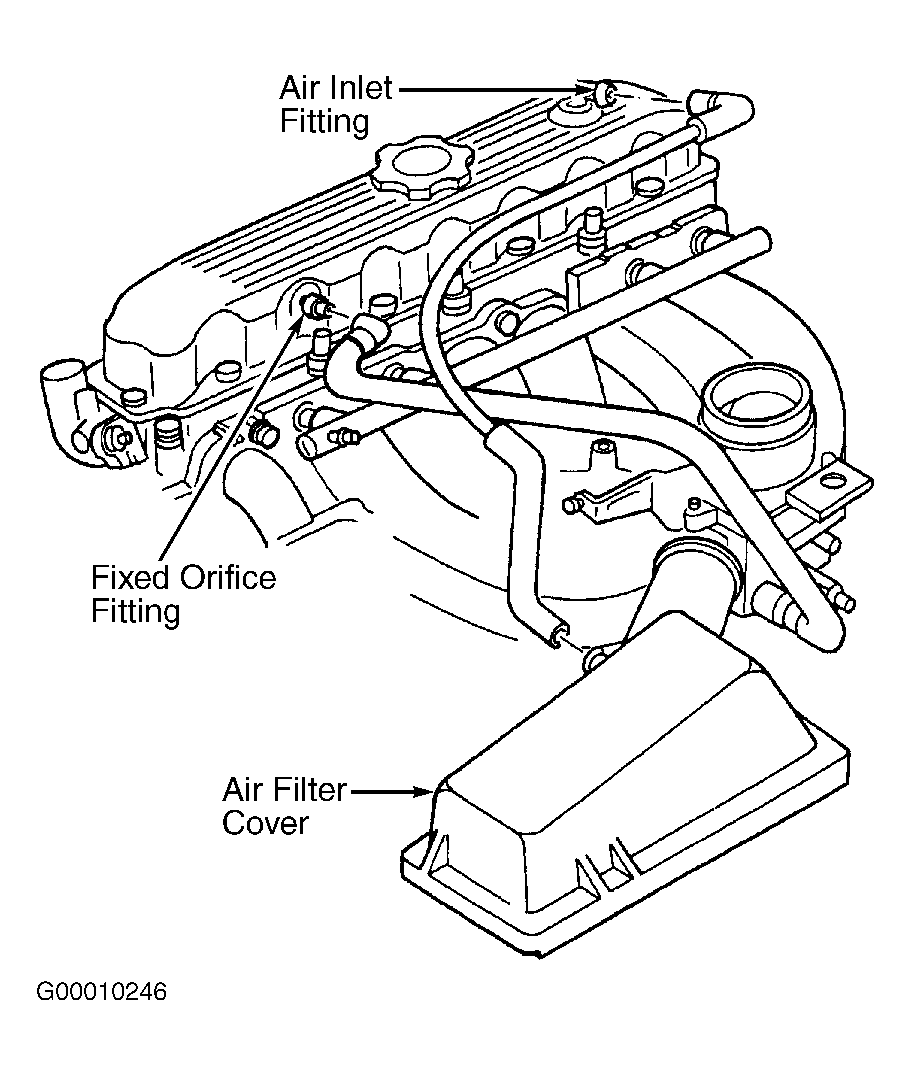

Fig 7: Locating Closed Crankcase Ventilation System Components

Courtesy of DAIMLERCHRYSLER CORPORATION

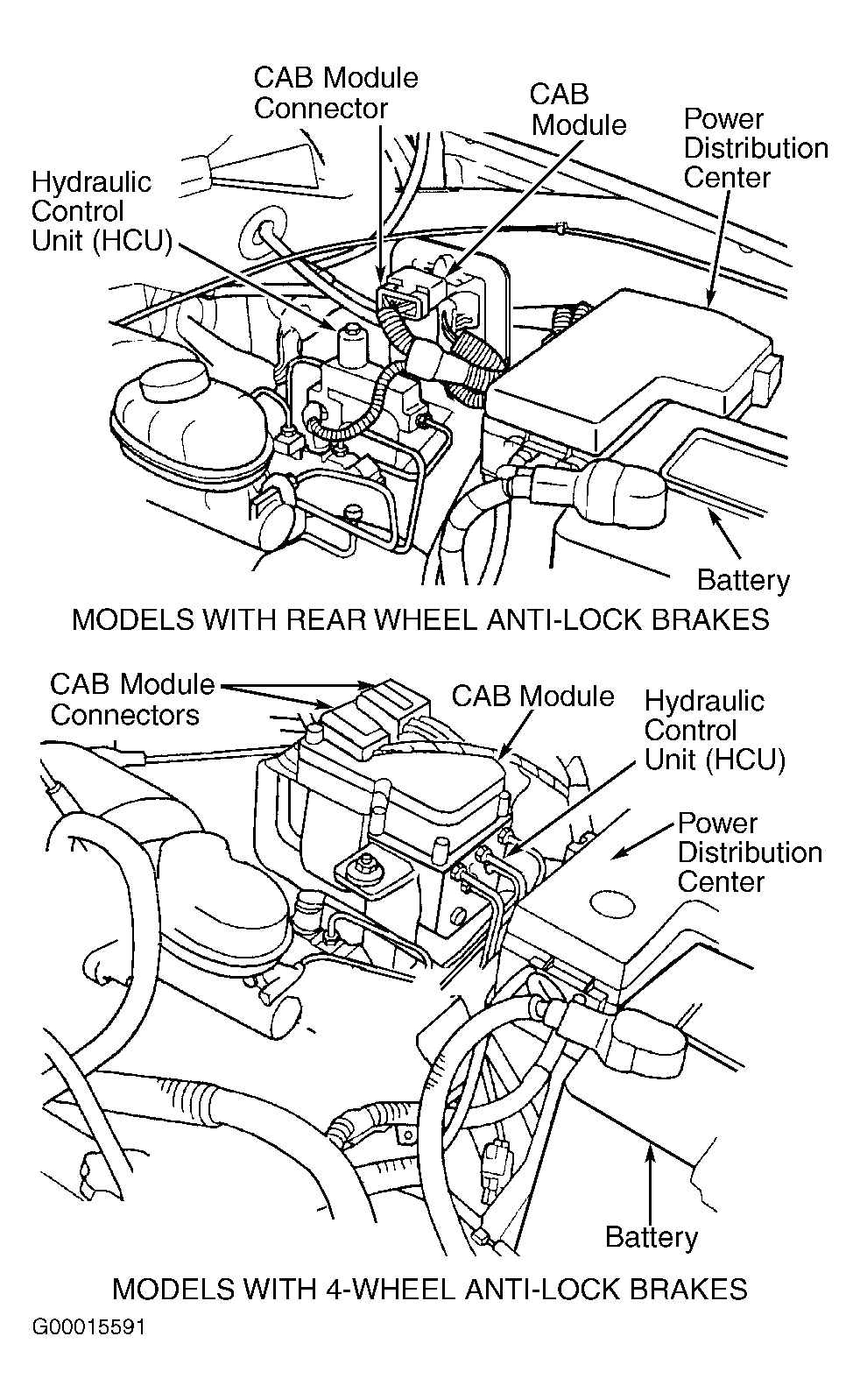

Fig 8: Locating Controller Anti-Lock Brake Module, Hydraulic Control Unit & Power Distribution Center

Courtesy of DAIMLERCHRYSLER CORPORATION

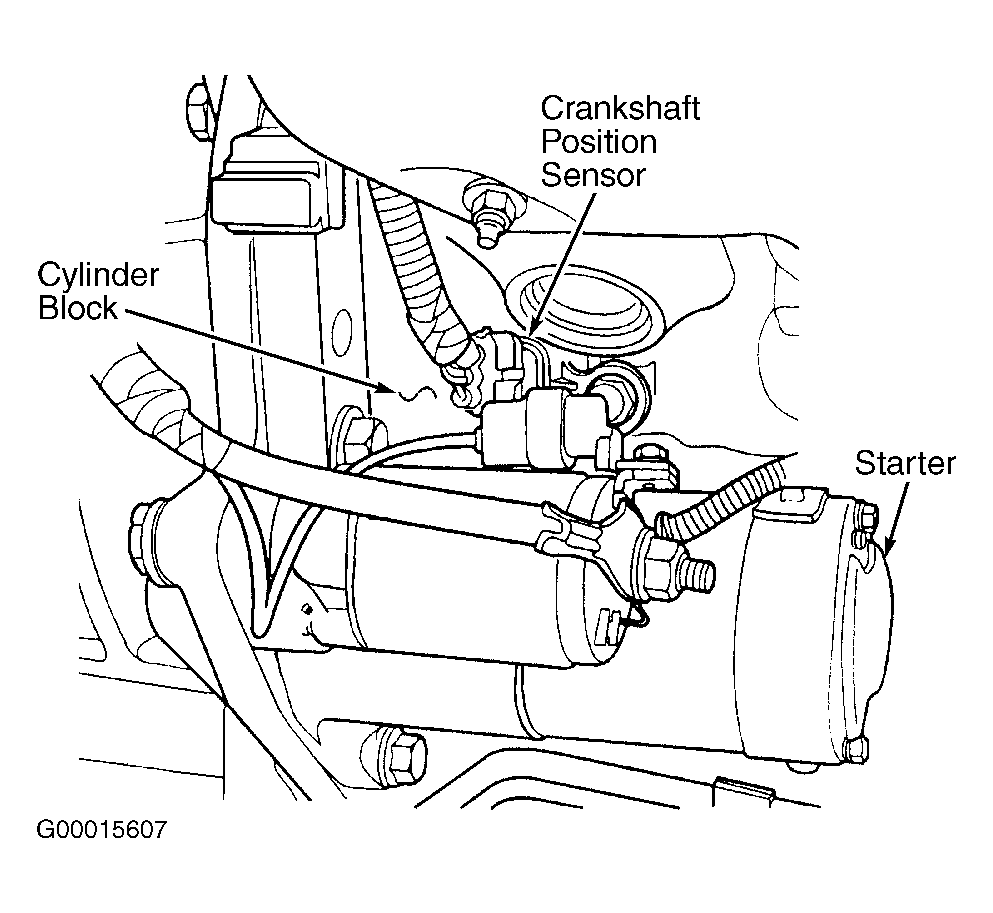

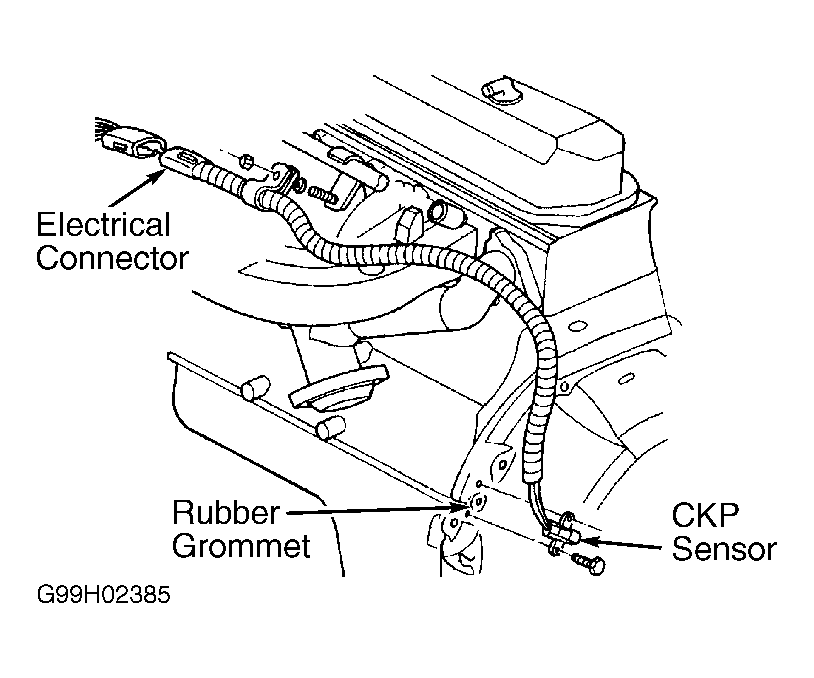

Fig 9: Locating Crankshaft Position Sensor (2.5L)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 10: Locating Crankshaft Position Sensor (3.9L & 5.9L)

Courtesy of DAIMLERCHRYSLER CORPORATION

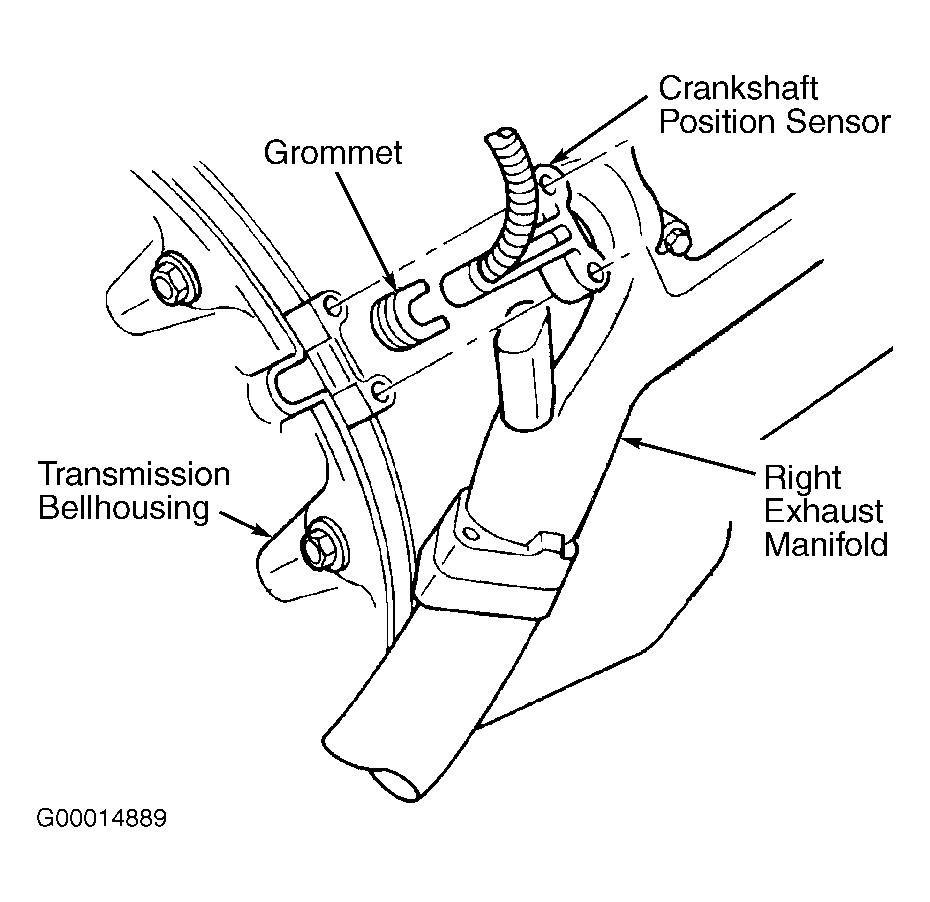

Fig 11: Locating Crankshaft Position Sensor (4.7L)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 12: Locating Data Link Connector

Courtesy of DAIMLERCHRYSLER

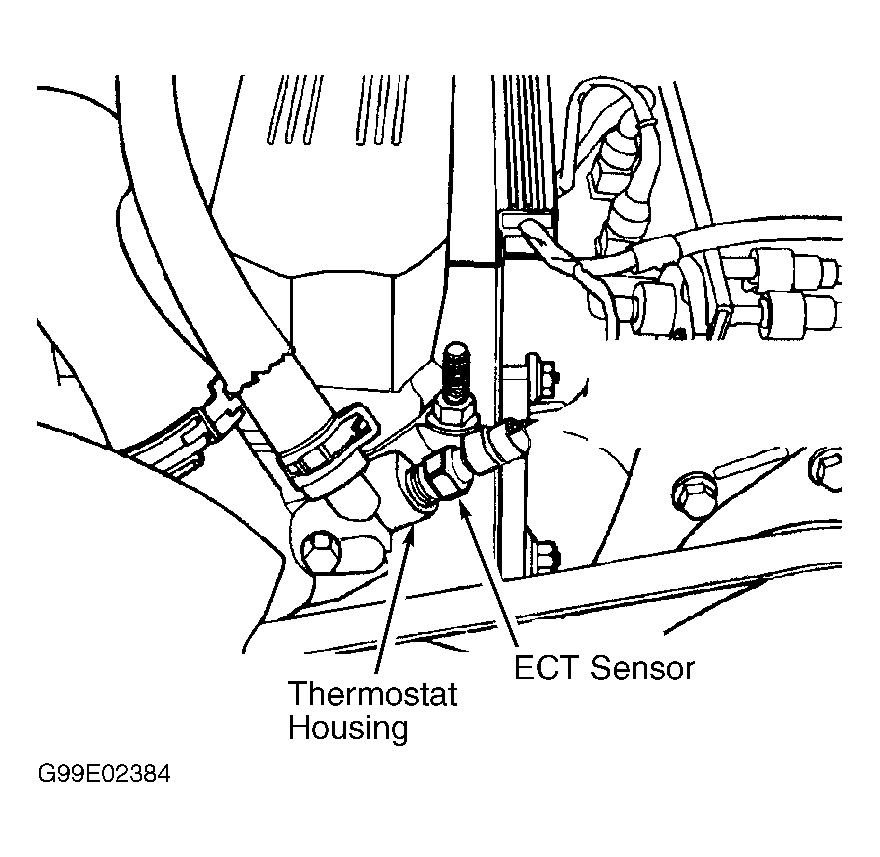

Fig 13: Locating Engine Coolant Temperature Sensor (2.5L)

Courtesy of DAIMLERCHRYSLER CORPORATION

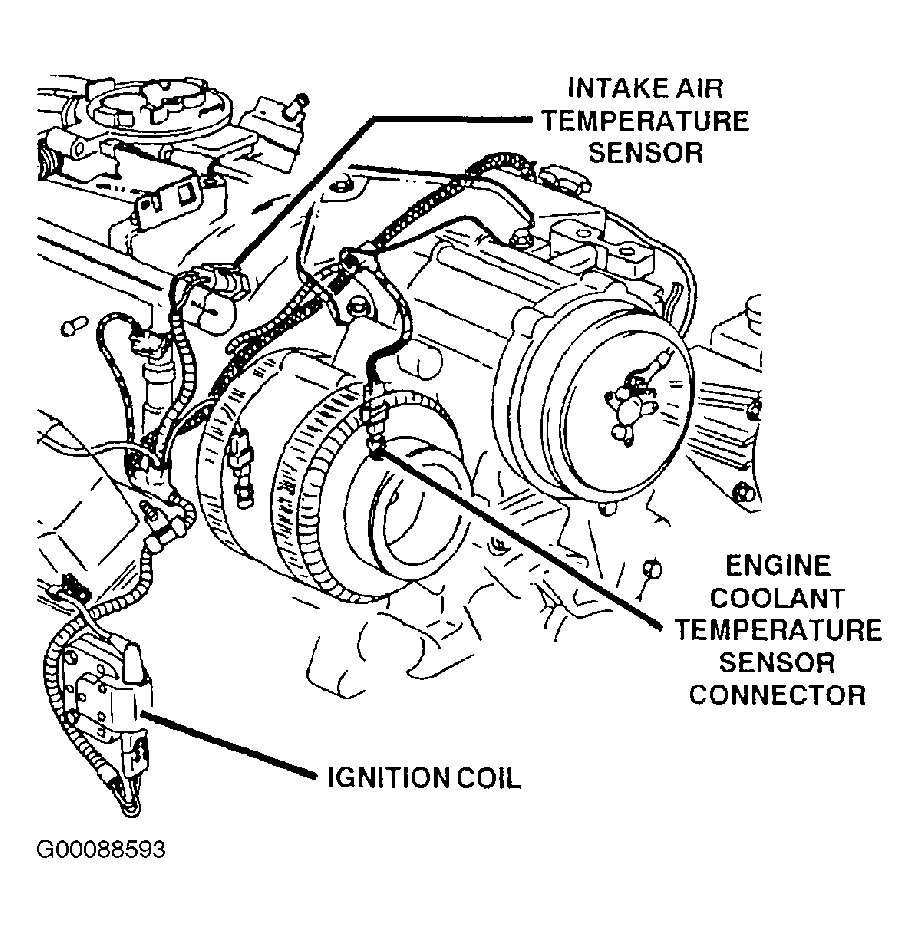

Fig 14: Locating Engine Coolant Temperature Sensor, Ignition Coil & Intake Air Temperature Sensor (3.9L & 5.9L)

Courtesy of DAIMLERCHRYSLER

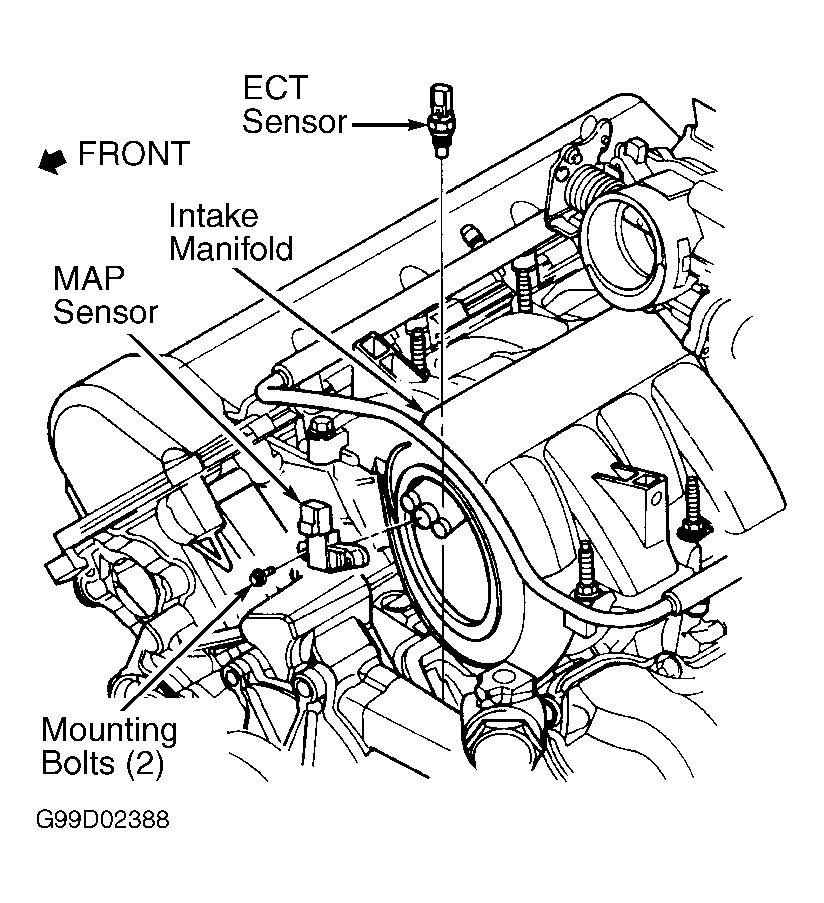

Fig 15: Locating Engine Coolant Temperature Sensor & Manifold Absolute Pressure Sensor (4.7L)

Courtesy of DAIMLERCHRYSLER CORPORATION

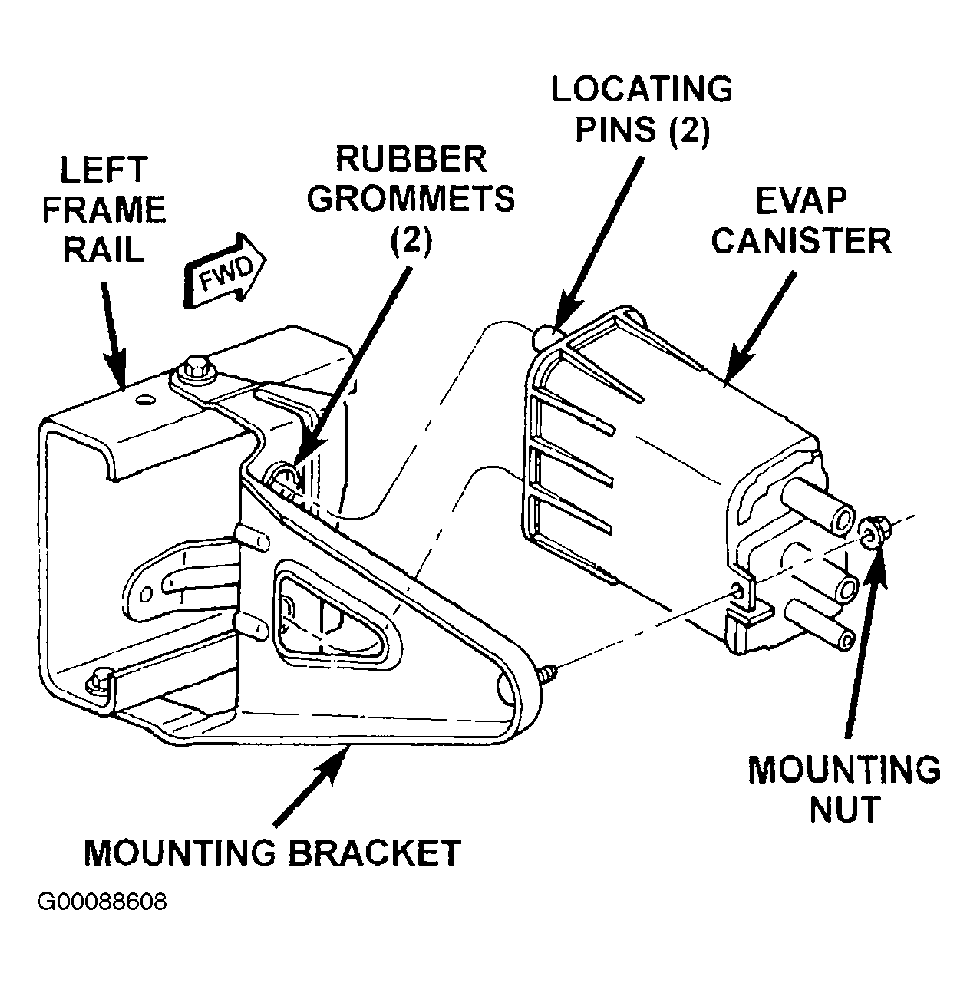

Fig 16: Locating Evaporative Emissions Canister

Courtesy of DAIMLERCHRYSLER

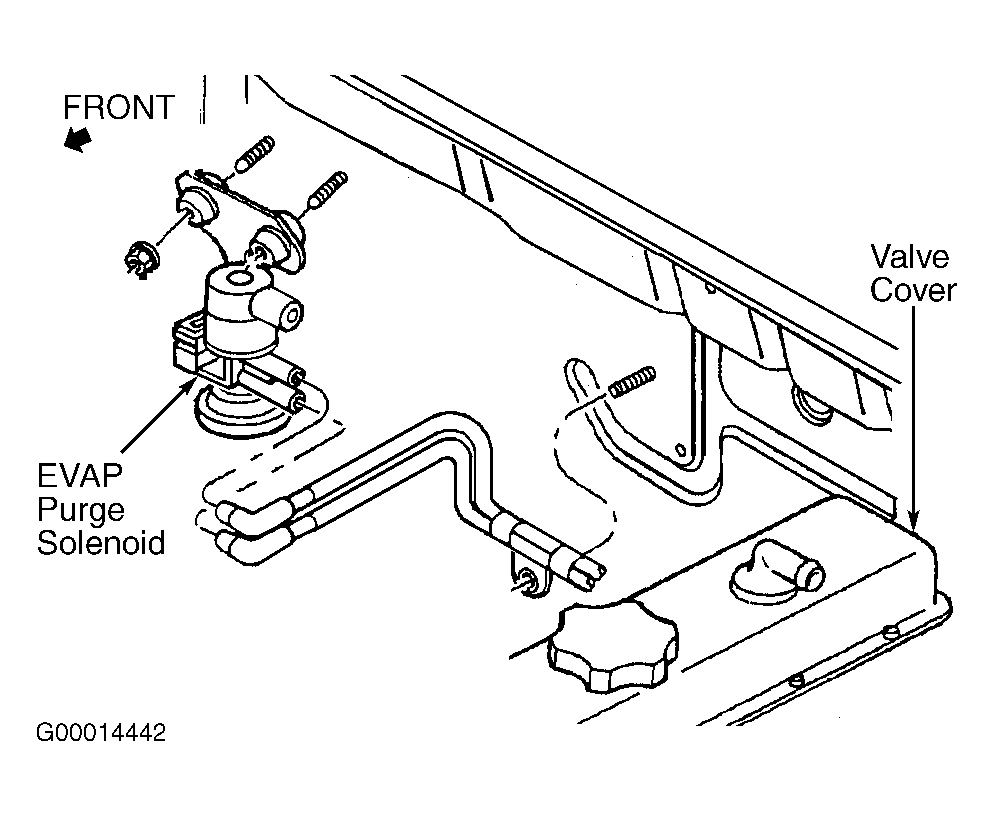

Fig 17: Locating Evaporative Emissions Purge Solenoid (2.5L)

Courtesy of DAIMLERCHRYSLER CORPORATION

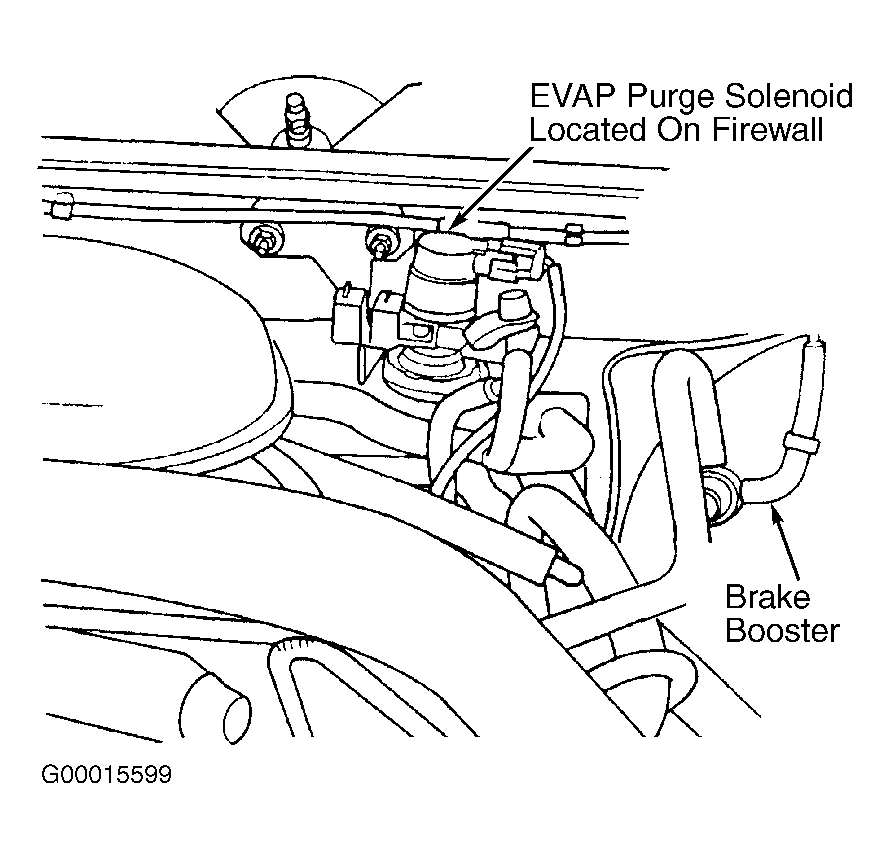

Fig 18: Locating Evaporative Emissions Purge Solenoid (3.9L, 4.7L & 5.9L)

Courtesy of DAIMLERCHRYSLER CORPORATION

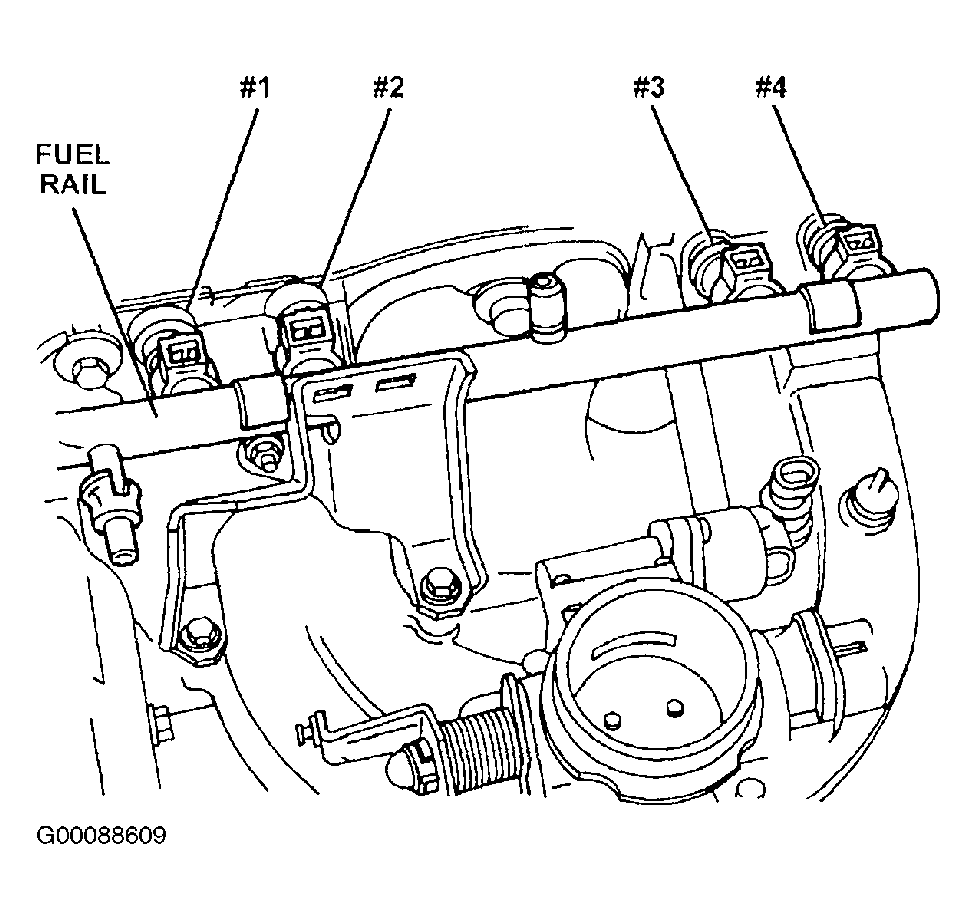

Fig 19: Locating Fuel Injectors (2.5L)

Courtesy of DAIMLERCHRYSLER

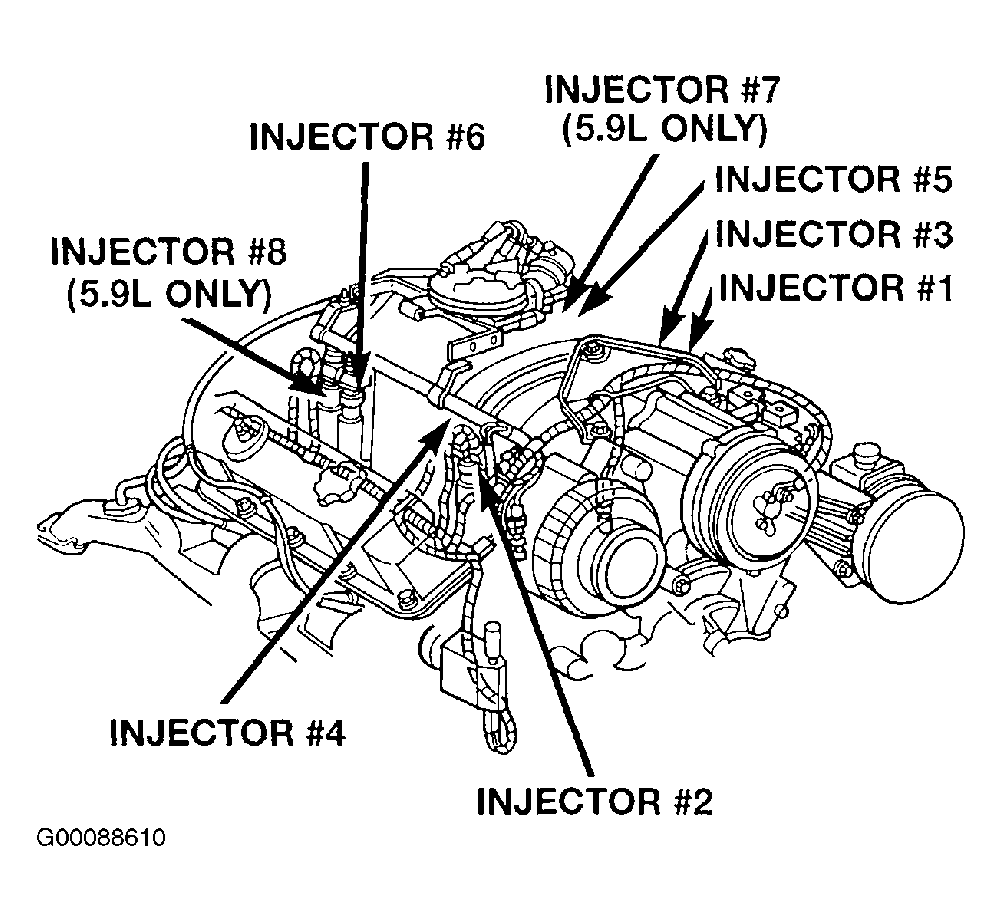

Fig 20: Locating Fuel Injectors (3.9L & 5.9L)

Courtesy of DAIMLERCHRYSLER

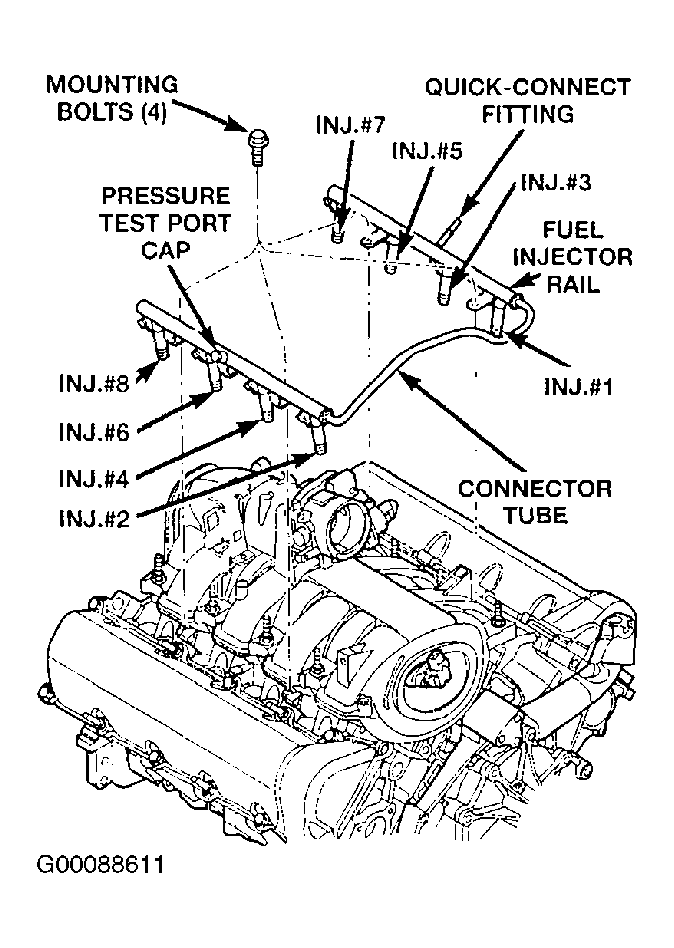

Fig 21: Locating Fuel Injectors (4.7L)

Courtesy of DAIMLERCHRYSLER

Fig 22: Locating Fuel Pump Module

Courtesy of DAIMLERCHRYSLER

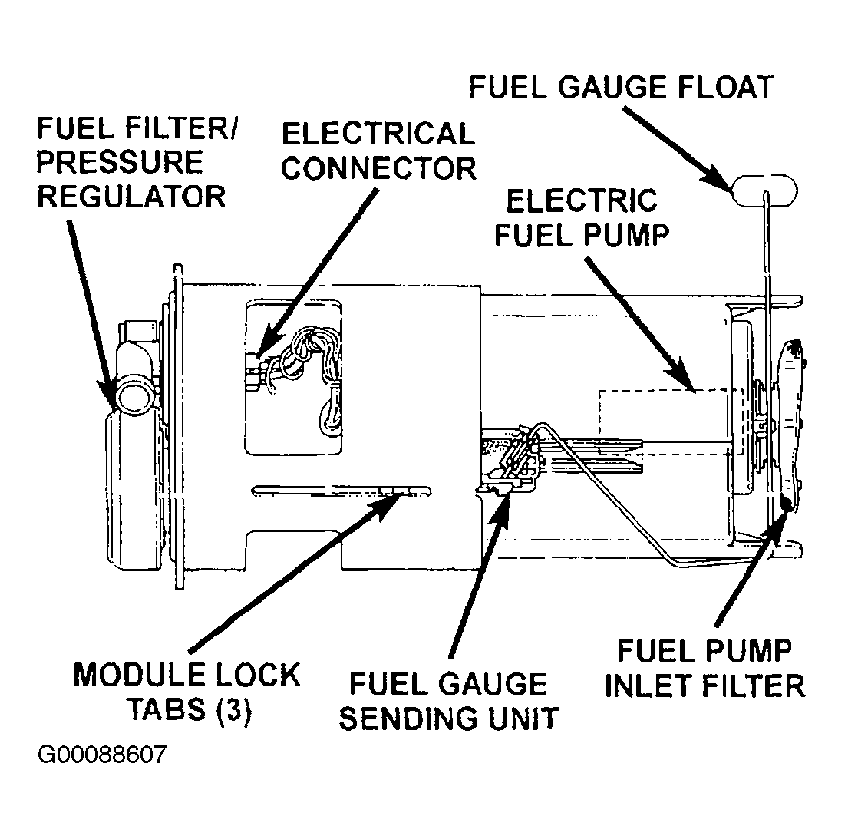

Fig 23: Locating Fuel Pump Module Components

Courtesy of DAIMLERCHRYSLER

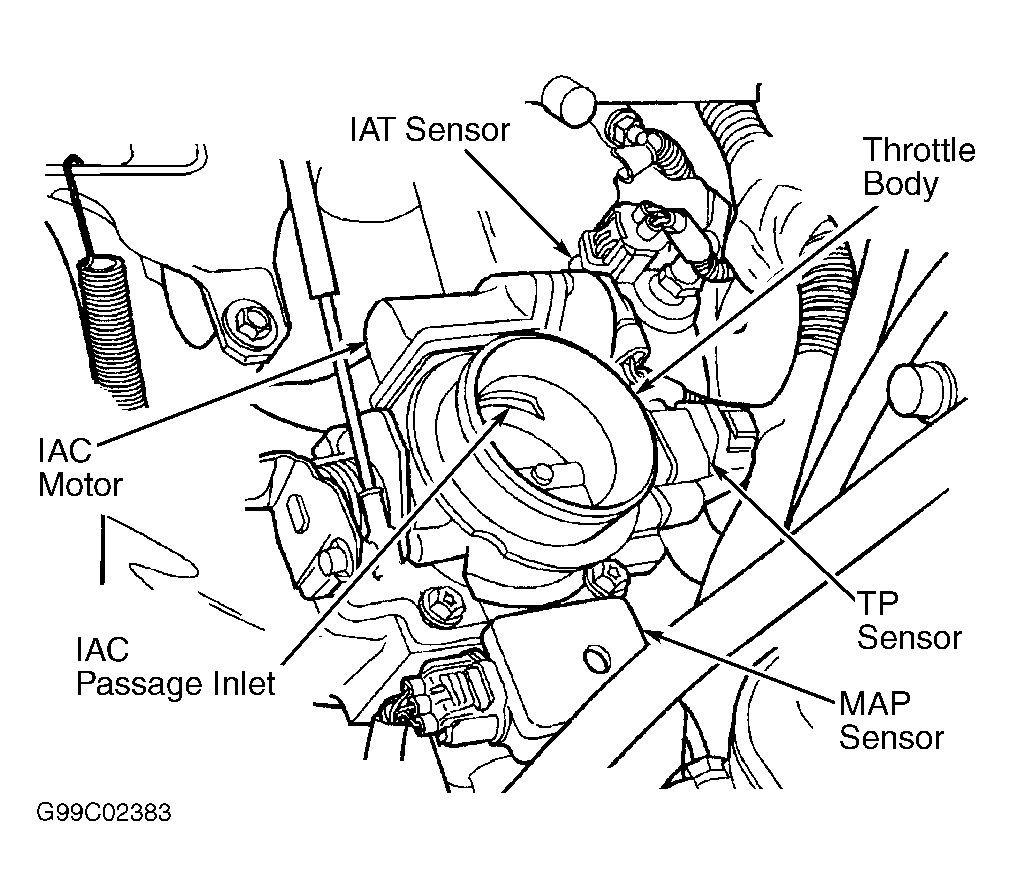

Fig 24: Locating Idle Air Control Motor, Intake Air Temperature Sensor, Manifold Absolute Pressure Sensor & Throttle Position Sensor (2.5L)

Courtesy of DAIMLERCHRYSLER CORPORATION

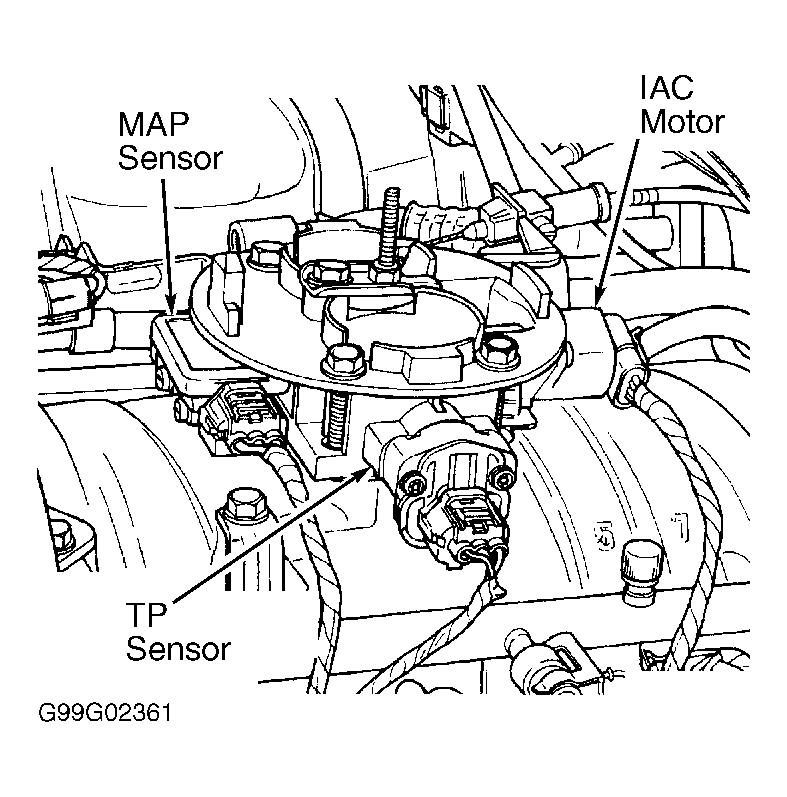

Fig 25: Locating Idle Air Control Motor, Manifold Absolute Pressure Sensor & Throttle Position Sensor (3.9L & 5.9L)

Courtesy of DAIMLERCHRYSLER CORPORATION

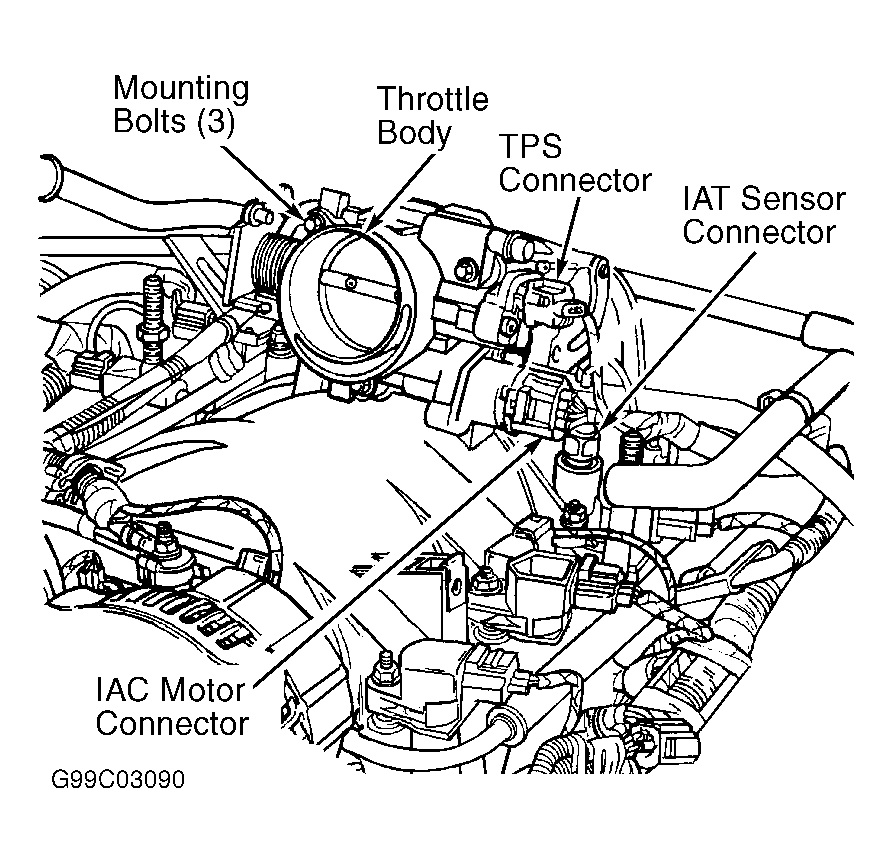

Fig 26: Locating Idle Air Control Motor, Intake Air Temperature Sensor & Throttle Position Sensor (4.7L)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 27: Locating Ignition Coil (2.5L)

Courtesy of DAIMLERCHRYSLER

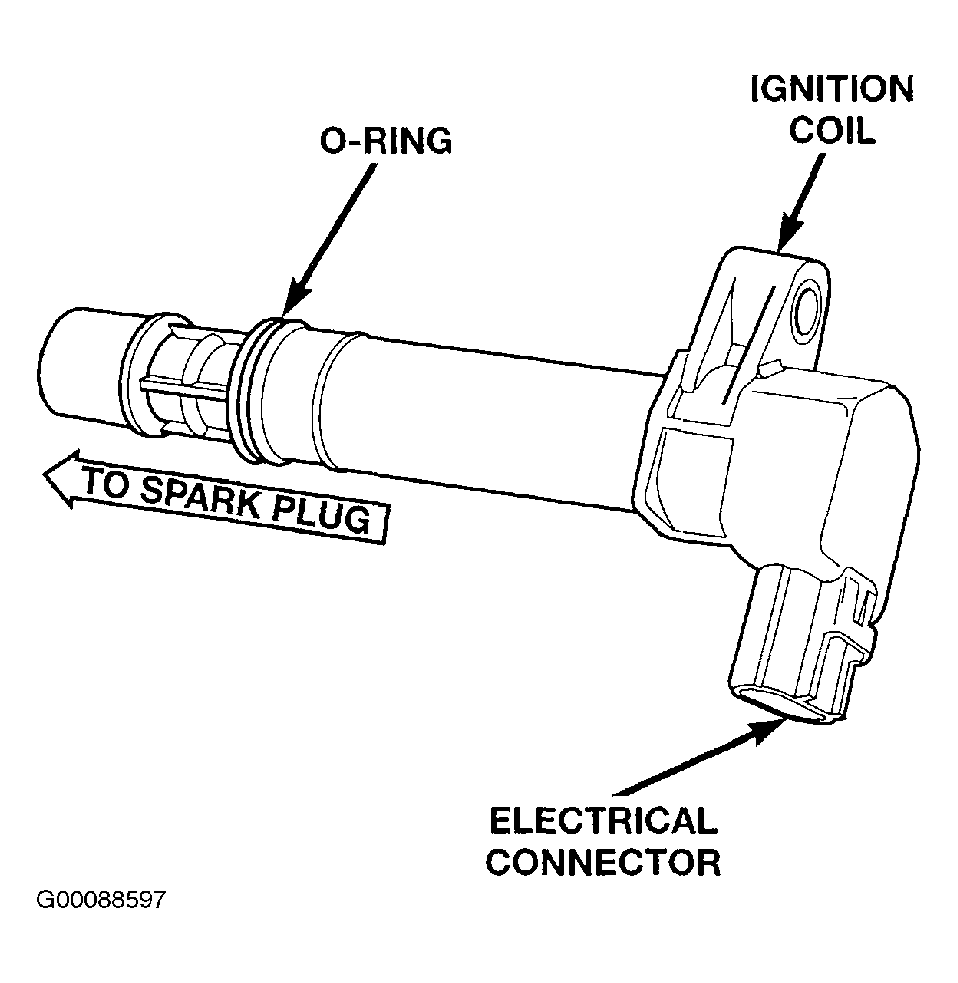

Fig 28: Locating Ignition Coil On Plug (4.7L)

Courtesy of DAIMLERCHRYSLER

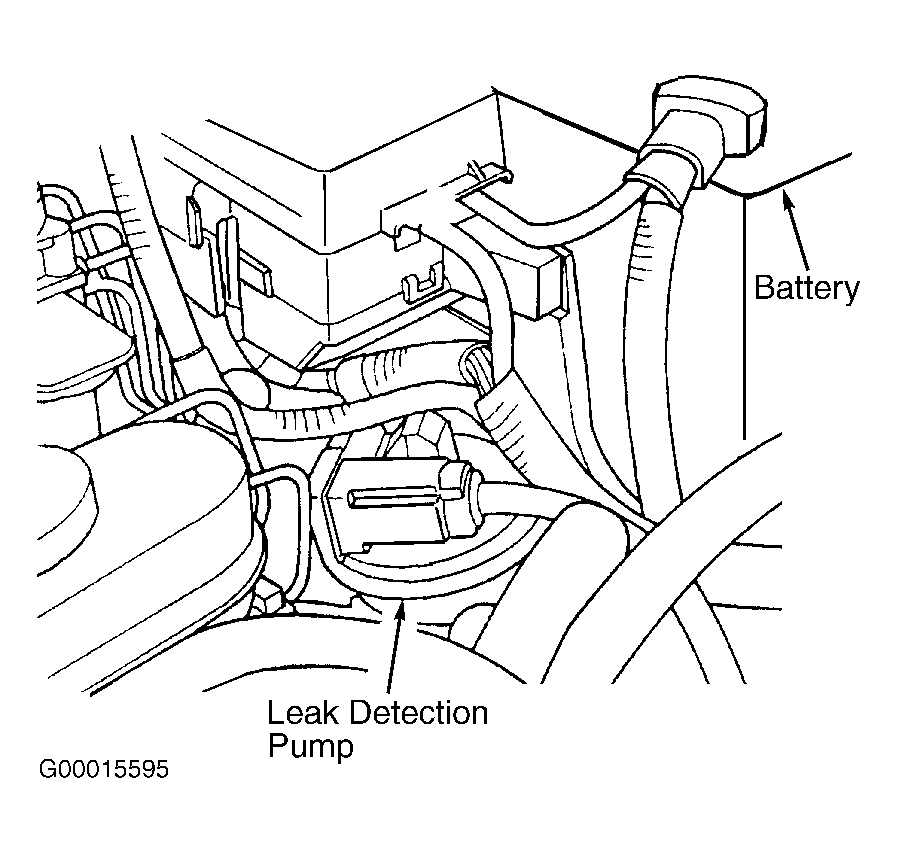

Fig 29: Locating Leak Detection Pump (Except NGC)

Courtesy of DAIMLERCHRYSLER CORPORATION

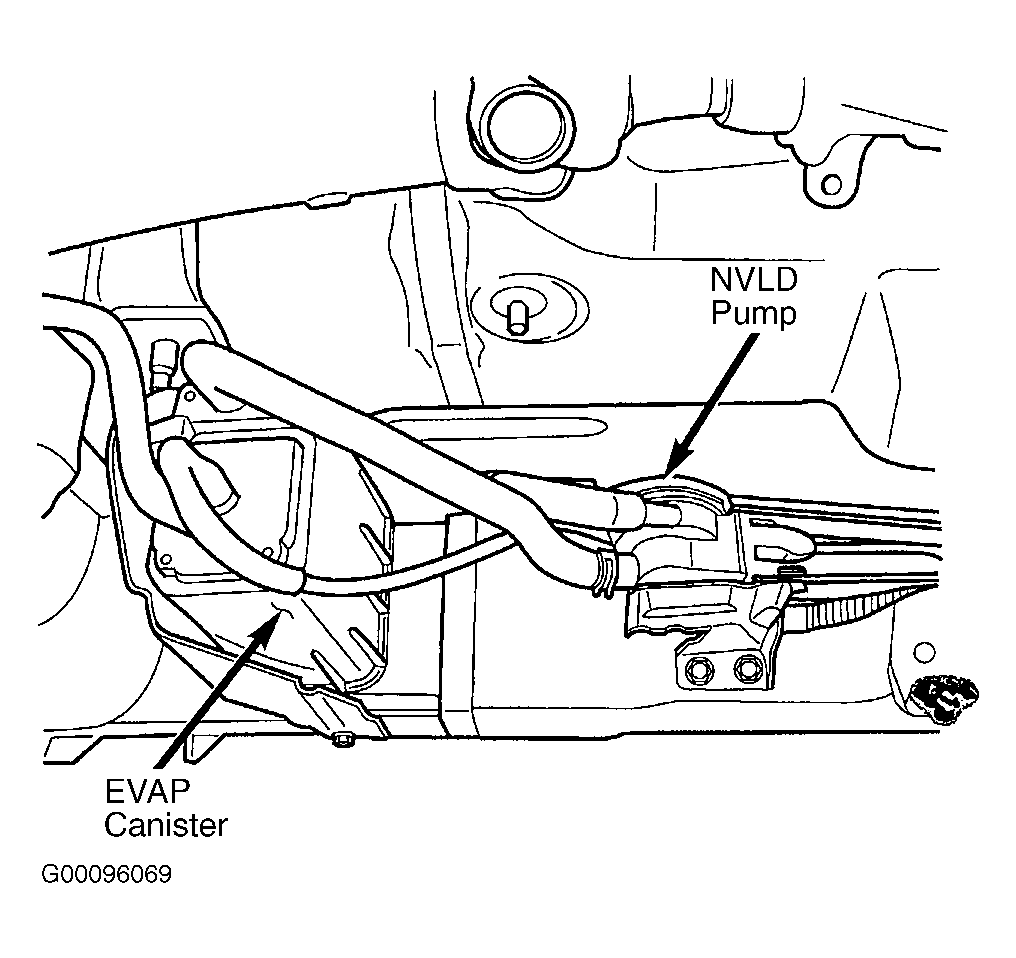

Fig 30: Locating Natural Vacuum Leak Detection Pump (NGC)

Courtesy of DAIMLERCHRYSLER

Fig 31: Locating Positive Crankcase Ventilation Valve (3.9L & 5.9L)

Courtesy of DAIMLERCHRYSLER CORPORATION

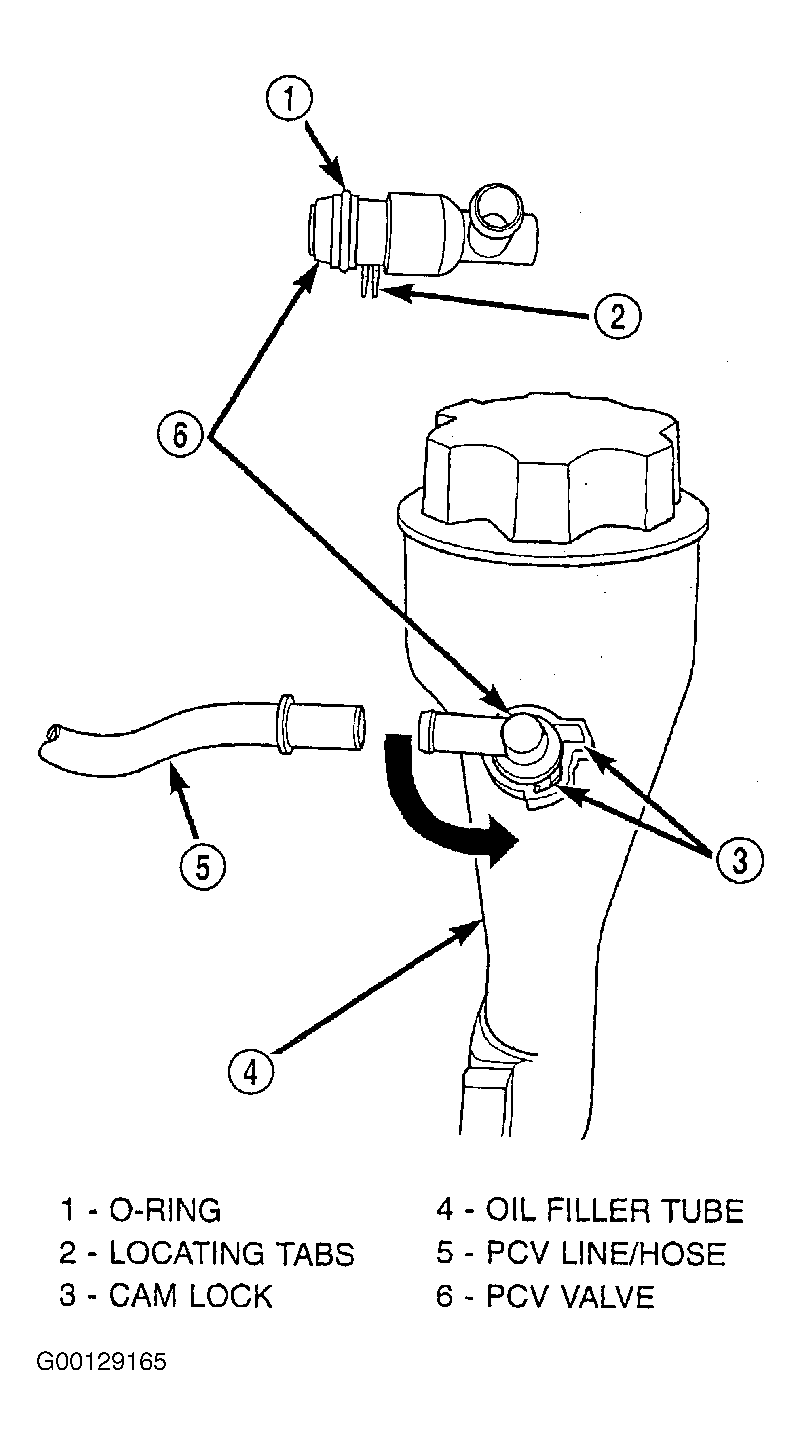

Fig 32: Locating Positive Crankcase Ventilation Valve & Line/Hose (4.7L)

Courtesy of DAIMLERCHRYSLER CORPORATION

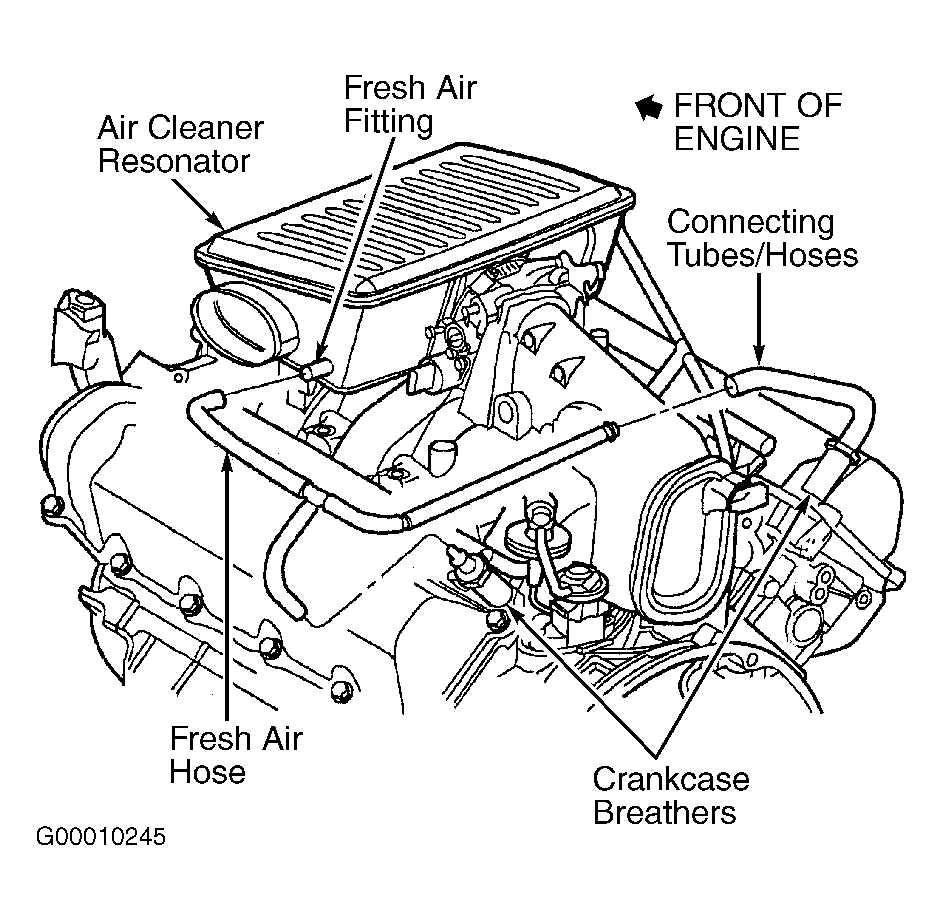

Fig 33: Locating Positive Crankcase Ventilation Breathers, Hoses & Tubes (4.7L)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 34: Locating Powertrain Control Module & Harness Connectors (Except NGC)

Courtesy of DAIMLERCHRYSLER

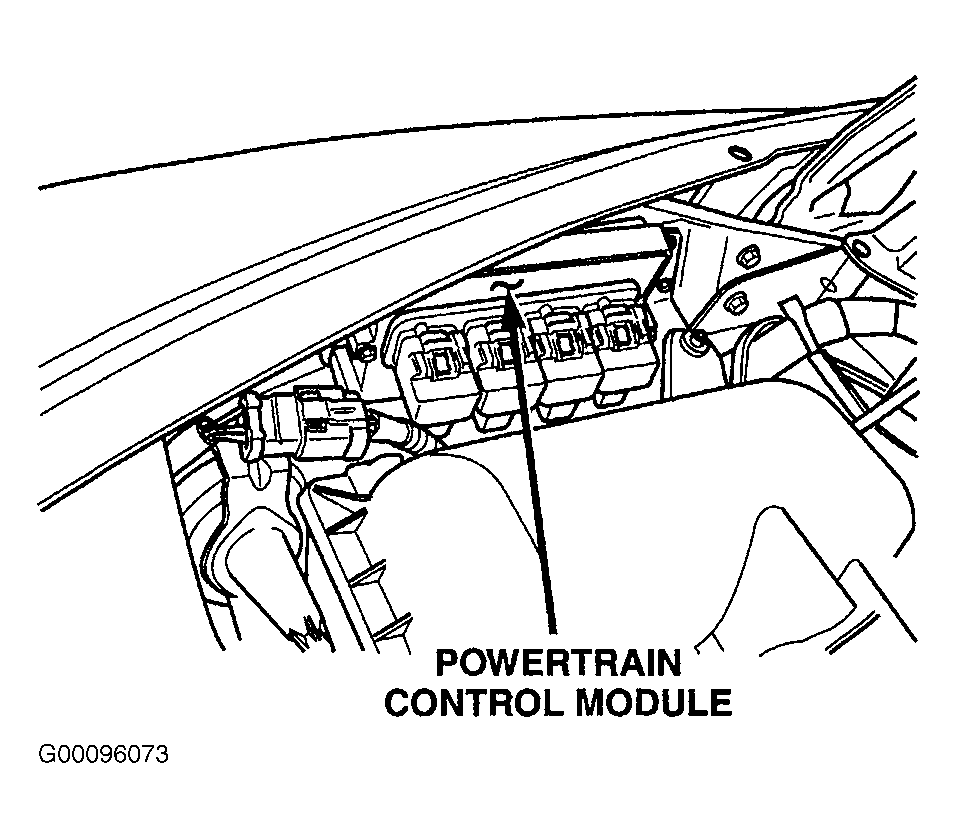

Fig 35: Locating Powertrain Control Module (NGC)

Courtesy of DAIMLERCHRYSLER
