Connector Identification

WARNING: This page is about a different car, the 2002 Dodge Durango and 2002 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For connector identification not given in this article, see CONNECTOR IDENTIFICATION in appropriate SELF-DIAGNOSTICS article. See SELF-DIAGNOSTICS - DAKOTA , SELF-DIAGNOSTICS - DURANGO - JTEC or SELF-DIAGNOSTICS - DURANGO - NGC article.

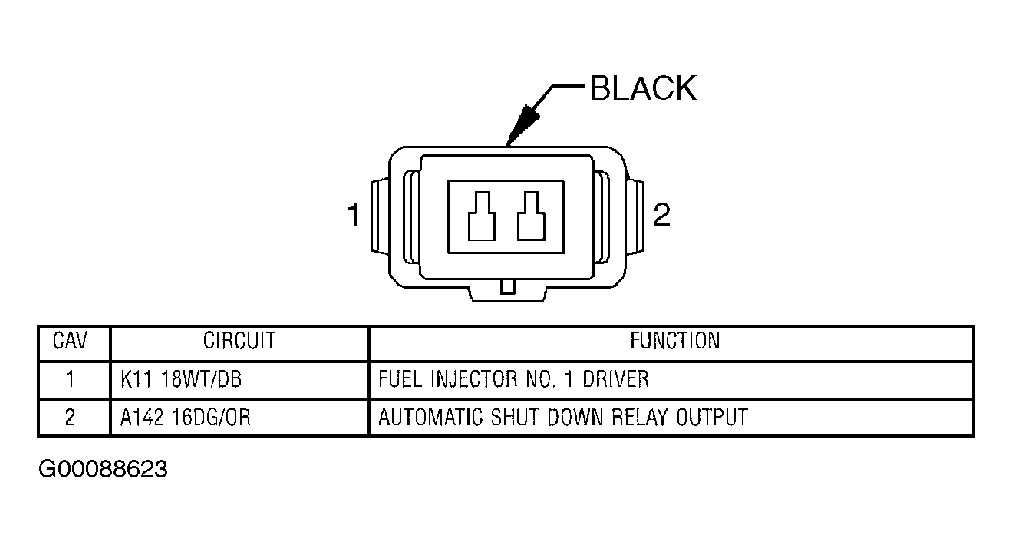

Fig 1: Identifying Fuel Injector No. 1 Harness Connector Terminals (2.5L)

G00088623

Courtesy of DAIMLERCHRYSLER

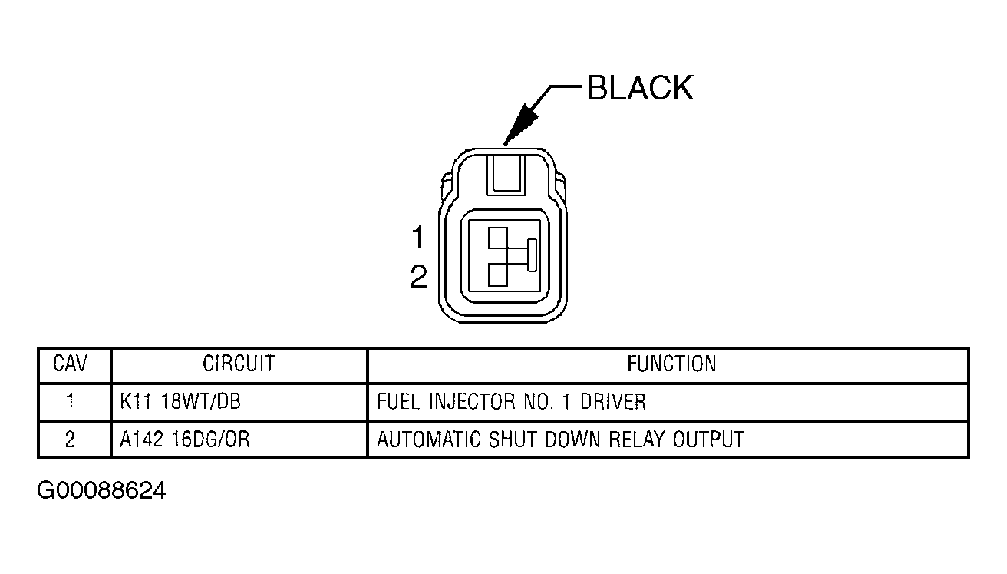

Fig 2: Identifying Fuel Injector No. 1 Harness Connector Terminals (3.9L, 4.7L & 5.9L)

G00088624

Courtesy of DAIMLERCHRYSLER

Fig 3: Identifying Fuel Injector No. 2 Harness Connector Terminals (2.5L)

G00088625

Courtesy of DAIMLERCHRYSLER

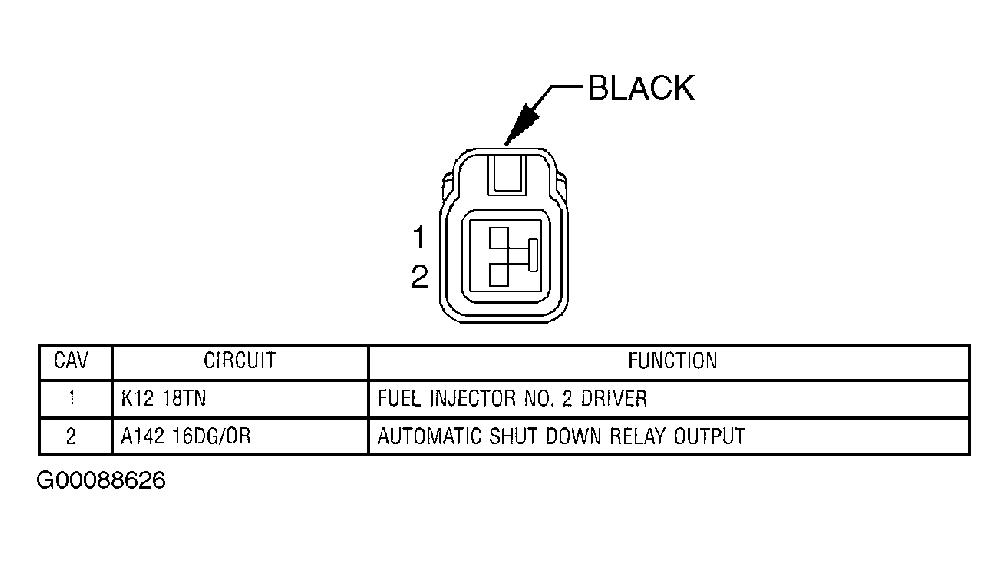

Fig 4: Identifying Fuel Injector No. 2 Harness Connector Terminals (3.9L, 4.7L & 5.9L)

G00088626

Courtesy of DAIMLERCHRYSLER

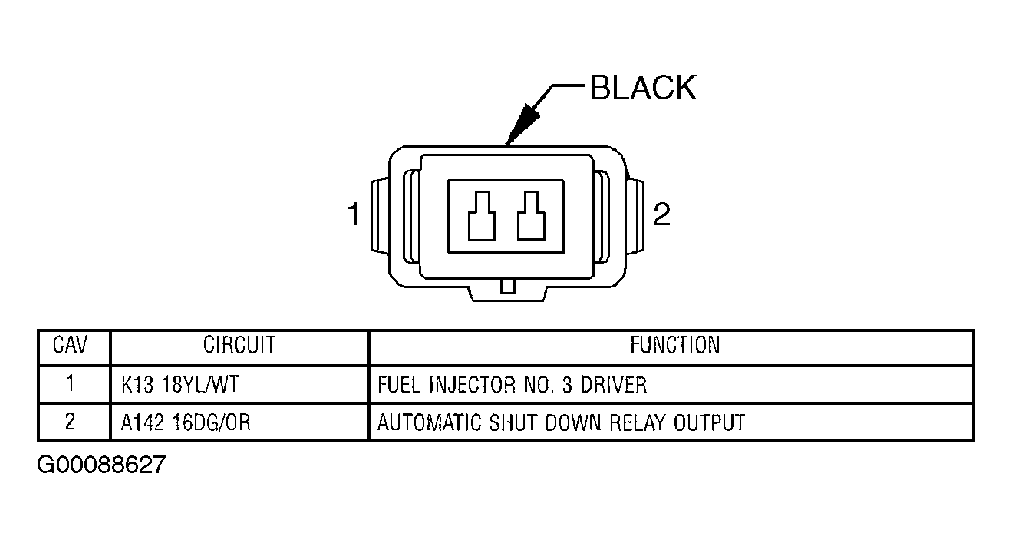

Fig 5: Identifying Fuel Injector No. 3 Harness Connector Terminals (2.5L)

G00088627

Courtesy of DAIMLERCHRYSLER

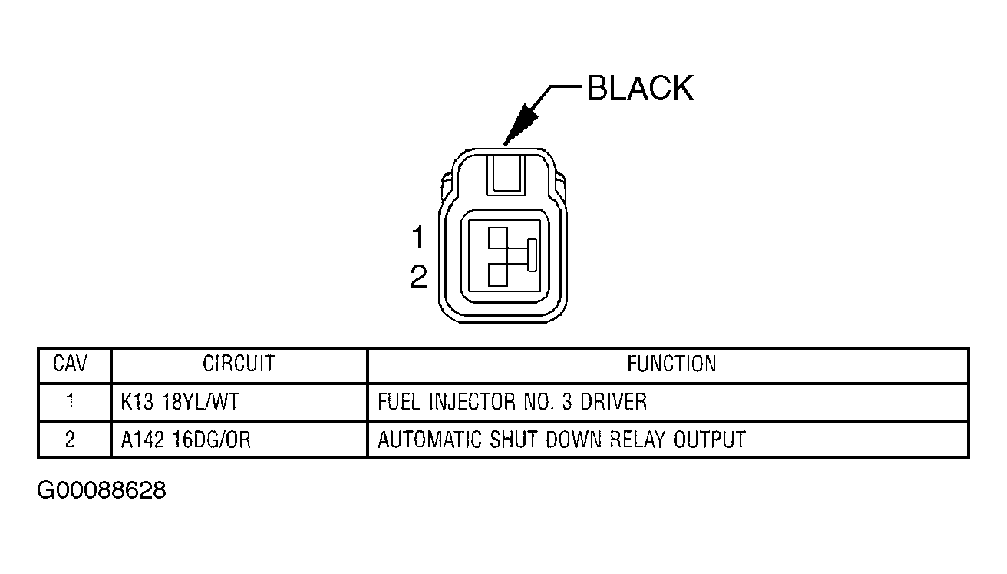

Fig 6: Identifying Fuel Injector No. 3 Harness Connector Terminals (3.9L, 4.7L & 5.9L)

G00088628

Courtesy of DAIMLERCHRYSLER

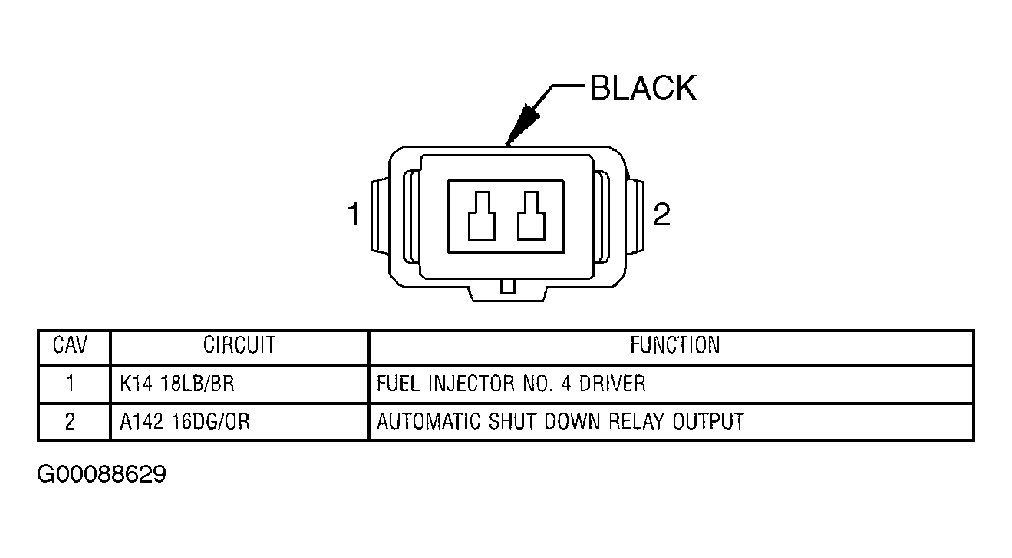

Fig 7: Identifying Fuel Injector No. 4 Harness Connector Terminals (2.5L)

G00088629

Courtesy of DAIMLERCHRYSLER

Fig 8: Identifying Fuel Injector No. 4 Harness Connector Terminals (3.9L, 4.7L & 5.9L)

G00088630

Courtesy of DAIMLERCHRYSLER

Fig 9: Identifying Fuel Injector No. 5 Harness Connector Terminals (3.9L, 4.7L & 5.9L)

G00088631

Courtesy of DAIMLERCHRYSLER

Fig 10: Identifying Fuel Injector No. 6 Harness Connector Terminals (3.9L, 4.7L & 5.9L)

G00088632

Courtesy of DAIMLERCHRYSLER

Fig 11: Identifying Fuel Injector No. 7 Harness Connector Terminals (4.7L & 5.9L)

G00088633

Courtesy of DAIMLERCHRYSLER

Fig 12: Identifying Fuel Injector No. 8 Harness Connector Terminals (4.7L & 5.9L)

G00088634

Courtesy of DAIMLERCHRYSLER

Fig 13: Identifying Fuel Pump Module Harness Connector Terminals (Dakota)

G00088635

Courtesy of DAIMLERCHRYSLER

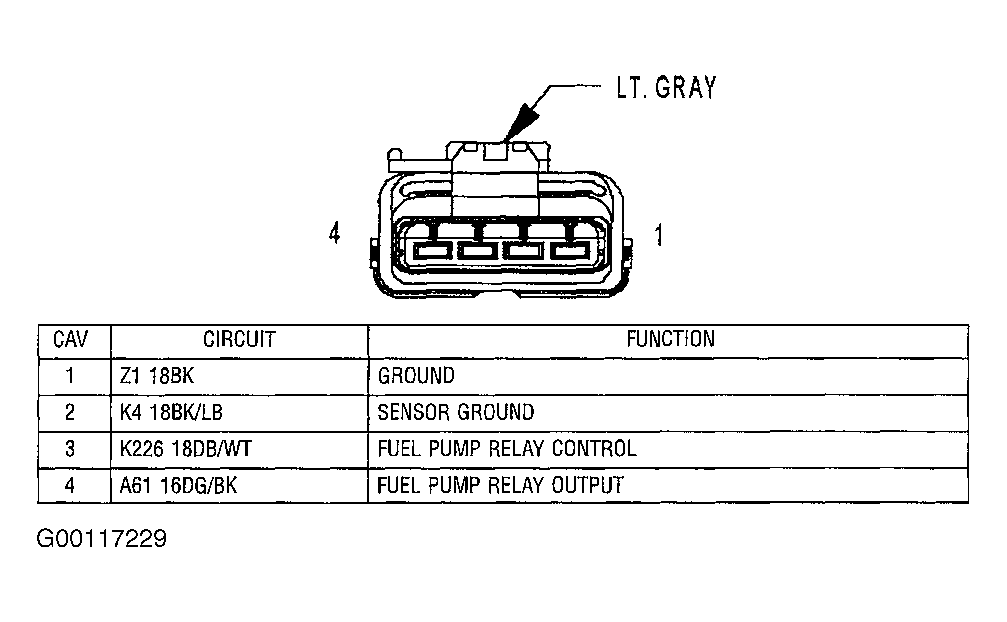

Fig 14: Identifying Fuel Pump Module Harness Connector Terminals (Durango - JTEC)

G00117229

Courtesy of DAIMLERCHRYSLER CORP.

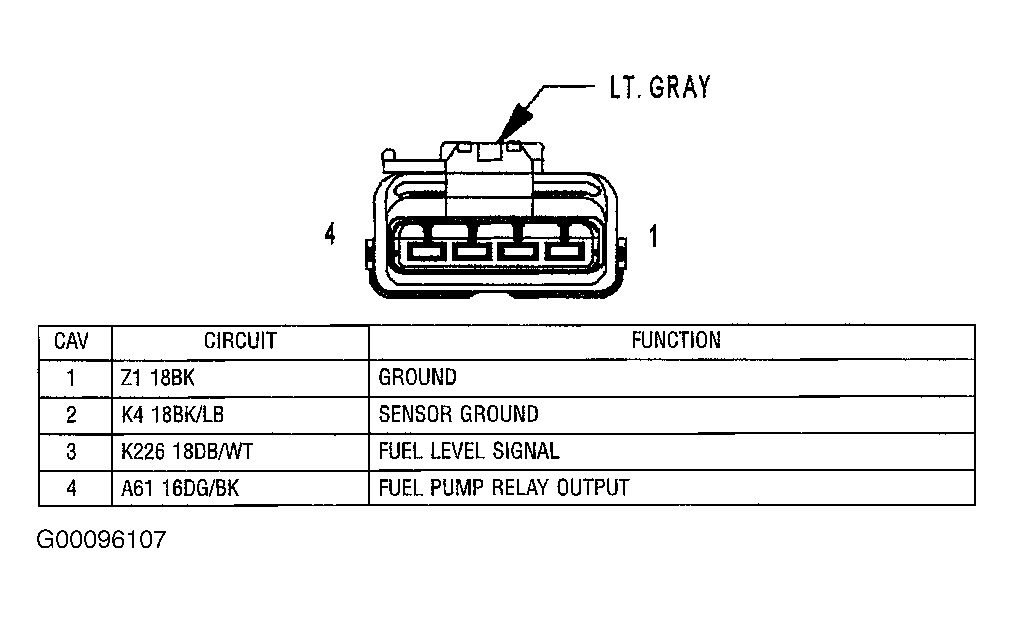

Fig 15: Identifying Fuel Pump Module Harness Connector Terminals (Durango - NGC)

G00096107

Courtesy of DAIMLERCHRYSLER CORP.

Fig 16: Identifying Power Distribution Center Components (Dakota)

G00096045

Courtesy of DAIMLERCHRYSLER

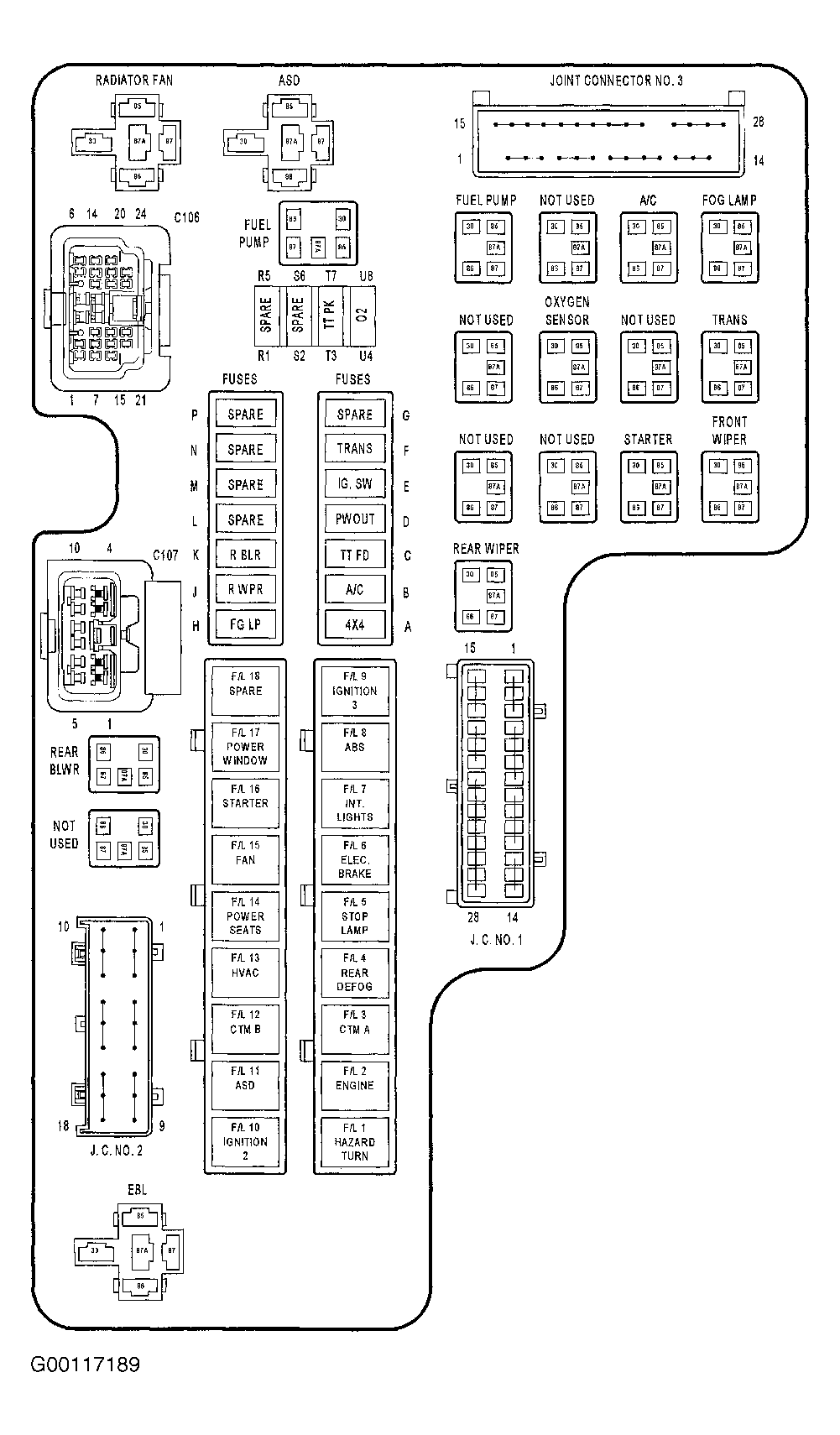

Fig 17: Identifying Power Distribution Center Components (Durango)

G00117189

Courtesy of DAIMLERCHRYSLER CORP.

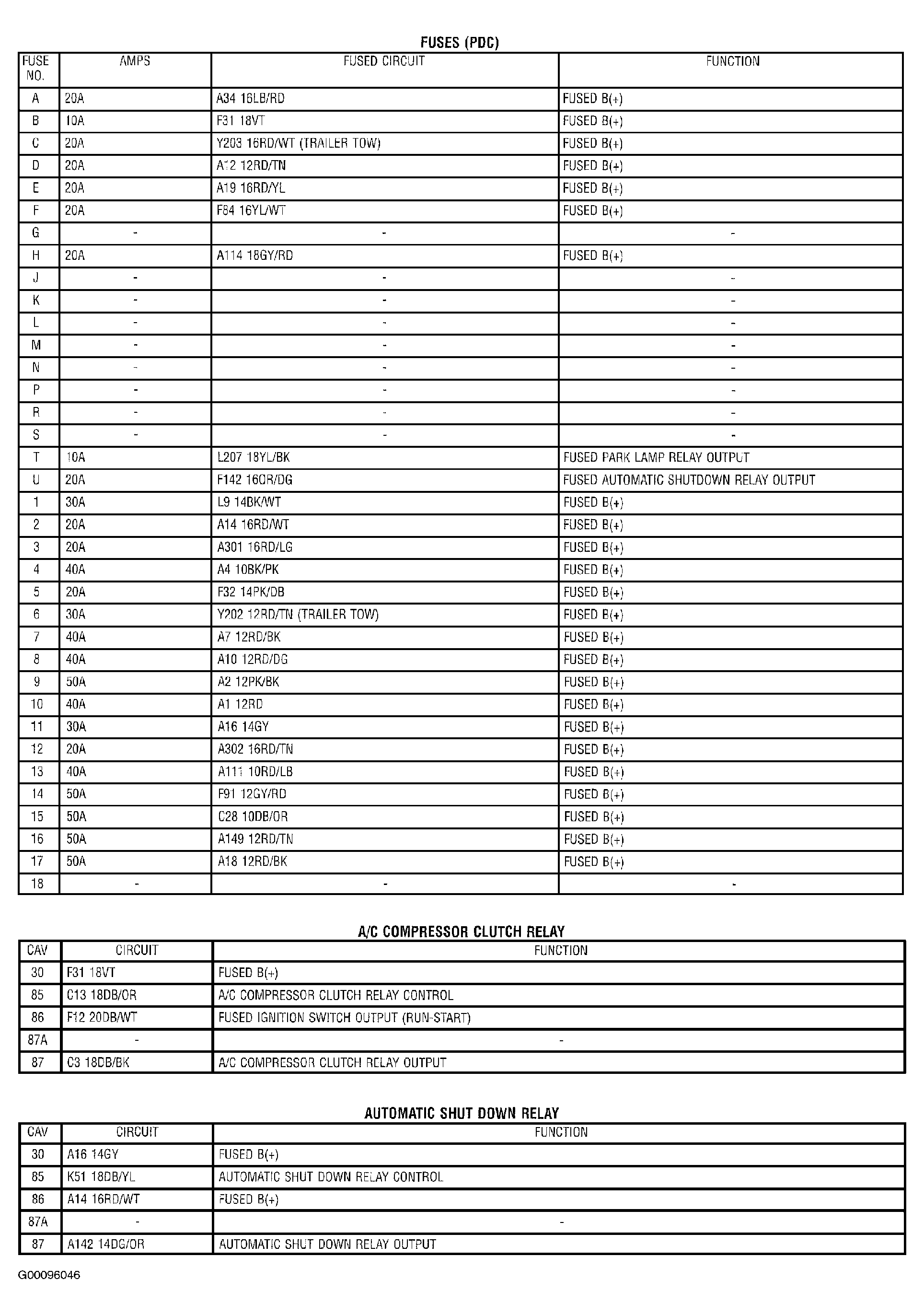

Fig 18: Identifying Power Distribution Center Circuits (Dakota - 1 Of 2)

G00096046

Courtesy of DAIMLERCHRYSLER

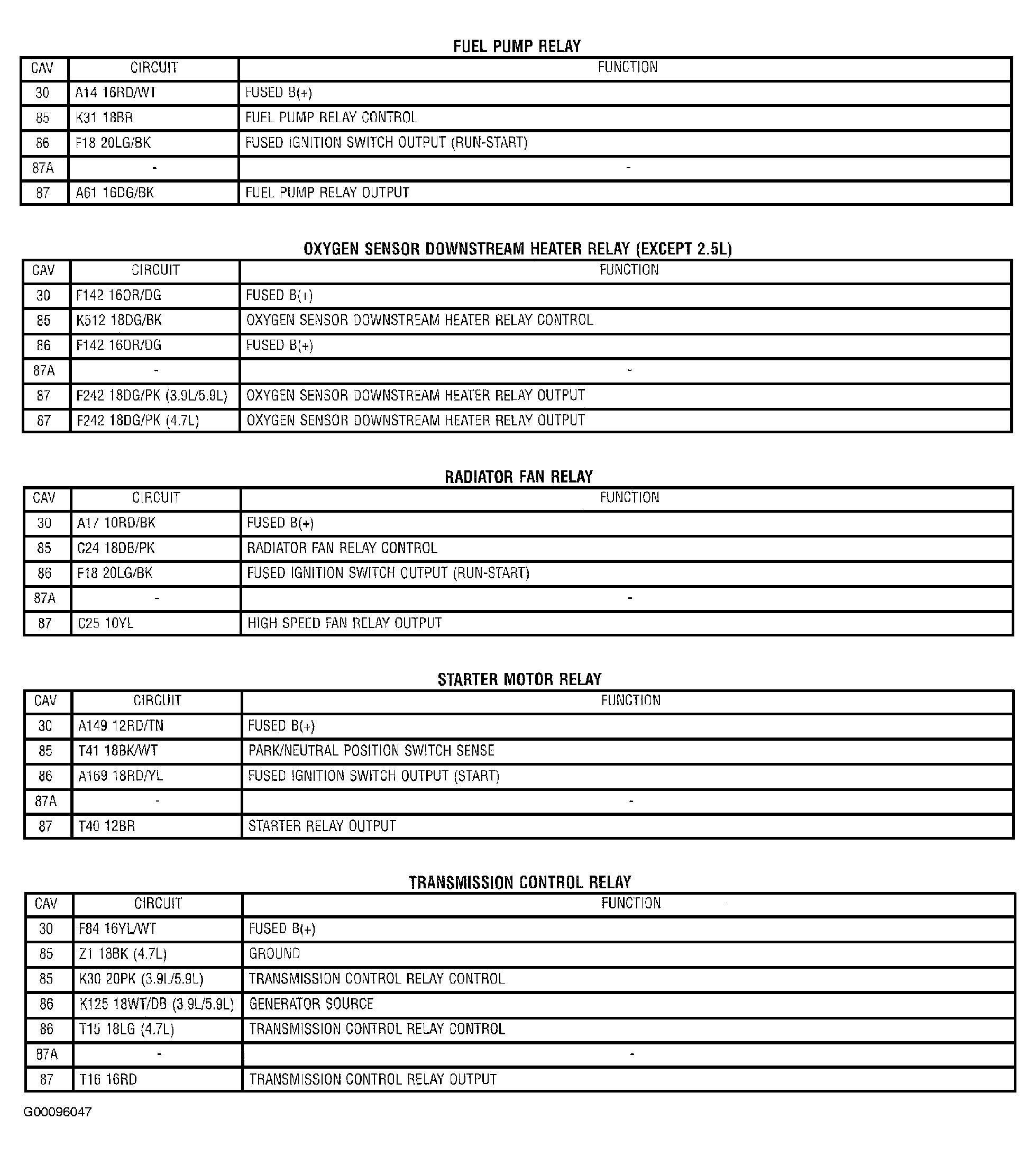

Fig 19: Identifying Power Distribution Center Circuits (Dakota - 2 Of 2)

G00096047

Courtesy of DAIMLERCHRYSLER

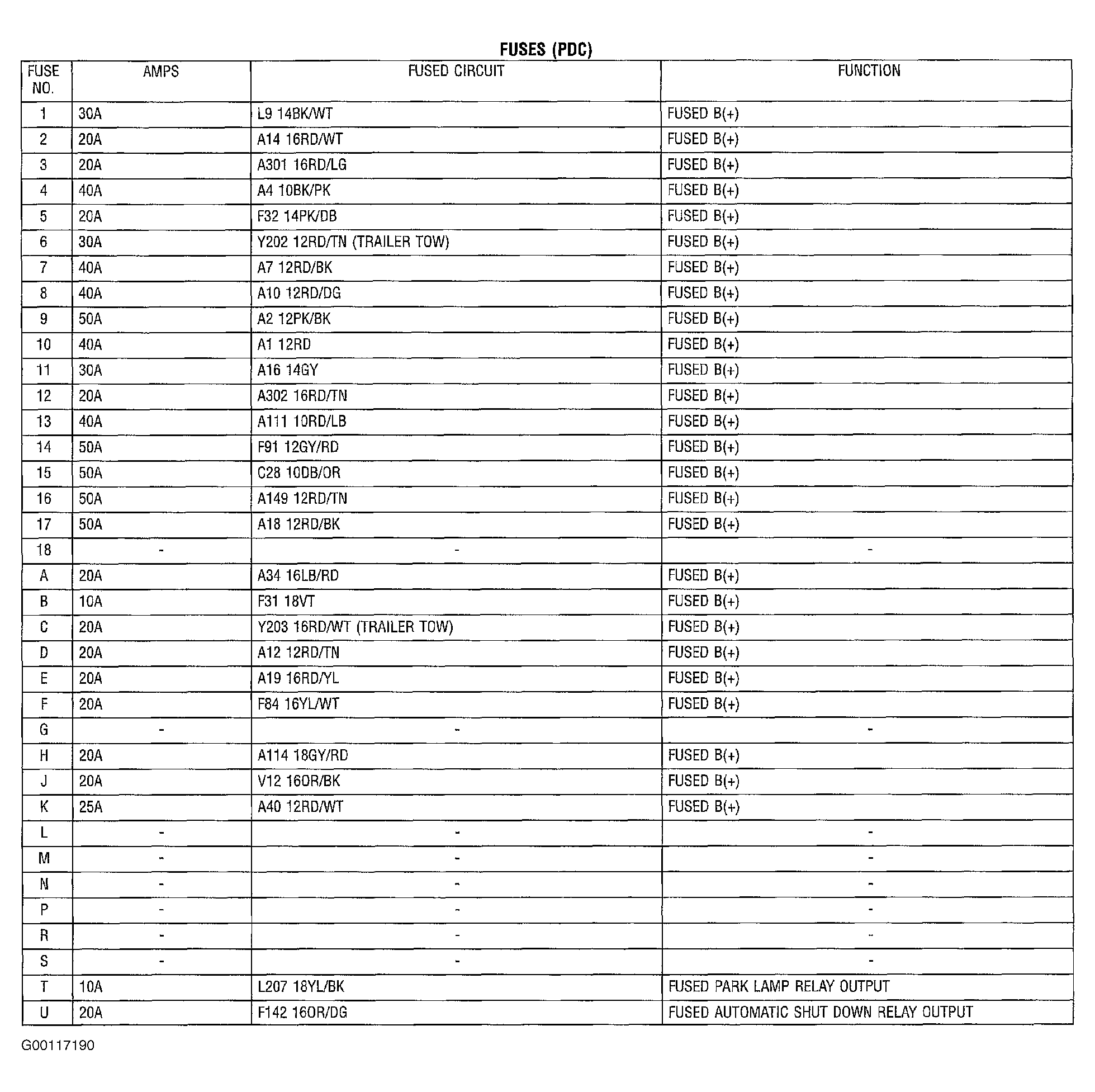

Fig 20: Identifying Power Distribution Center Fused Circuits (Durango - JTEC & NGC)

G00117190

Courtesy of DAIMLERCHRYSLER CORP.

Fig 21: Identifying Power Distribution Center Relay Circuits (Durango - JTEC)

G00117239

Courtesy of DAIMLERCHRYSLER CORP.

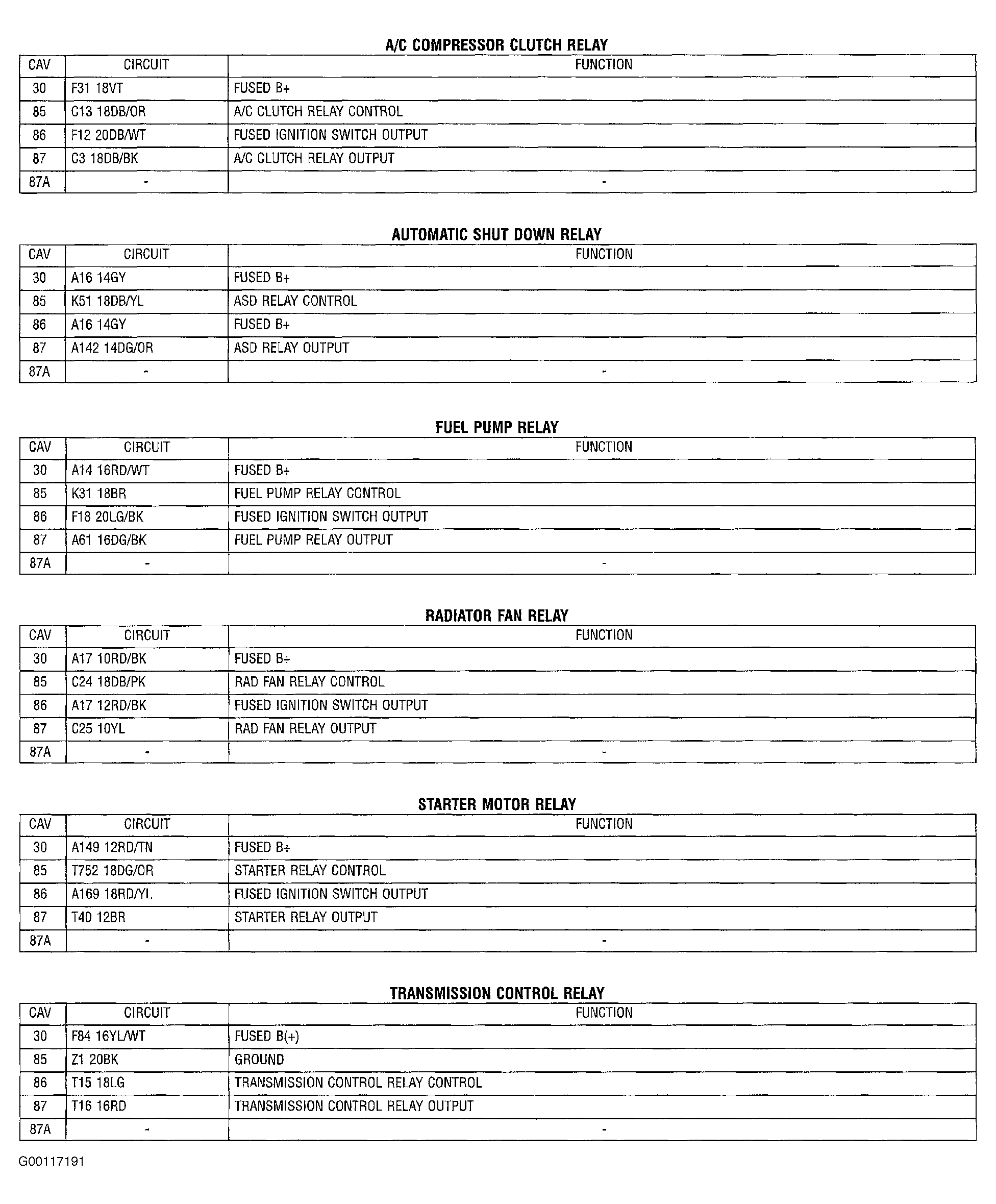

Fig 22: Identifying Power Distribution Center Relay Circuits (Durango - NGC)

G00117191

Courtesy of DAIMLERCHRYSLER CORP.

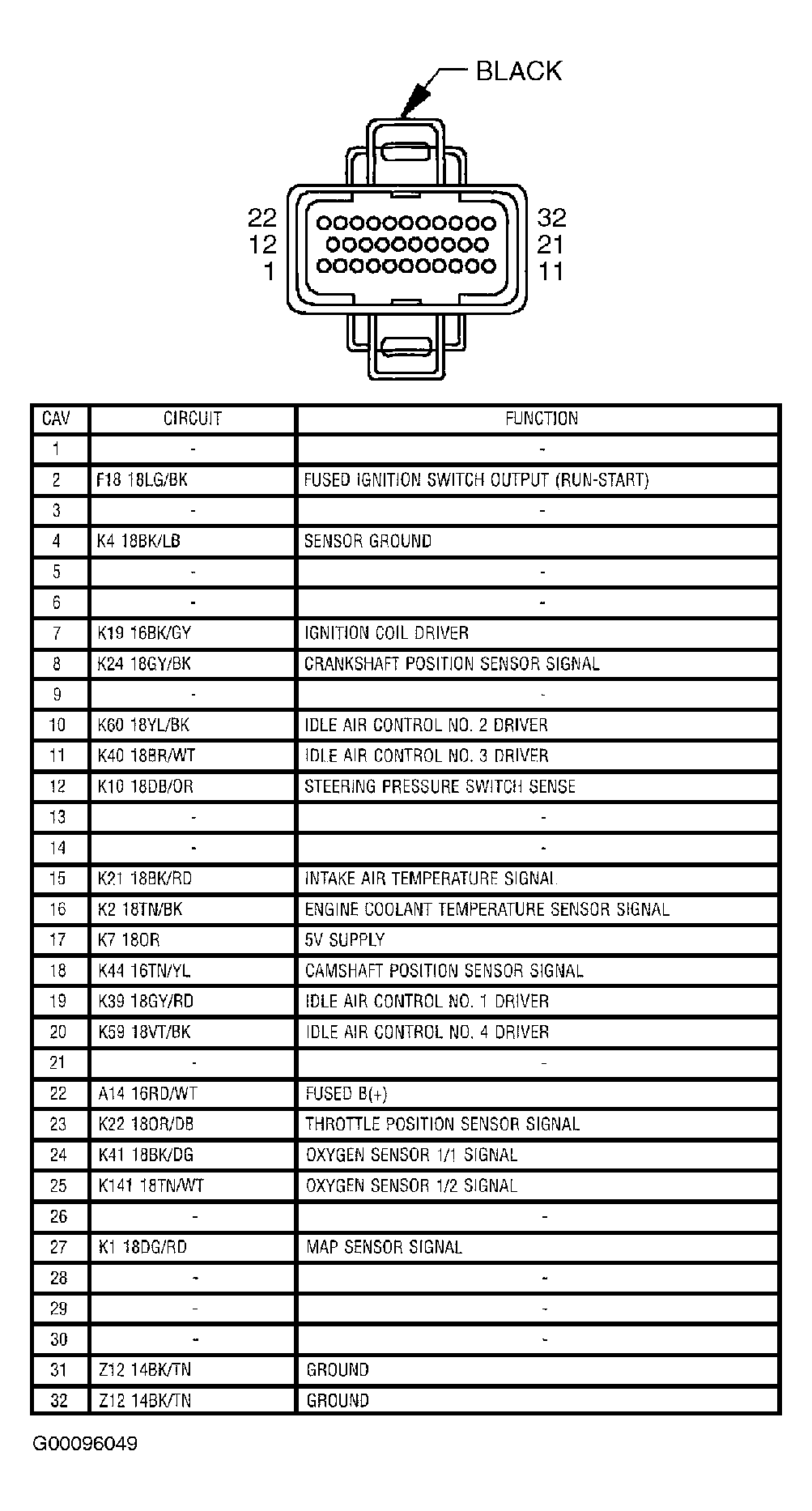

Fig 23: Identifying Powertrain Control Module Harness Connector C1 Terminals (2.5L)

G00096049

Courtesy of DAIMLERCHRYSLER

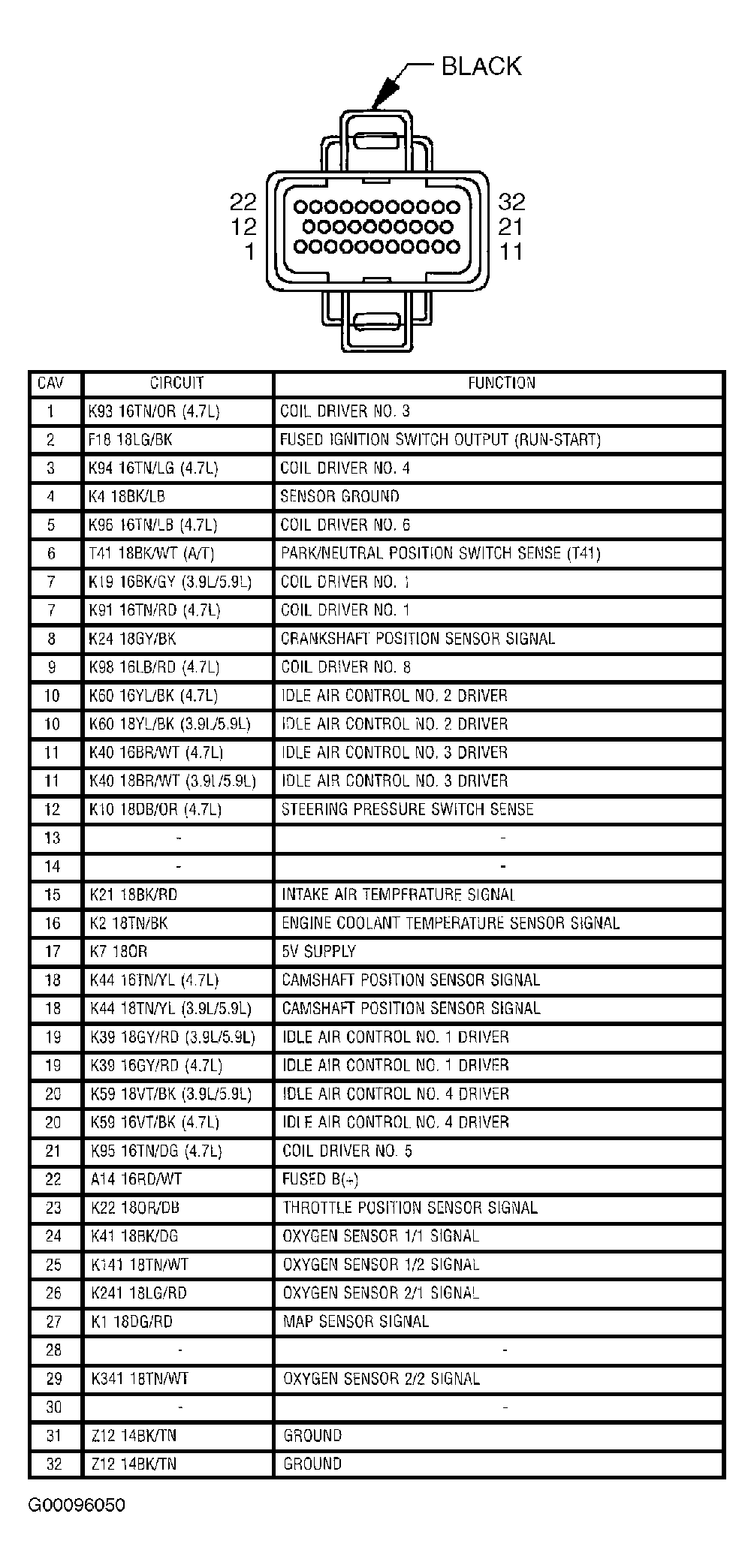

Fig 24: Identifying Powertrain Control Module Harness Connector C1 Terminals (3.9L, 4.7L & 5.9L - JTEC)

G00096050

Courtesy of DAIMLERCHRYSLER

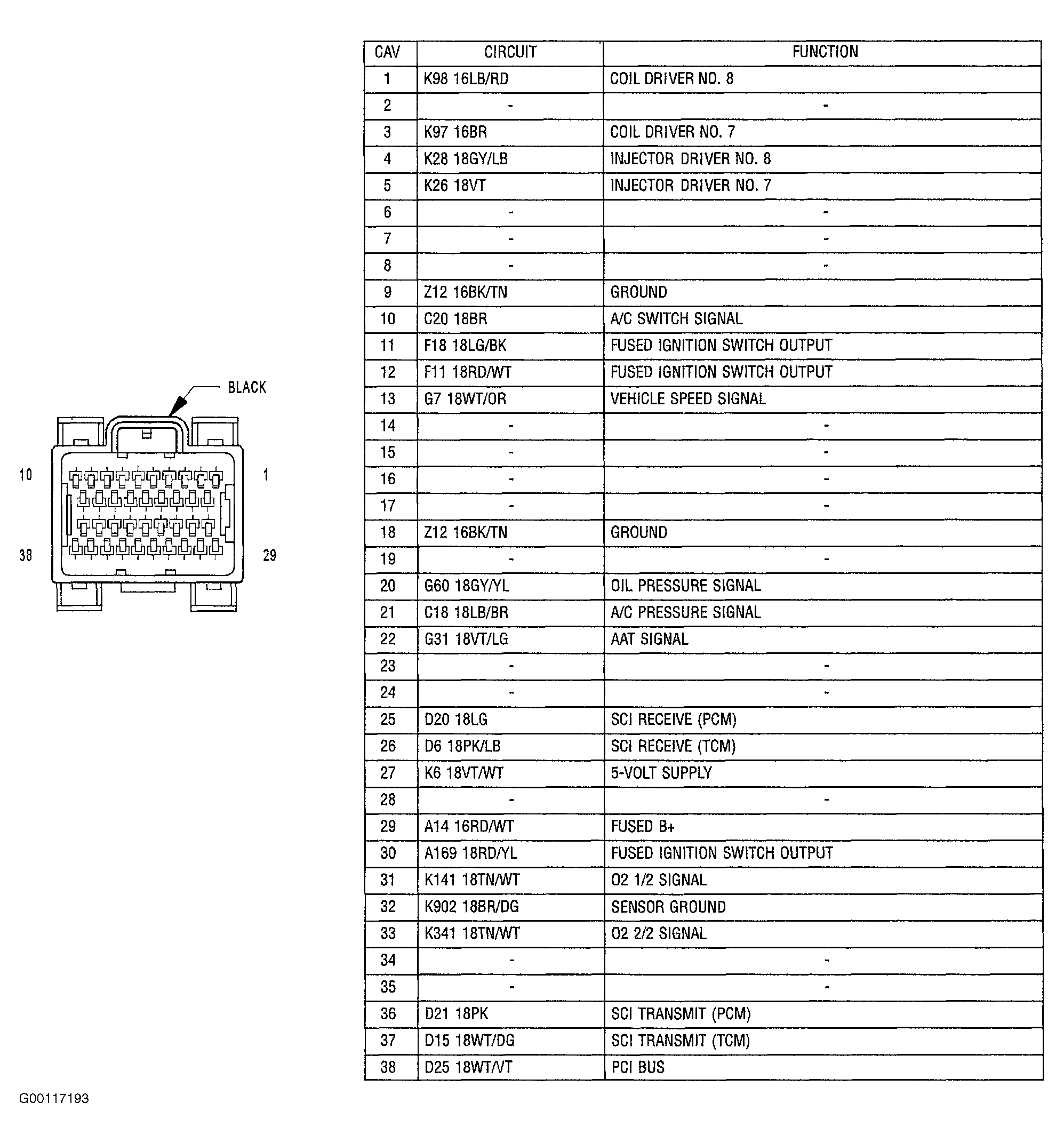

Fig 25: Identifying Powertrain Control Module Harness Connector C1 Terminals (4.7L - NGC)

G00117193

Courtesy of DAIMLERCHRYSLER

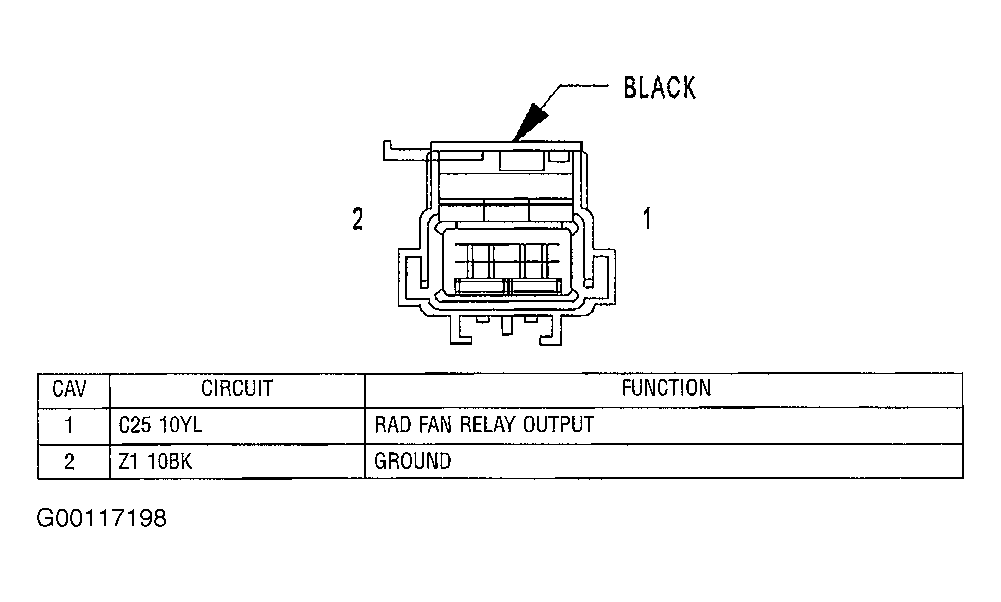

Fig 26: Identifying Radiator Fan Motor Harness Connector Terminals

G00117198

Courtesy of DAIMLERCHRYSLER

Fig 27: Identifying Relay Terminals (Typical - Type-1)

G97E28302

Courtesy of DAIMLERCHRYSLER CORPORATION

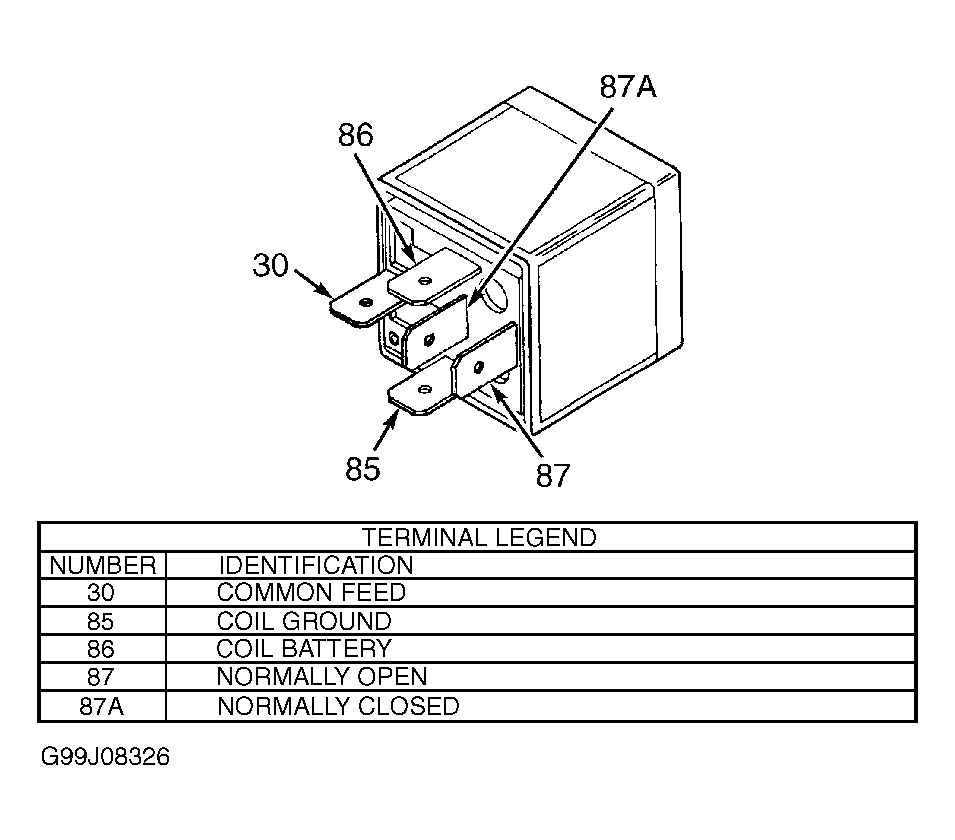

Fig 28: Identifying Relay Terminals (Typical - Type-2)

G99J08326

Courtesy of DAIMLERCHRYSLER CORPORATION
