Engine Control Module (Diesel) Connector End View (C1)

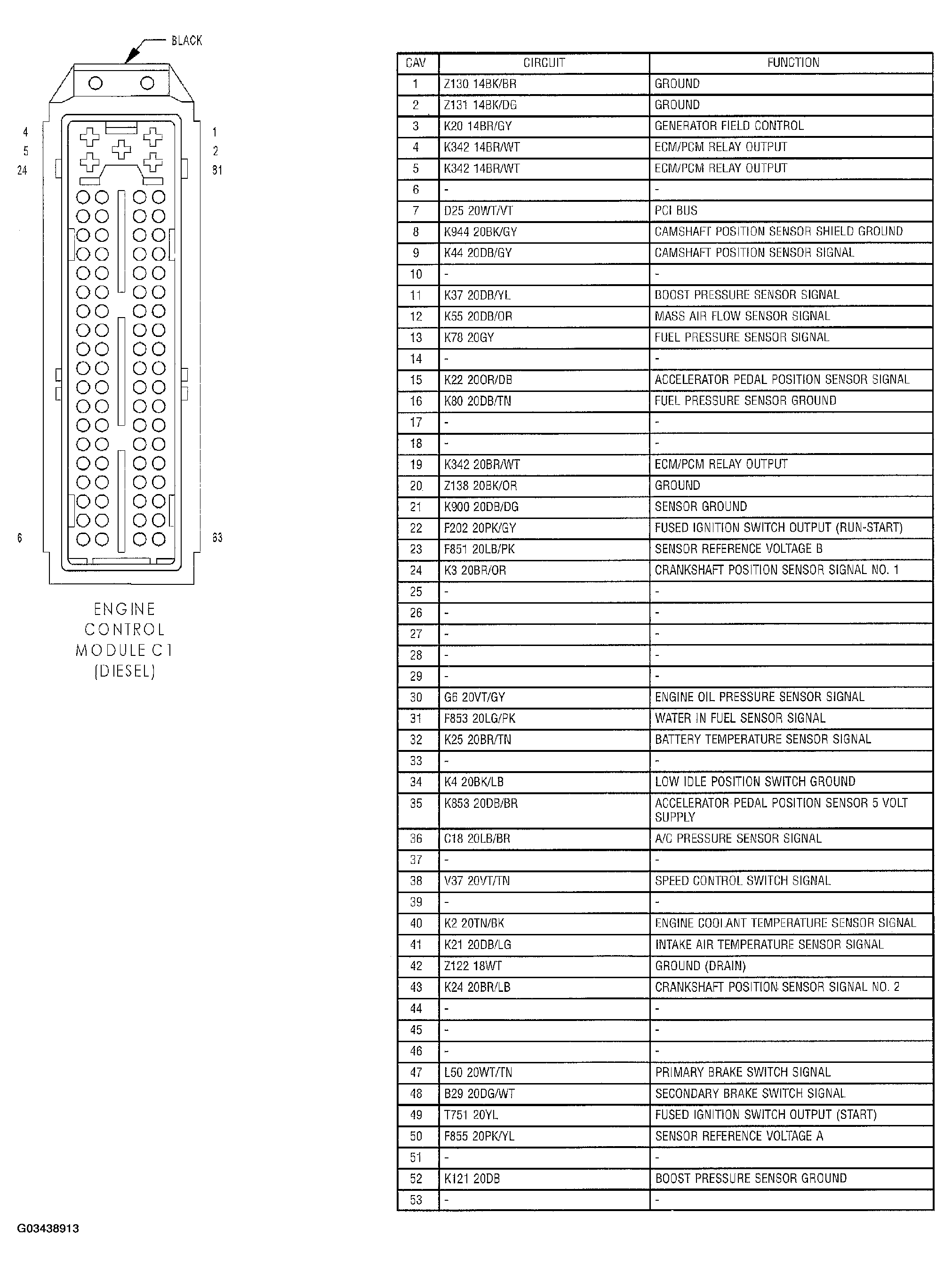

Fig 1: Engine Control Module (Diesel) Connector End View (C1)
G03438913Courtesy of DAIMLERCHRYSLER CORP.

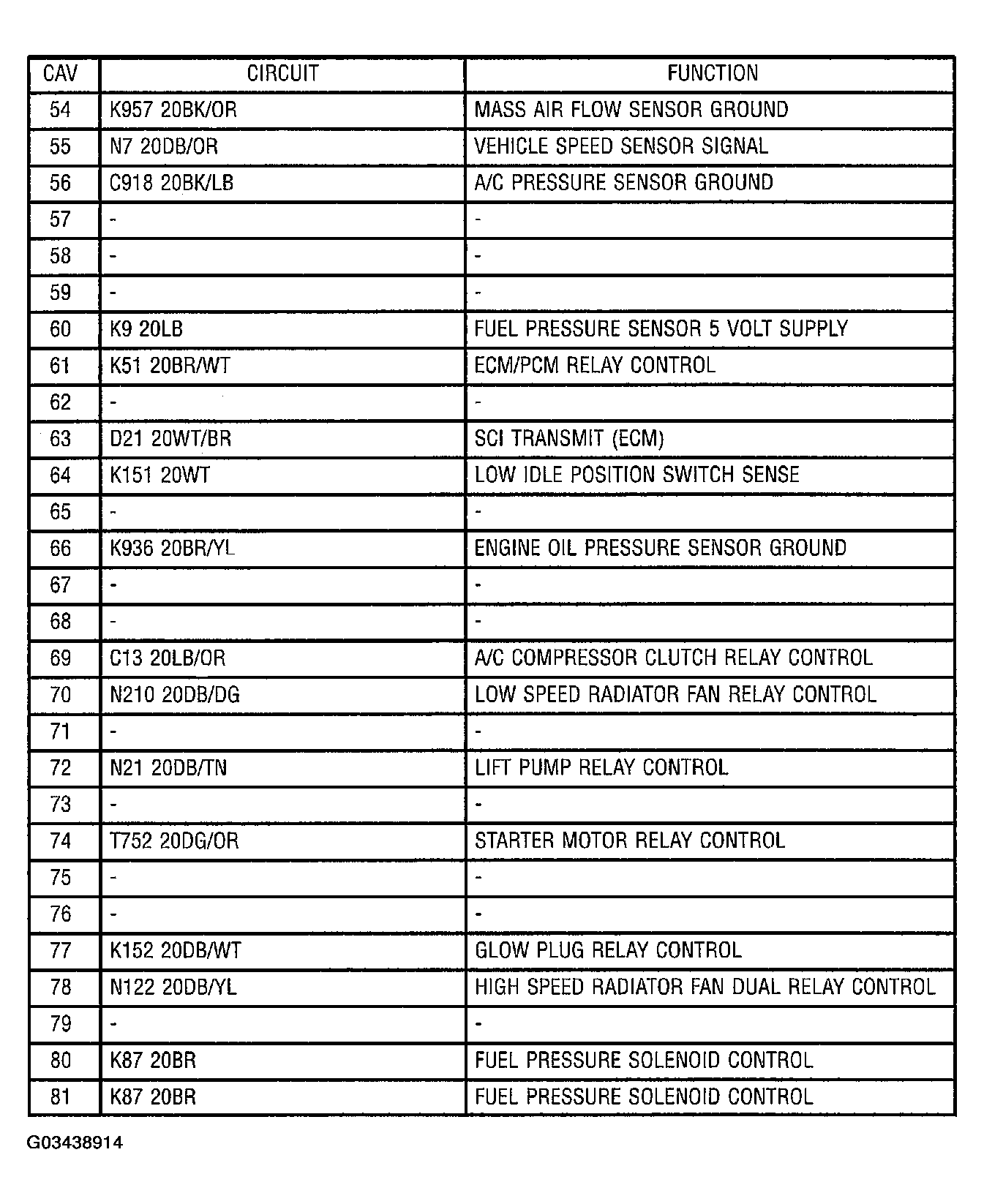

Fig 1: Engine Control Module (Diesel) Connector End View (C1)
G03438914Courtesy of DAIMLERCHRYSLER CORP.
