Park/Neutral Position Switch (3-Speed A/T)

Park/Neutral Position (PNP) switch is located on side of transaxle. See Fig 1 . Individual component testing information is not available from manufacturer. If PNP switch or wiring circuit failure exists, a DTC may be stored in PCM: See the following:

• On 2.4L, see DIAGNOSTIC TROUBLE CODE DEFINITIONS in SELF-DIAGNOSTICS - CARAVAN & VOYAGER - 2.4L article.
• On 3.3L and 3.8L, see DIAGNOSTIC TROUBLE CODE DEFINITIONS in SELF-DIAGNOSTICS - CARAVAN, TOWN & COUNTRY, & VOYAGER - 3.3L & 3.8L article.

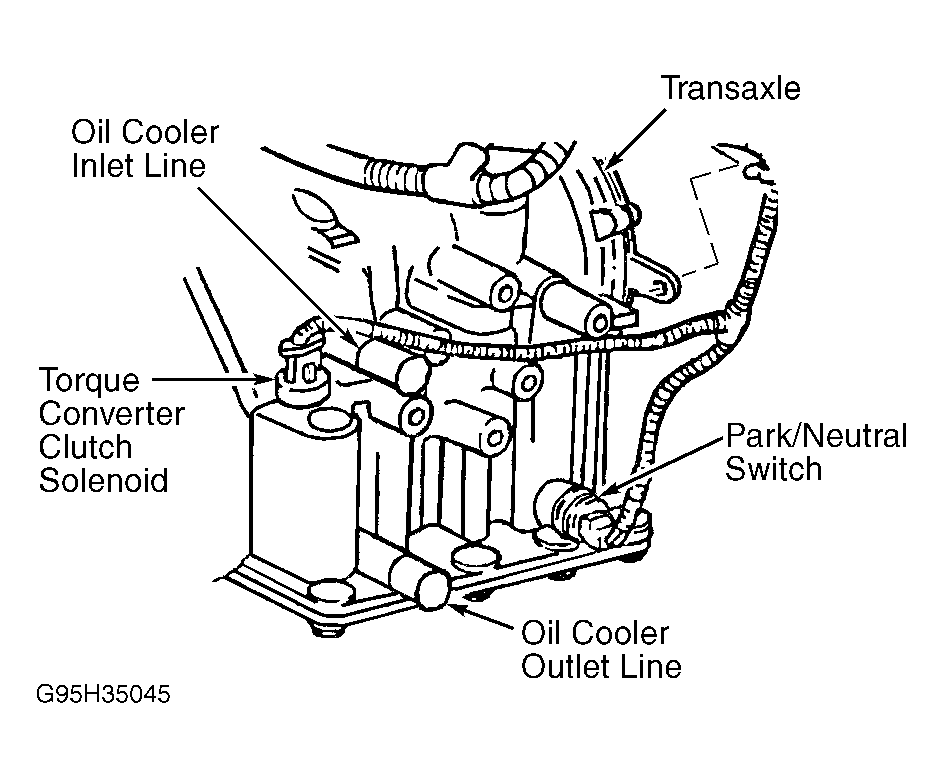

Fig 1: Locating Park/Neutral Switch & Torque Converter Clutch Solenoid (3-Speed A/T)

Courtesy of DAIMLERCHRYSLER CORPORATION
