Memory Seat/Mirror Module Connector End View (C3)

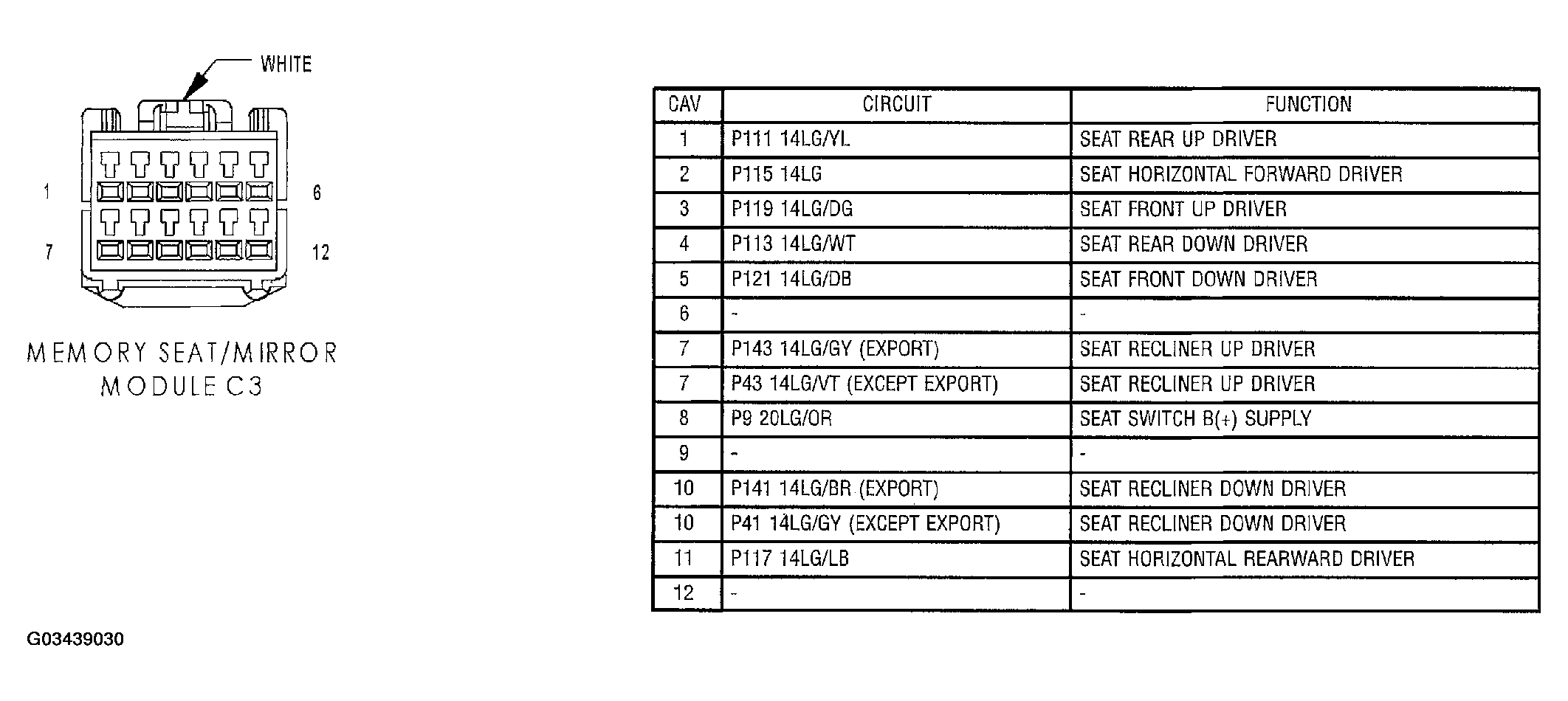

Fig 1: Memory Seat/Mirror Module Connector End View (C3)
G03439030Courtesy of DAIMLERCHRYSLER CORP.
