Vehicle Emission Control Information Label

All vehicles are equipped with a combined VECI label. This label is located in the engine compartment. The VECI label contains the following:

Engine Family And Displacement
Evaporative Family
Emission Control System Schematic
Certification Application
Engine Timing Specifications (If Adjustable)
Idle Speeds (If Adjustable)
Spark Plug And Gap

The label also contains and engine vacuum schematic. There are unique labels for vehicles built for sale in the state of California and the country of Canada. Canadian labels are written in both the English and French languages. These labels are permanently attached and cannot be removed without defacing information and destroying label.

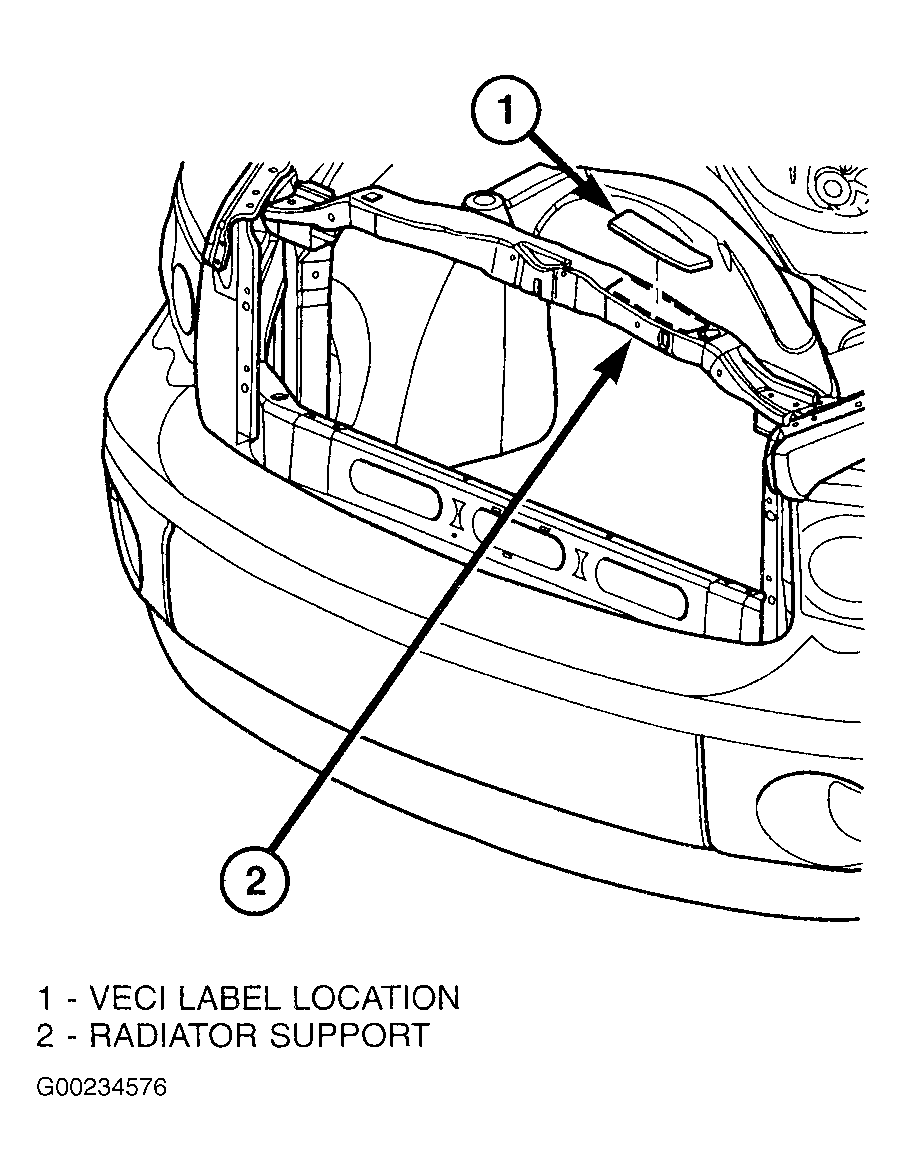

Fig 1: Locating VECI Label (Typical)

Courtesy of CHRYSLER CORP.

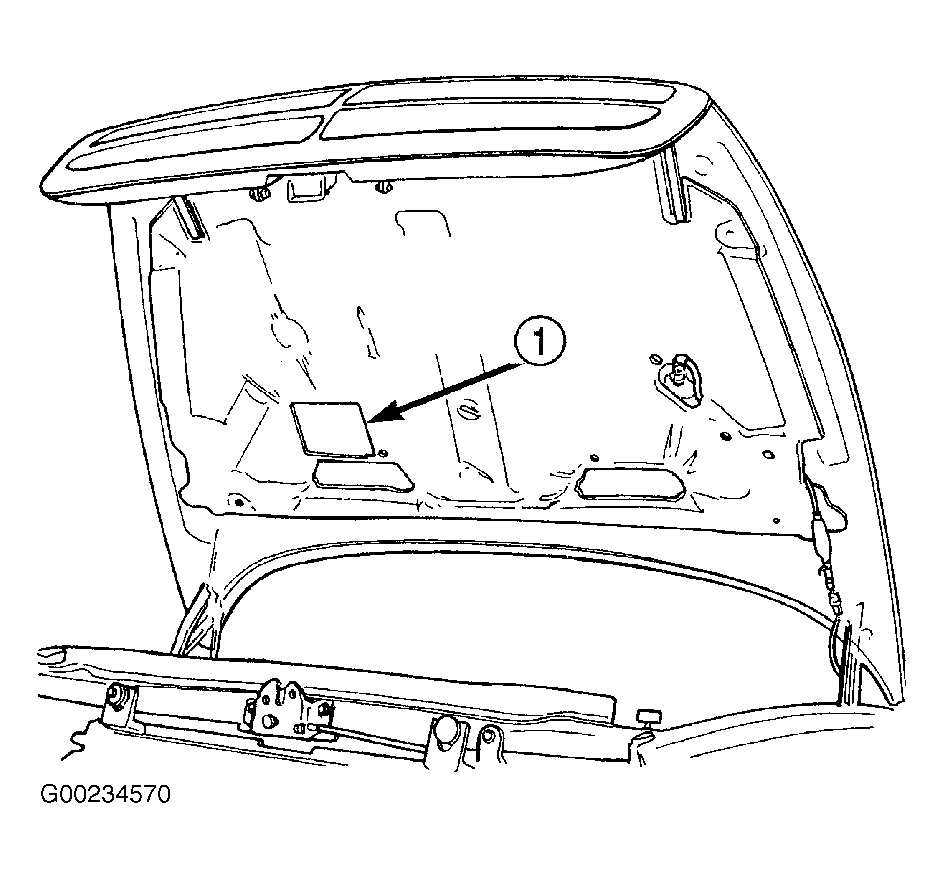

Fig 2: Locating VECI Label (Cab & Chassis, & Ram Pickup)

Courtesy of CHRYSLER CORP.

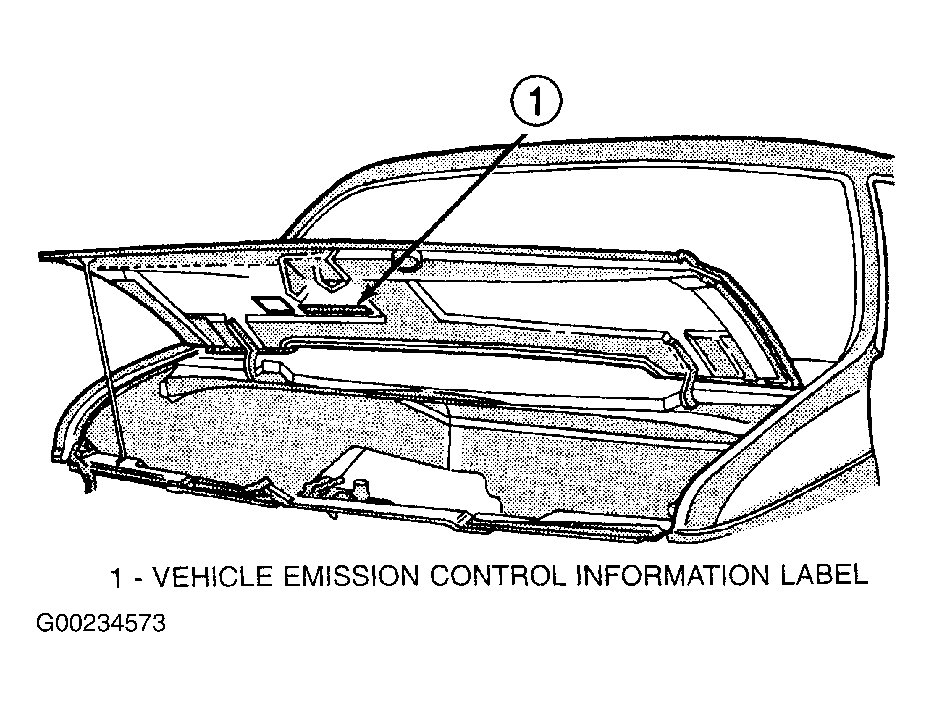

Fig 3: Locating VECI Label (Ram Van)

Courtesy of CHRYSLER CORP.
