Natural Vacuum Leak Detection Assembly: Installation

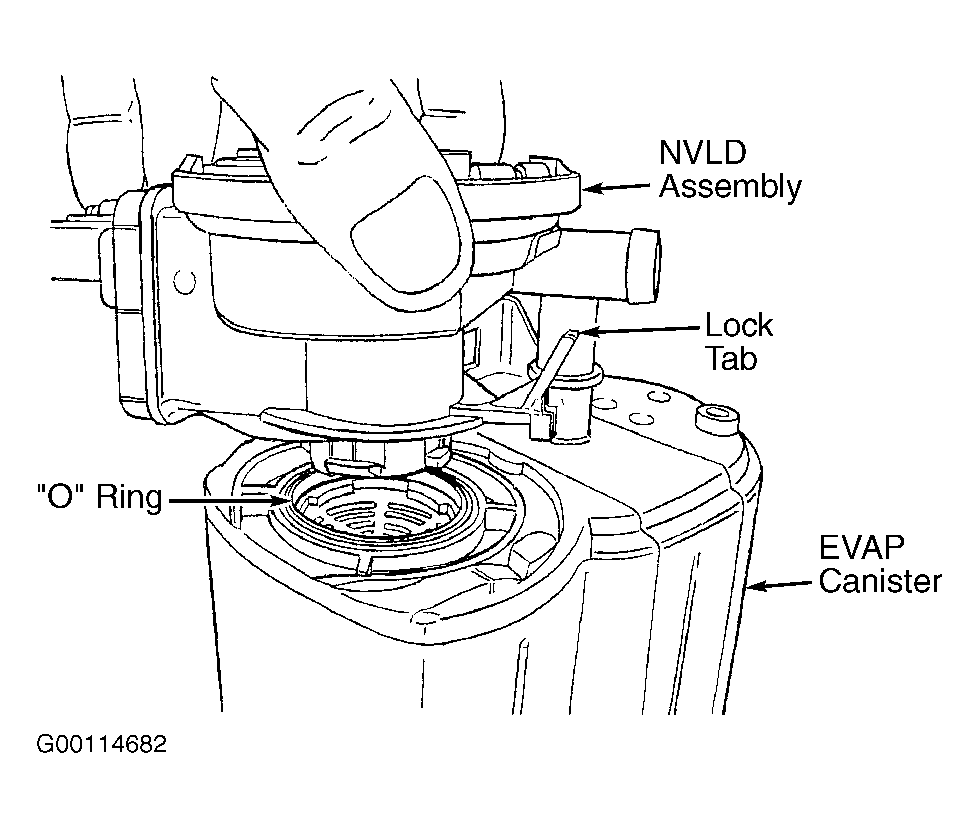

- Install "O" ring to EVAP canister. Install NVLD assembly and twist the assembly clockwise to lock assembly in the EVAP canister.
- Connect the hoses to the NVLD assembly. Connect the electrical connector to the NVLD assembly. Install fuel tank. See FUEL TANK under FUEL SYSTEMS. Reconnect negative battery cable at remote battery terminal on passenger's side strut tower.
