Blower Motor Power Module (Automatic Temperature Control) Connector End View

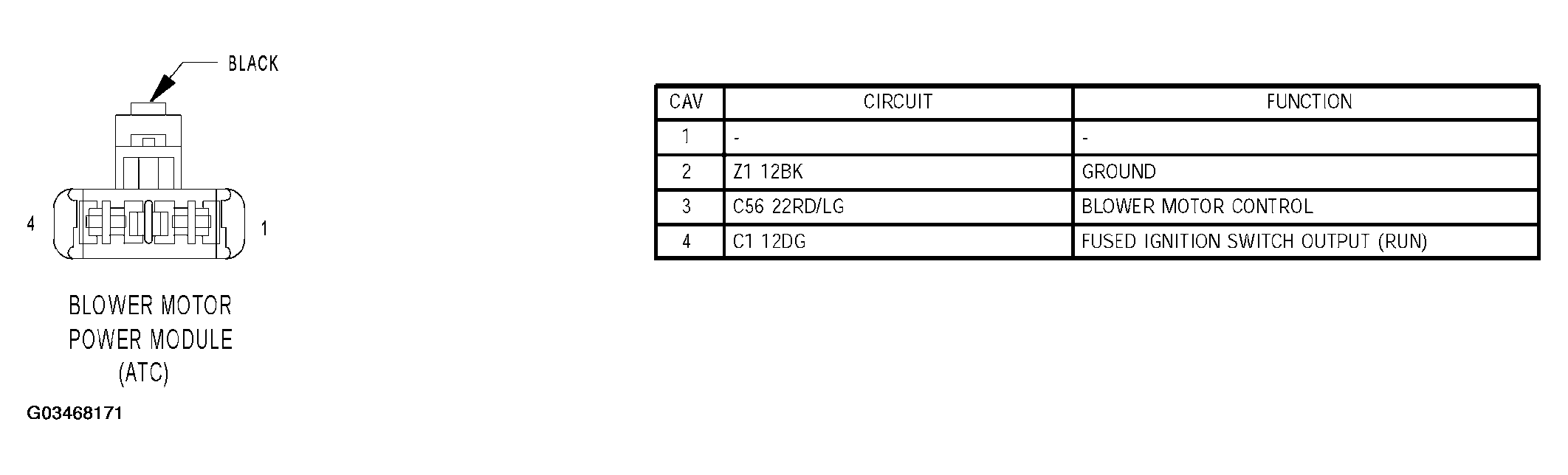

Fig 1: Blower Motor Power Module (Automatic Temperature Control) Connector End View
G03468171Courtesy of DAIMLERCHRYSLER CORP.
