Audio System - Premium Infinity I

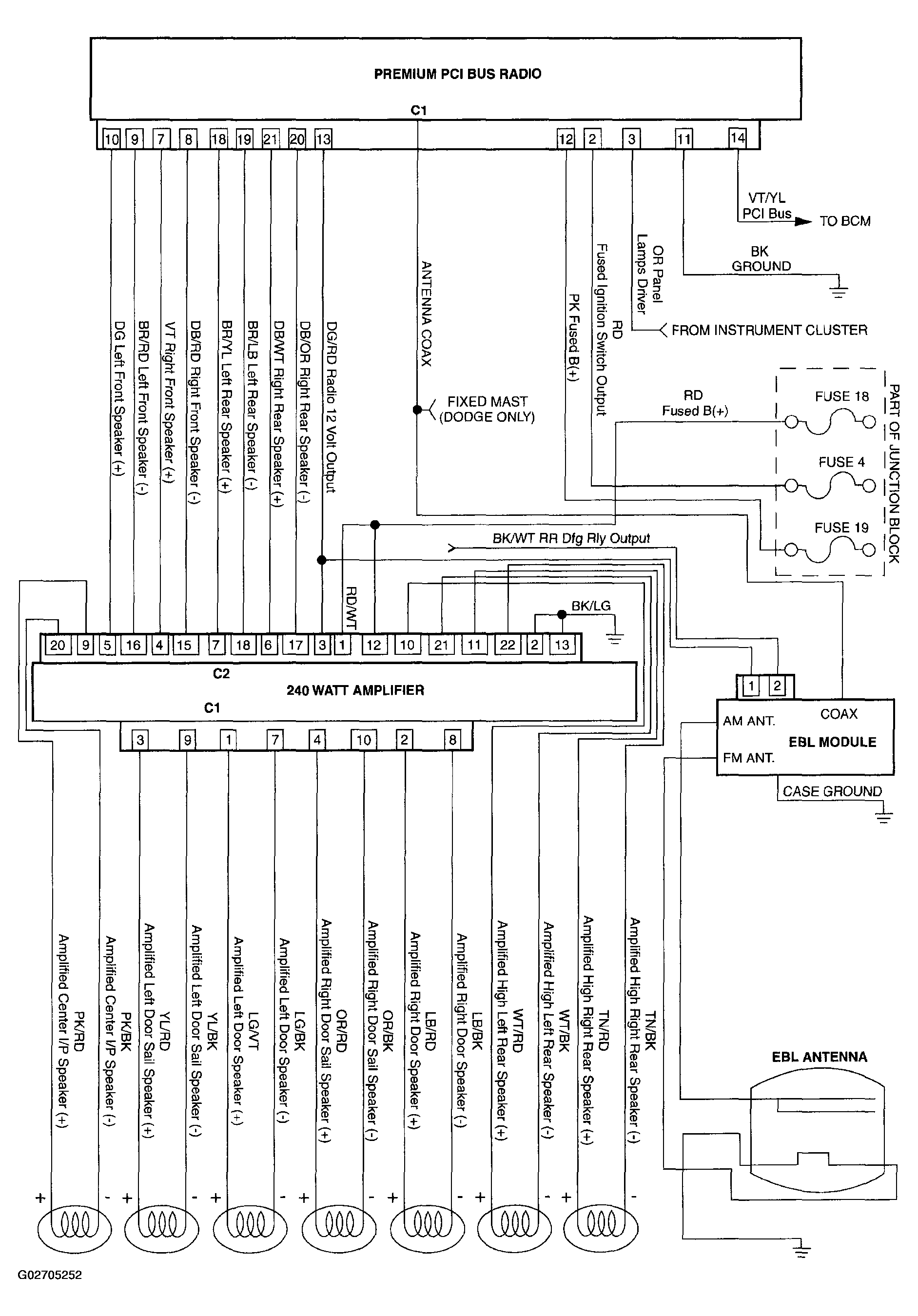

Fig 1: Schematic Diagrams - Audio System - Premium Infinity I
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
