Climate Control - Manual Temperature Control

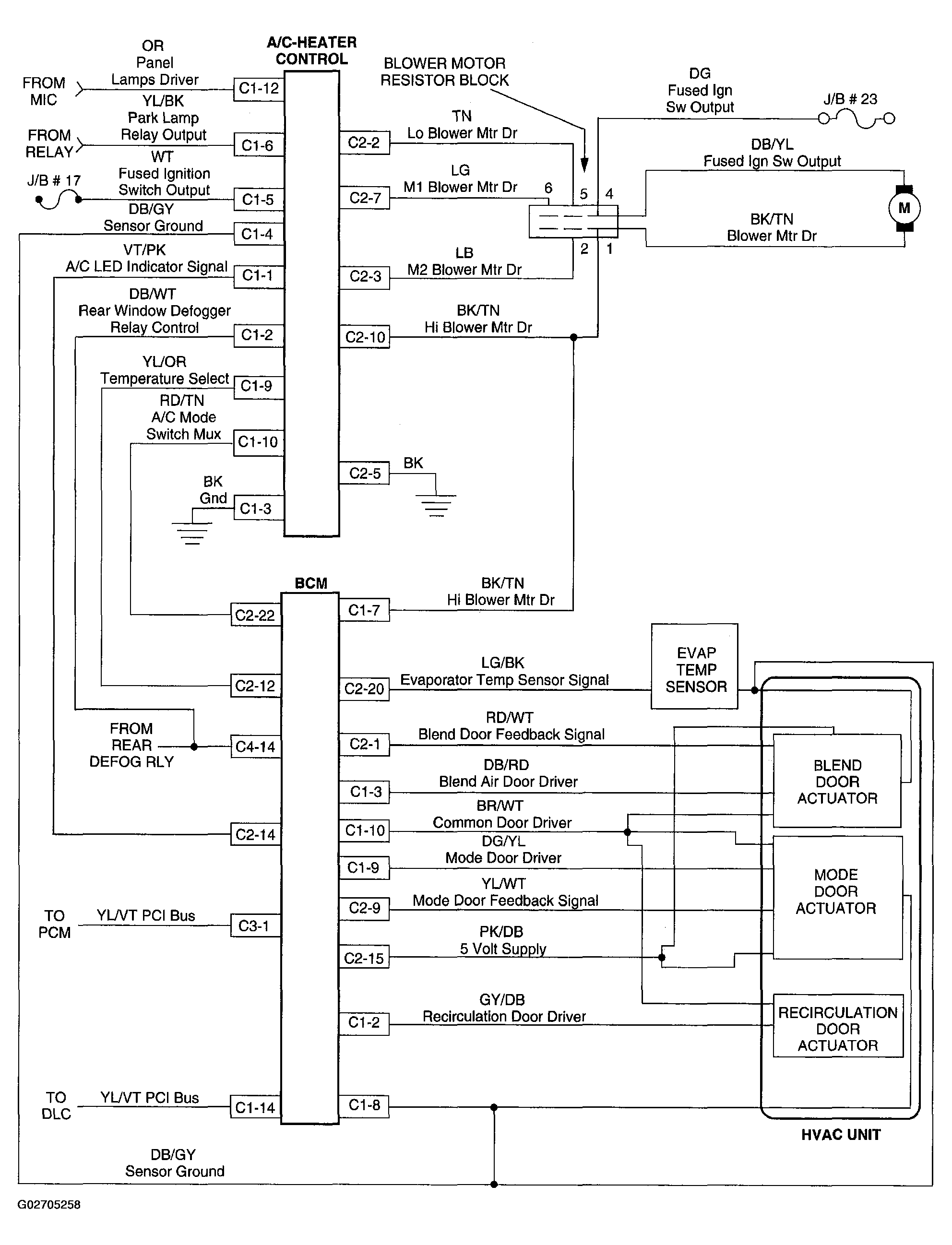

Fig 1: Schematic Diagrams - Climate Control - Manual Temperature Control
G02705258Courtesy of DAIMLERCHRYSLER CORP.
