Component Tests and General Diagnostics

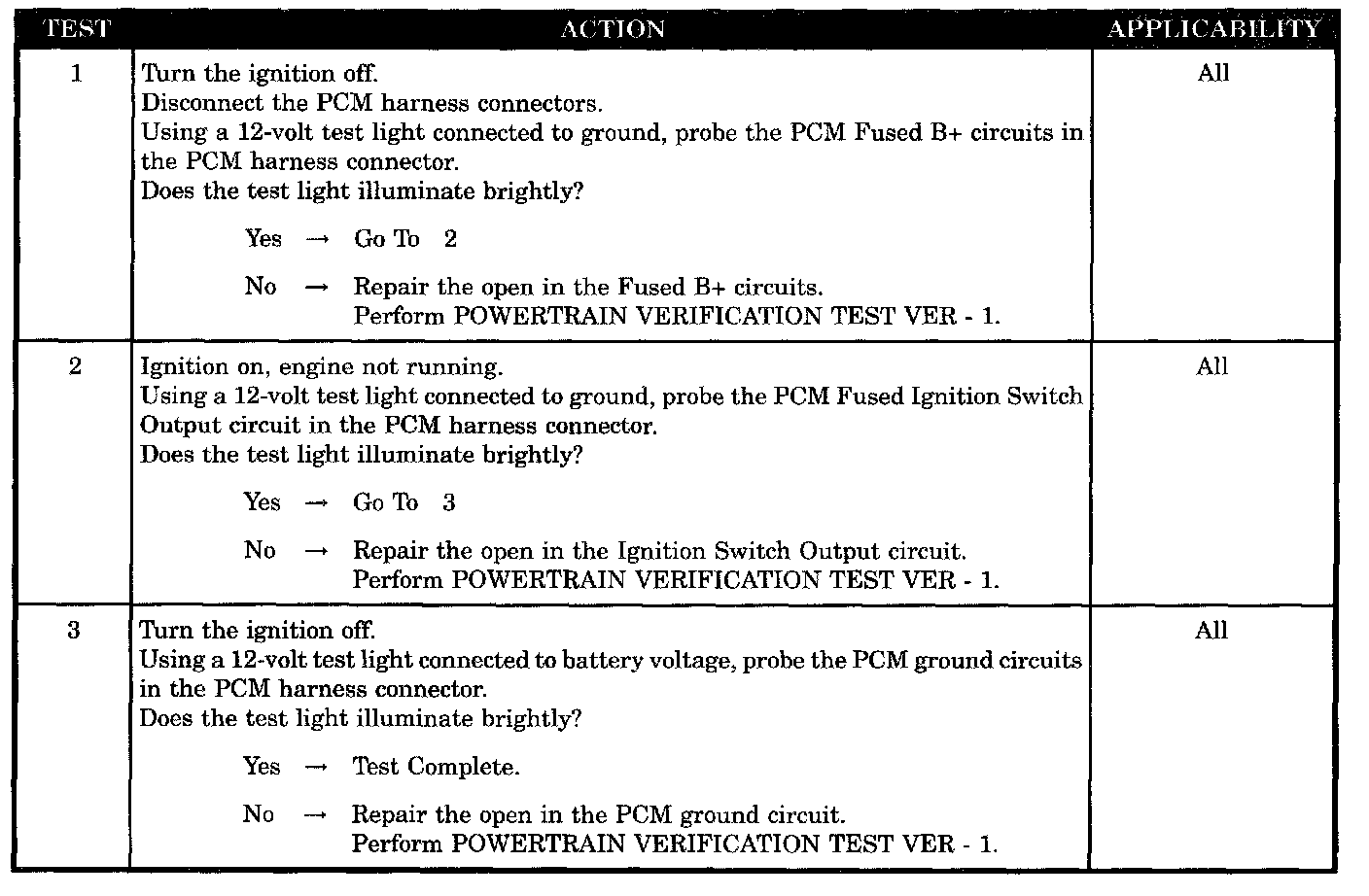

Test 1 - 3:






SYMPTOM
CHECKING THE PCM POWER AND GROUNDS

POSSIBLE CAUSES
- PCM fused B+ circuits
- PCM fused ignition switch output circuit
- PCM ground circuits
