No Response From Powertrain Control Module (CCD Only)

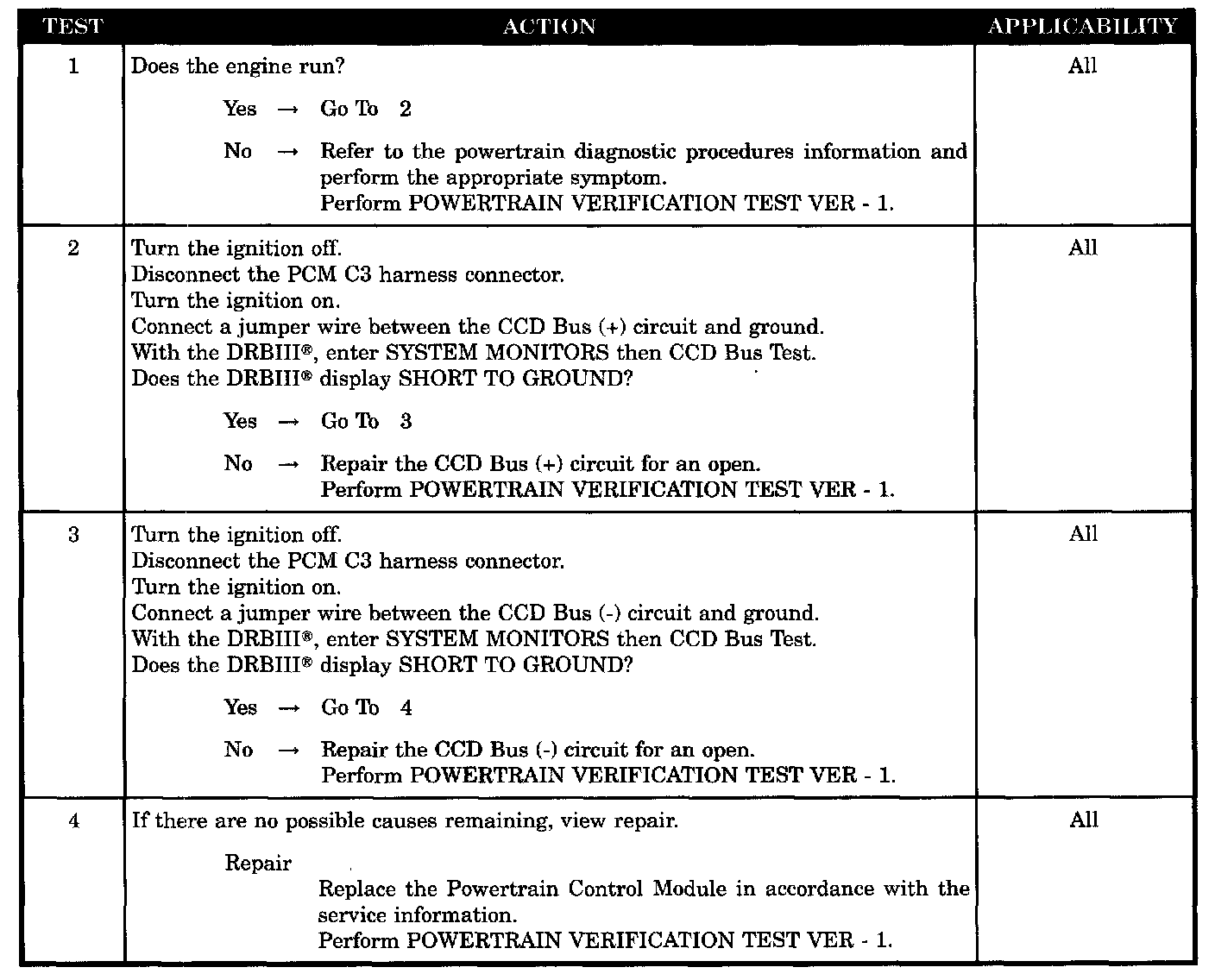

Test 1 - 4:






SYMPTOM
NO RESPONSE FROM POWERTRAIN CONTROL MODULE (CCD)

Possible Causes
- Does engine start
- CCD bus (+) open to PCM
- CCD bus (-) open to PCM
- Powertrain control module
