Transmission Position Sensor/Switch: Locations

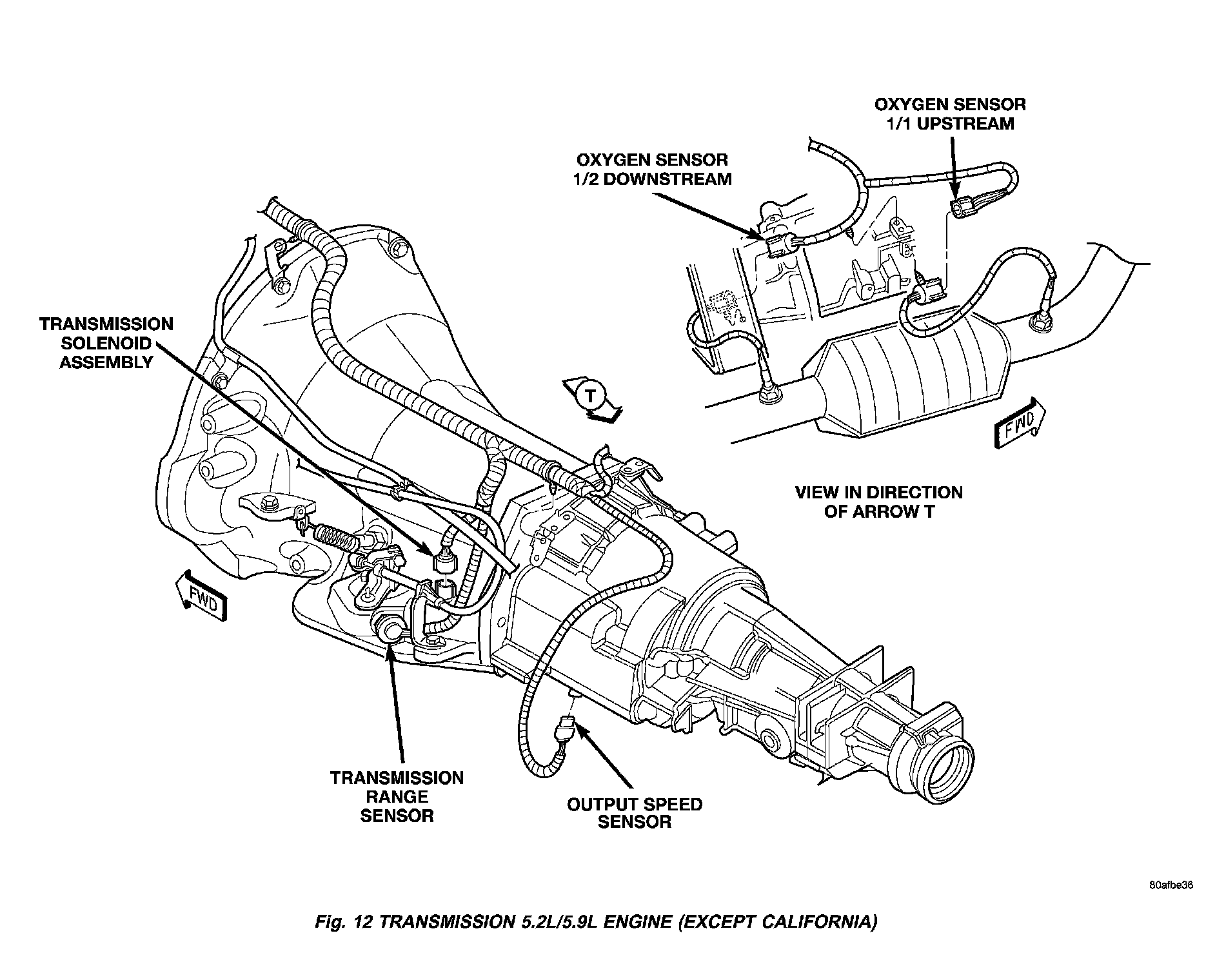

Fig. 12 Transmission 5.2/5.9L Engine (Federal):

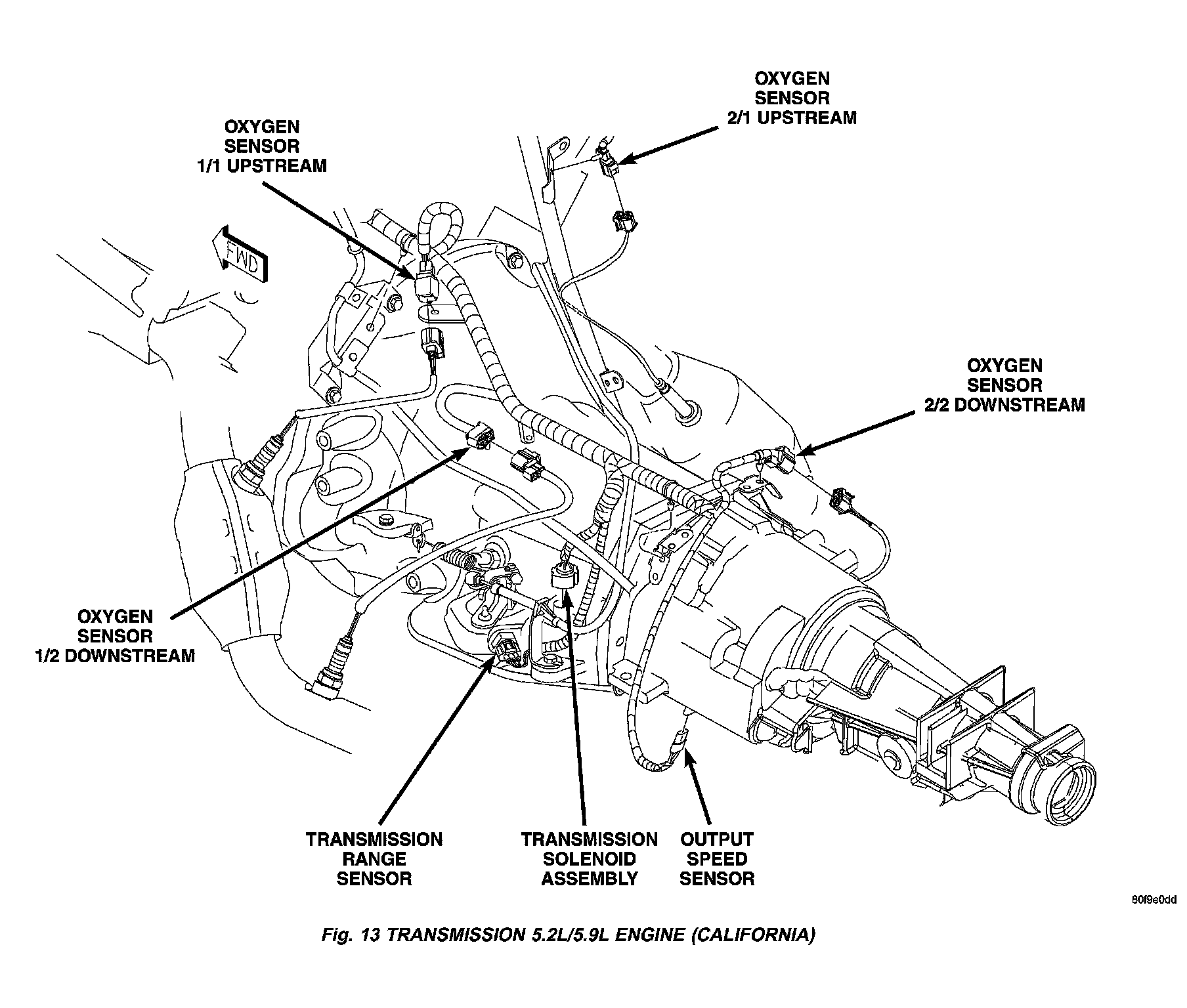

Fig. 13 Transmission 5.2/5.9L Engine (California):
