Component Locations

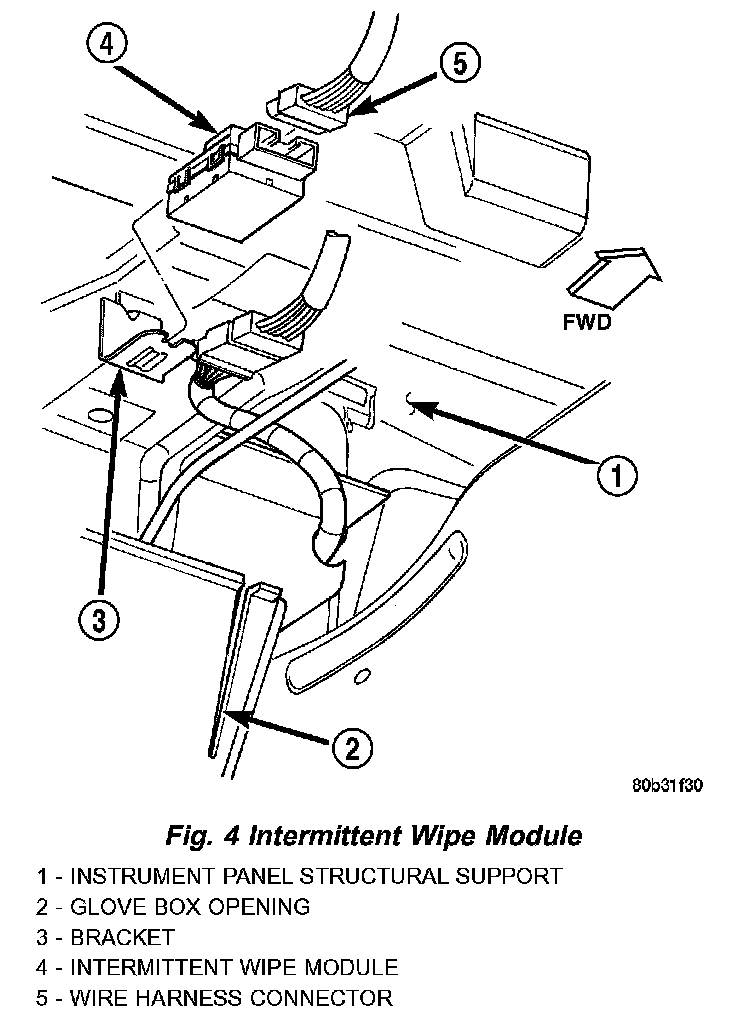

Fig. 4 Intermittent Wipe Module:

The intermittent wipe module is concealed under the instrument panel, where it is secured to the tab of a stamped steel blade-type mounting bracket that is welded to the underside of the instrument panel cross body structural support above the glove box opening.
