Installation - 1.6L

  1. Install the PCM to bracket.

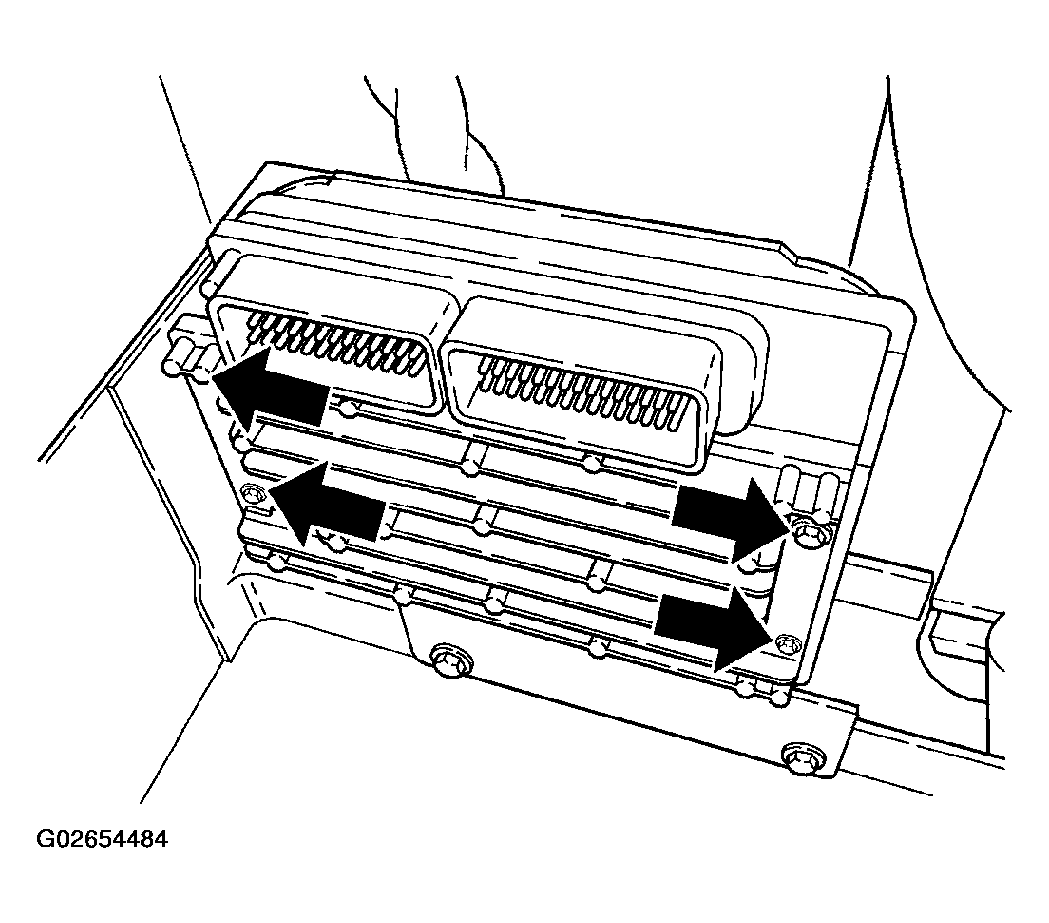

  2. Install the 4 bolts (Figure).
  3. Connect the Powertrain Control Module electrical connector.

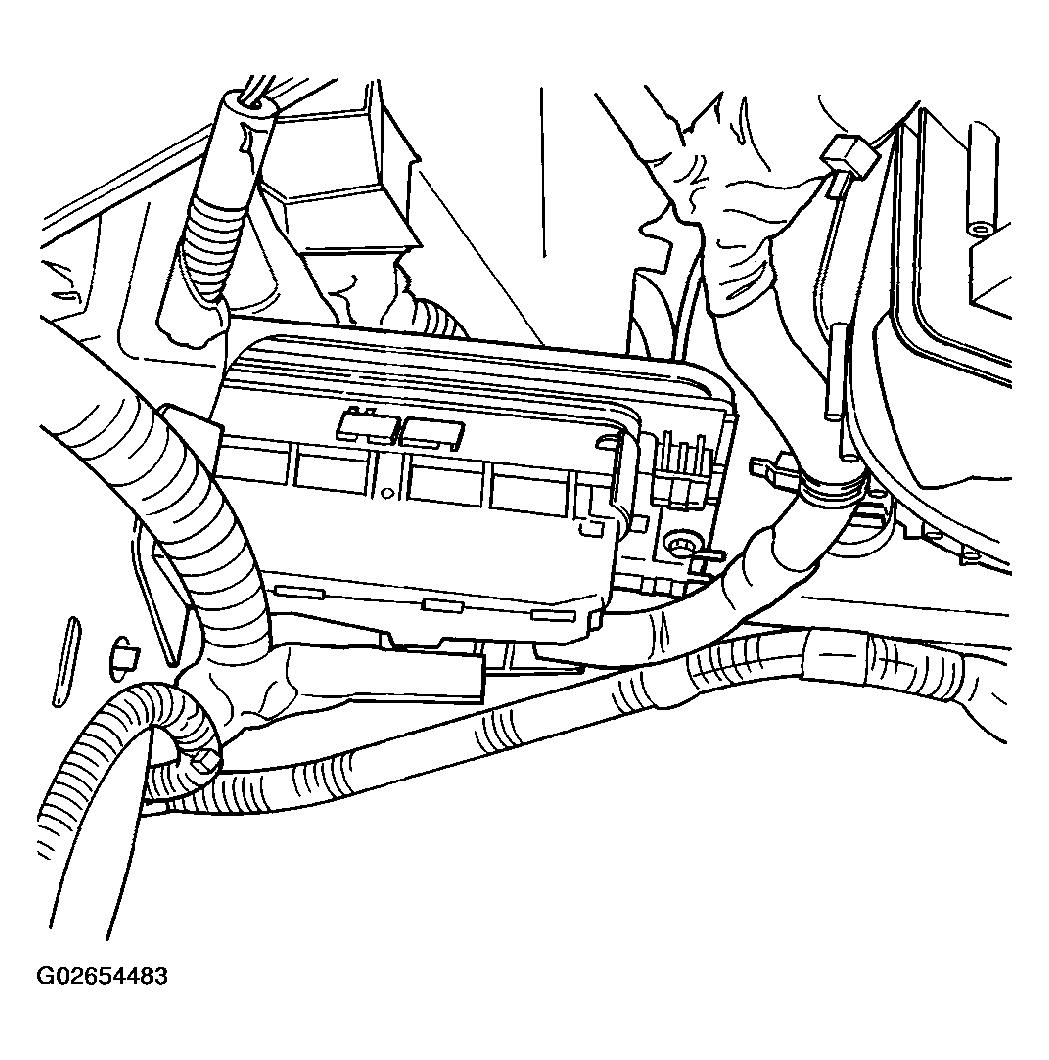

  4. Install the air cleaner box, refer to the air cleaner box installation (Figure).
  5. Connect the negative battery cable.
