Installation - 2.0L
- Install the assembly, PCM and bracket.
- Loose install the mounting nut.

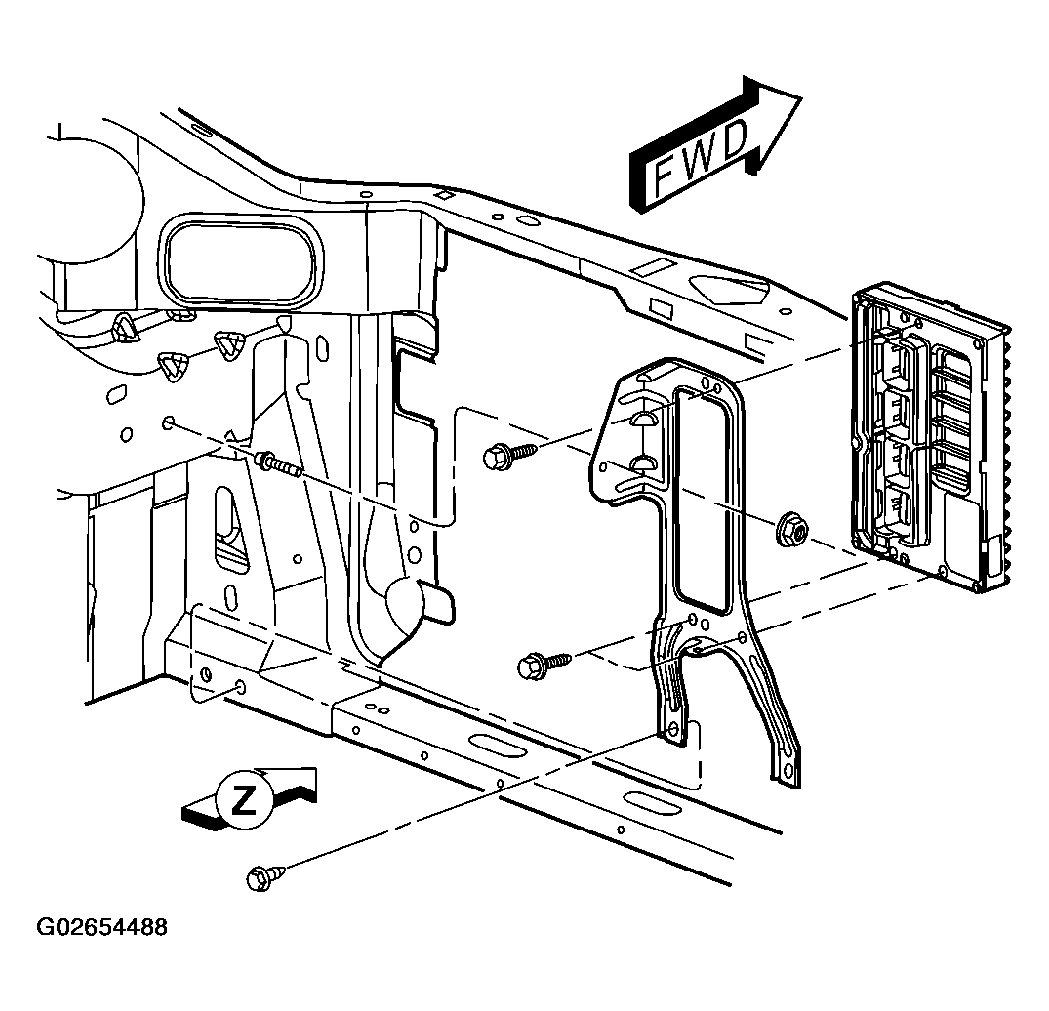

- Install the mounting bolts to the bottom of the PCM bracket (Figure).
- Tighten the mounting nut, tighten to

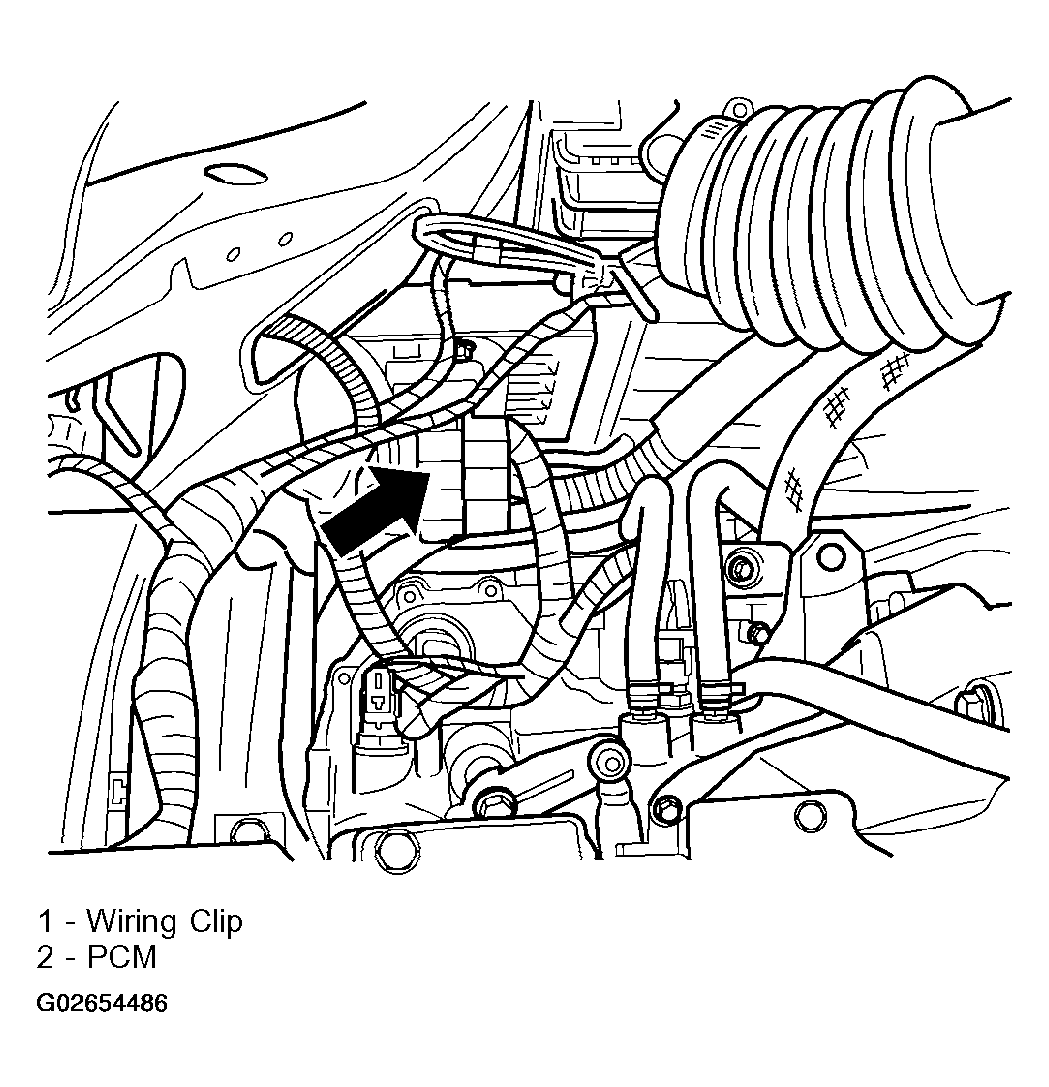

- Install the wiring harness clip (Figure) to the PCM bracket.

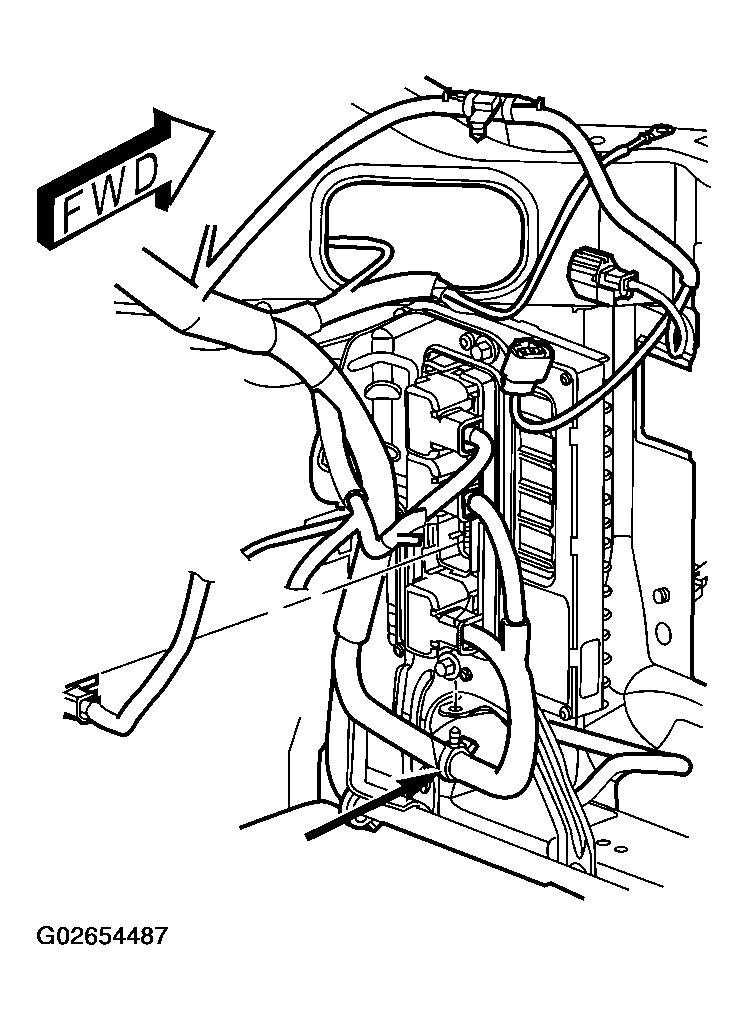

- Connect the electrical connectors and lock (Figure) at the PCM.
- Install the air cleaner box (Figure).
- Connect the negative battery cable.
NOTE:
The electrical connector for the PCM are COLOR Coded.
