Powertrain Control Module (Next Generation Controller) Connector End View (C1)

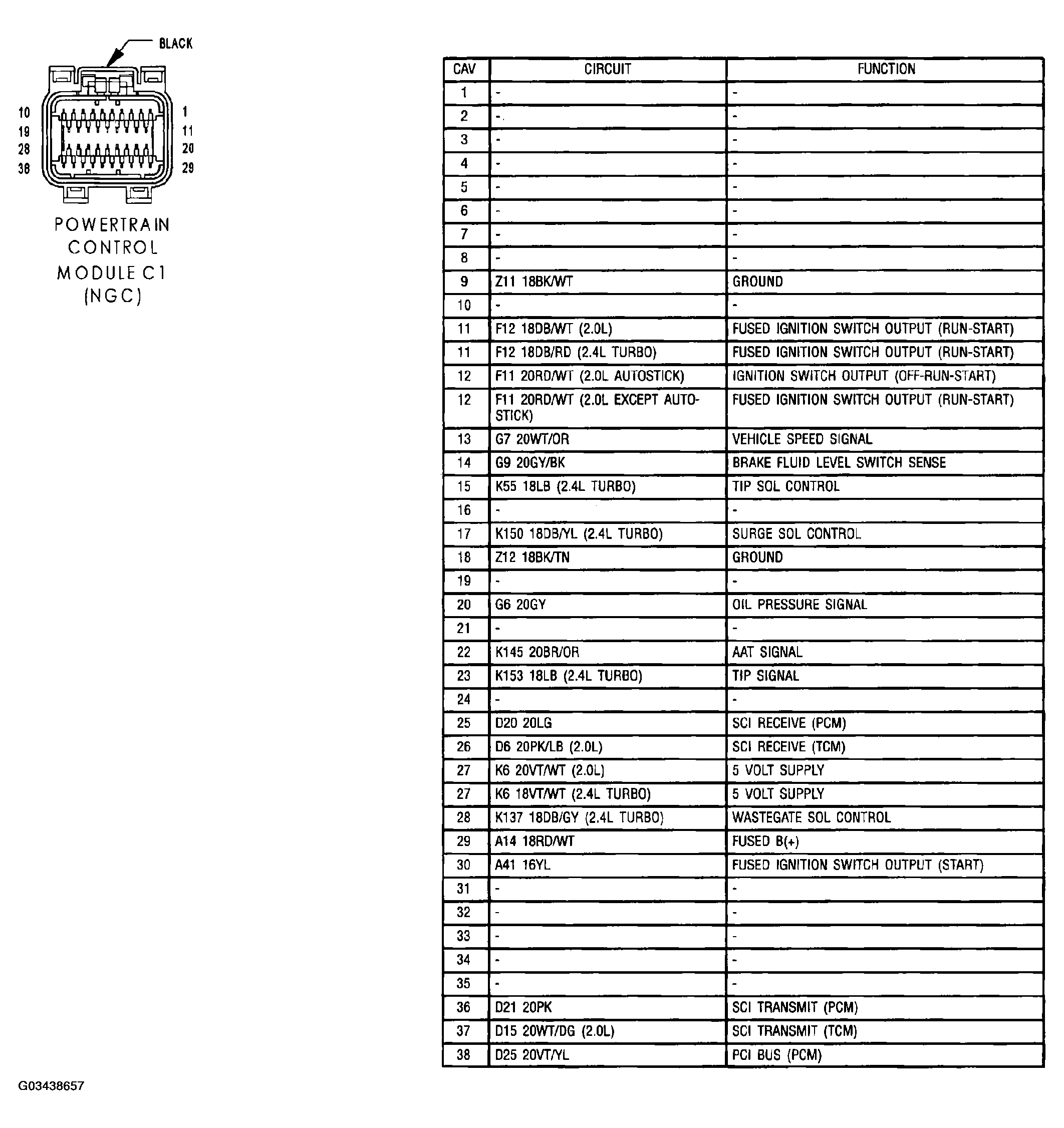

Fig 1: Powertrain Control Module (Next Generation Controller) Connector End View (C1)
G03438657Courtesy of DAIMLERCHRYSLER CORP.
