Powertrain Control Module (Next Generation Controller) Connector End View (C3)

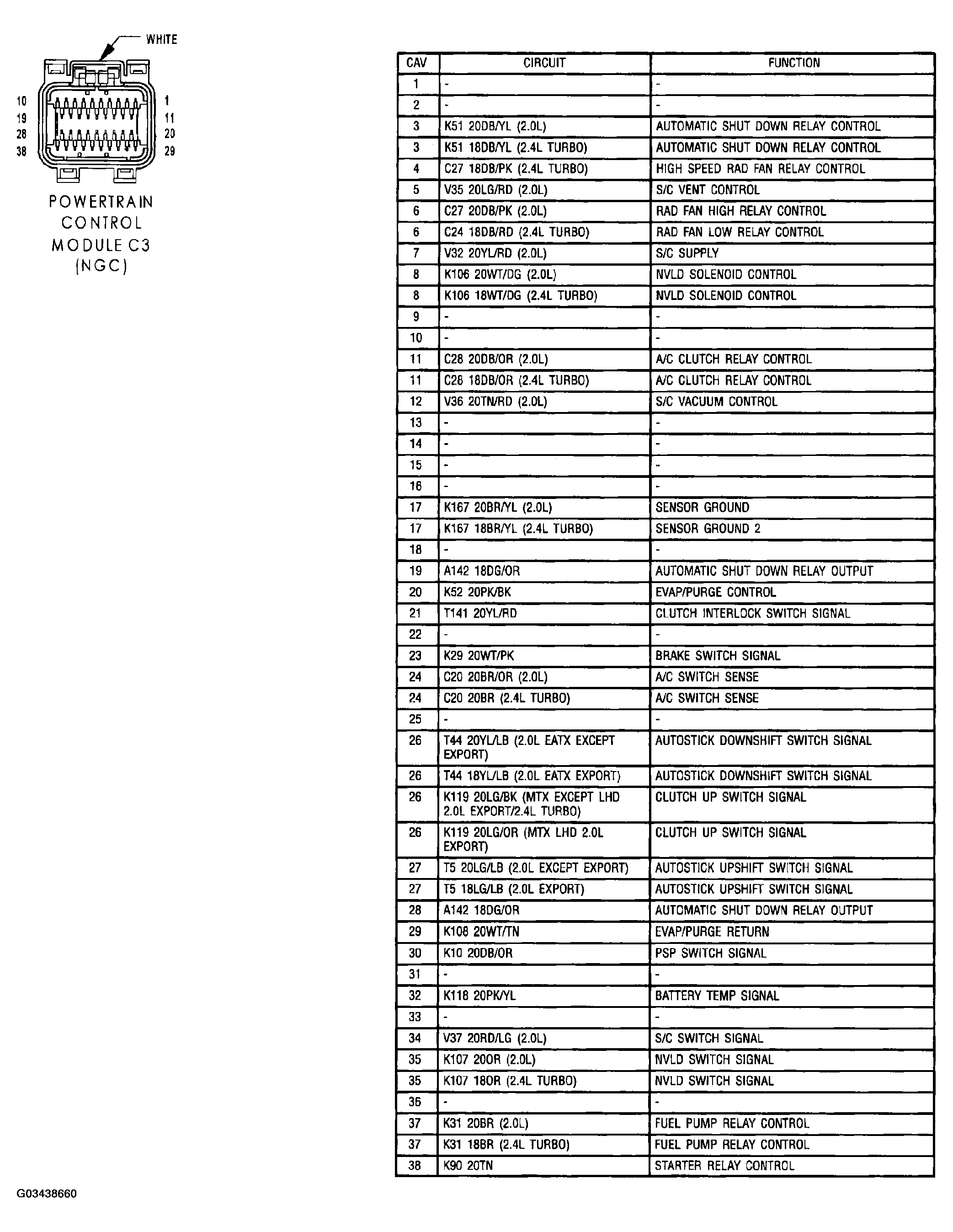

Fig 1: Powertrain Control Module (Next Generation Controller) Connector End View (C3)
G03438660Courtesy of DAIMLERCHRYSLER CORP.
